MakerFocus 1.5inch I2C OLED Display Module for Arduino/Raspberry/Jetson Nano/STM32
- $29.98
$34.99- $29.98
- Unit price
- per
Subtotal:
$29.98
Couldn't load pickup availability
Description
xDescription:

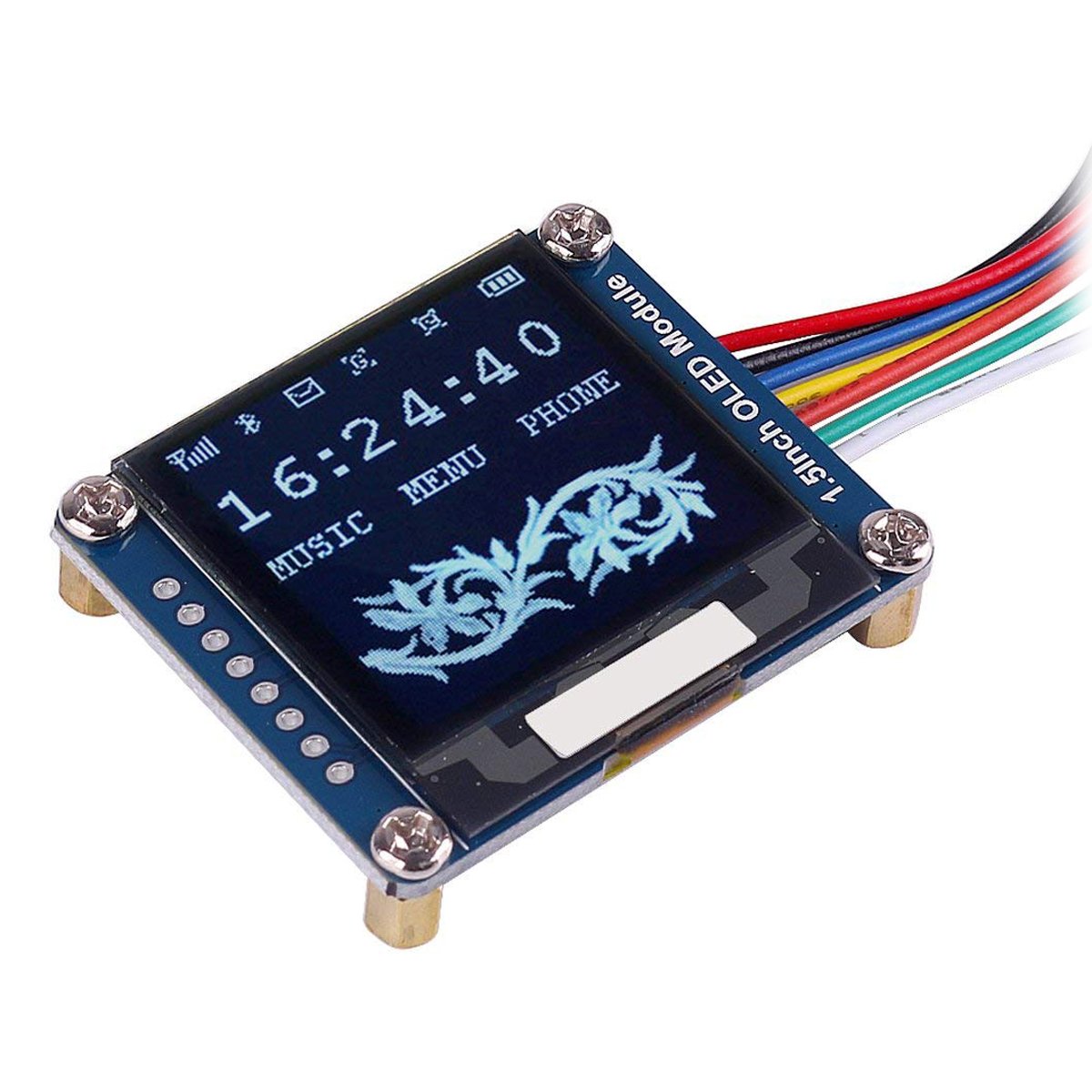

This is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit grey level, with embedded controller, communicating via SPI or I2C interface.
You Can Download the CAD File Here.
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32): https://www.waveshare.com/wiki/1.5inch_OLED_Module; Library github: https://github.com/olikraus/u8g2/.

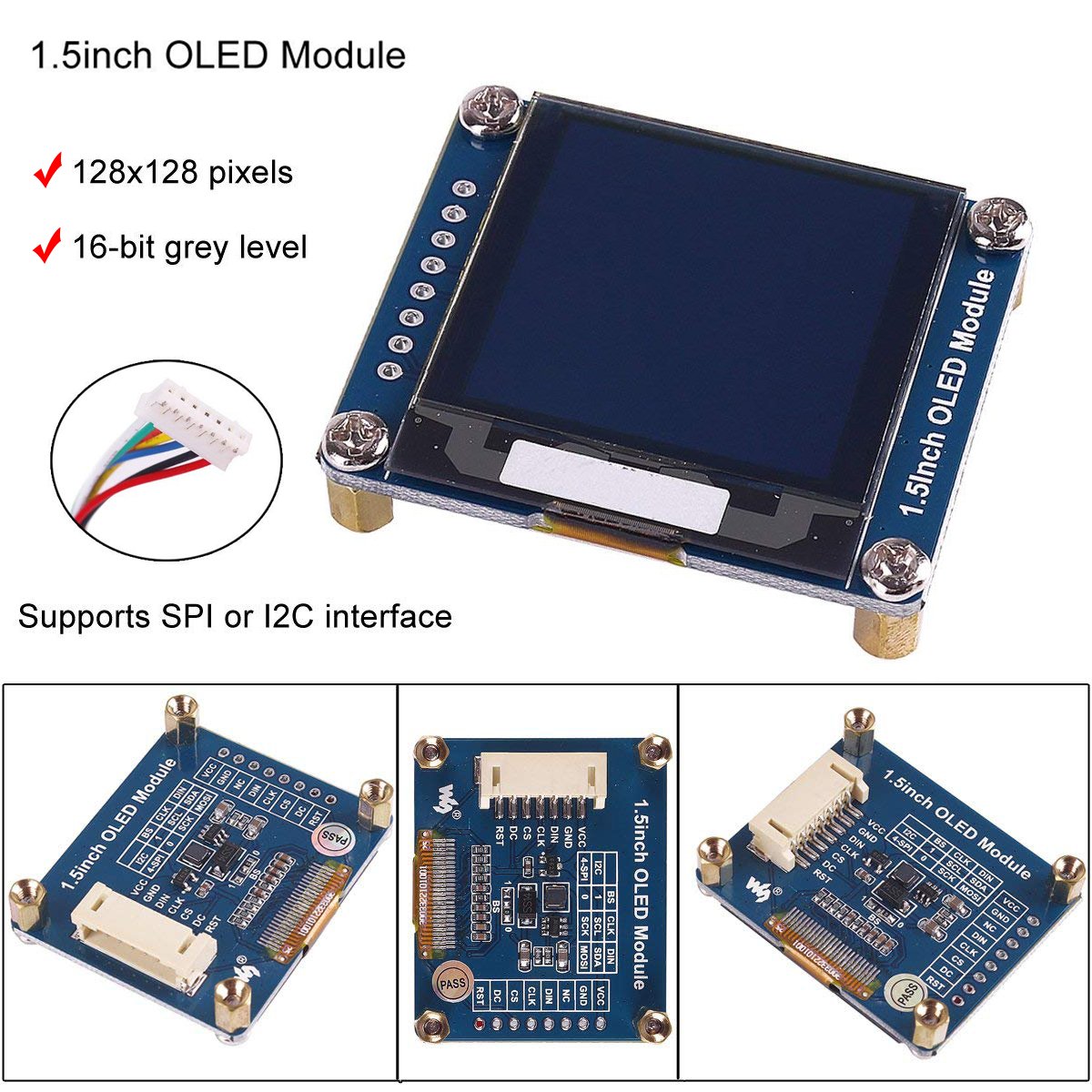

High resolution - 128x128 high resolution, clearer display.
16-bit grey level, better display effect - Supports for 16-bit grey level display which makes the sense of depth of the picture more stronger and more realistic

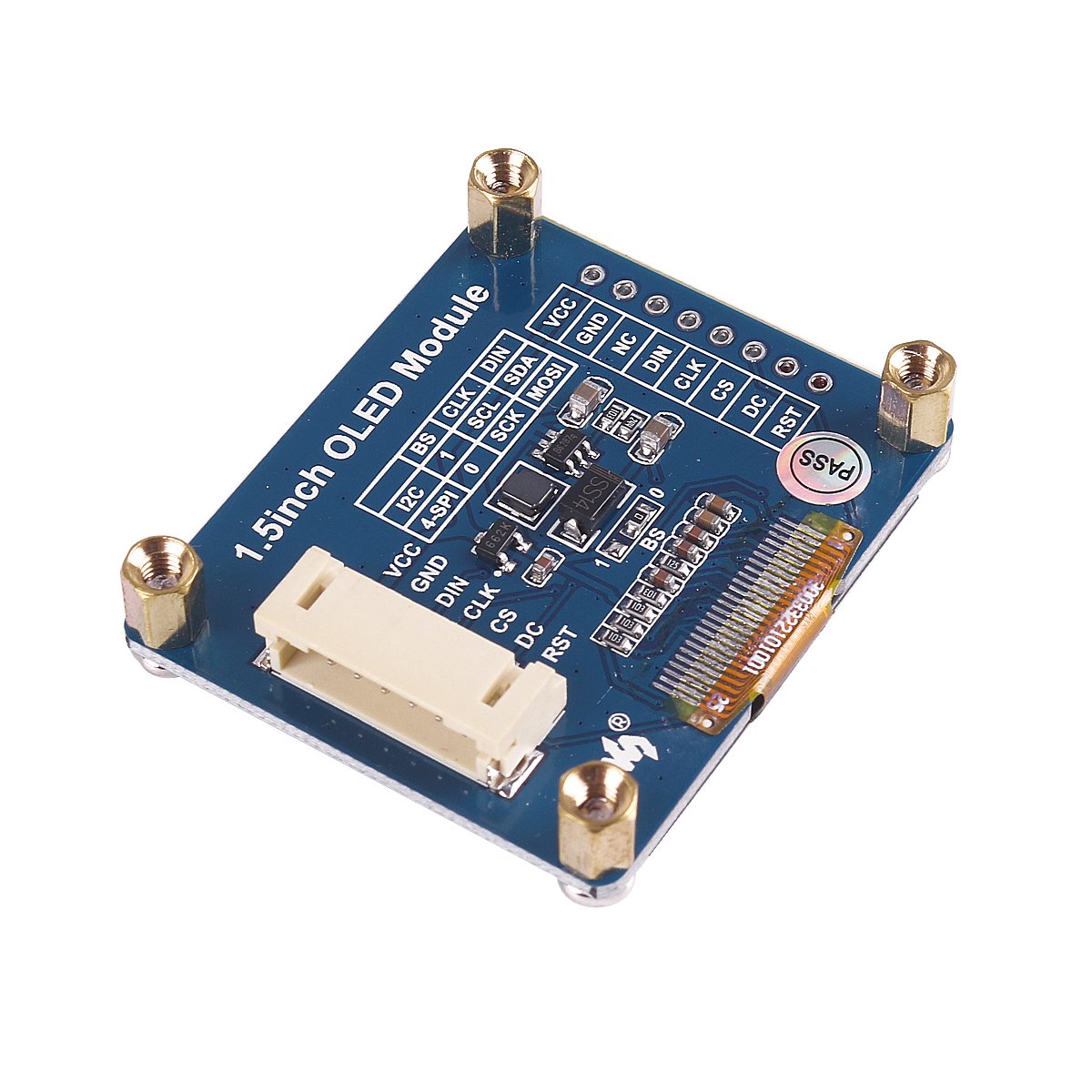

Support Interface: SPI / I2C - Support SPI and I2C interface, so that you can choose the communication way through the resistance.
Display color: White; Package Including: 1 * 1.5 inch OLED module, 1 * PH2.0 7PIN cable
Features:
128x128 high resolution, clearer display.
Supports for 16-bit grey level display which makes the sense of depth of the picture more stronger and more realistic
Support SPI and I2C interface, so that you can choose the communication way through the resistance.
Development resources and manual (examples for Raspberry Pi/Arduino/STM32): https://www.waveshare.com/wiki/1.5inch_OLED_Module
Specifications:
Driver chip: SSD1327
Support Interface: SPI / I2C
Display color: White
Grey level: 16-bit
High resolution: 128 × 128 (most other competitive products are typically 128x64)

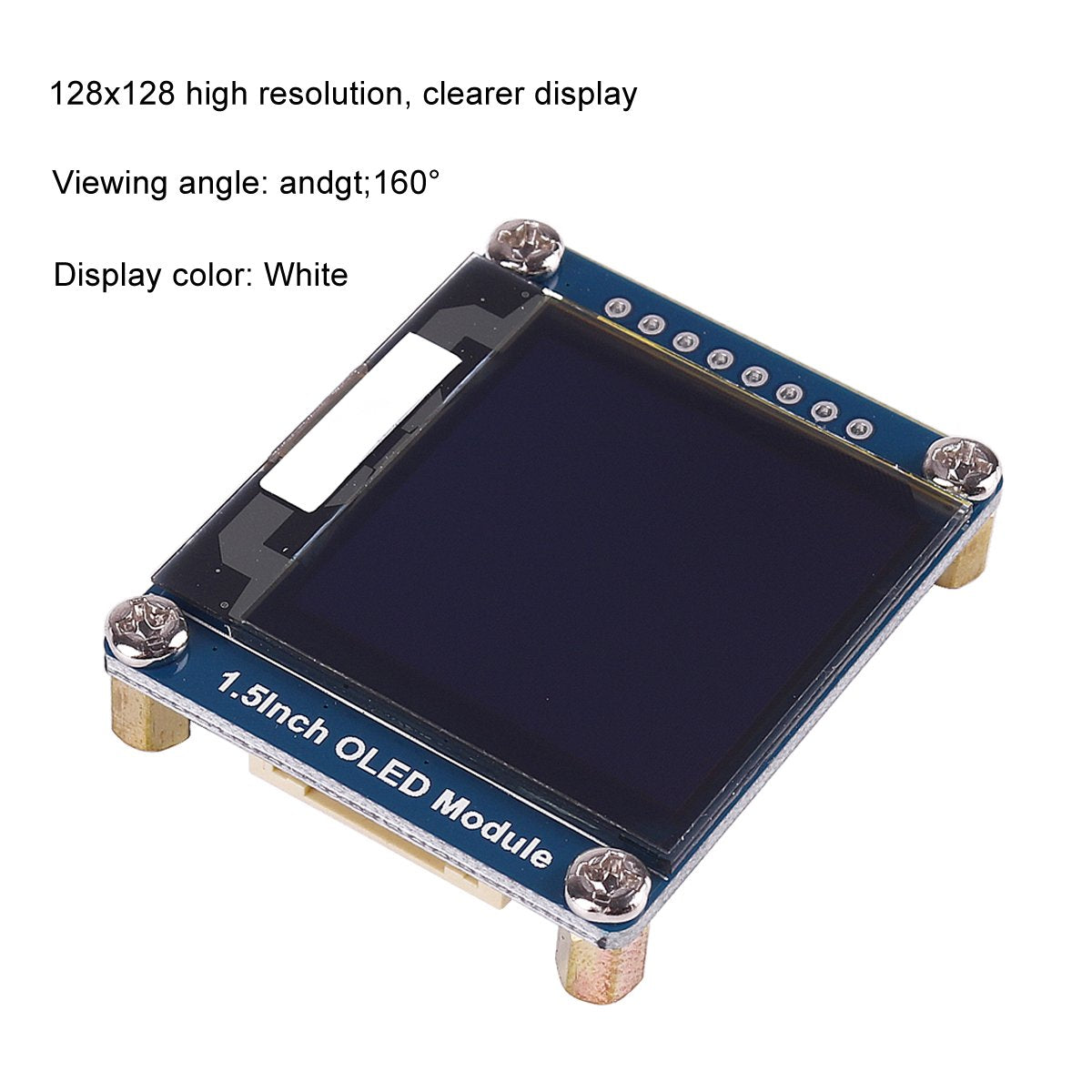

Viewing angle: >160°
Operating voltage: 3.3V / 5V

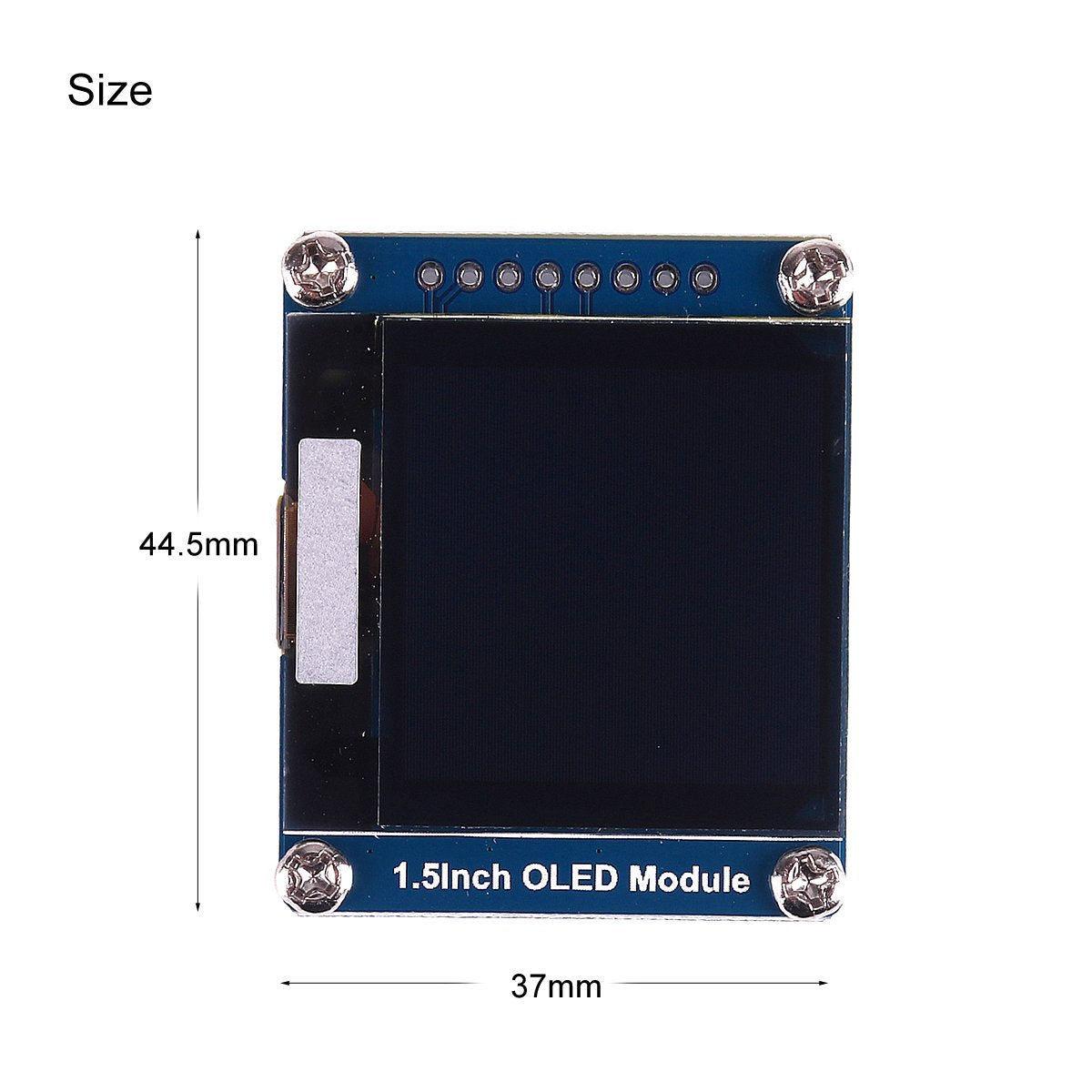

Module Size: 44.5 x 37 (mm)

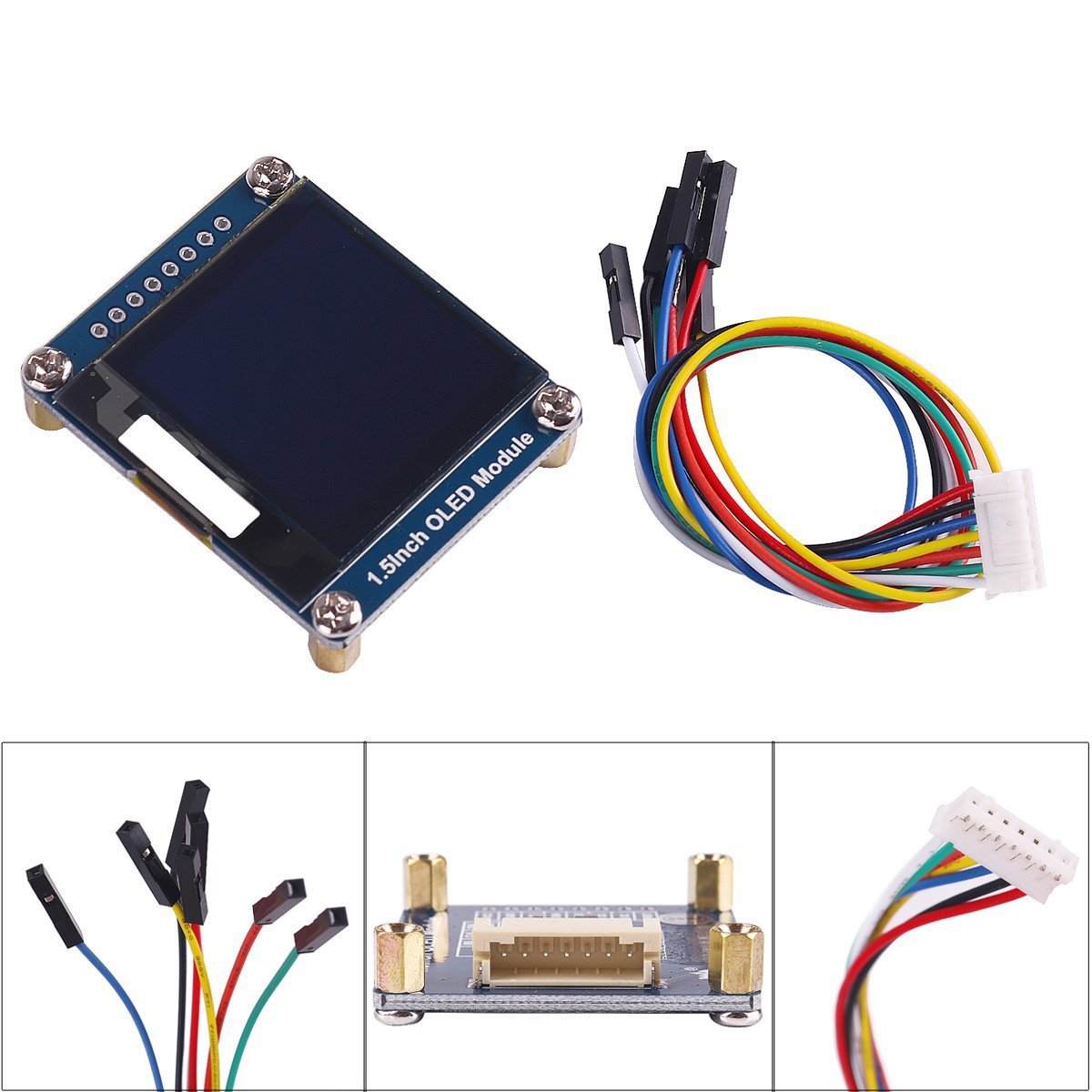

Packing List:
1 * 1.5 inch OLED module

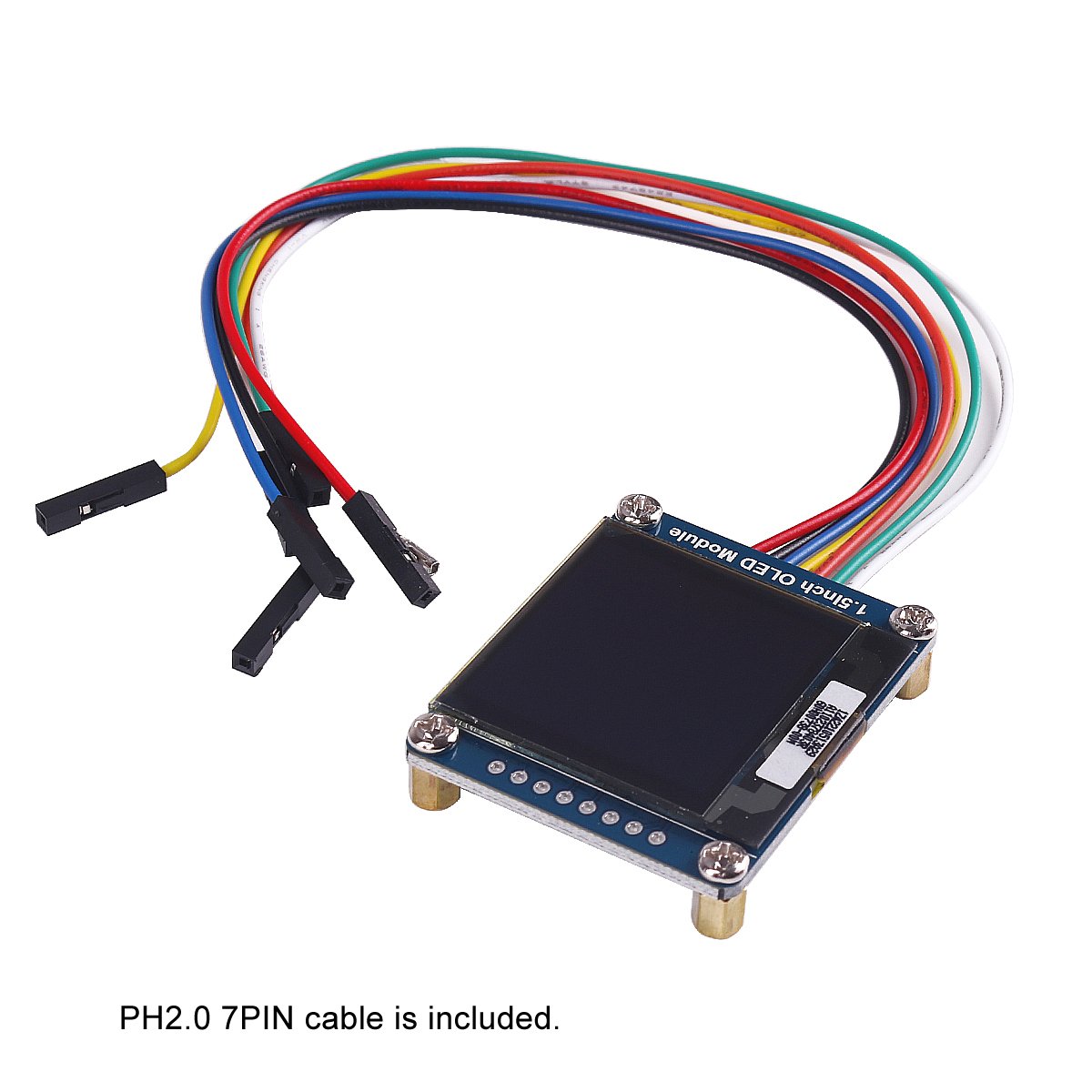

1 * PH2.0 7PIN cable
