Description:

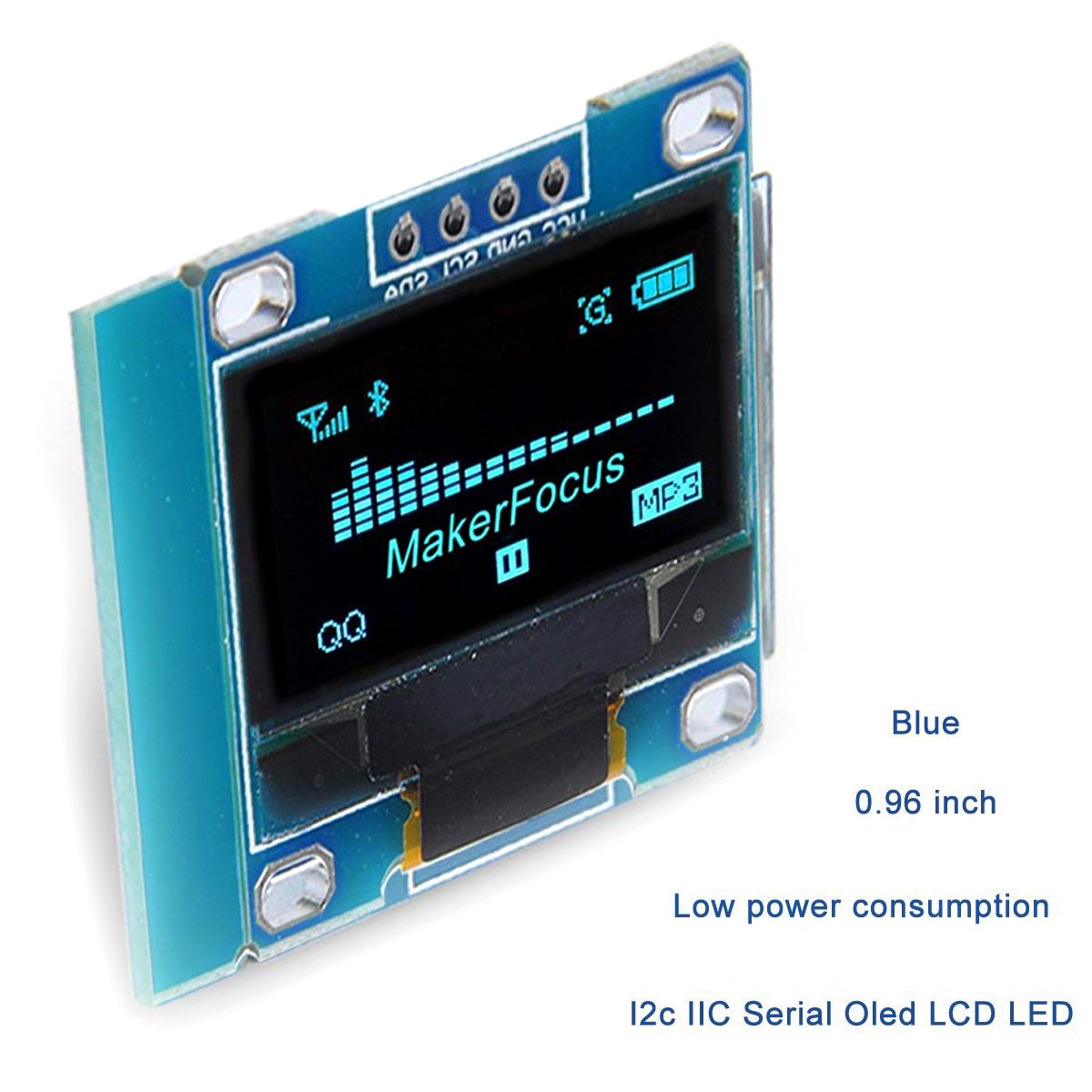

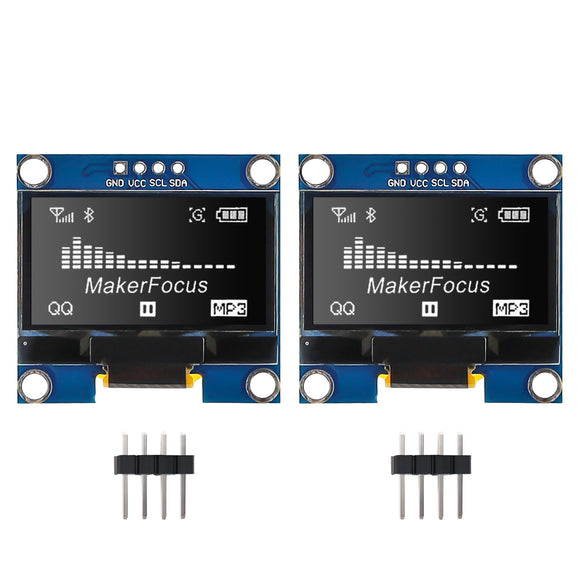

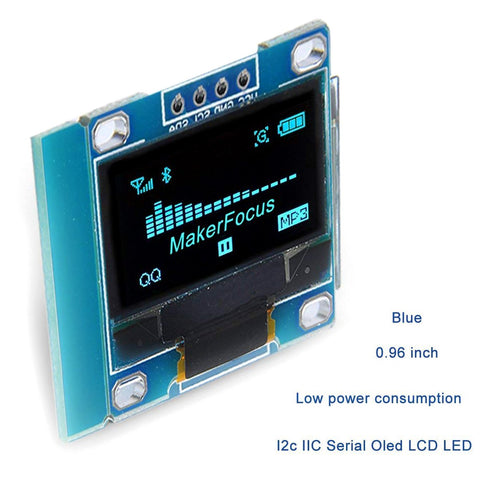

I2c IIC Serial Oled LCD LED Blue Display Module:
Size: 0.96 inch
Resolution: 128*64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series,
STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight

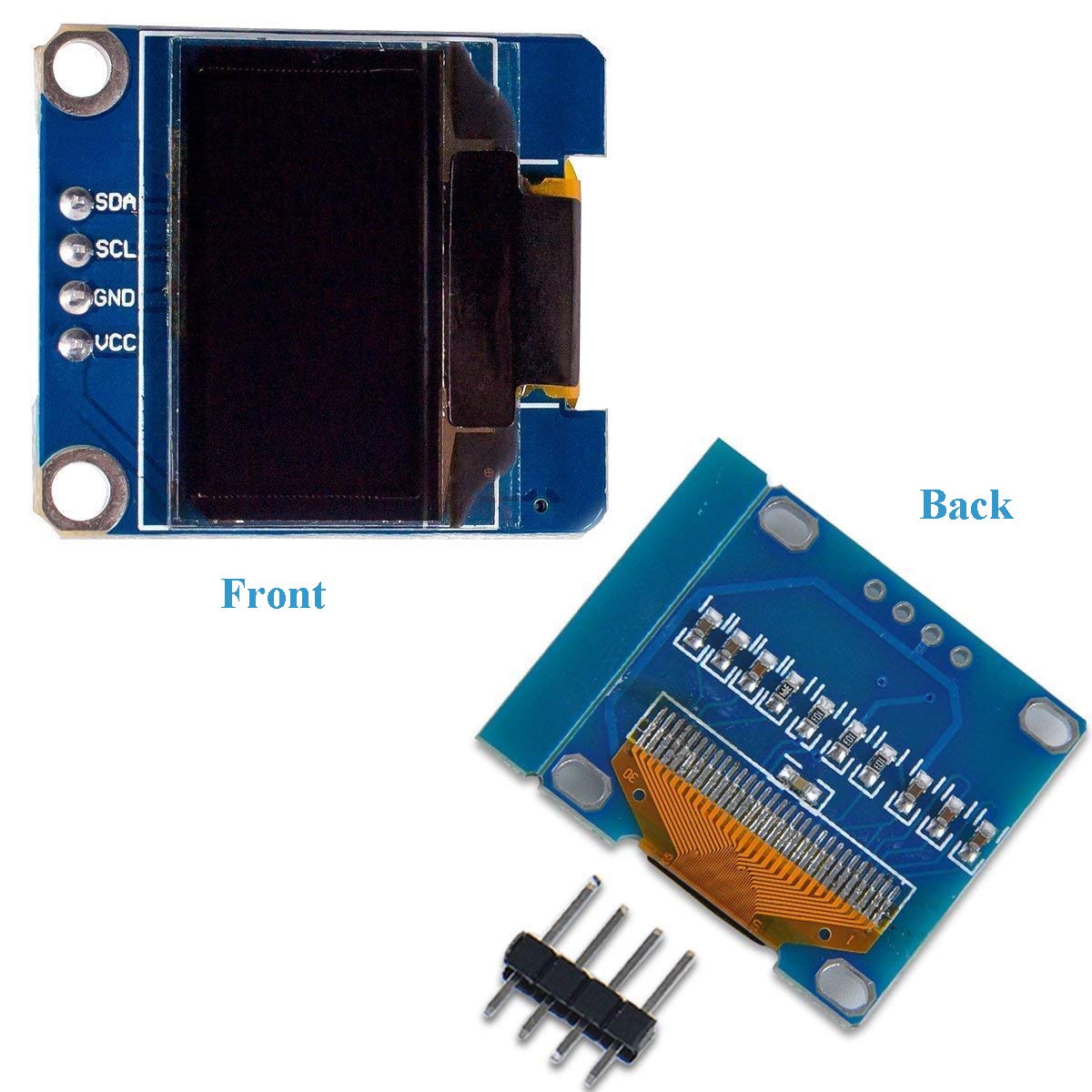

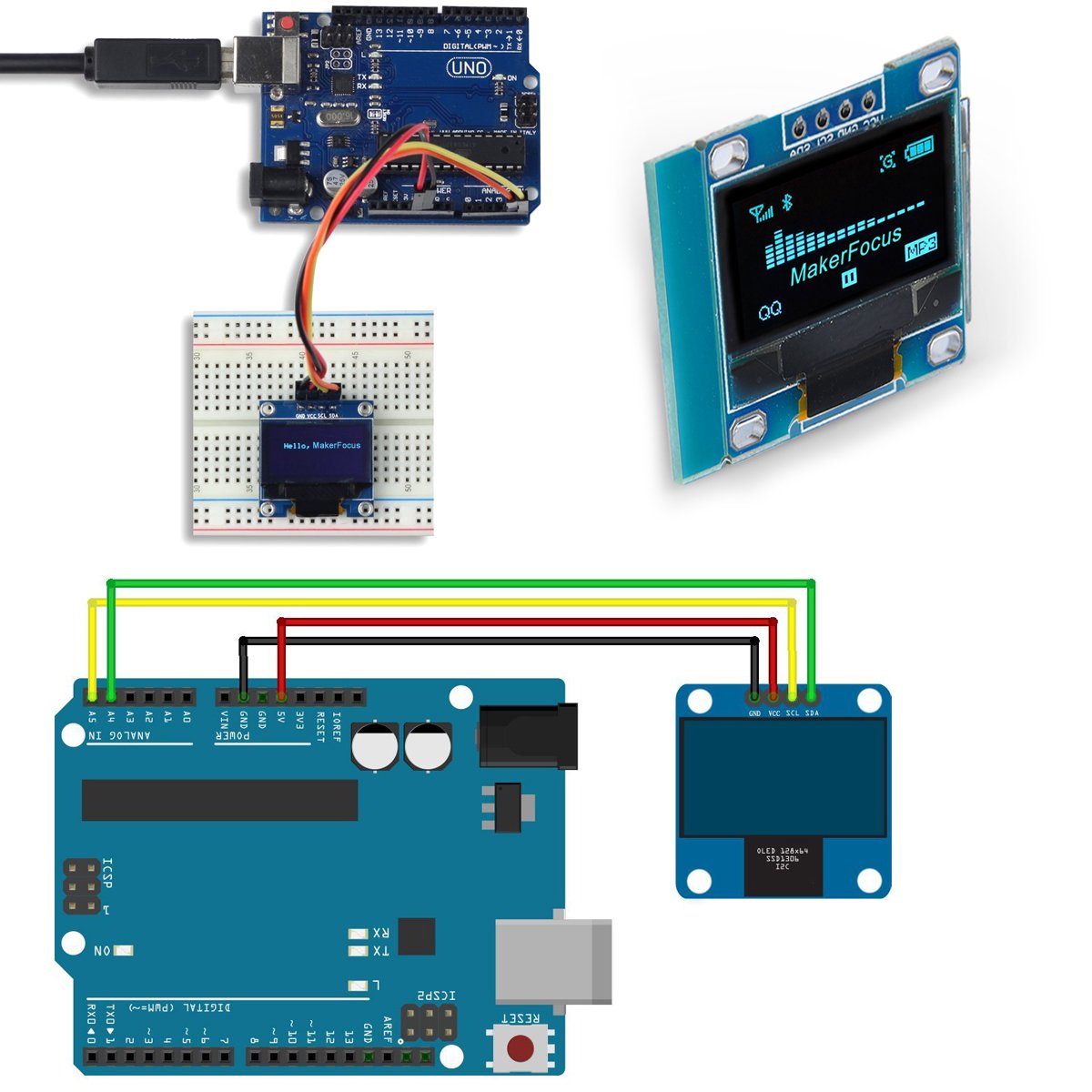

Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data

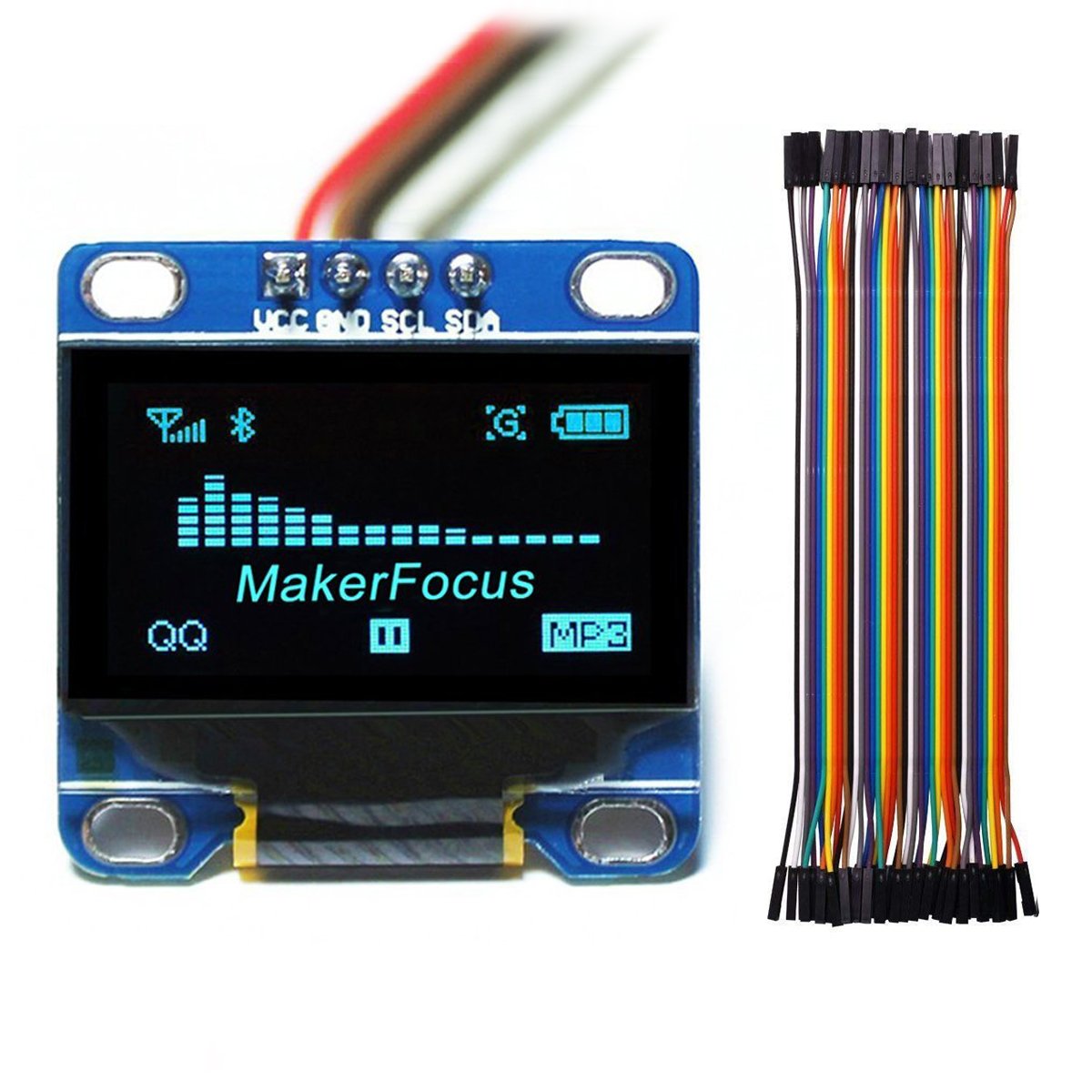

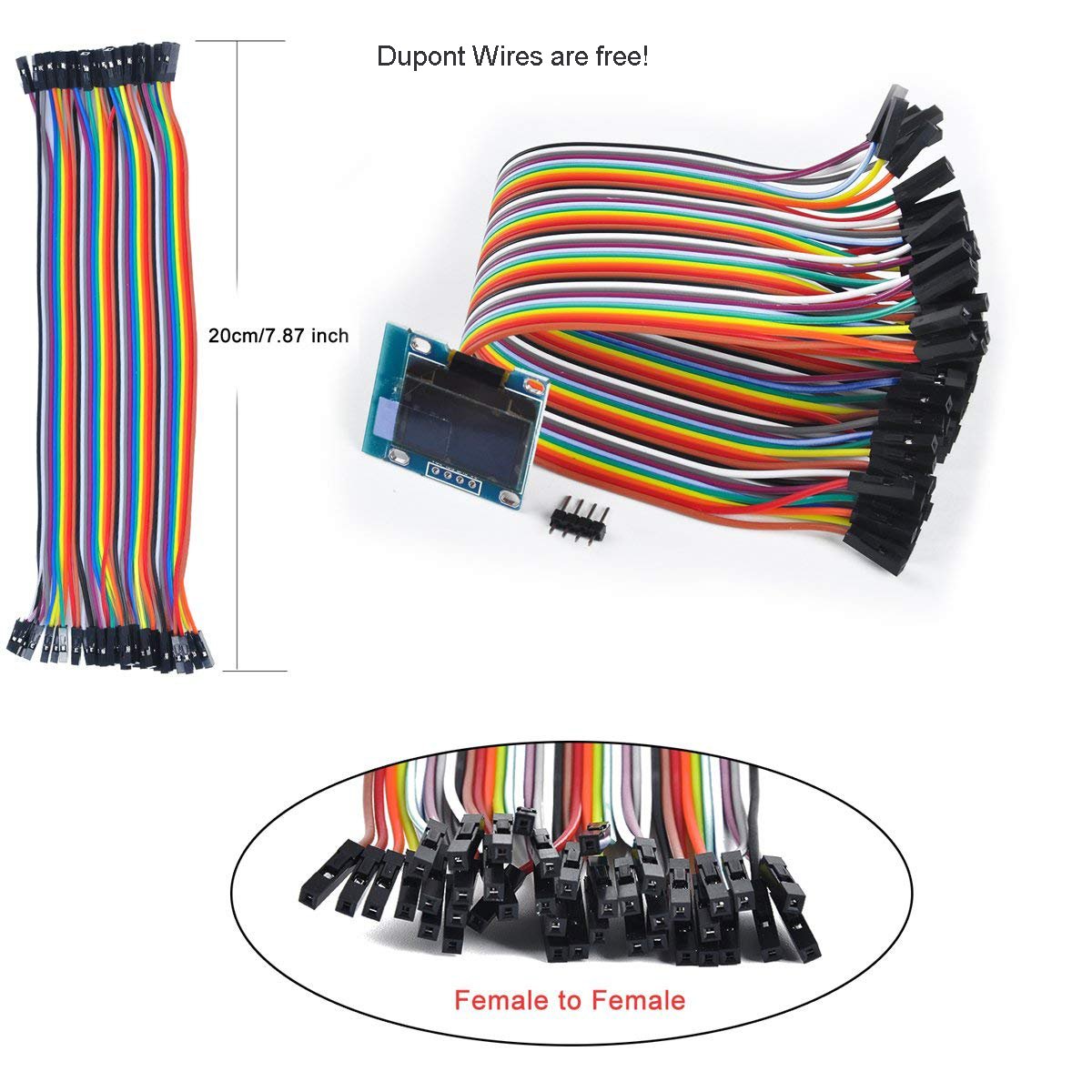

Dupont Wire:
Quantity: 40pcs
Length:
20cm/7.87 inch
2.54mm 1p-1p pin head.
Compatible with 0.1 mil spacing pin headers.
Compatible with 2.54mm spacing pin header.
Can be used for PCB project, pc motherboard.
Packing List:
1 * I2c IIC Serial Oled Blue Display Module
40 * Dupont Wires 20CM Female to Female
