MakerFocus USB 3.0 3.7-30V 0-4A Voltage Tester with Color Display
Technical Parameters:
Model: AT34
Measuring voltage: 3.7-30V
Measuring current: 0-4A
Capacity measurement range: 0-99999mAh
Energy measurement range: 0-99999mAh-999.99Wh
Load impedance measurement range: 1Ω-9999.9Ω
Temperature measurement range: 0°C-80°C / 32°F-176°F
Operating temperature range: 0°C-45°C / 32°F-113°F
Product size: 64mmx22mmx12mm
Display screen: 0.96 inch color LCD
Voltage measurement resolution: 0.01V
Current measurement resolution: 0.001A
Voltage measurement accuracy: ± (0.8% + 4 words) @ 25 ° C
Current measurement accuracy: ± (1% + 4 words) @ 25 ° C
Power measurement range: 0-120W
Temperature measurement error: ±3°C / ±6°F
Refresh rate: 2Hz
Model: AT34
Measuring voltage: 3.7-30V
Measuring current: 0-4A
Capacity measurement range: 0-99999mAh
Energy measurement range: 0-99999mAh-999.99Wh
Load impedance measurement range: 1Ω-9999.9Ω
Temperature measurement range: 0°C-80°C / 32°F-176°F
Operating temperature range: 0°C-45°C / 32°F-113°F
Product size: 64mmx22mmx12mm
Display screen: 0.96 inch color LCD
Voltage measurement resolution: 0.01V
Current measurement resolution: 0.001A
Voltage measurement accuracy: ± (0.8% + 4 words) @ 25 ° C
Current measurement accuracy: ± (1% + 4 words) @ 25 ° C
Power measurement range: 0-120W
Temperature measurement error: ±3°C / ±6°F
Refresh rate: 2Hz
Applications:

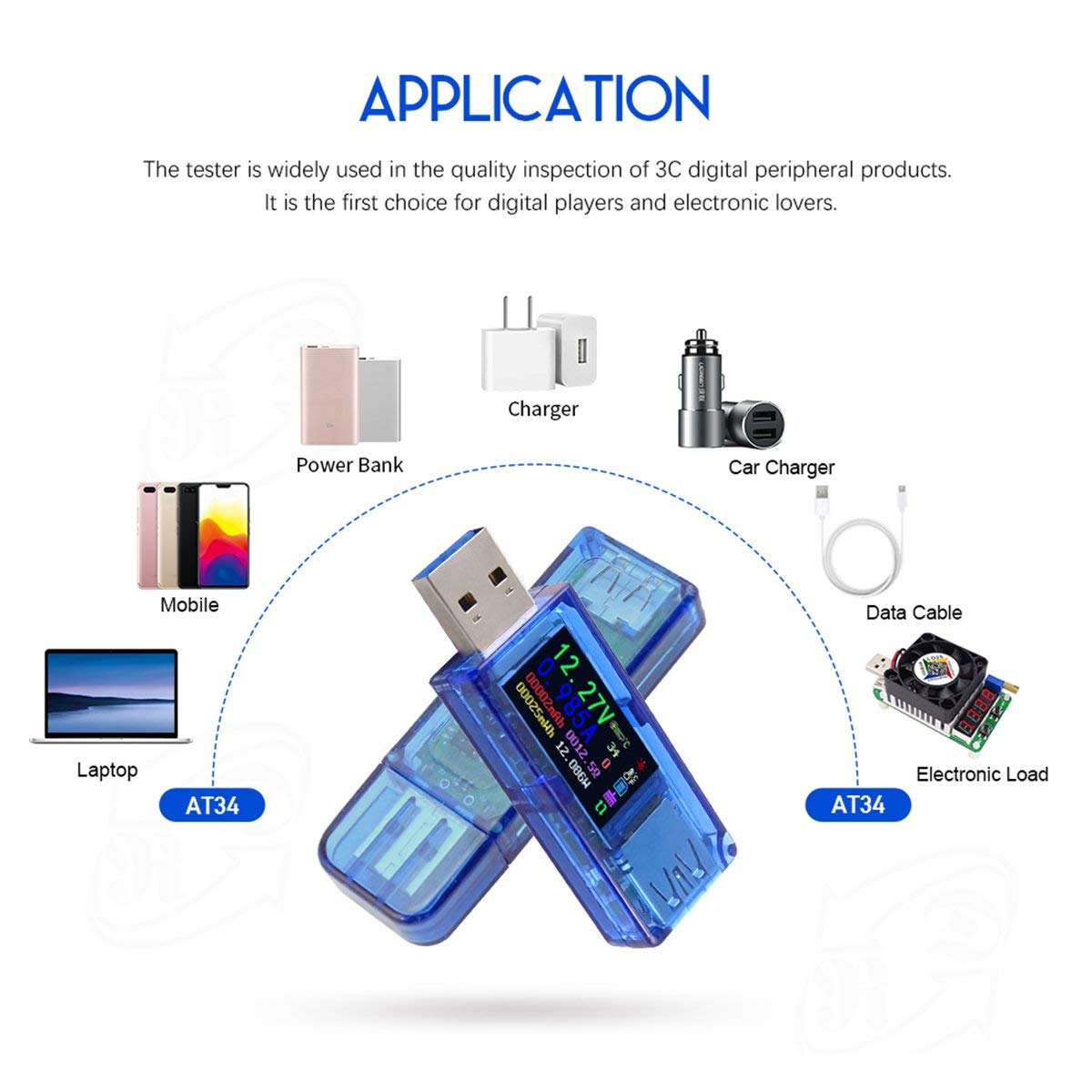

Testers are widely used in the quality inspection of 3C digital peripheral products, and are the first choice for digital gamers and electronic enthusiasts.
Real-time detection of the state of charge of the appliance, voltage, current, power and other indicators at a glance; Measuring voltage: 3.7V-30V; measuring current: 0-4A;

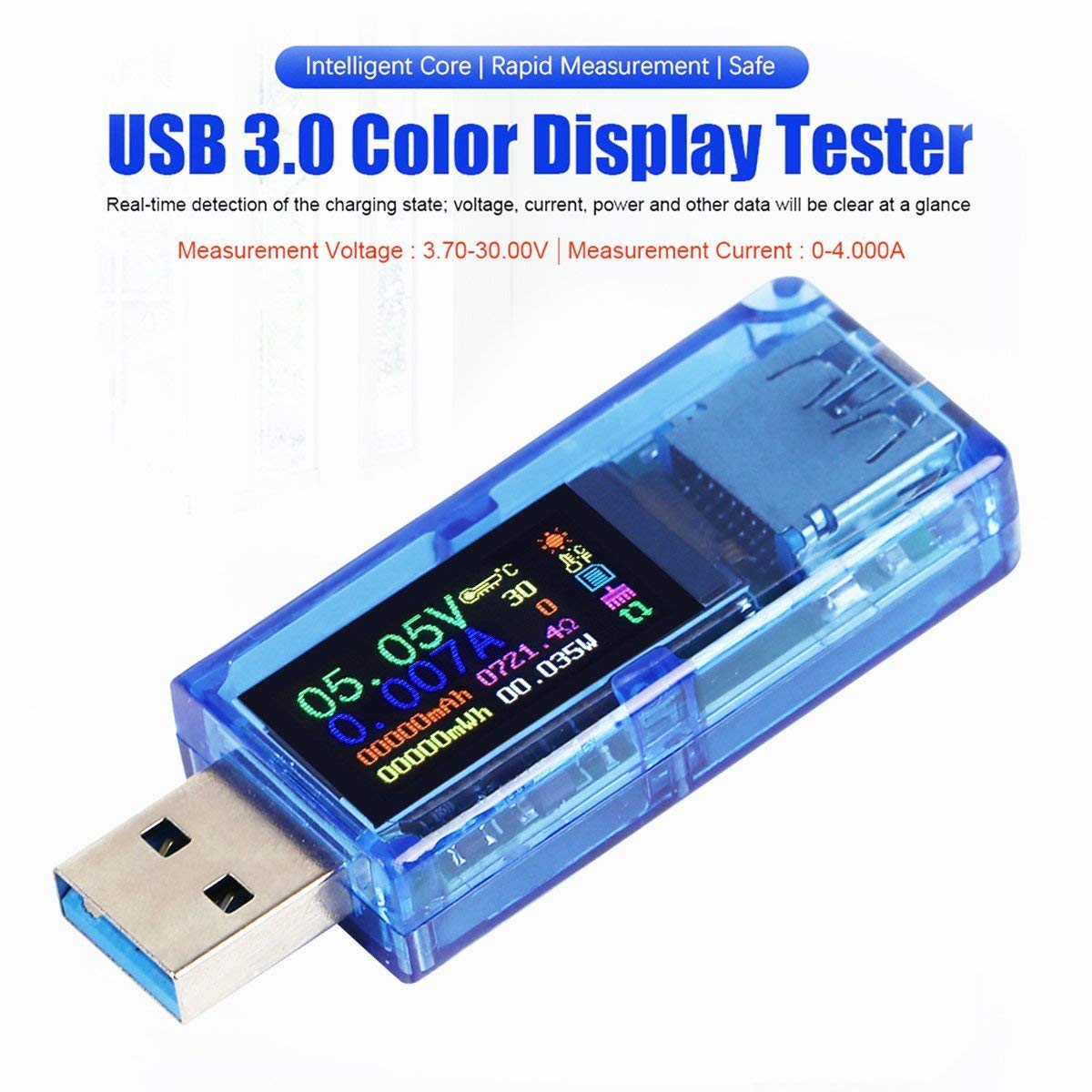

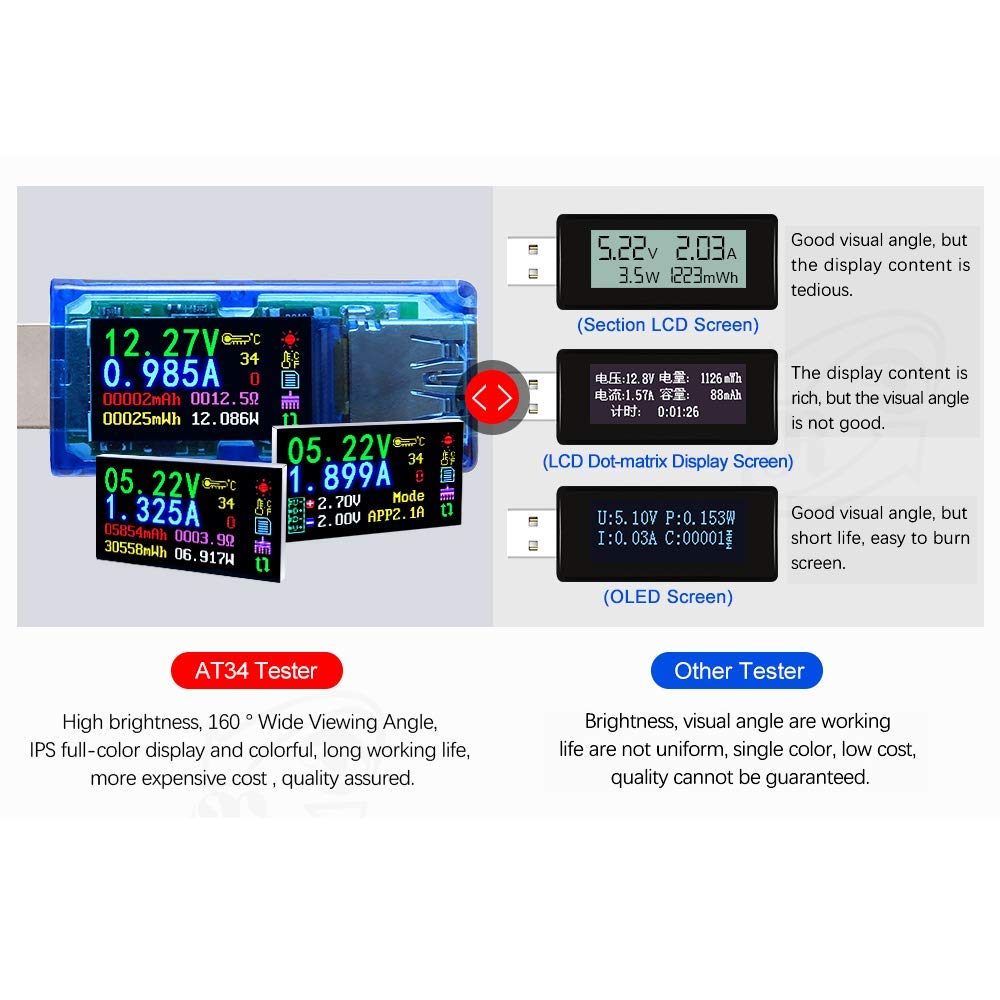

The AT34 uses a 0.96-inch IPS high-definition color LCD display to display the state of charge of the appliance, voltage, current, capacity, energy, power, equivalent impedance, temperature and other indicators at a glance. 160 degree wide viewing angle, high brightness and long working life.

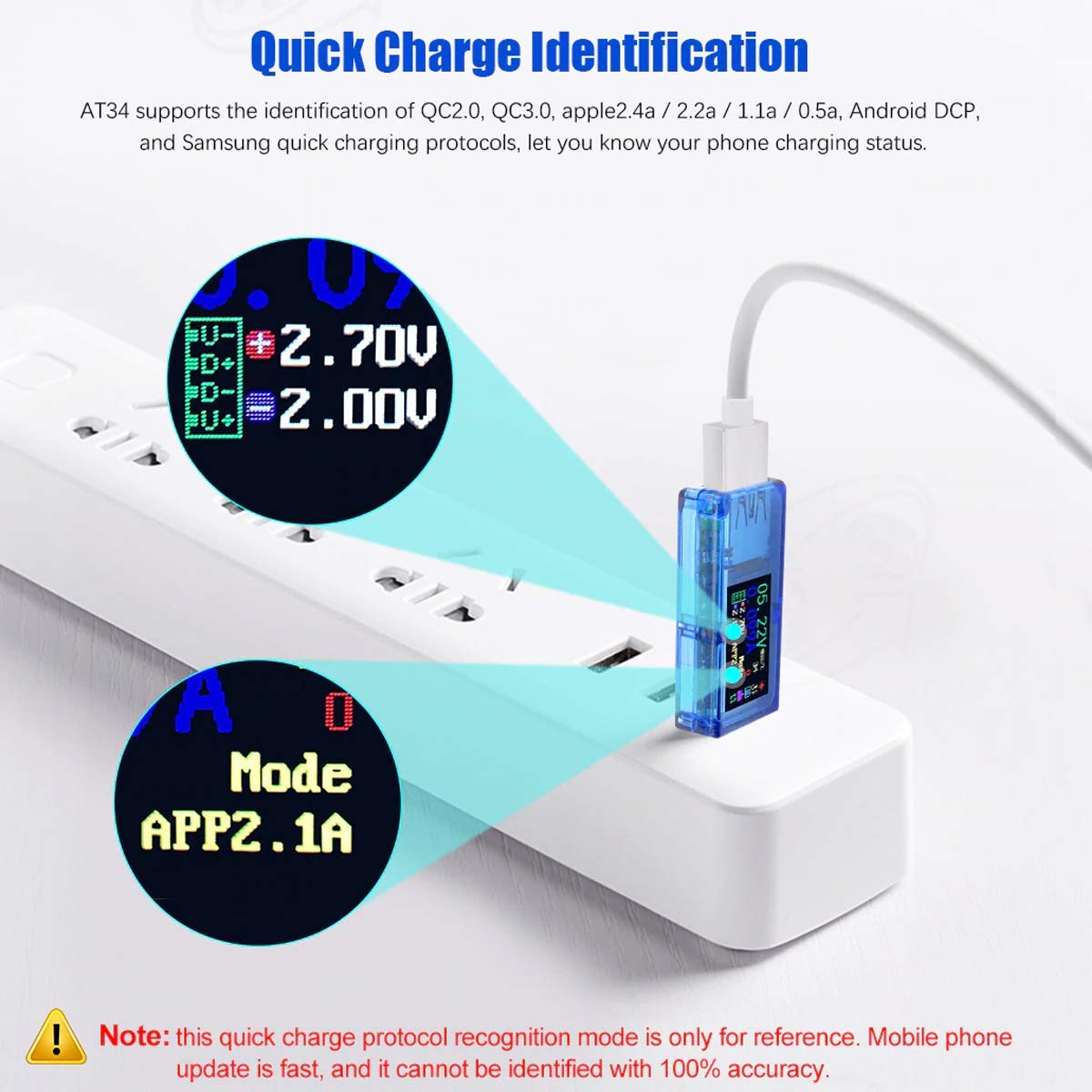

Fast charge recognition, widely compatible: AT24 supports QC2.0, QC3.0, APPLE 2.4A/2.1A/1A/0.5A, Andriod DCP, SAMSUNG fast charge protocol identification, let you know the state of charge of the phone .
4-bit accuracy for more accurate measurements: The AT34 uses professional instrumentation sampling circuitry internally, plus our unique precision algorithms to ensure product accuracy and stability at both the hardware and software levels.
Power-off storage, data is guaranteed: AT34 has power-off storage function, which can store capacity and energy data when the mobile power is cut off, which is convenient for subsequent viewing and convenient for capacity energy measurement of mobile power.
Note: Other USB testers that do not have a power-down storage function cannot test capacity and energy.
Measure the load equivalent impedance and power.
Thermometer function, Celsius and Fahrenheit free switching: Using high-precision thermistor sensor, it can measure the ambient temperature (when powering up for the first time), and also know the working temperature state of the tester in real time.
Measure the quality of the charger: connect the same load, compare the no-load and the load, the greater the voltage drop, the worse the charger capacity is, the worse the quality; the voltage drop is not obvious or the voltage rises (leisure loss) Compensation function) The better the load capacity of this charger, the better the quality.
USB 3.0 interface: Compatible with USB 2.0, support high current test, support USB3.0 interface mobile hard disk and U disk test.
Packing List:
1 * AT34 USB Tester
