Description:

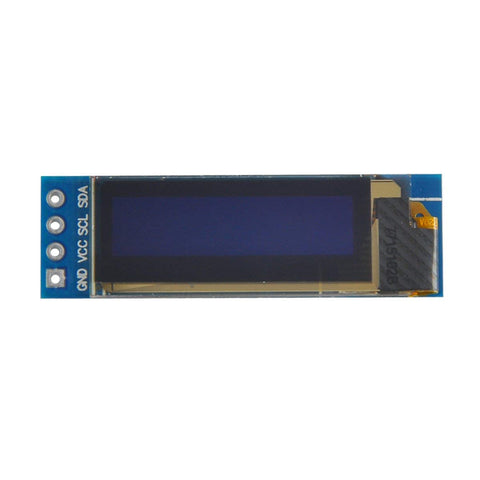

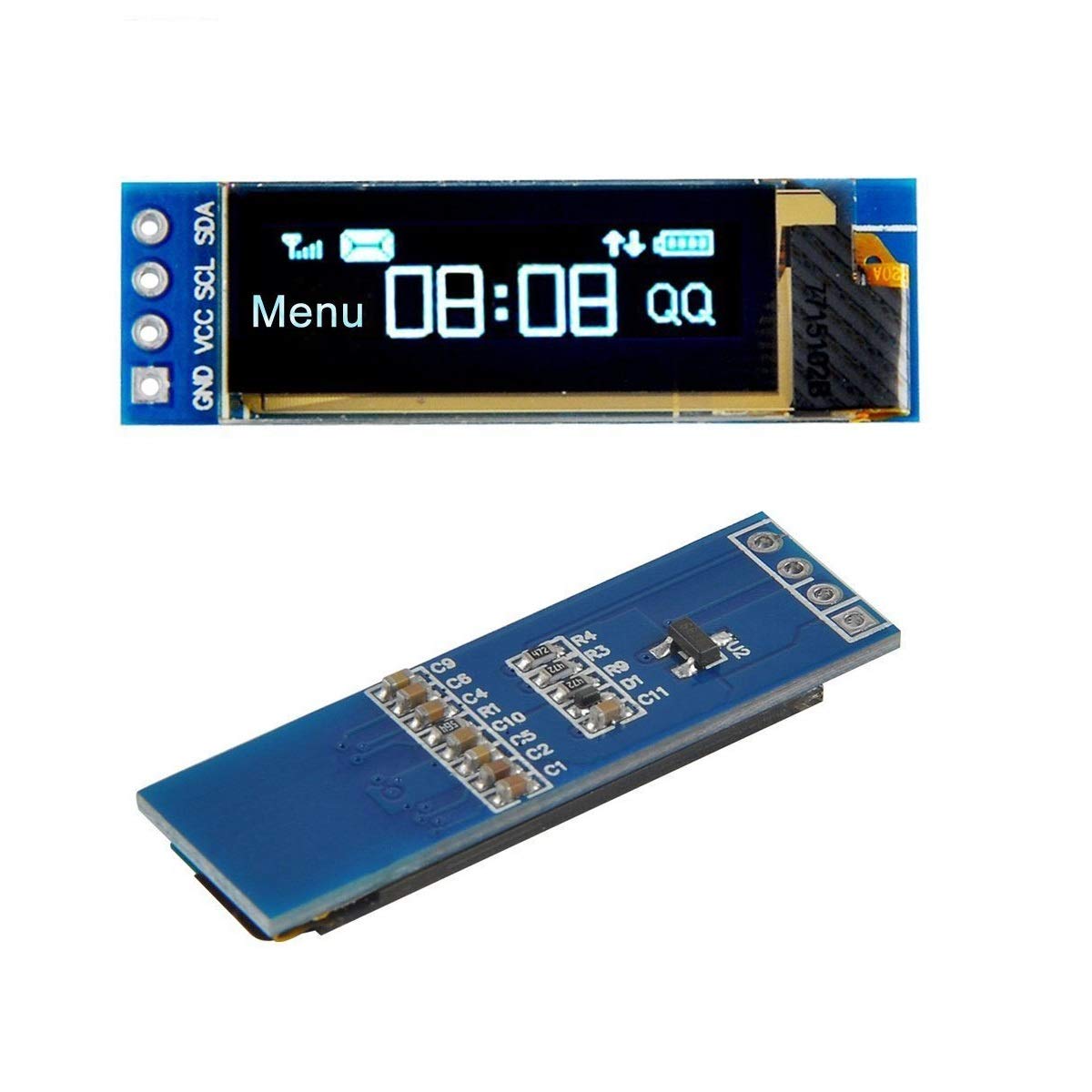

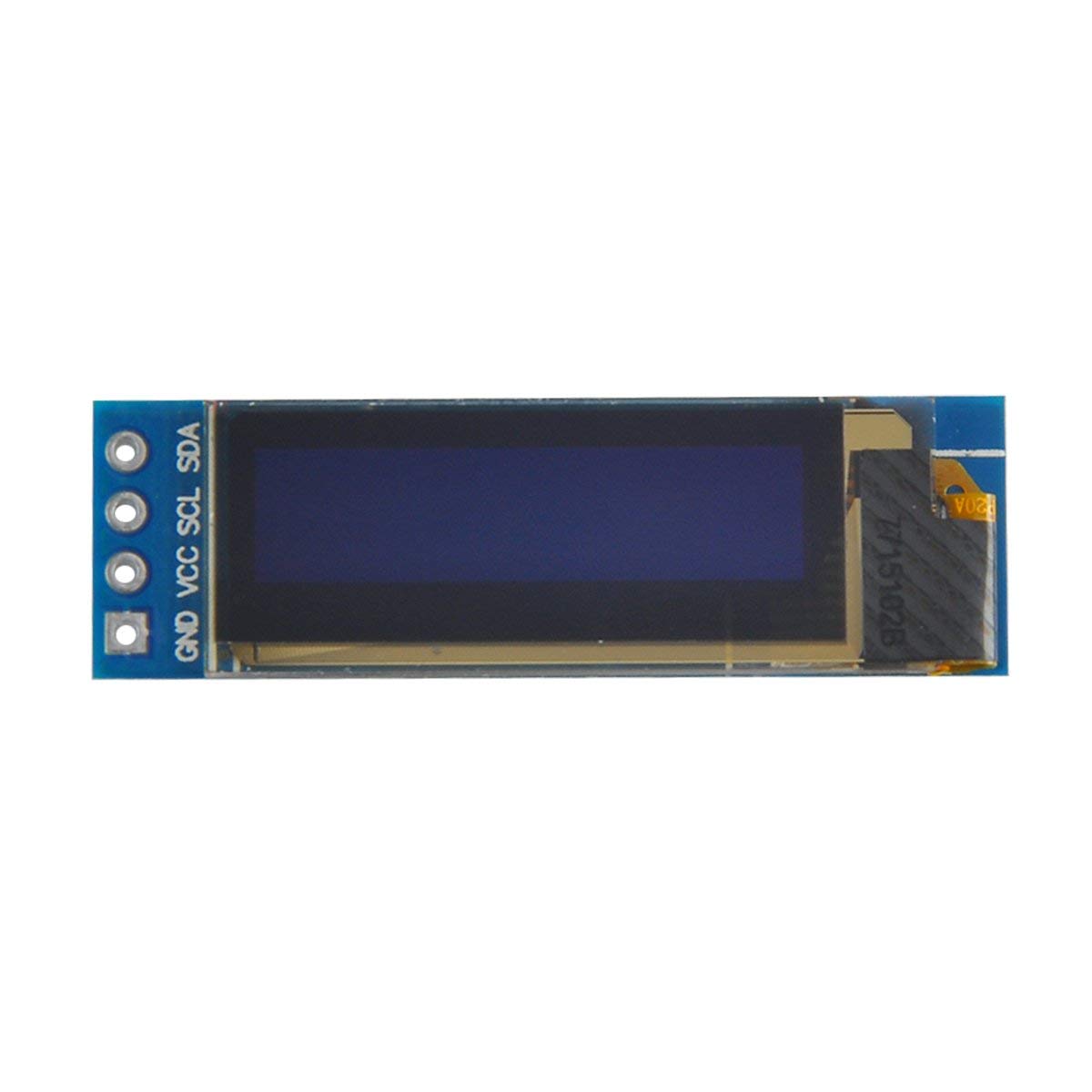

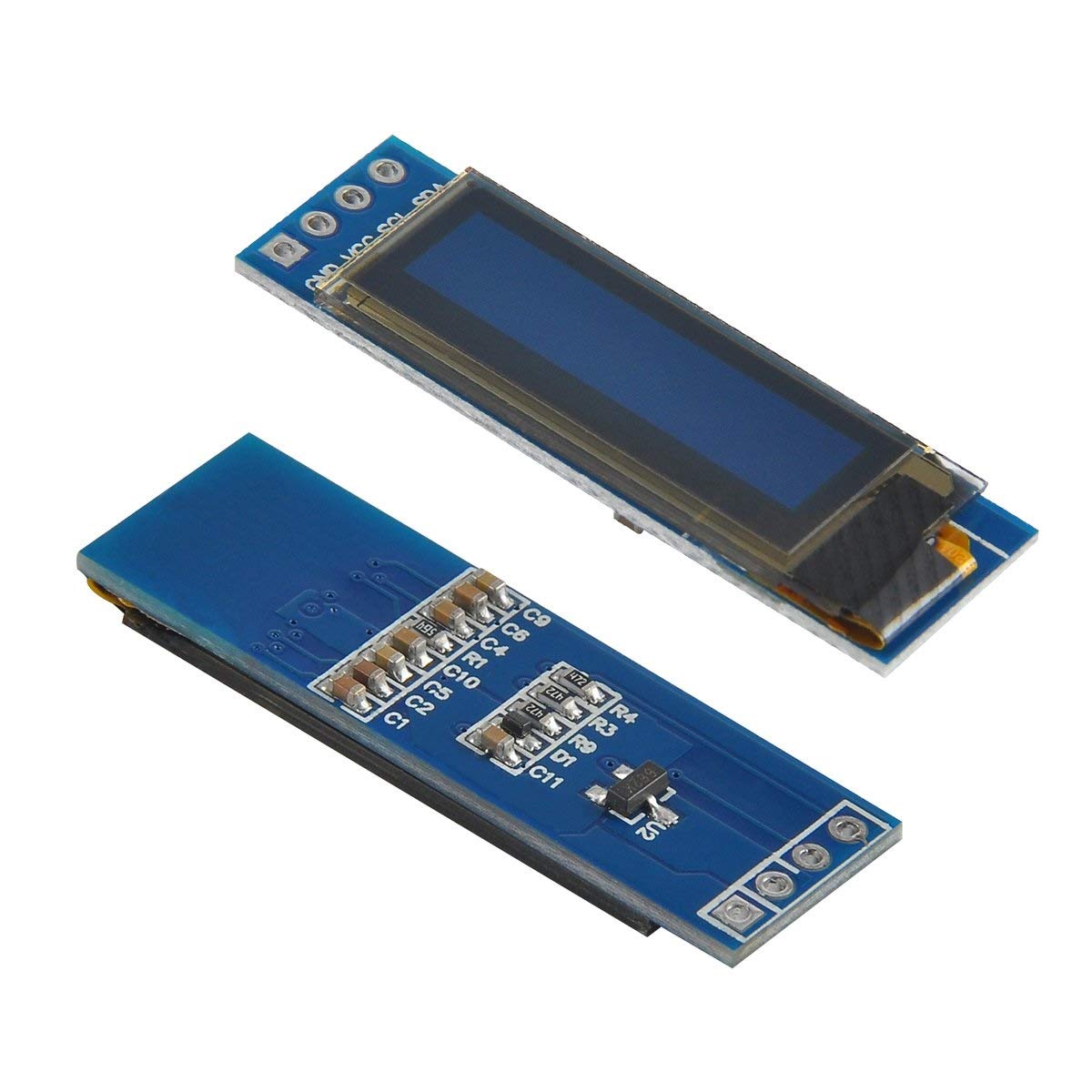

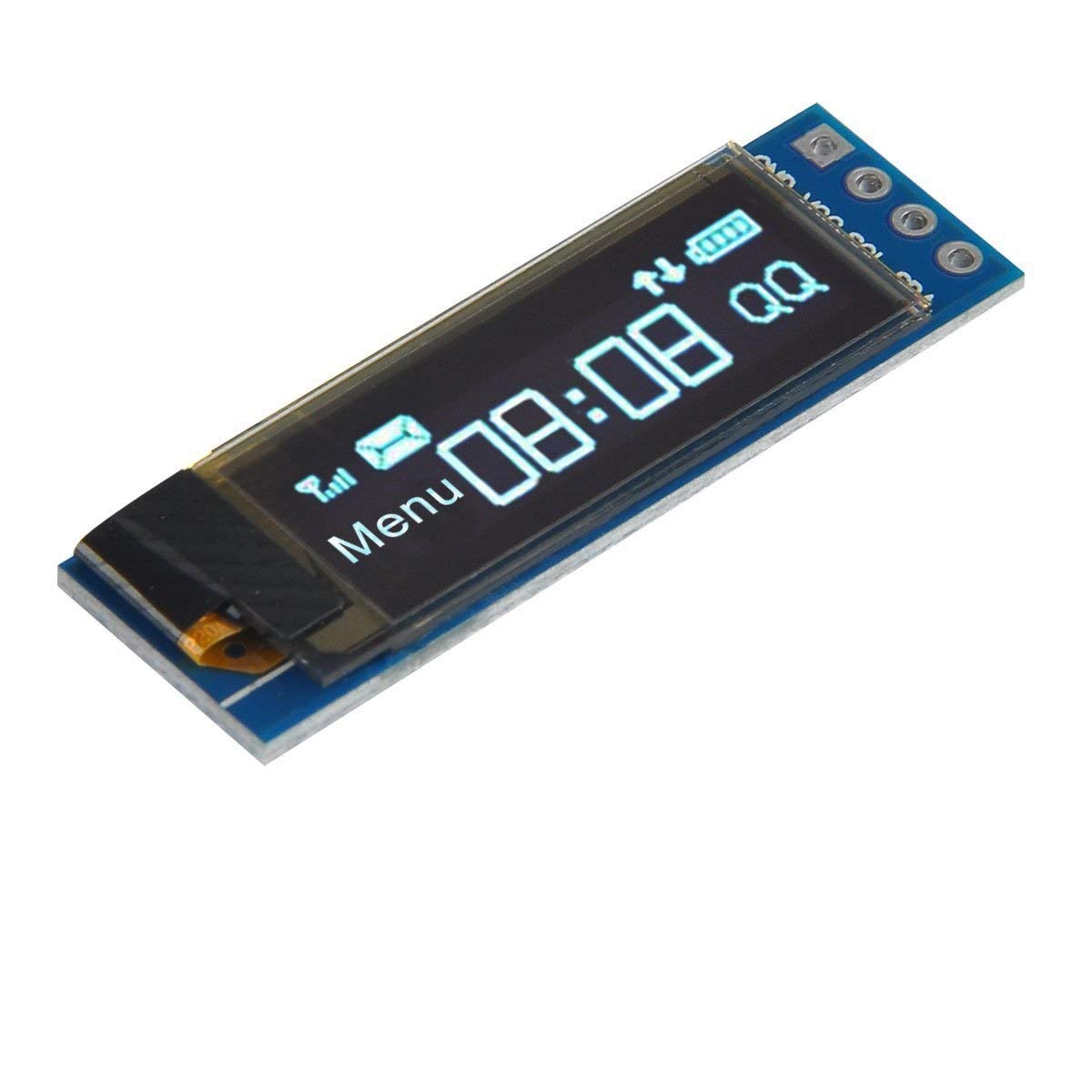

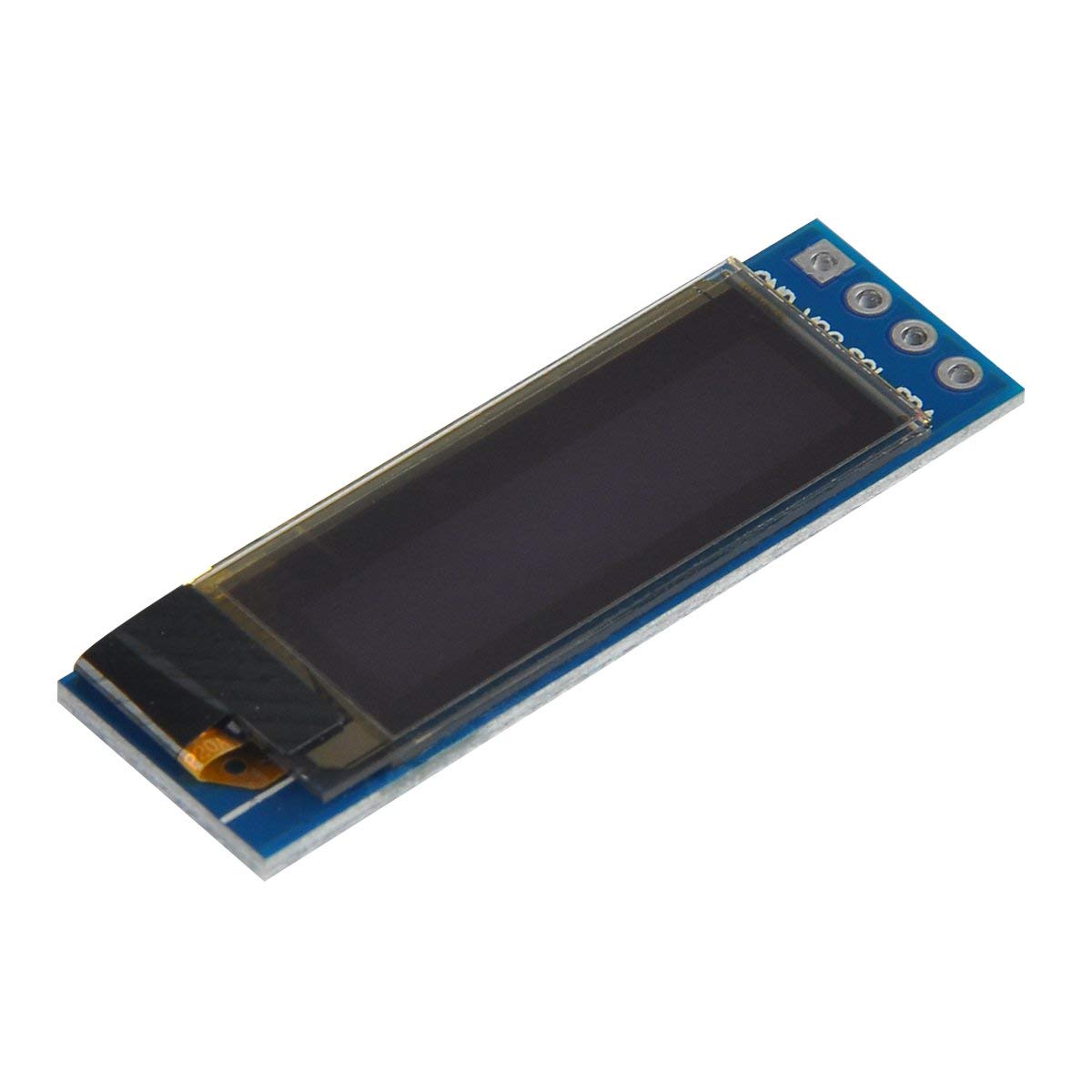

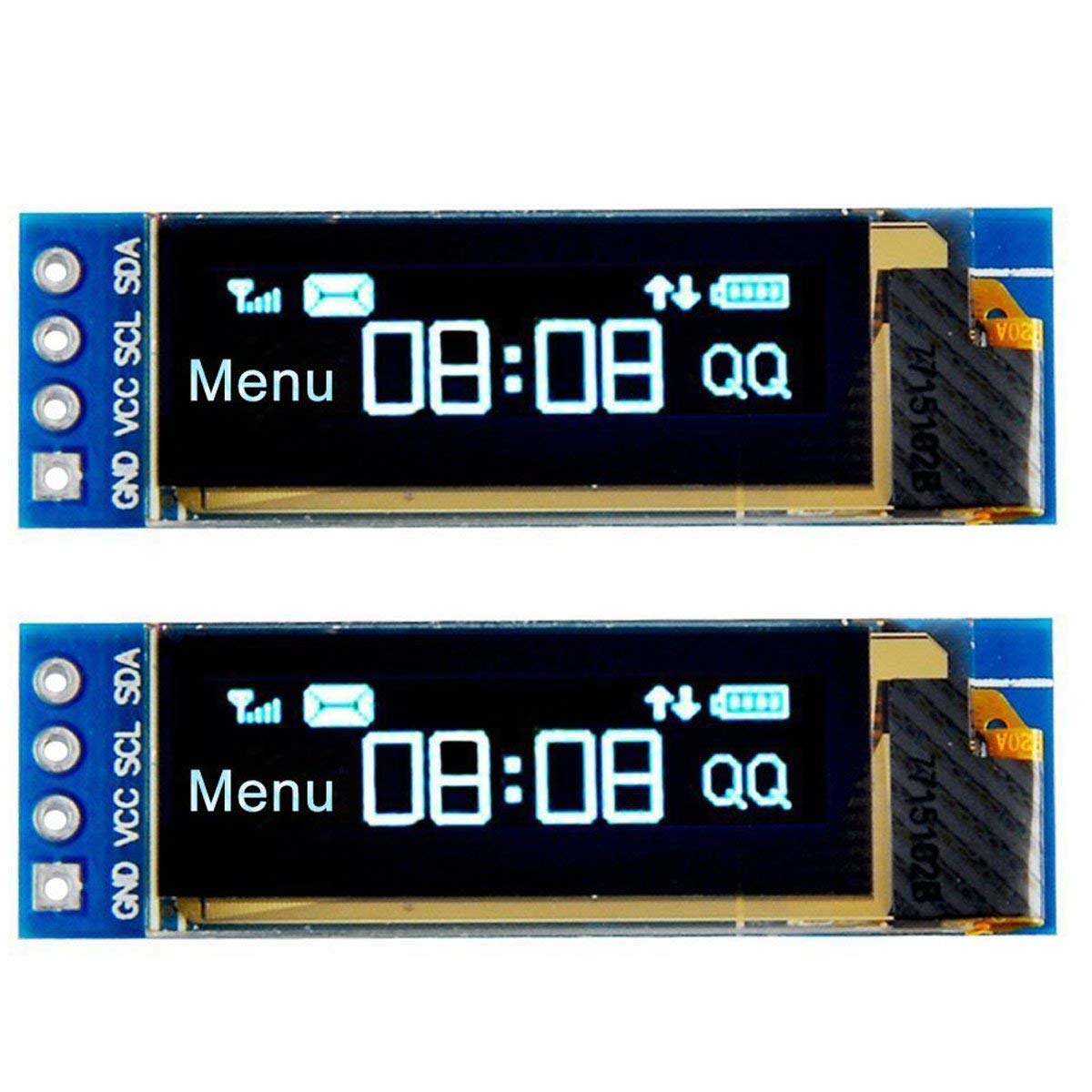

MakerFocus 2Pcs I2C OLED Display Module 0.91 Inch I2C SSD1306 OLED
Display Module
OLED display, no need backlight, self-illumination.
The display performance is better than the traditional LCD display, also lower consumption.
Specifications:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Size: 38 * 12 mm
Number of pins: 4 Pin
Interface Type:
IIC interface
Display Color: White/Blue

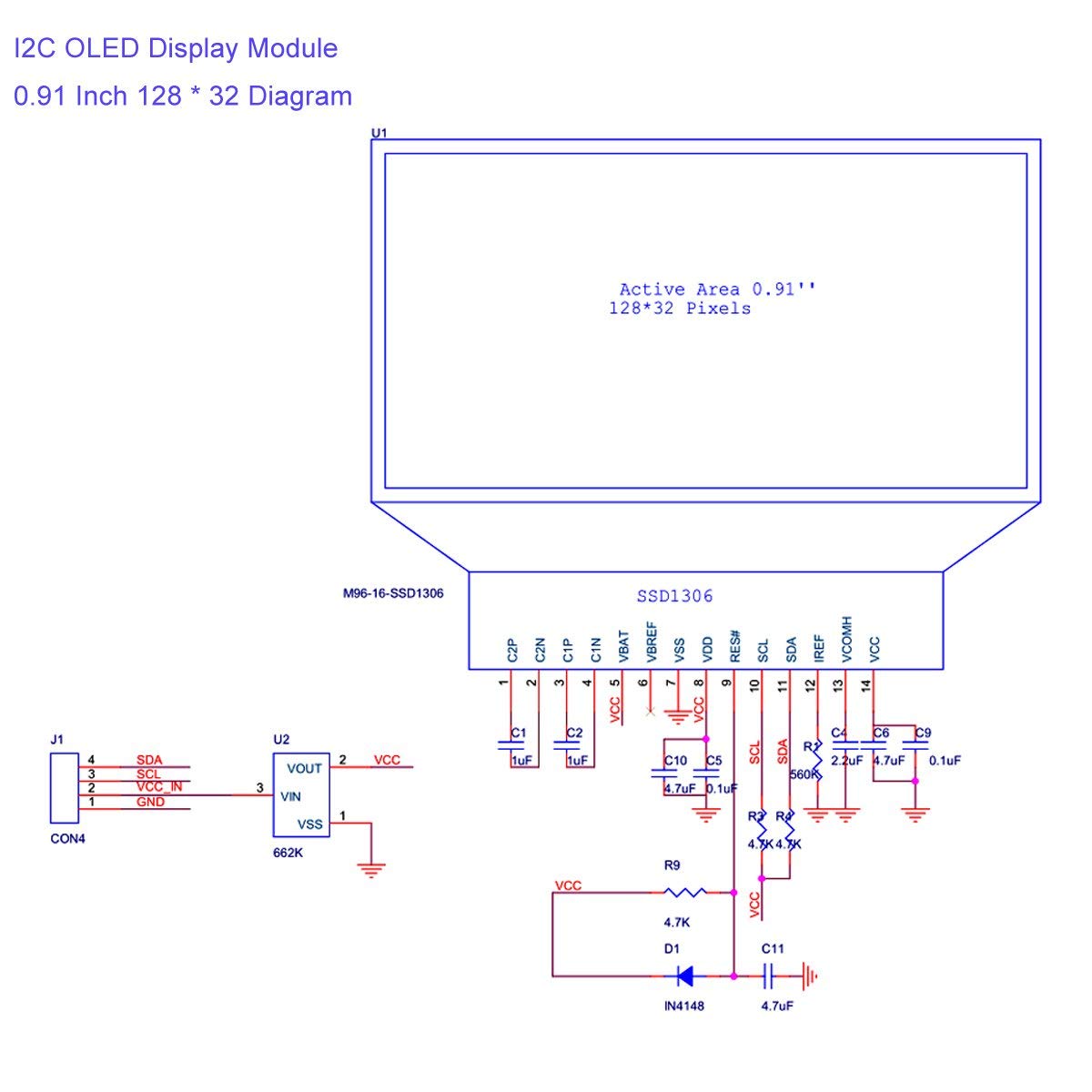

Pin Description:
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
Operating temperature:-40 ~ 85 ℃
SCL: Clock Line
SDA: Data Line
Packing List:

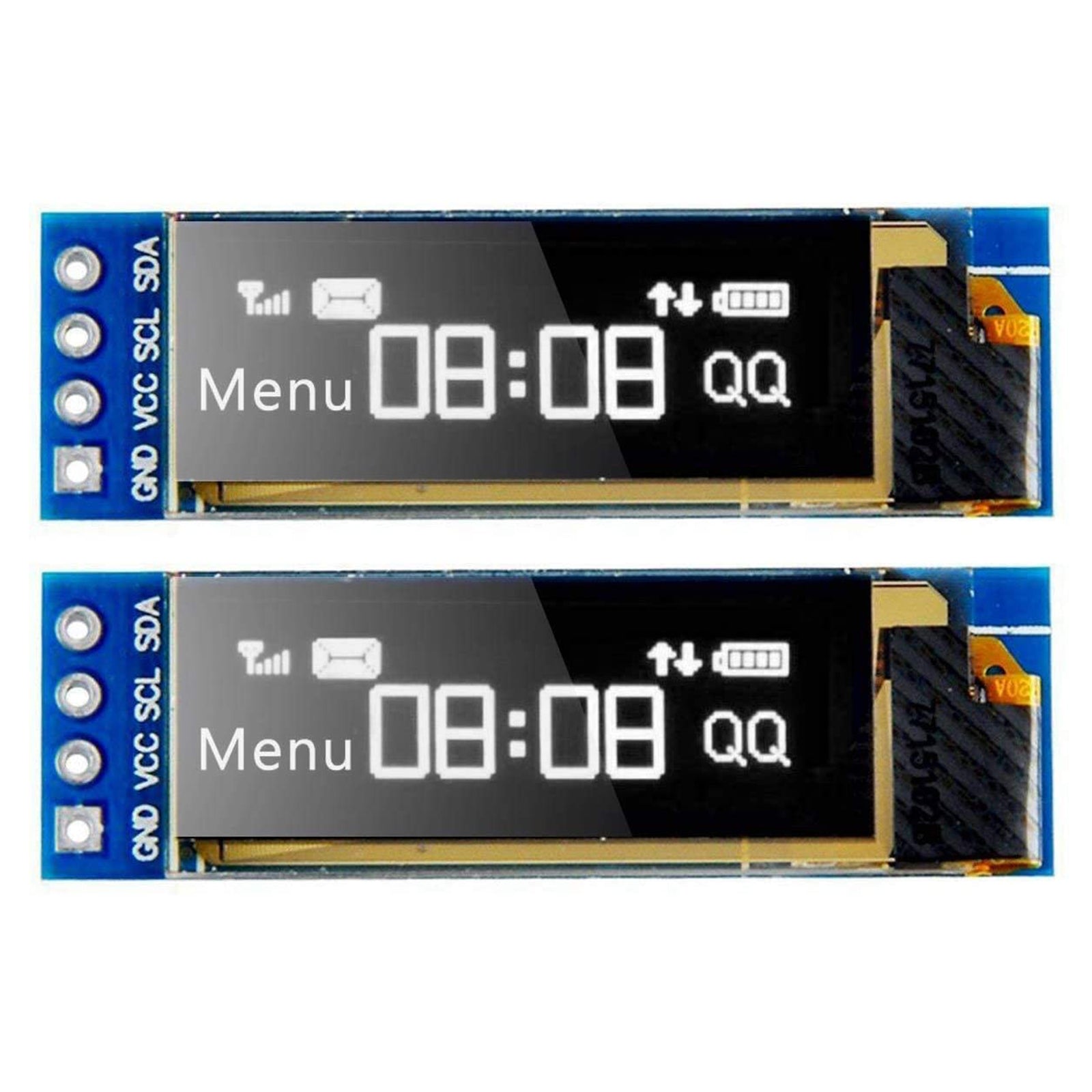

2 * 0.91 Inch I2C SSD1306 OLED White Display Module
★ Product Manual: https://drive.google.com/open?id=14A_luFwqvZaKu-PKTfJdWmUZ4T4Wk65X
OLED display, no need backlight, self-illumination, Display Color: Blue. Plz note: These I2C OLED Display Module comes without pin headers.
The display performance is better than the traditional LCD display, also lower consumption; IIC (I2C communications) simplifies connections.
Use with Arduino, ESP8266, ESP32, STM32, etc; 3.35v Power; Operating temperature:-40 - 85 ℃; Resolution: 128 x 32.
