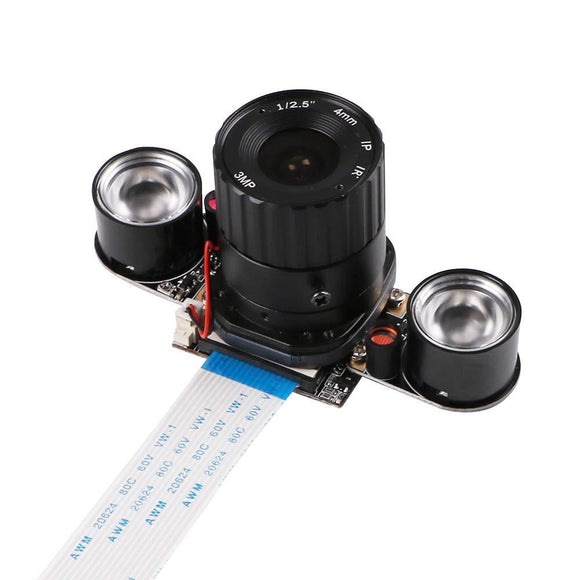

MakerFocus 5MP OV5647 Camera Built-in IR-Cut Mode Compatible with Raspberry Pi 3B+/3B/2B+/2B

  • $11.39
    Unit price per
  • Save $0.60


Description:
The camera is equipped with photosensitive resistance, which enables the camera to automatically detect and recognize light to automatically switch between the night-vision and day-time shooting mode. Manual settings is required!

Note: There is a logo "3MP" on camera, sorry for that it's Mold's error, actually it's 5MP camera.

How do I manually switch between night vision or day mode?
1. The camera works by default in day mode.
2. Run the command: sudo nano /boot/config.txt and add disable_camera_led = 1 on the last line. After saving and restarting the Raspberry Pi, the camera will work in night vision mode. To return to normal mode, simply delete disable_camera_led = 1, save and restart the Raspberry Pi.

Specifications:
Infraed Camera:
Pixels: 5 Megapixels
CMOS:1/4
Photosensitive chip: OV5647
Focal Length: 4 mm
Aperture (F) : 1.2
FOV (Diagonal):  70 degrees
Focal length: adjustable
Sensor optimum resolution: 2592 * 1944p
Support 3.3V power supply
Size: 35 * 35 mm
Product weight: 0.028kg

Infrared Light: can fill flash
Photoresistor: to detect ambient light intensity.



Packing List:

1 * 70 Degree 5MP IR-CUT Infraed Camera
2 * LED Lights
1 * 15cm FFC cable
4 * screws and nuts
