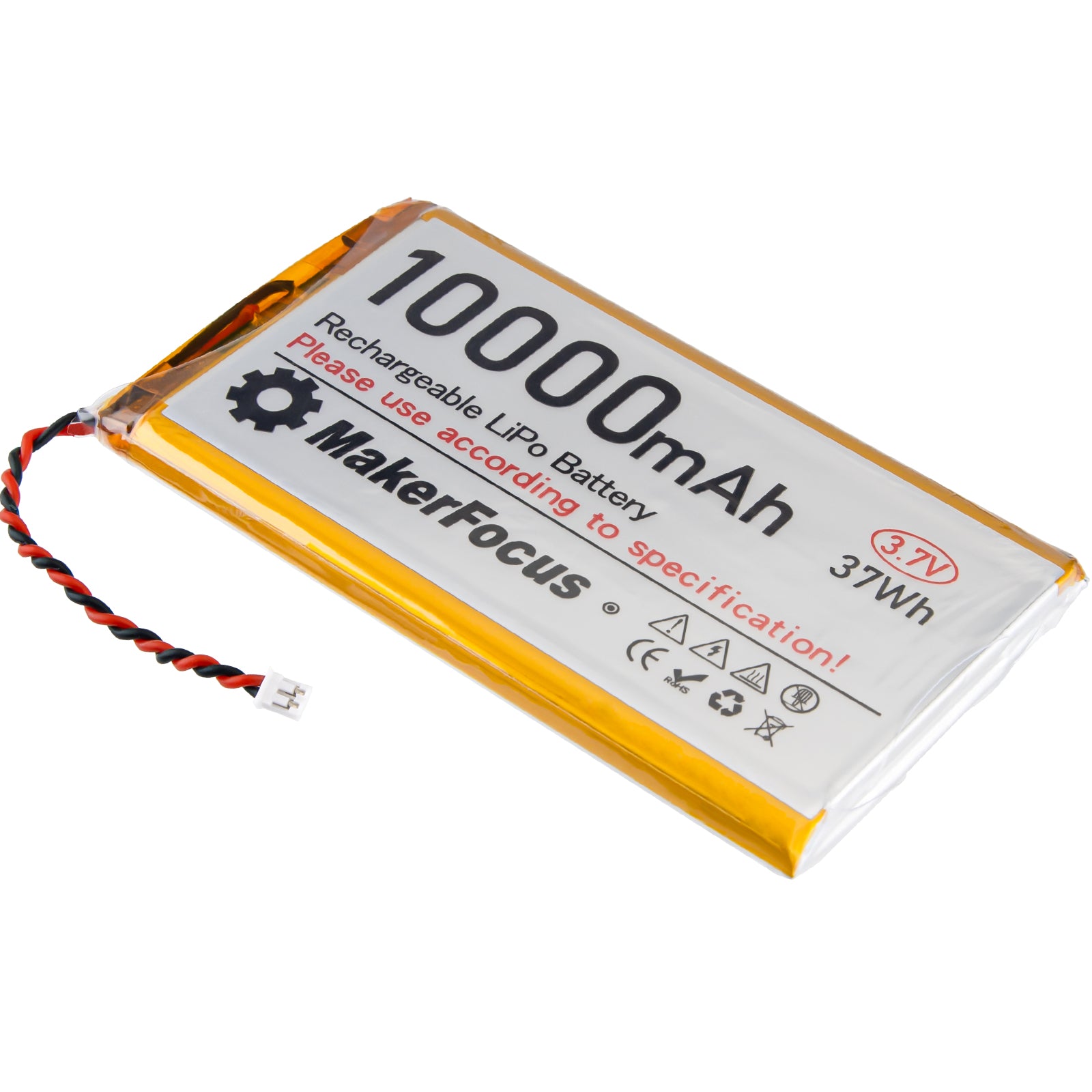

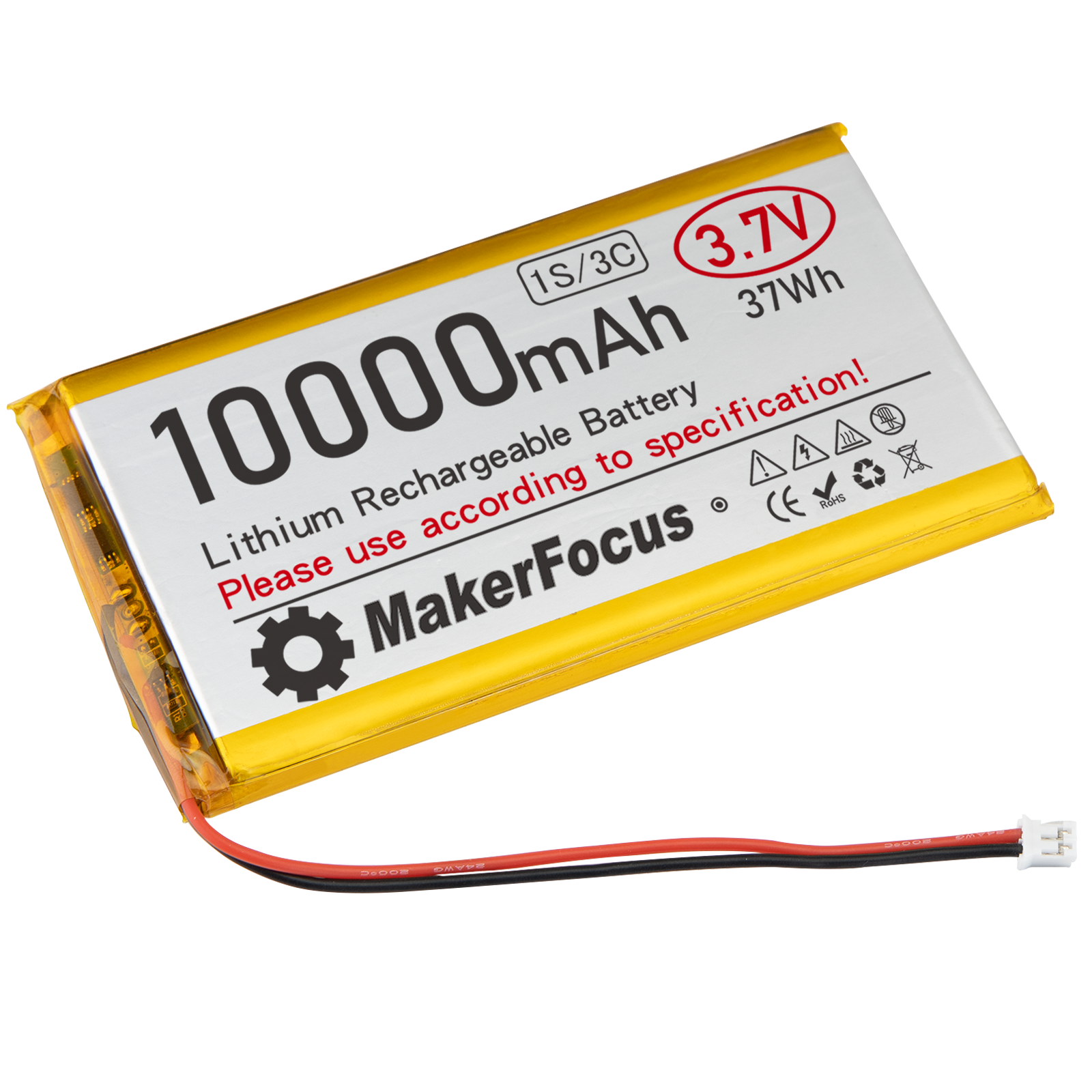

Makerfocus 3.7V Lipo Battery 10000mAh Lithium Rechargeable Battery 9065115 with Micro PH2.0 Plug for Raspberry Pi UPS Board

MakerFocus

$20.79
Unit price per
Save $5.20

Shipping calculated at checkout.

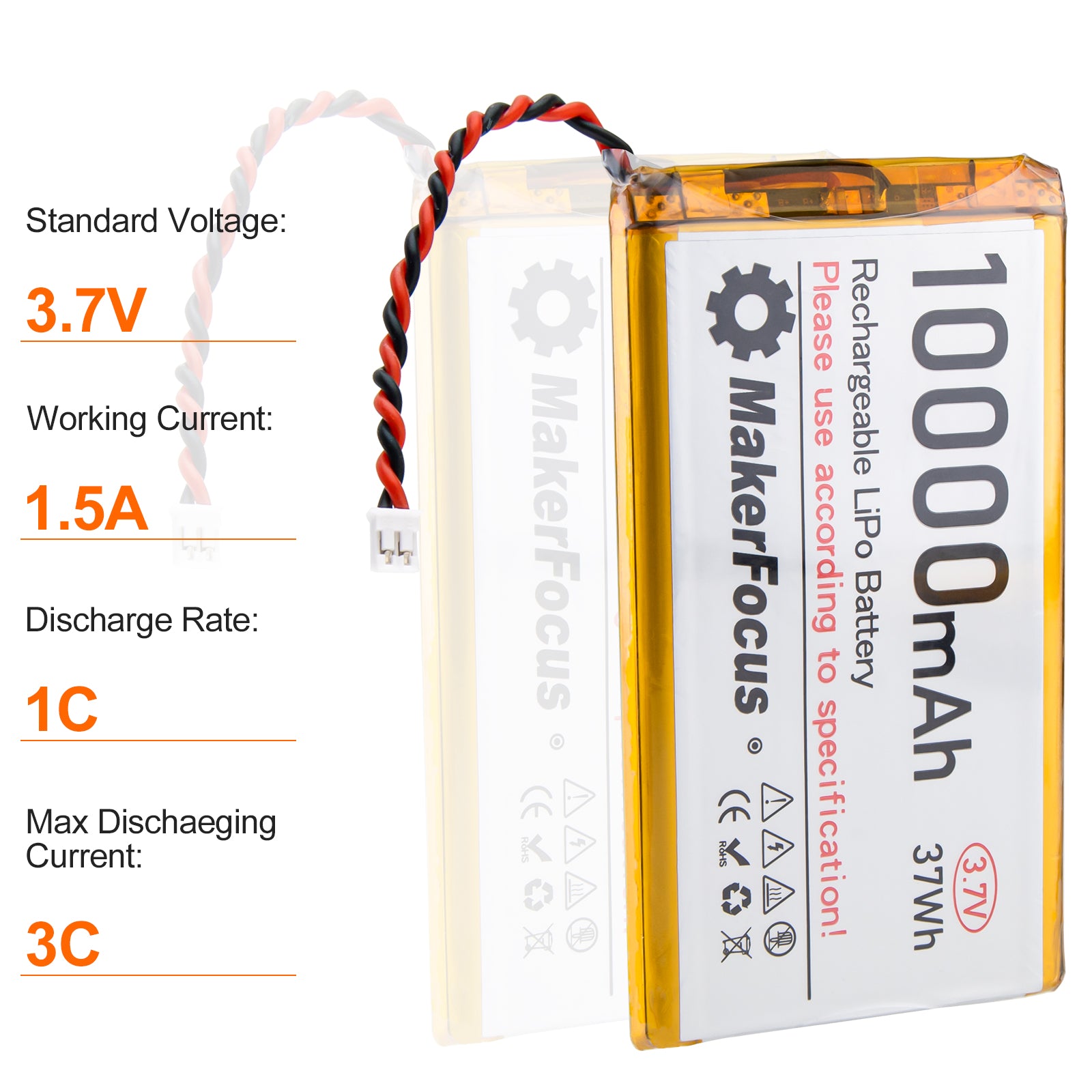

Specification:
Standard Voltage: 3.7V
Capacity: 10000mAh
Max Working Current: 3A

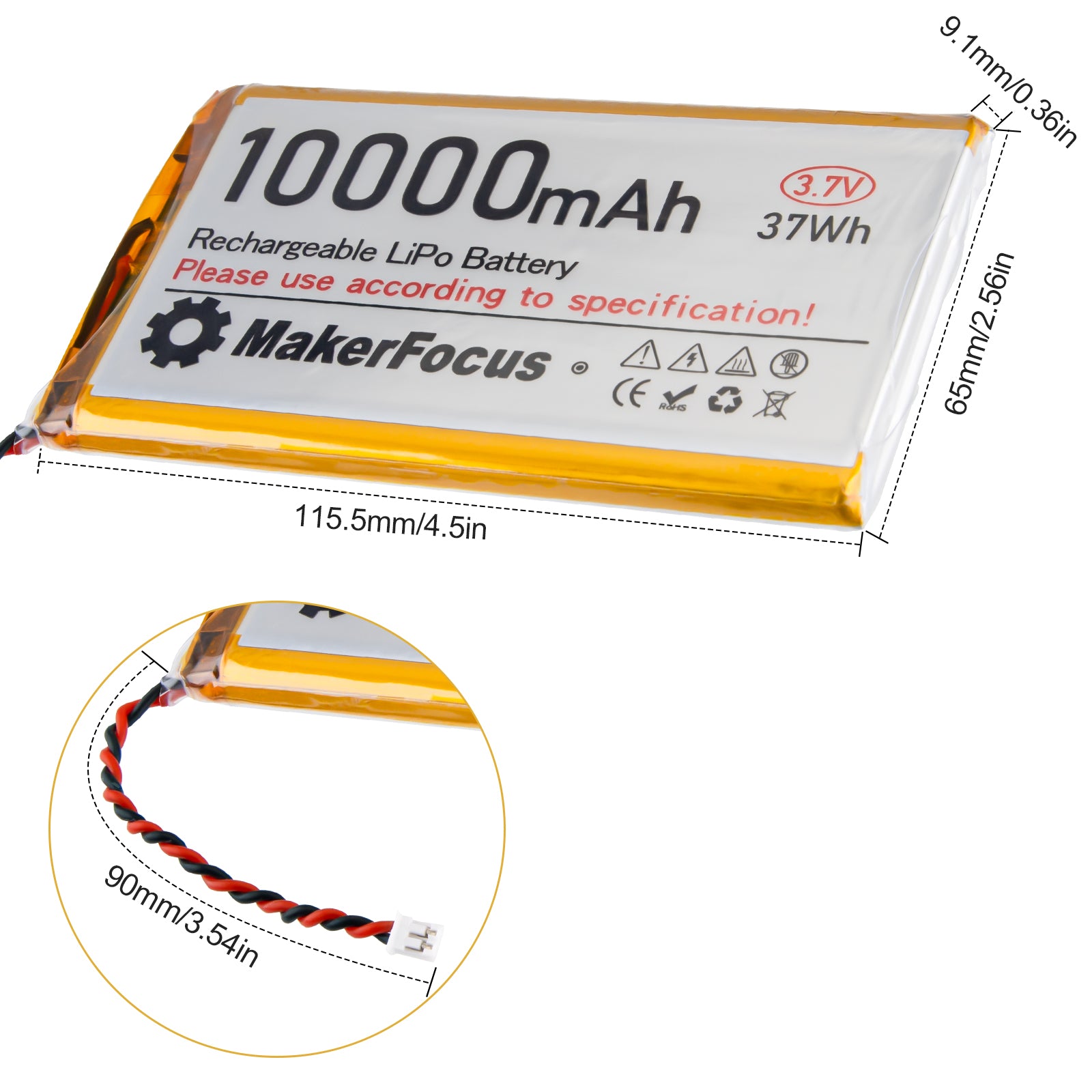

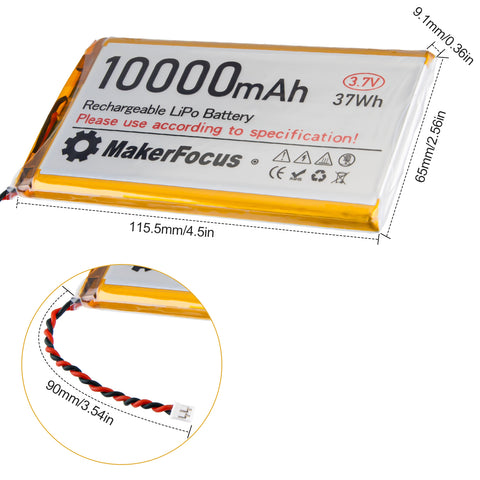

Dimensions(±2mm): 112 * 65 *8.8mm / 4.41 * 2.56 * 0.35inch(L*W*H)
Discharge Rate: 1C
Overcurrent Protection: about 1.8-2.1A

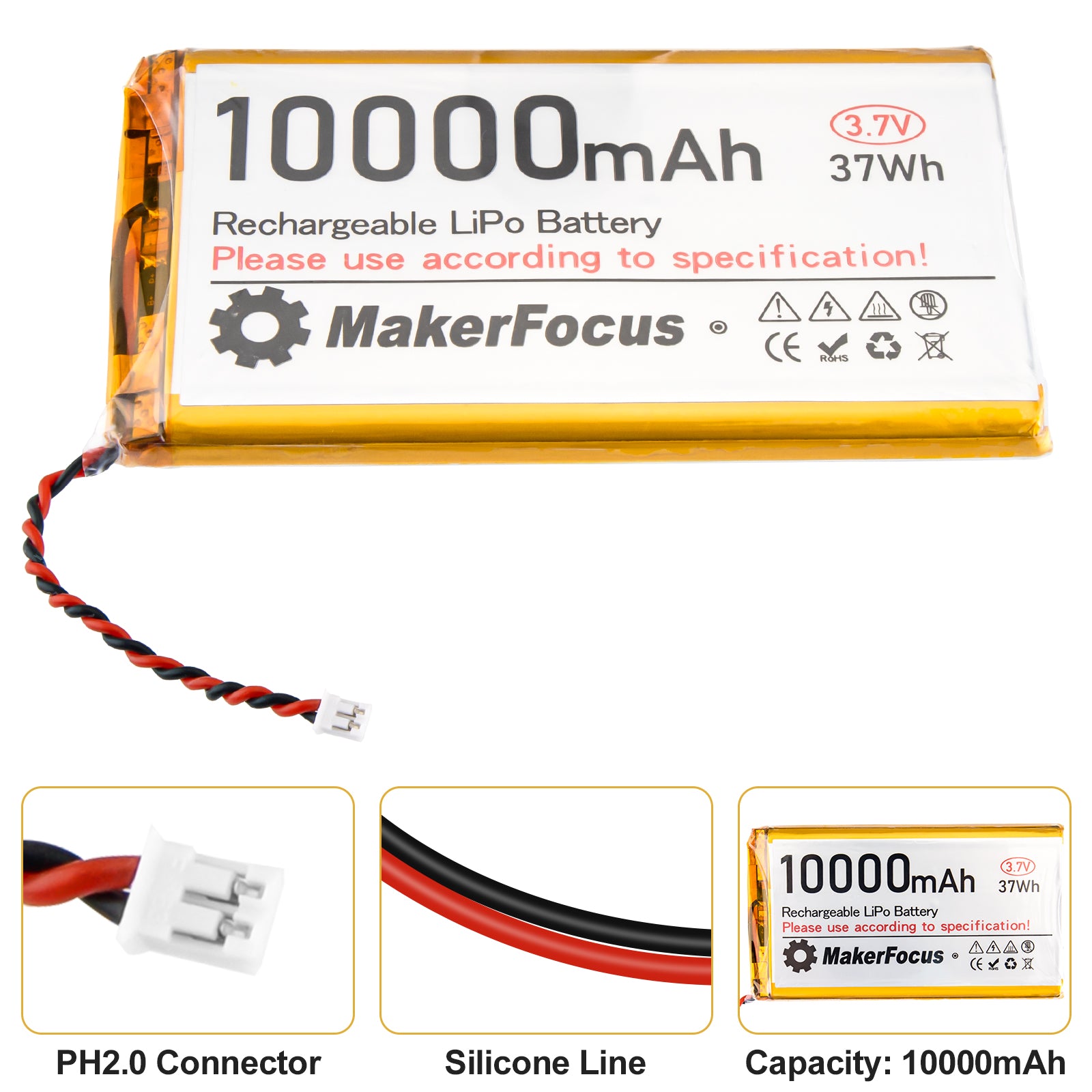

Type of Connector: PH2.0
Weight : 155g

Cell Data:

Protect Board Data

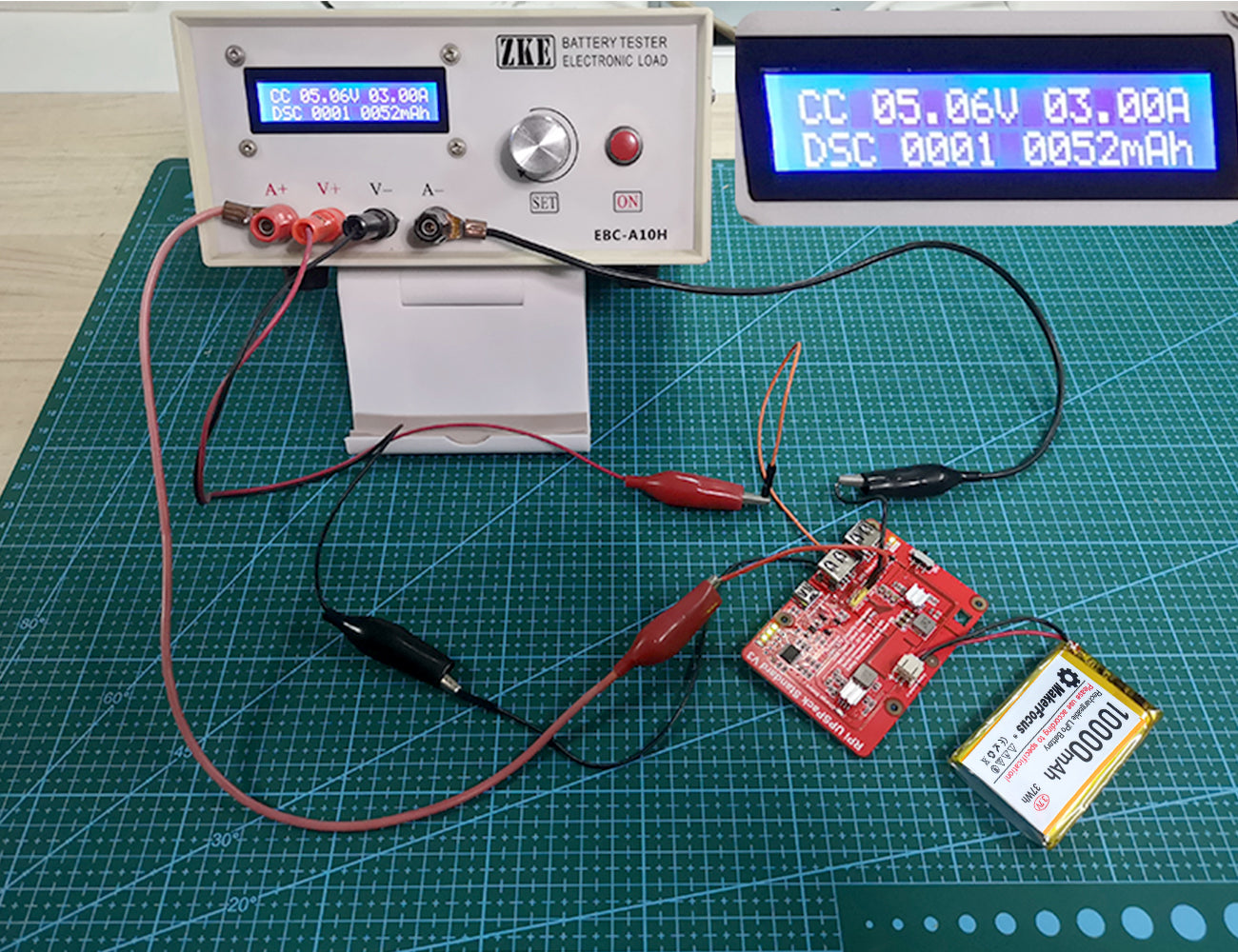

We have these Test report:

Standard Charging Method:
Charging this battery to 4.25V at 0.2C constant current, then charge the battery at a constant voltage of 4.2V till it's charging current≤ 0.05C.

Note:
The maximum operating current of this 3.7V 10000mAh lipo battery is only about 3A, can not be used for unmanned aerial vehicles, model aircraft or power tools and other products that require high current

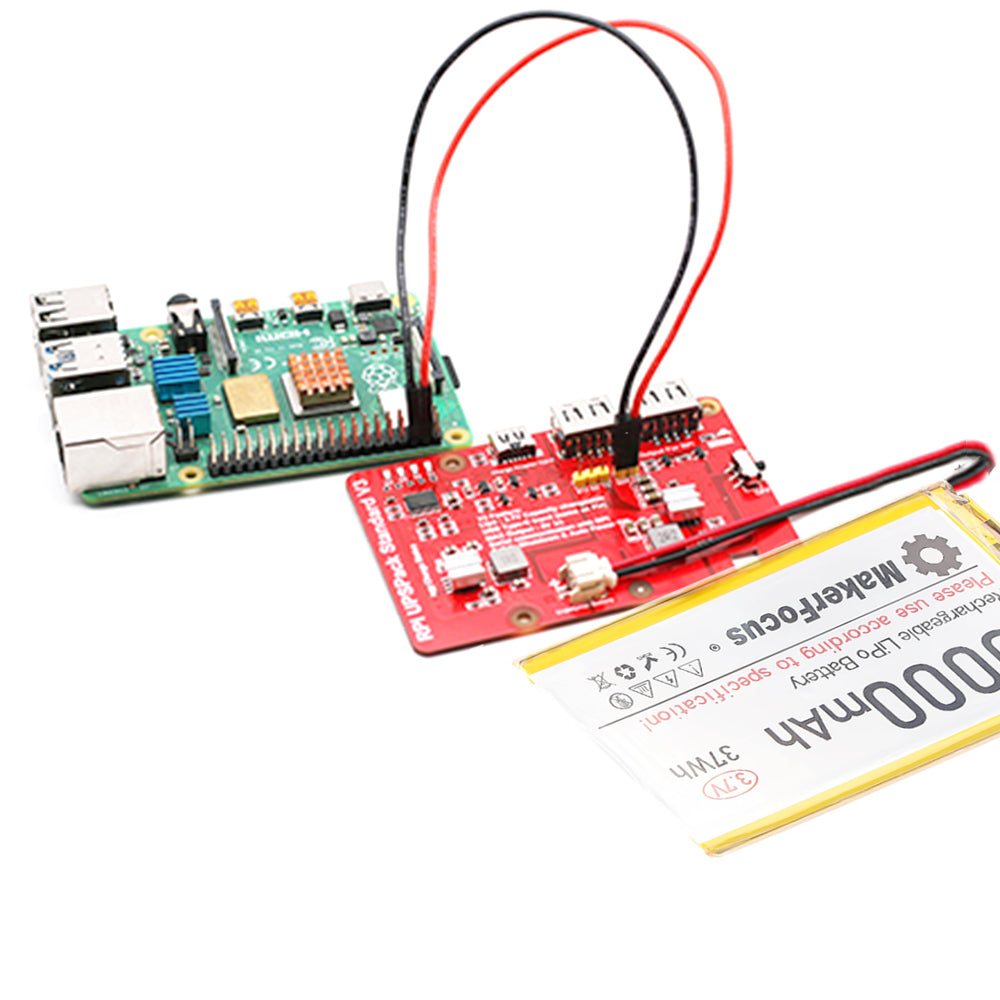

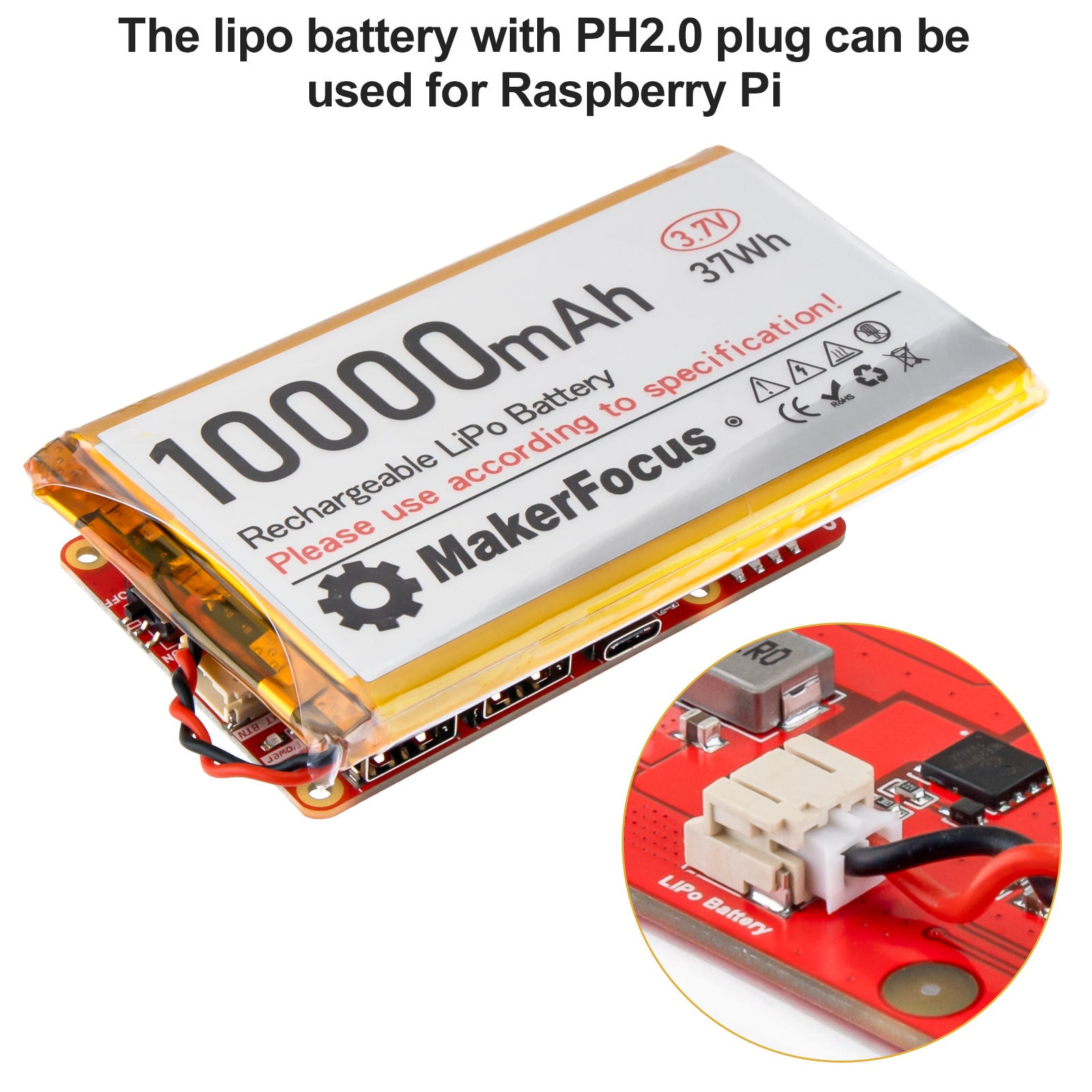

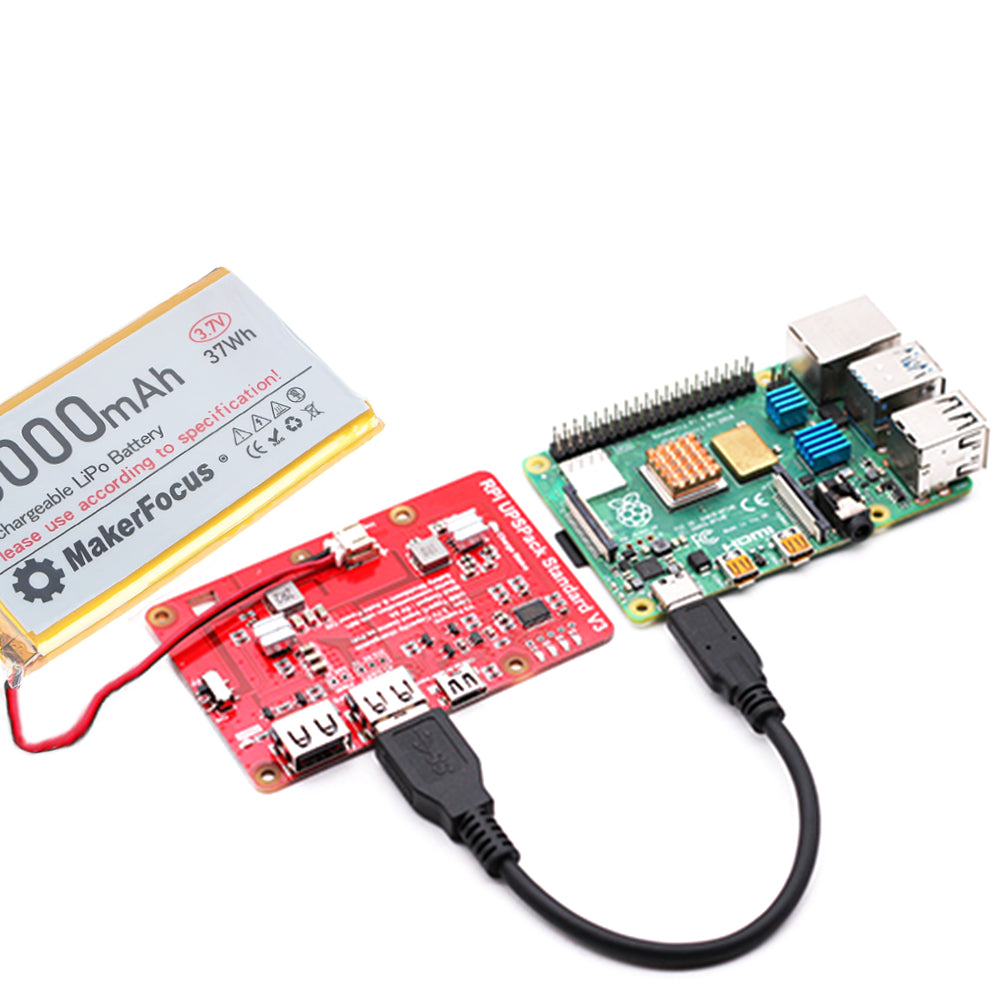

Application: This 1S 10000mAh lipo batteries can be used for Raspberry Pi UPS board whose plug PH2.0
Safety: Passed the MSDS test and the UN 38.3 test recognized by the United Nations to ensure that the chemical substances are not exceeded, and the use is safe and reliable

Package included:
1x Makerfocus 3.7V Lipo Battery 10000mAh Lithium Rechargeable Battery
