Makerfocus Orange Pi Zero H2 Quad Core Open-Source 256MB Development Board with WiFi Antenna

  • $34.99
    Unit price per
  • Save $5

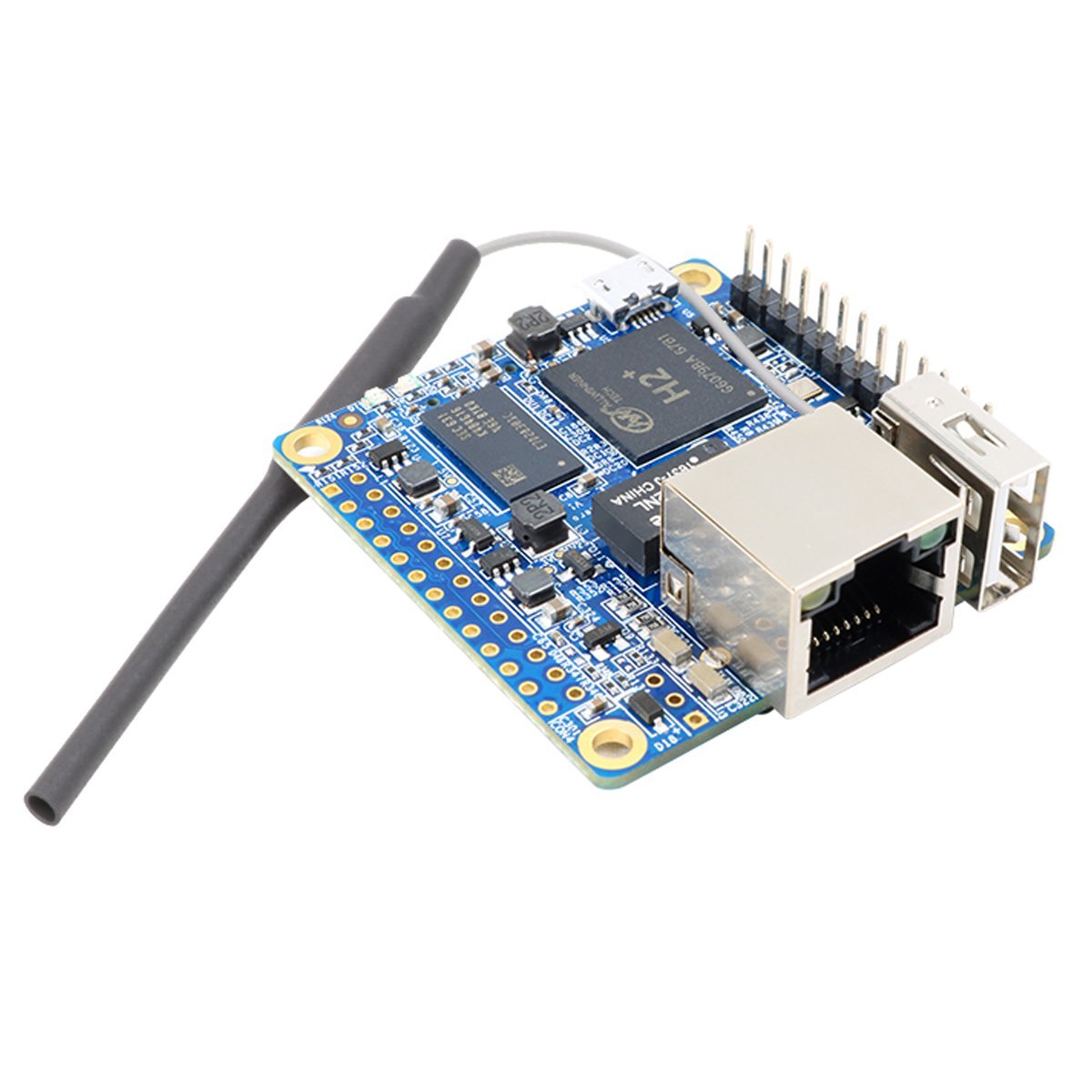

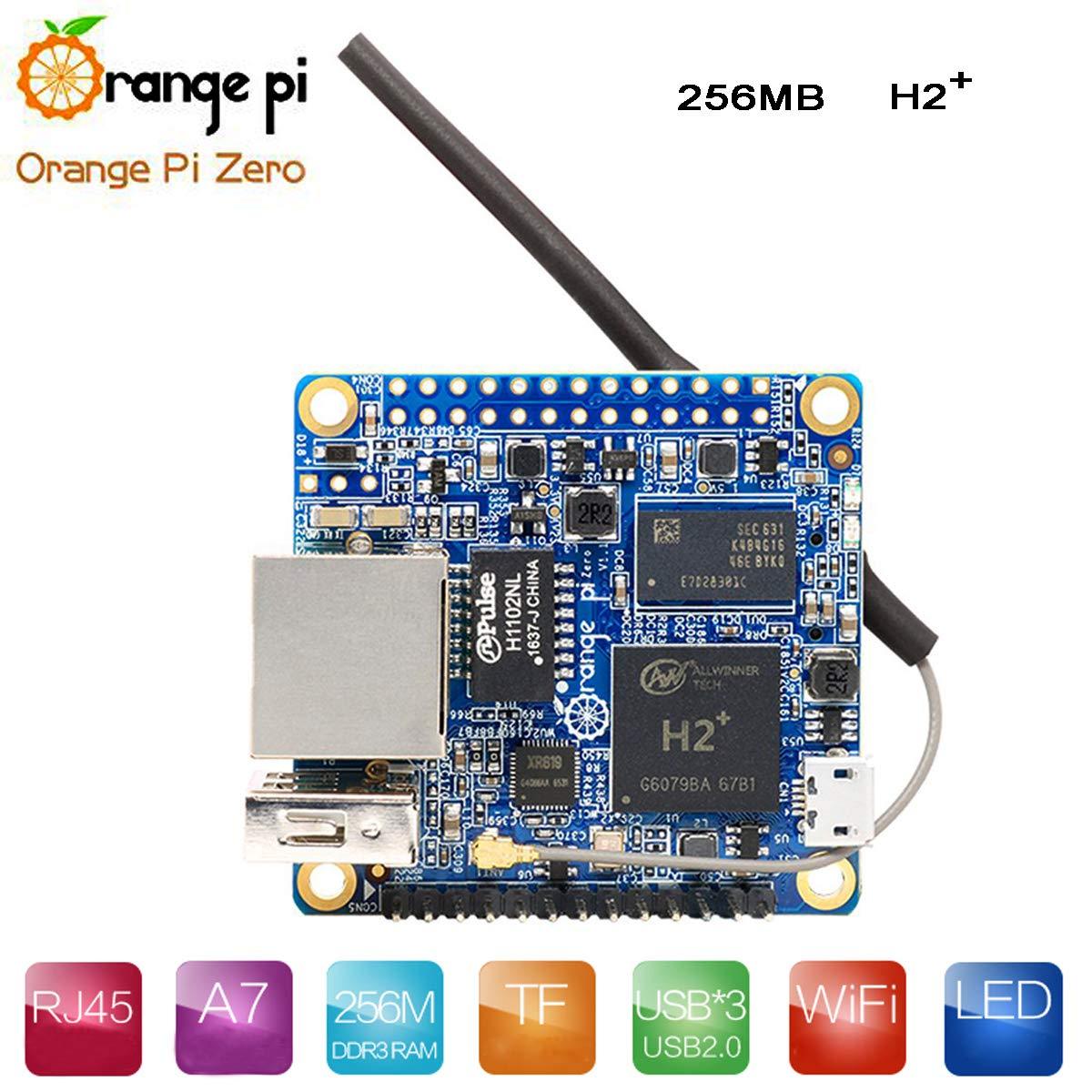

Orange Pi Zero H2 Quad Core Open-source 256MB Development Board with Wifi Antenna

Description:
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 256MB DDR3 SDRAM.
Orange Pi Zero is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
You can use it to build…
A computer,
A wireless server,
Games,Music and sounds,
HD video,A speaker,
Android,Scratch,
Pretty much anything else, because Orange Pi is open source.

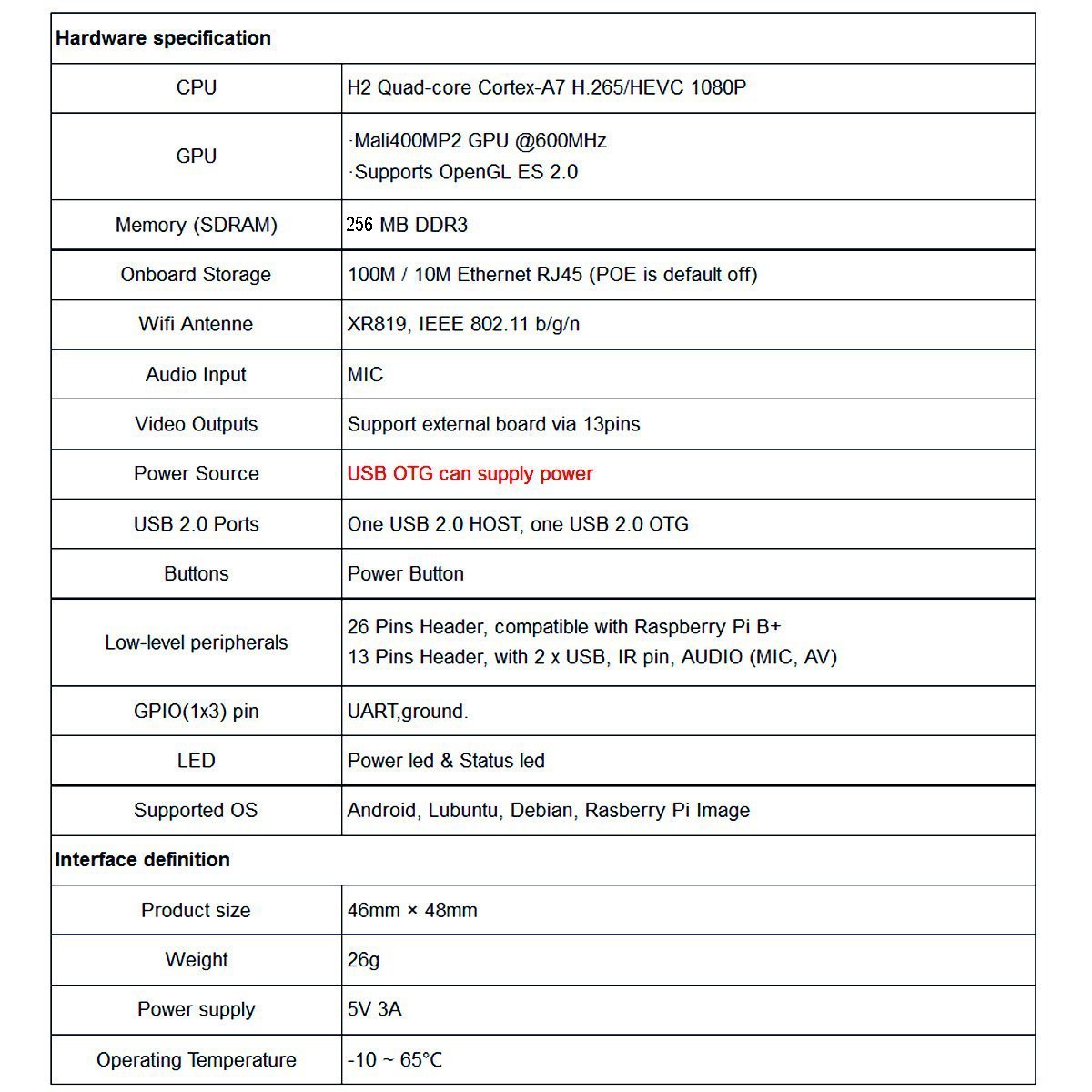

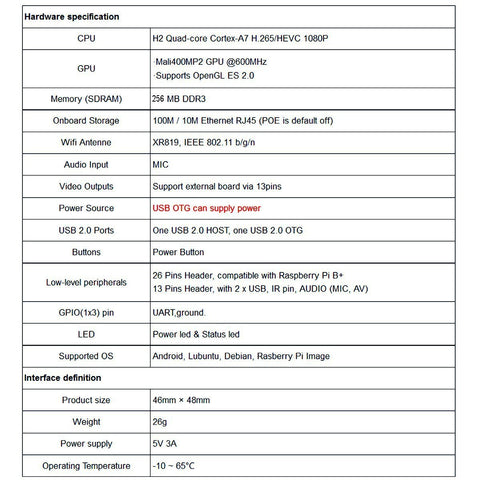

Hardware specification:
CPU: H2 Quad-core Cortex-A7 H.265/HEVC 1080P
GPU: Mali400MP2 GPU 600MHz Supports OpenGL ES 2.0
Memory (SDRAM): 256MB DDR3
Onboard Storage: 100M / 10M Ethernet RJ45 (POE is default off)
Wifi Antenne: XR819, IEEE 802.11 b/g/n
Audio Input: MIC
Video Outputs: Support external board via 13pins
Power Source: USB OTG can supply power
USB 2.0 Ports: One USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button

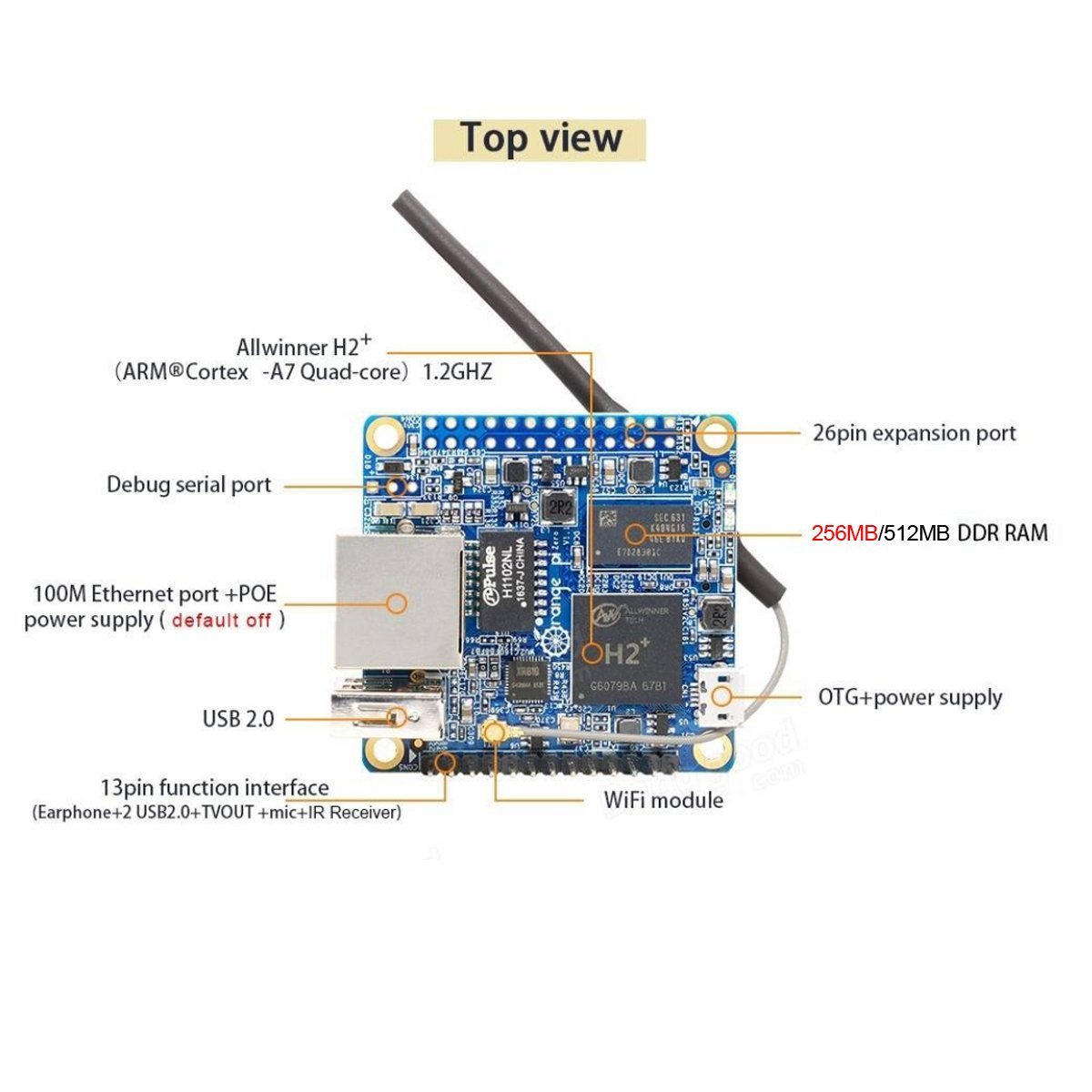

Low-level peripherals: 26 Pins Header, compatible with Raspberry Pi B+ 13 Pins Header, with 2 x USB, IR pin, AUDIO (MIC, AV)
GPIO(1x3) pin: UART,ground
LED: Power led andamp; Status led
Supported OS: Android, Lubuntu, Debian, Rasberry Pi Image

Interface definition:
Product size: 46mm × 48mm
Weight: 20g
Power supply: 5V 3A
Operating Temperature: -10 ~ 65℃

Package Including

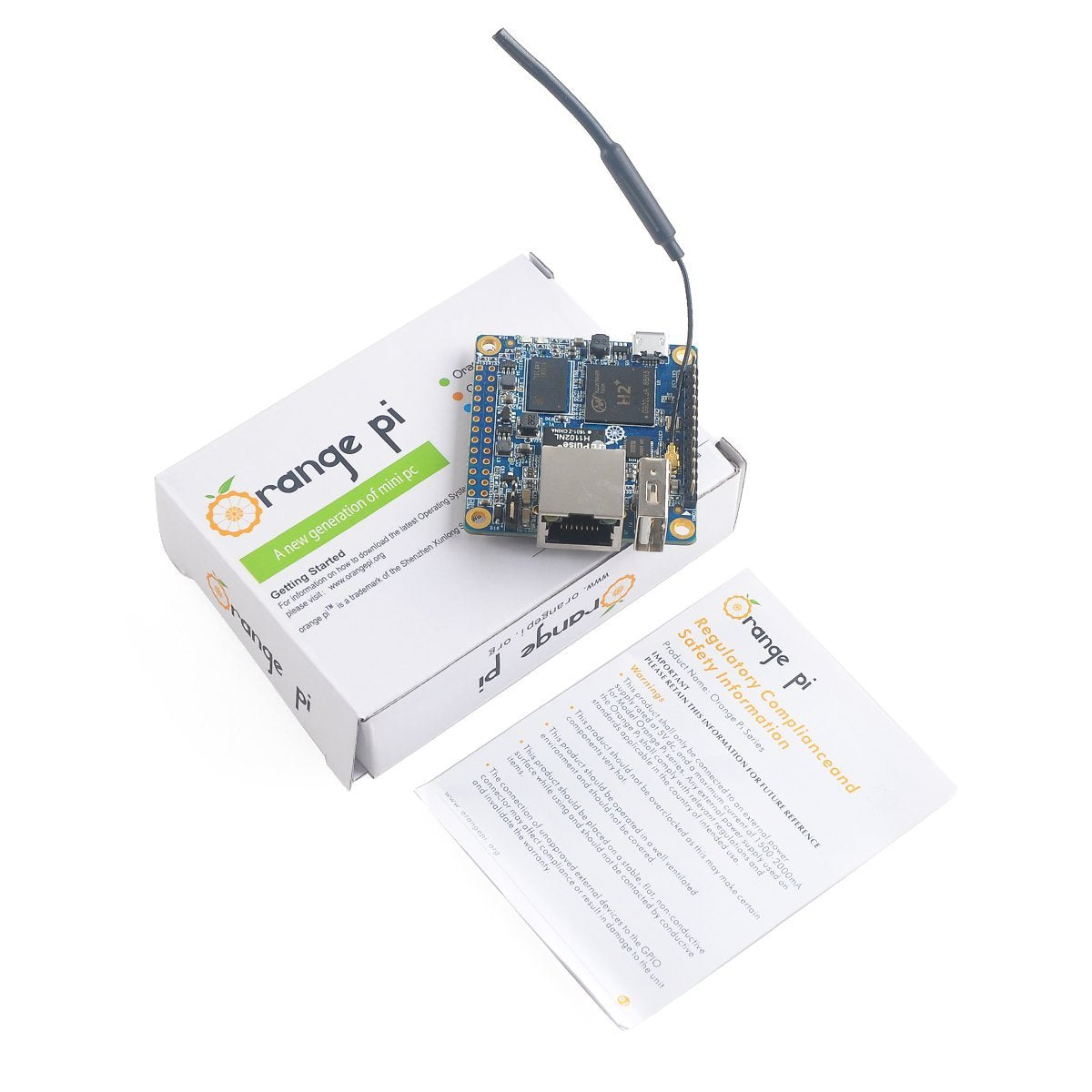

1 * Orange Pi Zero with Wifi Antenna
