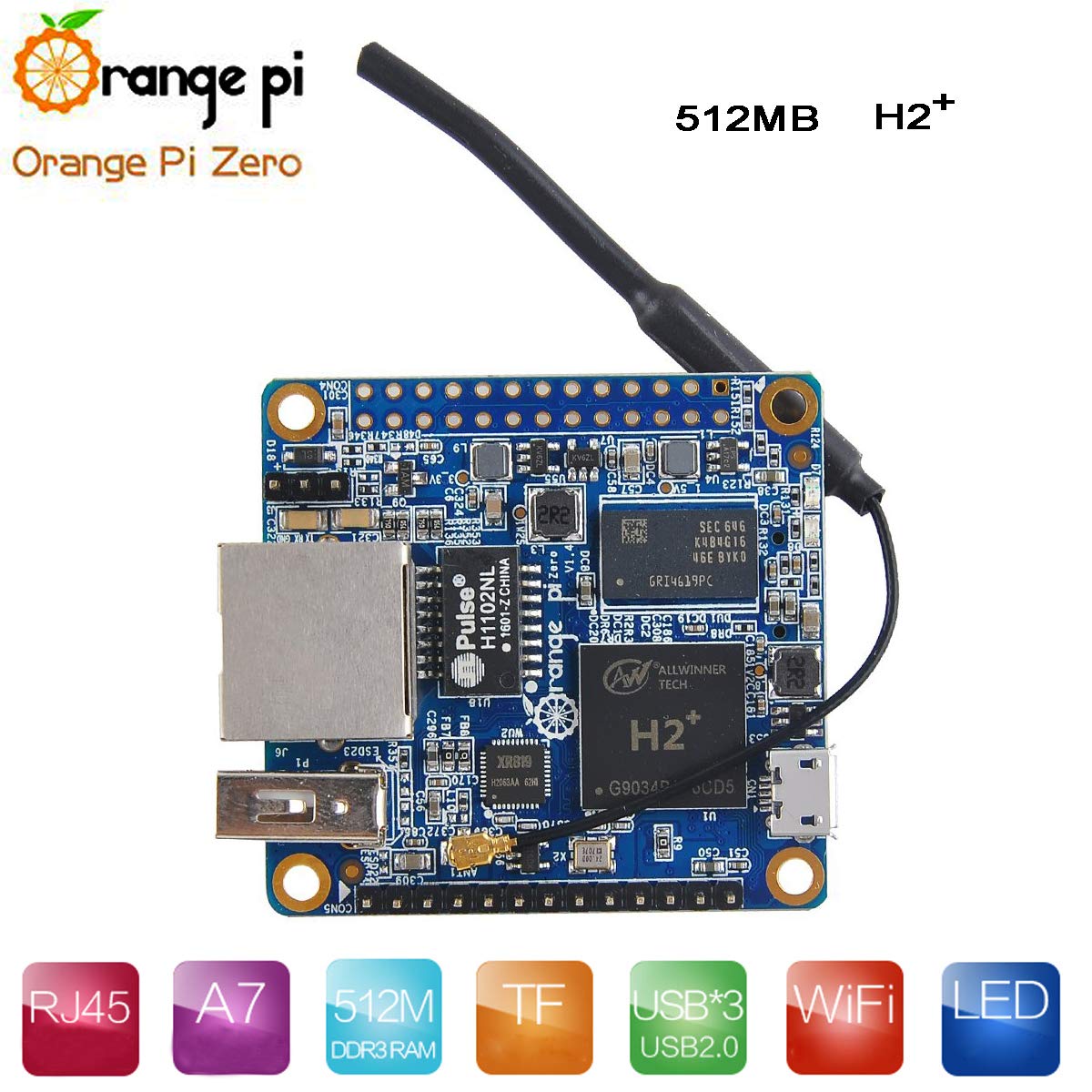

MakerFocus Orange Pi Zero H2 Quad Core Open-Source 512MB Development Board with WiFi Antenna


  • $17.47
    Unit price per
  • Save $0.92
Shipping calculated at checkout.

It's an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM.
Orange Pi Zero is for
anyone who wants to start creating with technology ndash; not just consuming it. It #39;s a simple, fun, useful tool that you can use to start taking control of the world around you.
You can use it to build hellip;
A computer,
A wireless server,
Games,Music and sounds,
HD video,A speaker,
Pretty much anything else, because Orange Pi is open source.

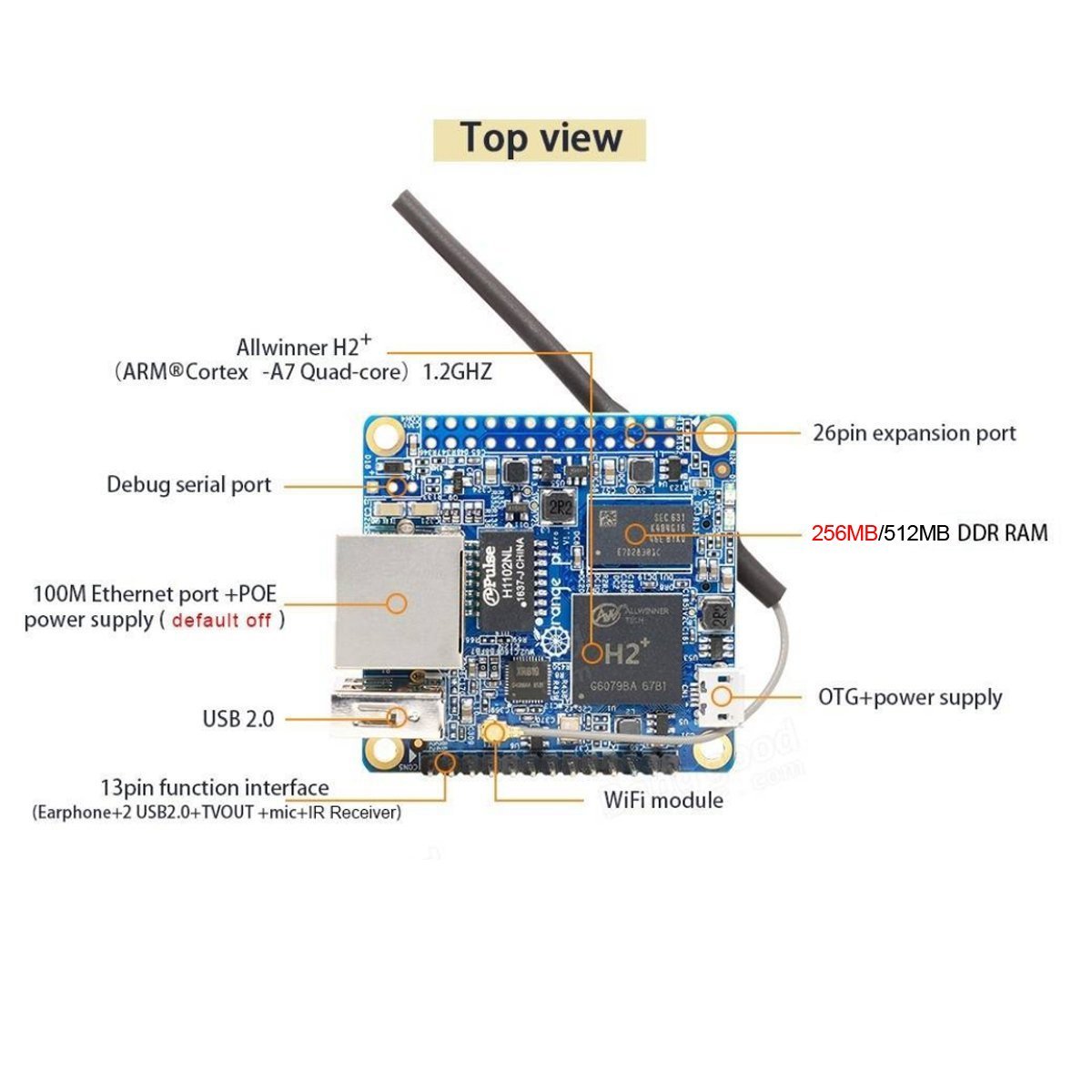

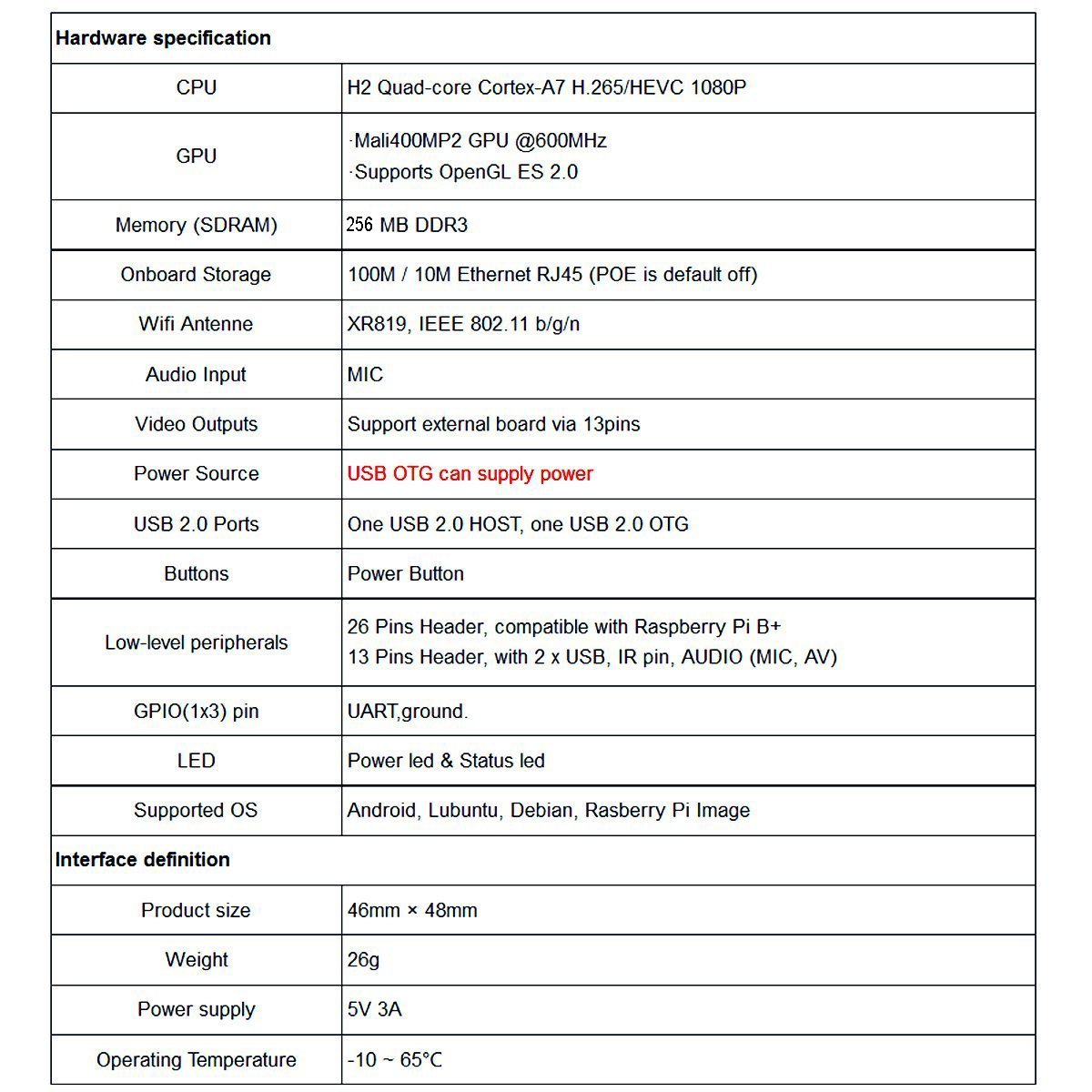

Hardware specification:
CPU: H2 Quad-core Cortex-A7 H.265/HEVC 1080P
GPU: Mali400MP2 GPU @600MHz Supports OpenGL ES 2.0
Memory (SDRAM): 512MB DDR3
Onboard Storage: 100M / 10M Ethernet RJ45 (POE is default off)
Wifi Antenne: XR819, IEEE 802.11 b/g/n
Audio Input: MIC
Video Outputs: Support external board via 13pins
Power Source: USB OTG can supply power
USB 2.0 Ports: One USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button
Low-level peripherals: 26 Pins Header, compatible with Raspberry Pi B+ 13 Pins Header, with 2 x USB, IR pin, AUDIO (MIC, AV)
GPIO(1x3) pin: UART,ground
LED: Power led Status led
Supported OS: Android, Lubuntu, Debian, Rasberry Pi Image
Interface definition:
Product size: 46mm times; 48mm
Weight: 20g
Power supply: 5V 3A
Operating Temperature: -10 ~ 65℃

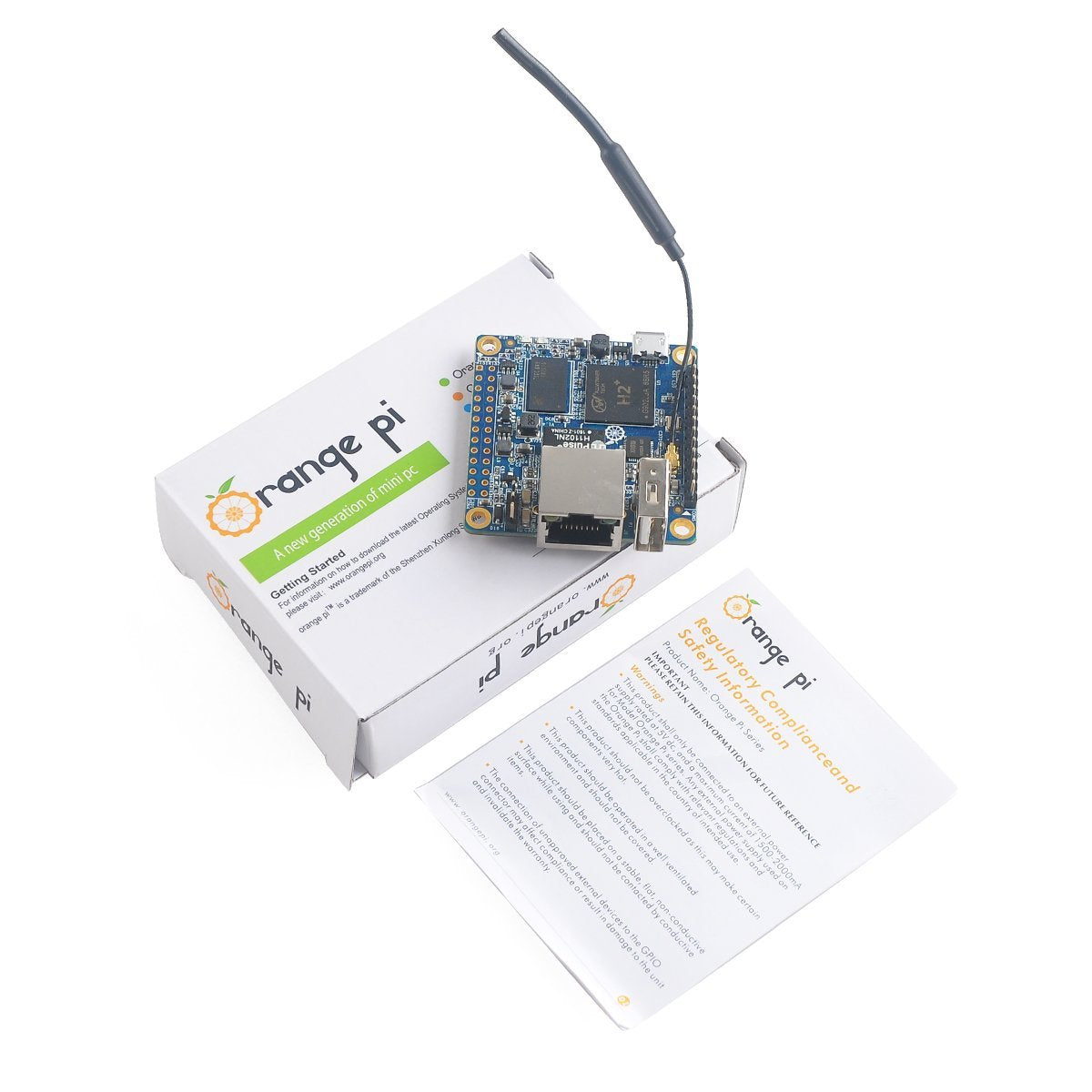

Packing List:

1 * Orange Pi Zero with Wifi Antenna
