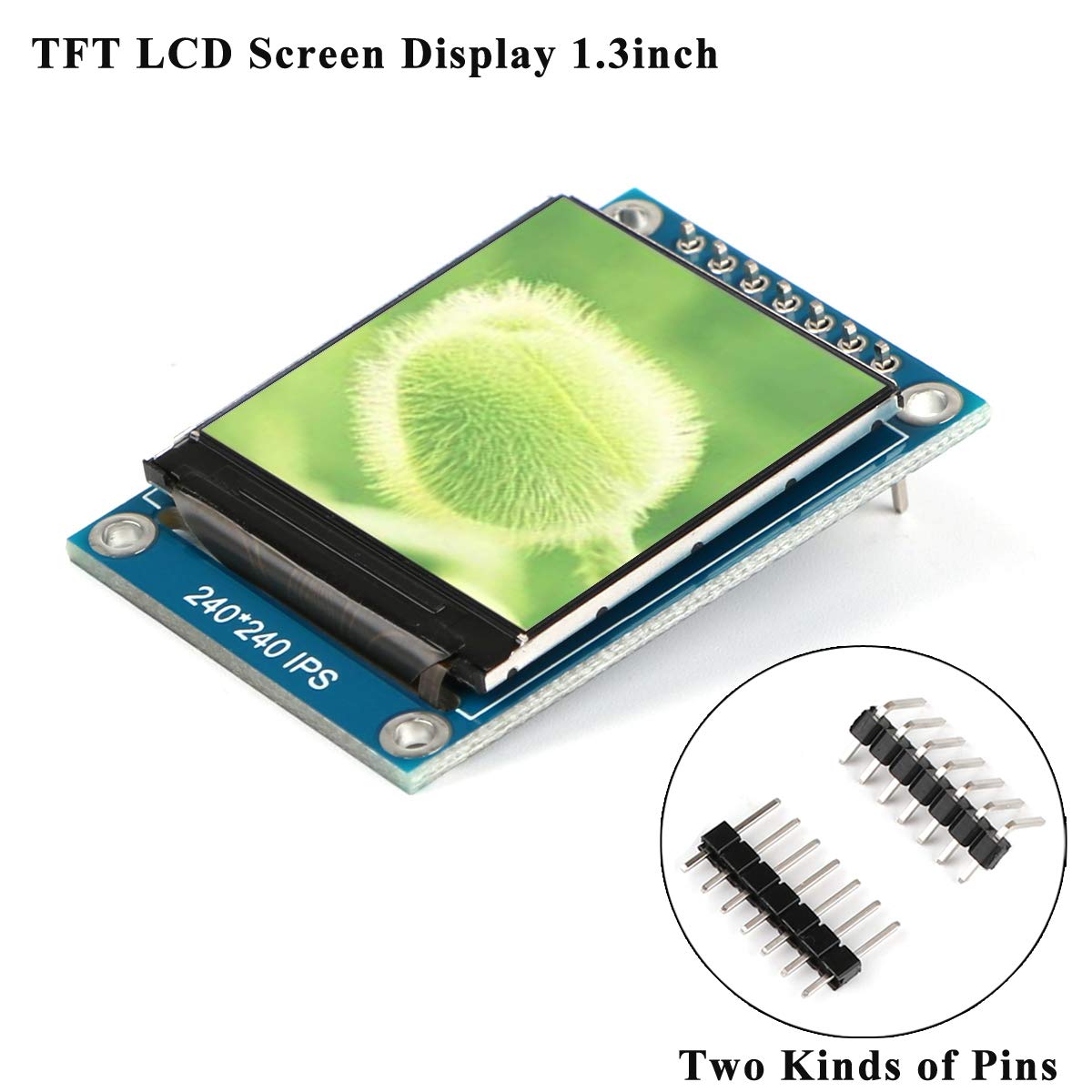

MakerFocus 1.3inch TFT LCD Display Module 3.3V with SPI Interface ST7789 IC Driver

  • $10.91
    Unit price per
  • Save $0.58


Description:
The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled. The color level is displayed to make the TFT LCD color more realistic, the brightness is good, the contrast is high, the layering is strong and the color is bright.

Specification:
Viewing direction: IPS
LCD Size: 1.3inch
Dot Size: 240*240 ( There are two display way: horizontal display and vertical display, you can adjust the display direction. )
Interface: SPI Interface, 7PIN
LED color: 65K full color
IC Driver: ST7789
Working temperature: -20-70℃
Working Voltage: 3.3V

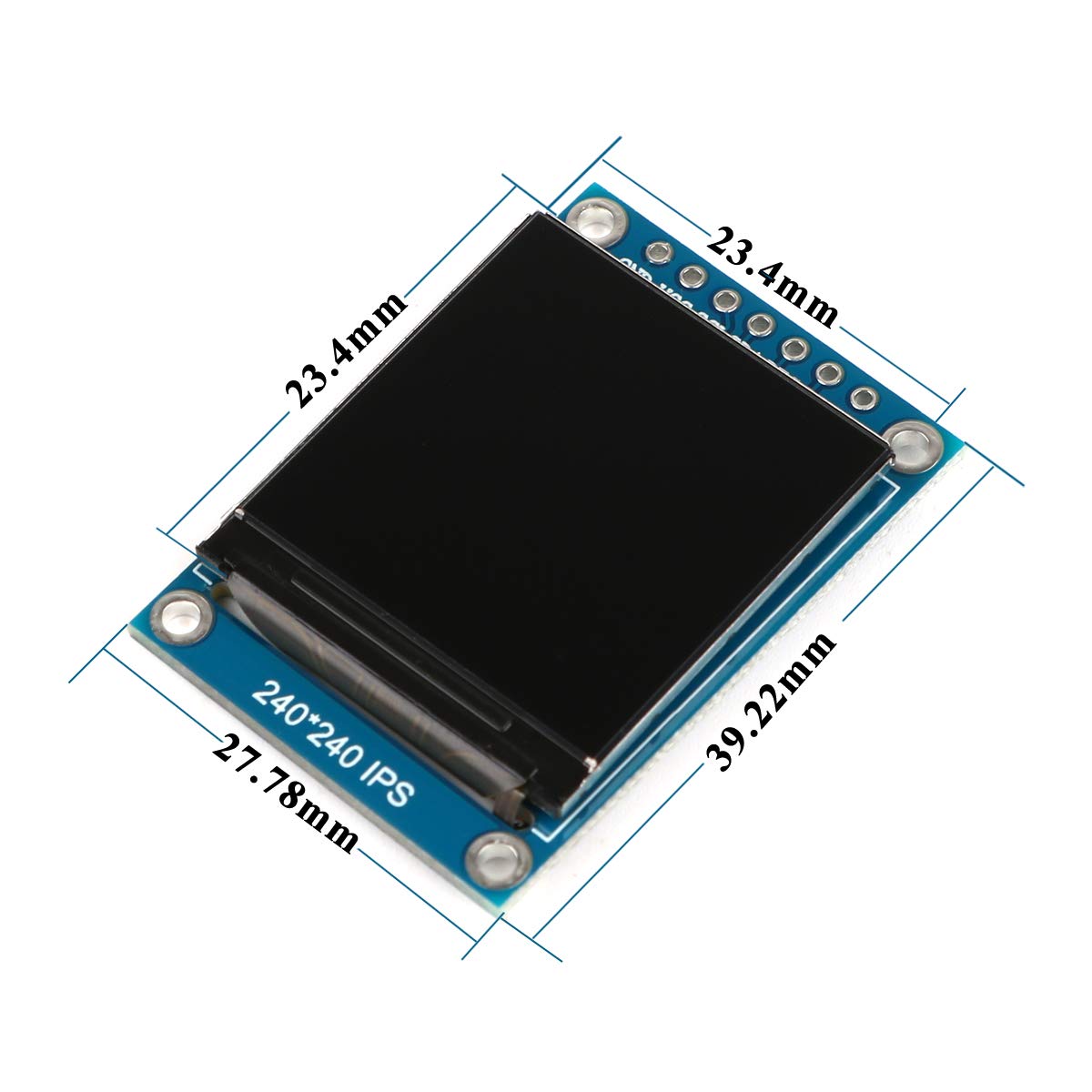

Display area Size: 23.4*23.4mm
TFT Module Size: 27.78* 39.22mm

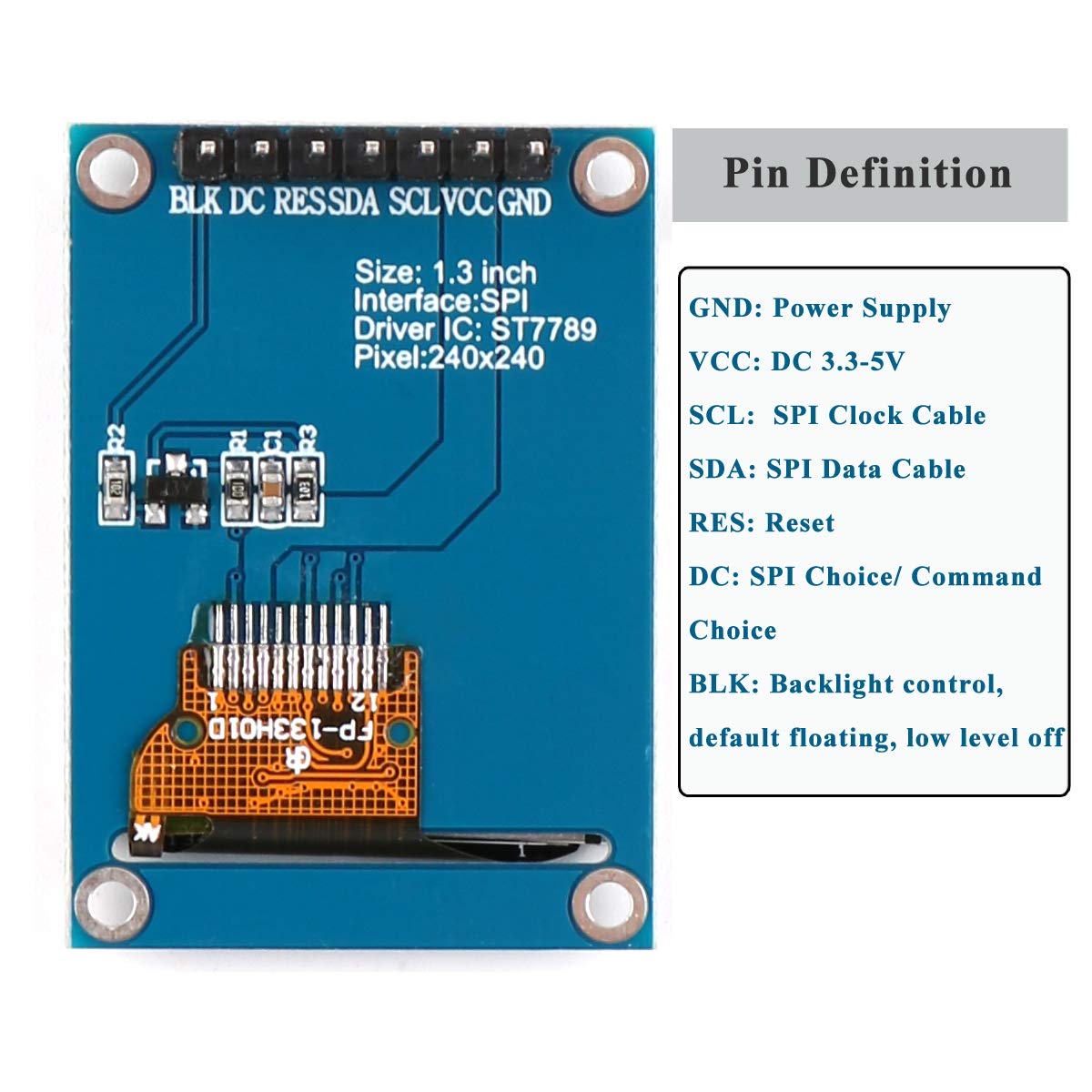

Pin:
GND: power supply
VCC: DC 3.3-5V
SCL:  SPI Clock Cable
SDA: SPI Data Cable
RES: Reset
DC: SPI Choice/ Command Choice
BLK: Backlight control, default floating, low level off



Packing List:

1 * 1.3inch TFT LCD Display Module
