MakerFocus GT-U7 GPS Module Compatible with 51 Microcontroller STM32 Arduino UNO R3 and IPEX Antenna

  • $11.99
    Unit price per
  • Save $1

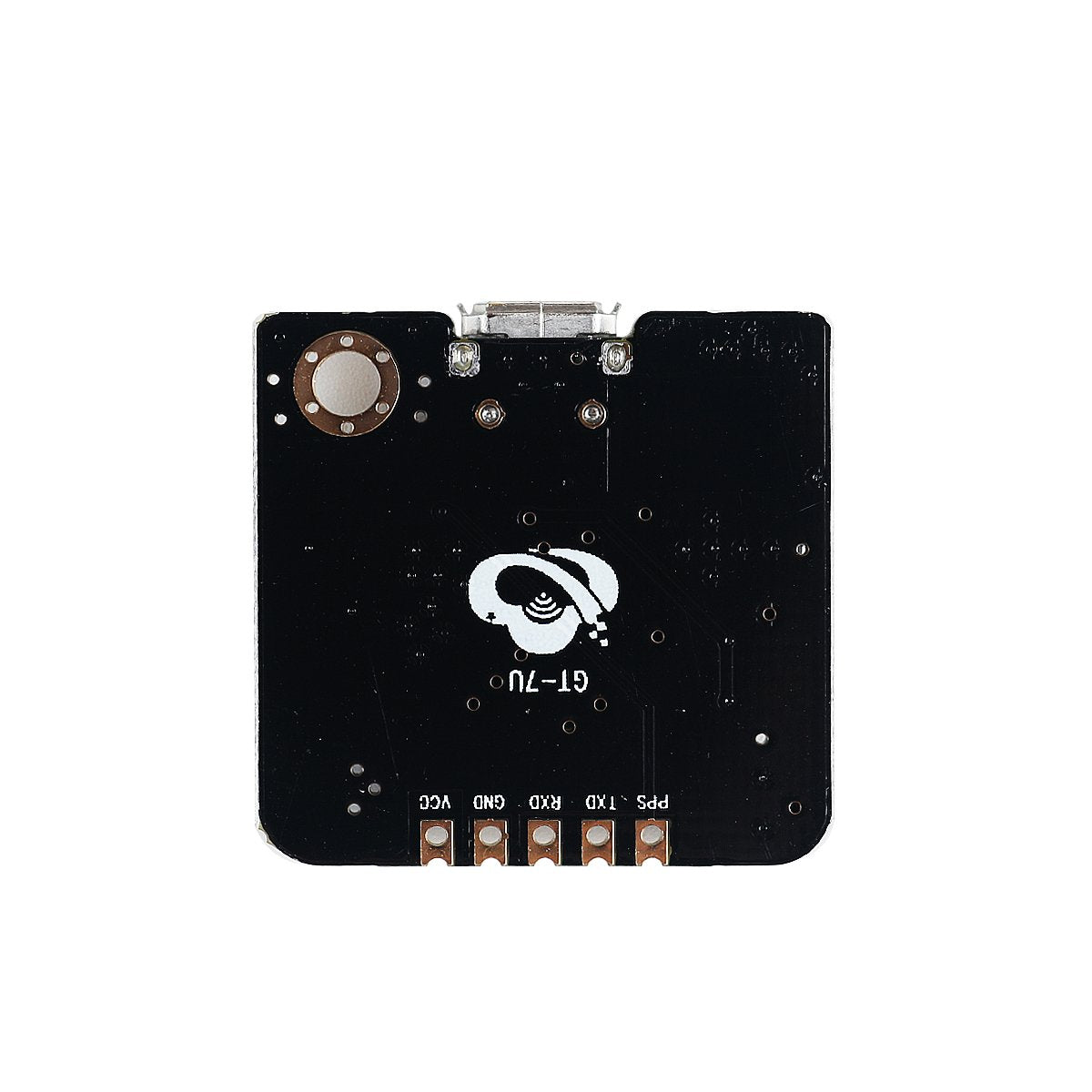

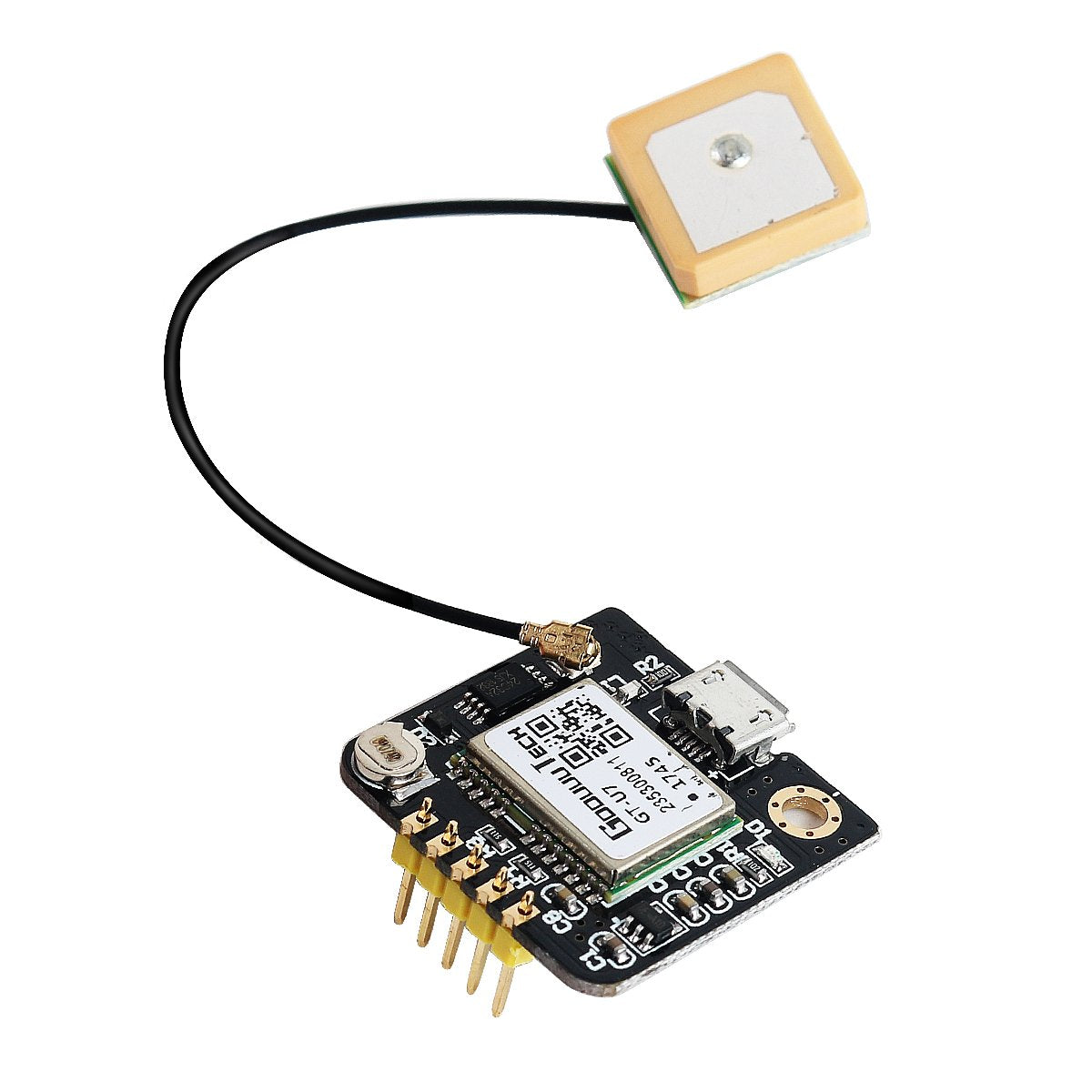

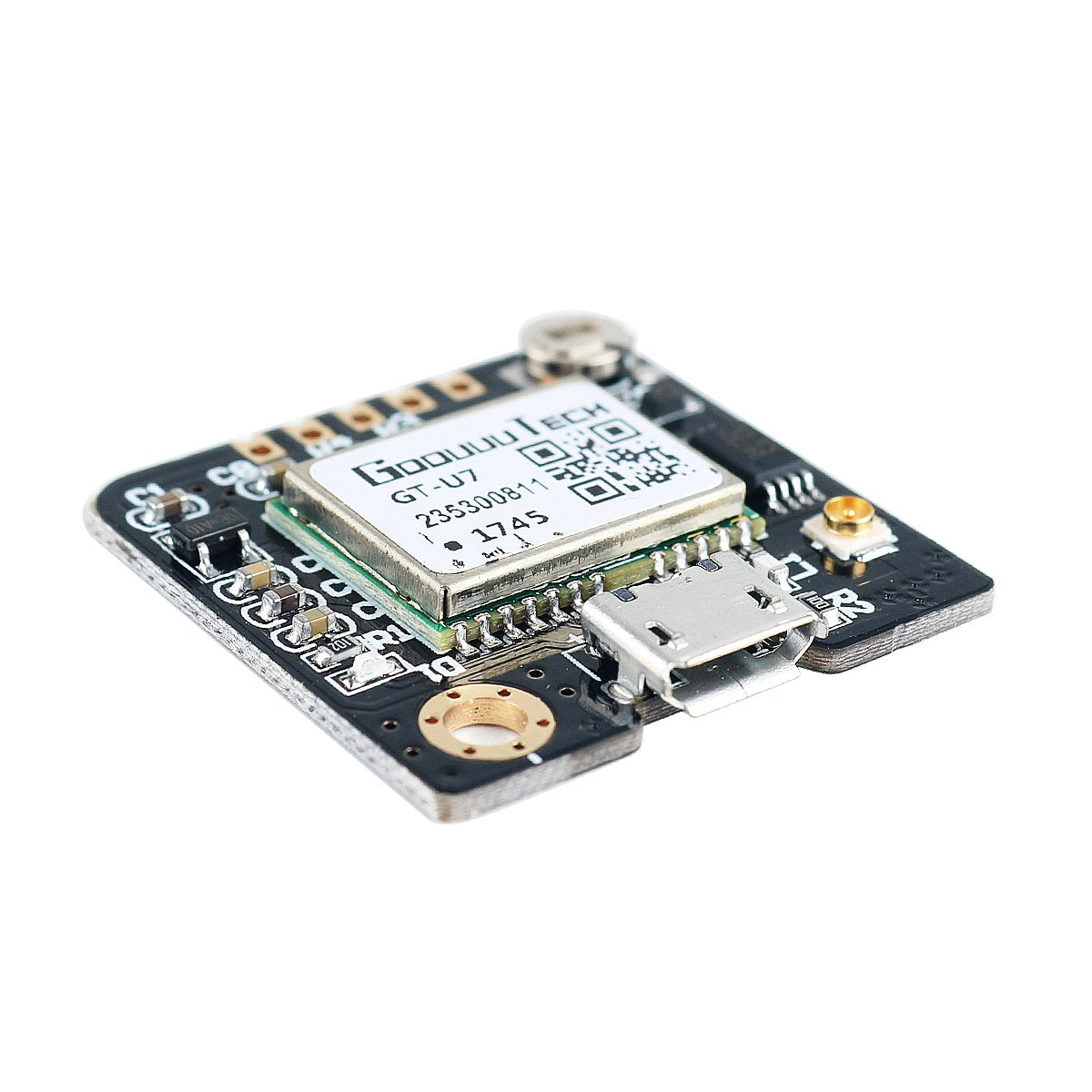

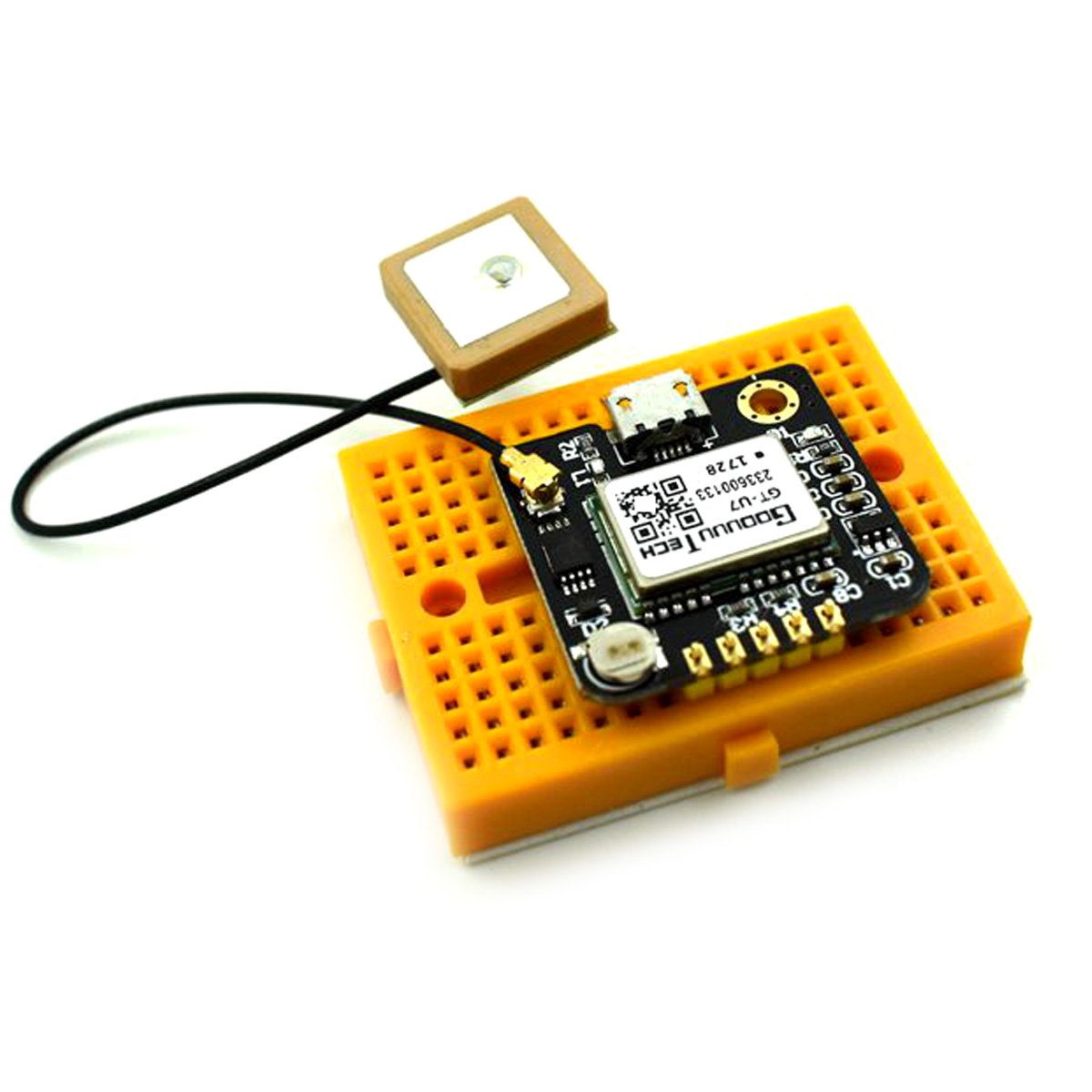

GT-U7 GPS Module



Description:
GT-U7 main module GPS module using the original 7th generation chip, Software is compatible with NEO-6M.

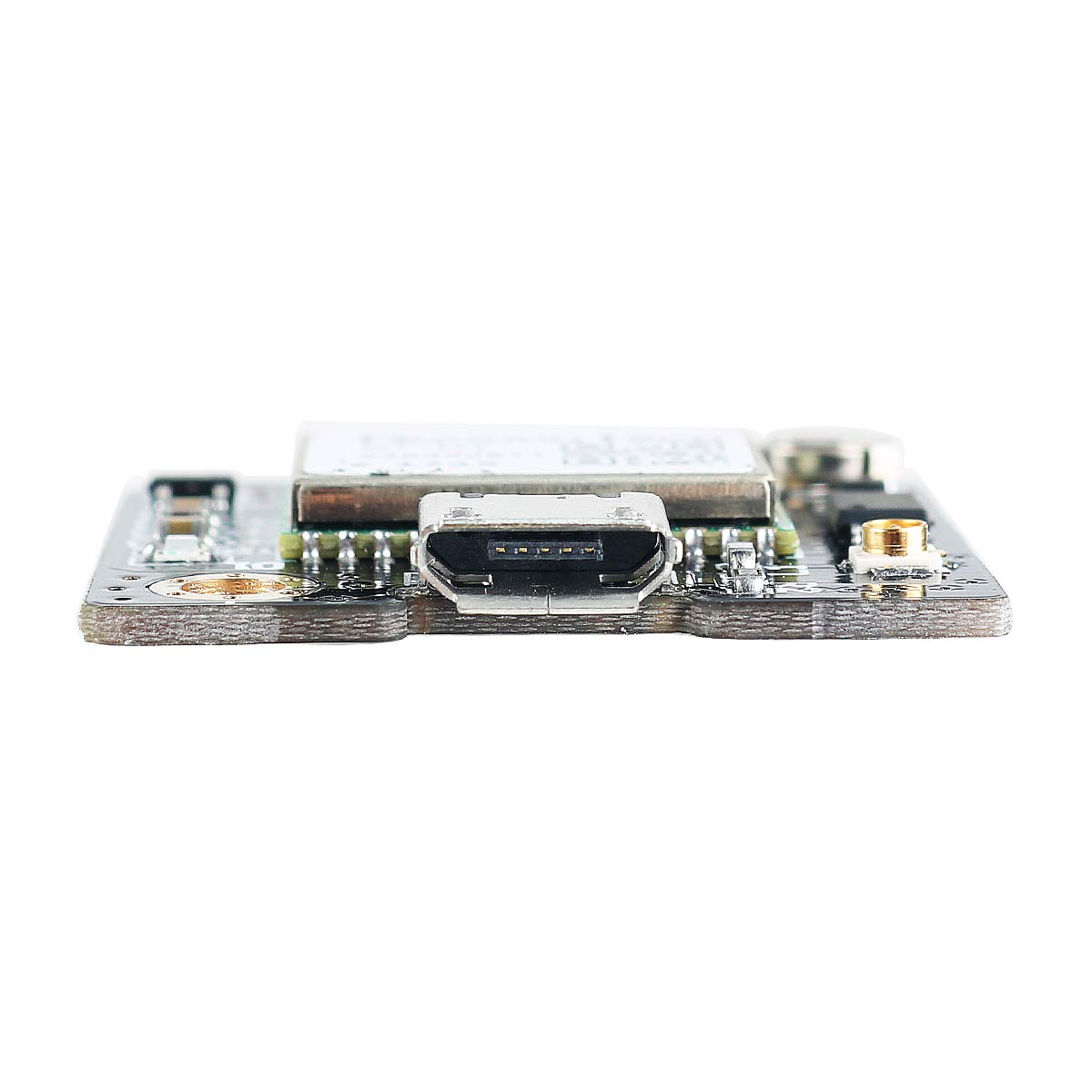

With a USB interface, you can directly use the phone data cable on the computer point of view positioning effect.
USB directly connected to the computer, That is, with the host computer-owned serial port function, no need for external serial module, send IPX interface active antenna!

Features:
GT-U7 module, with high sensitivity, low power consumption.
Miniaturization, its extremely high tracking sensitivity greatly expanded its positioning of the coverage.
In the ordinary GPS receiver module can not locate the place, such as narrow urban sky, dense jungle environment, GT-U7 can be high-precision positioning.
Module with high sensitivity, small static drift, low power and lightweight volume.

Specification:
With IPEX antenna interface, the default distribution of active antenna, can be quickly positioned
Operating voltage: 3.6V-5V (or direct usb power supply)
Operating baud rate: 9600 (can be modified)
Onboard rechargeable button battery
Onboard E2PROM can save parameter data
NEMA output format is compatible with NEO-6M
Size: 27.6mm * 26.6mm can be inserted or selected patch (with positioning holes)

Application areas:
Vehicle-mounted
Handheld devices such as PDAs
Vehicle monitoring
Mobile phones, camcorders and other mobile positioning systems
Sharing bike
Sharing mobile power

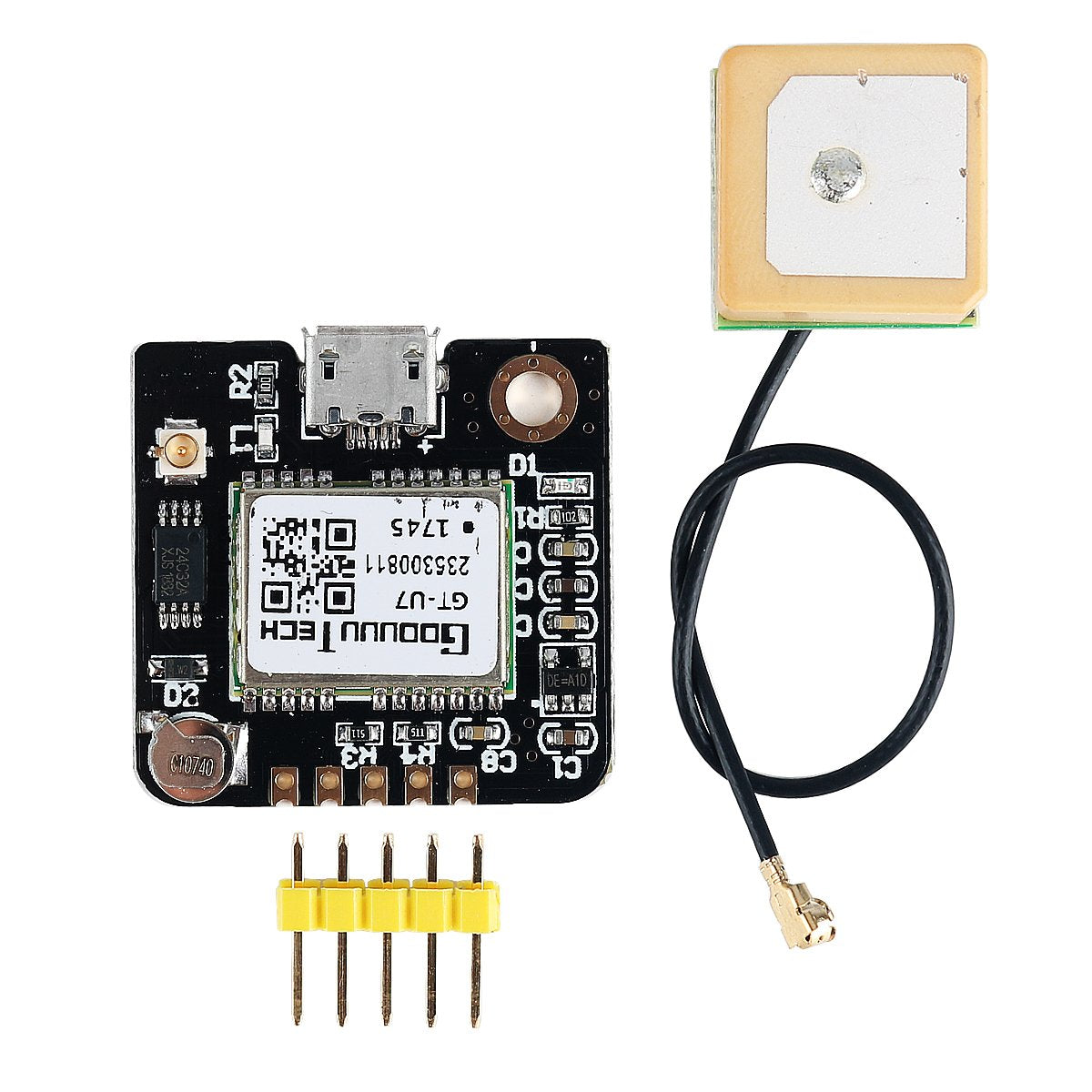

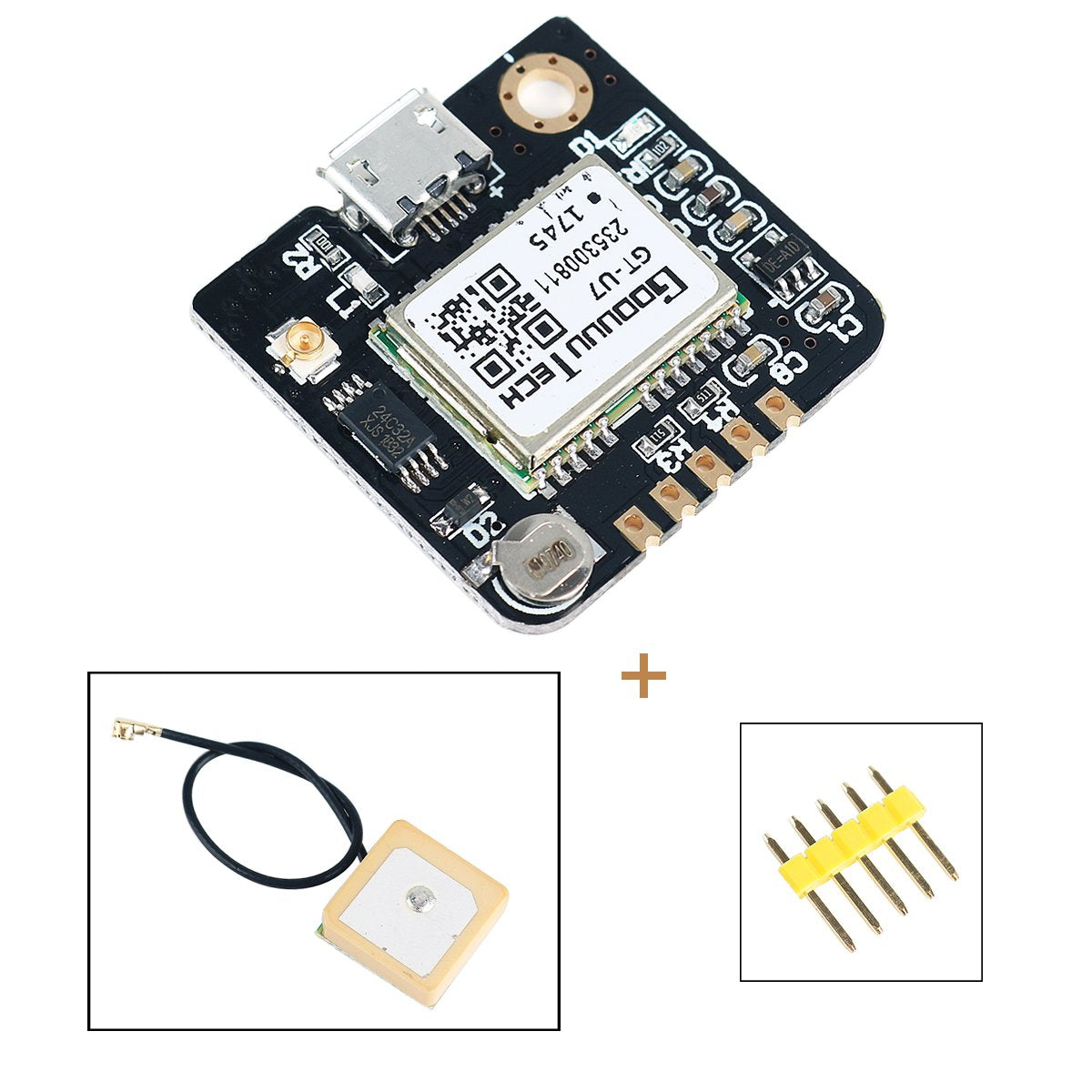

Packing List:

1 * GT-U7 GPS Module
1 * IPX antenna
