MakerFocus TFmini-S Lidar Single-Point Micro Ranging Module Compatible with Pixhawk Arduino

  • $36.00
    Unit price per
  • Save $1.90


Description:
TFmini-s is a upgraded single-point micro ranging module based on TFmini. The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.
TFmini-s is compatible with both the UART and I2C interface. Different interfaces can be switched by commands.

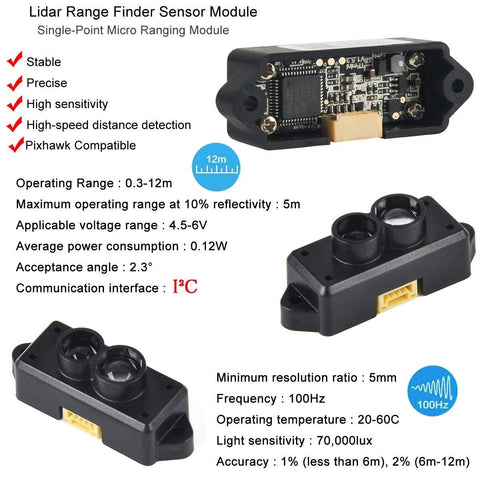

Performance:
Operating Range : 0.1m~12m@90%Reflectivity
Accuracy: ±6cm@(0.1-6m), ±1% @ (6m-12m)
Distance Resolution: 1cm
Frame Rate: 100Hz
Ambient Light Immunity: 70Klux
Operating Temperature: 0℃~60℃

Optical Parameters:
Light Source: VCSEL
Central Wavelength: 850nm
Photobiological Safety: Class1 (EN60825)

Electrical Parameters:
Supply Voltage: 5V±0.1V
Average Current: ≤140mA
Power Consumption: ≤0.7W
Peak Current: 200mA
Communication Level: LVTTL(3.3V)
Communication Interface: UART / I2C

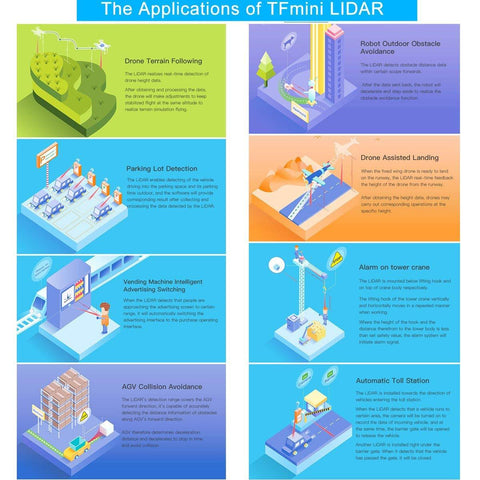

Main application scenario:
Pedestrian detection
Vehicle detection

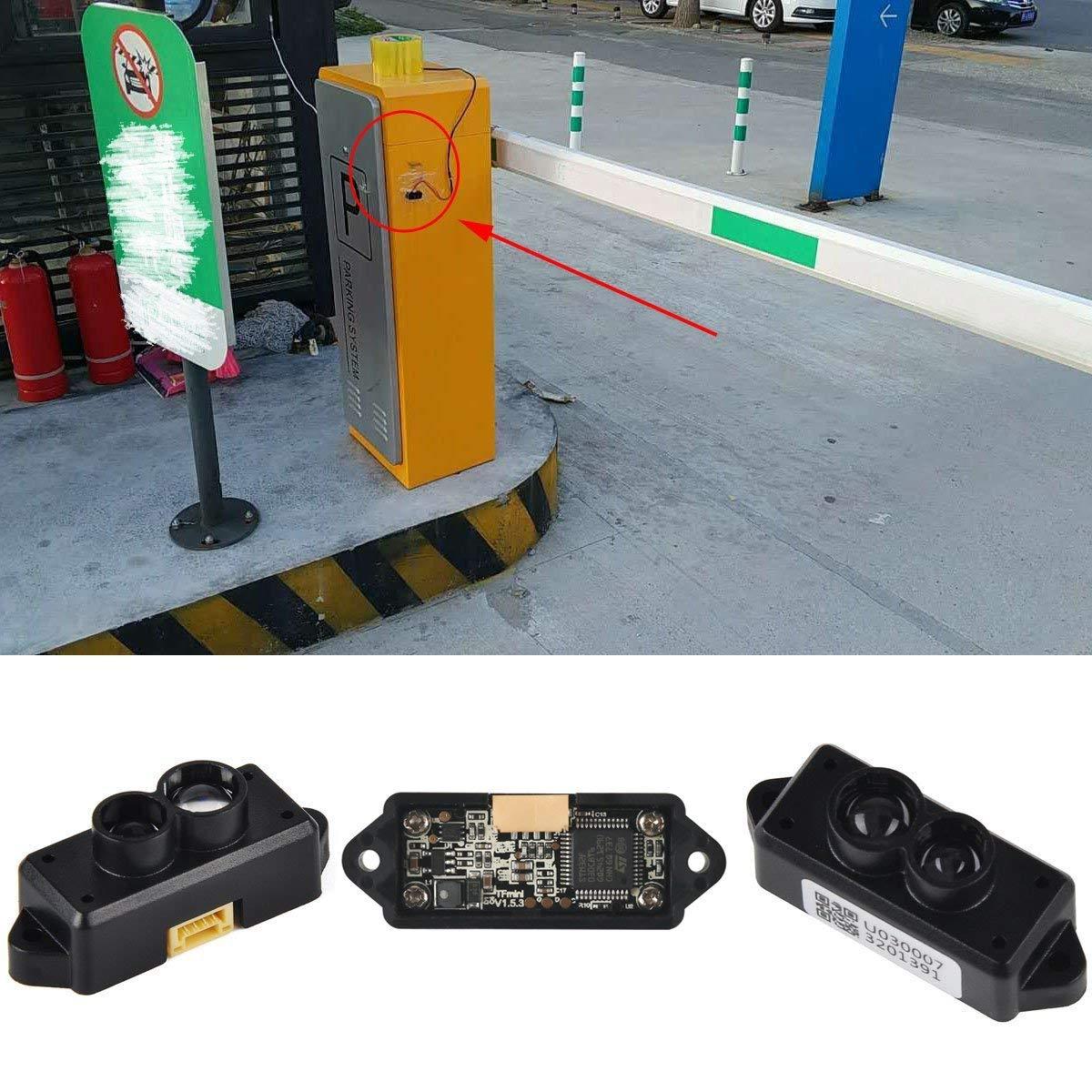

Intelligent barrier gate and altimeter

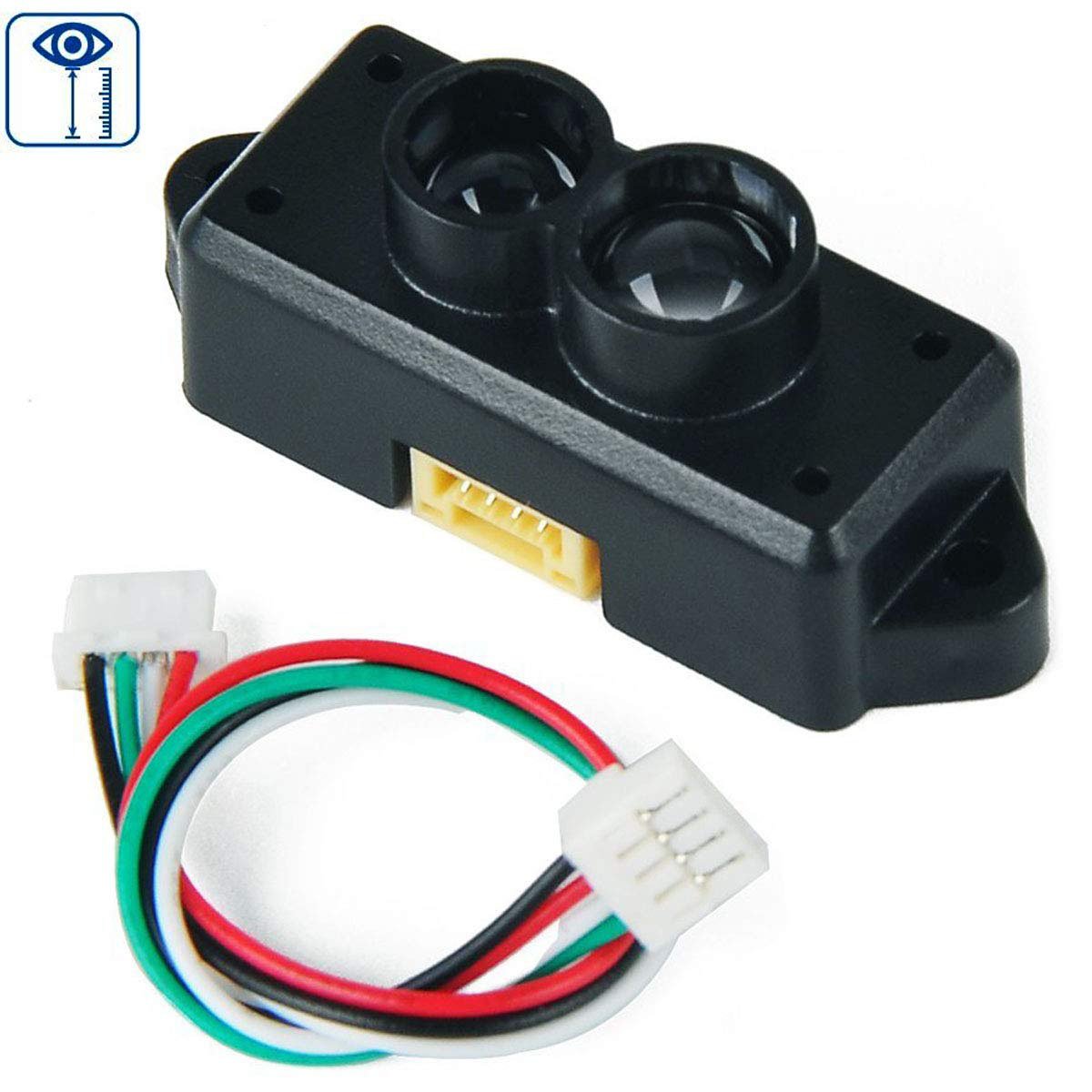

Packing List:

1 * TFmini-s UART / I2C Laser Range Finder Module
2 * Cable
