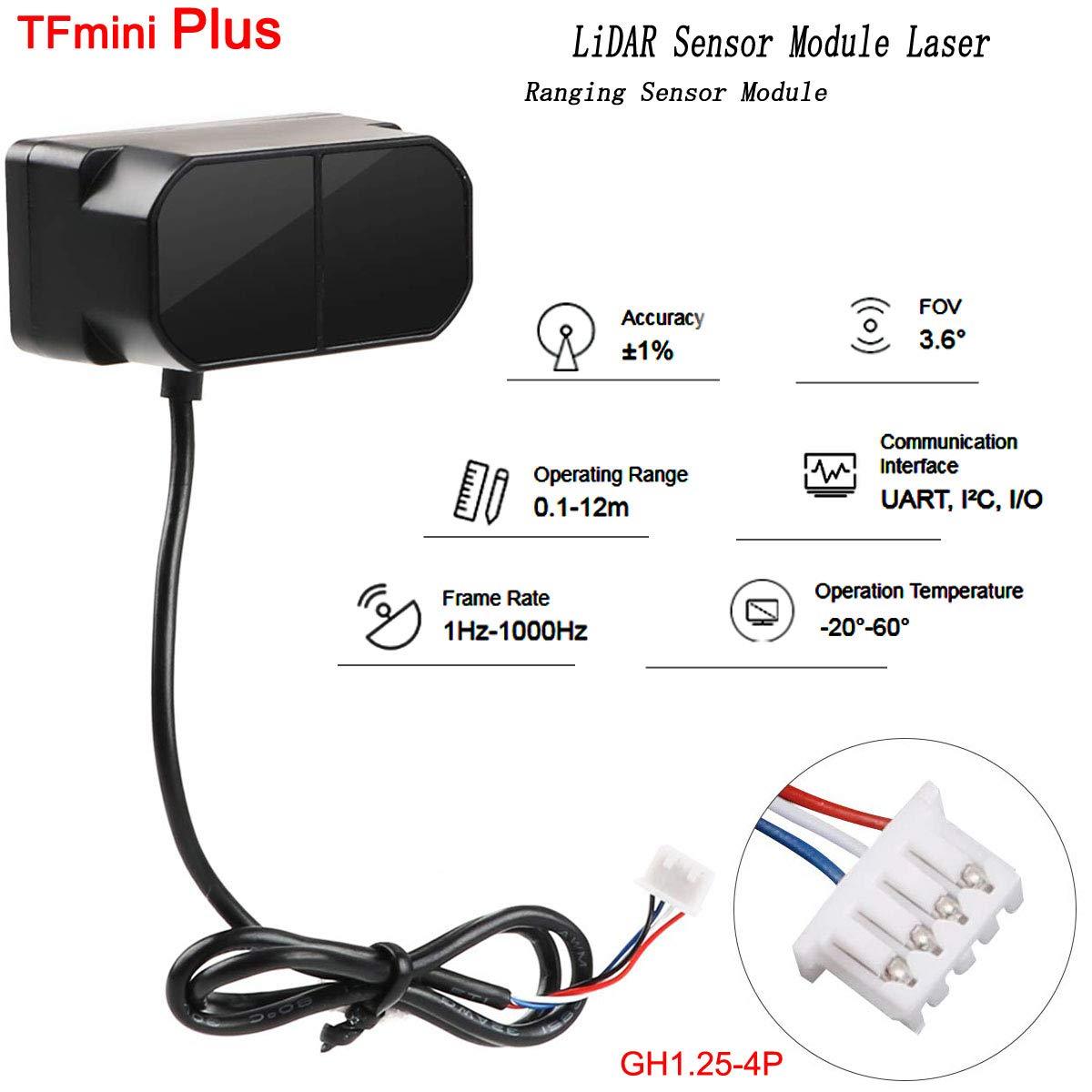

MakerFocus TFmini Plus Lidar Module(Short-Range Distance Sensor) Single-Point Ranging Module

  • $44.64
    Unit price per
  • Save $2.35


Description:

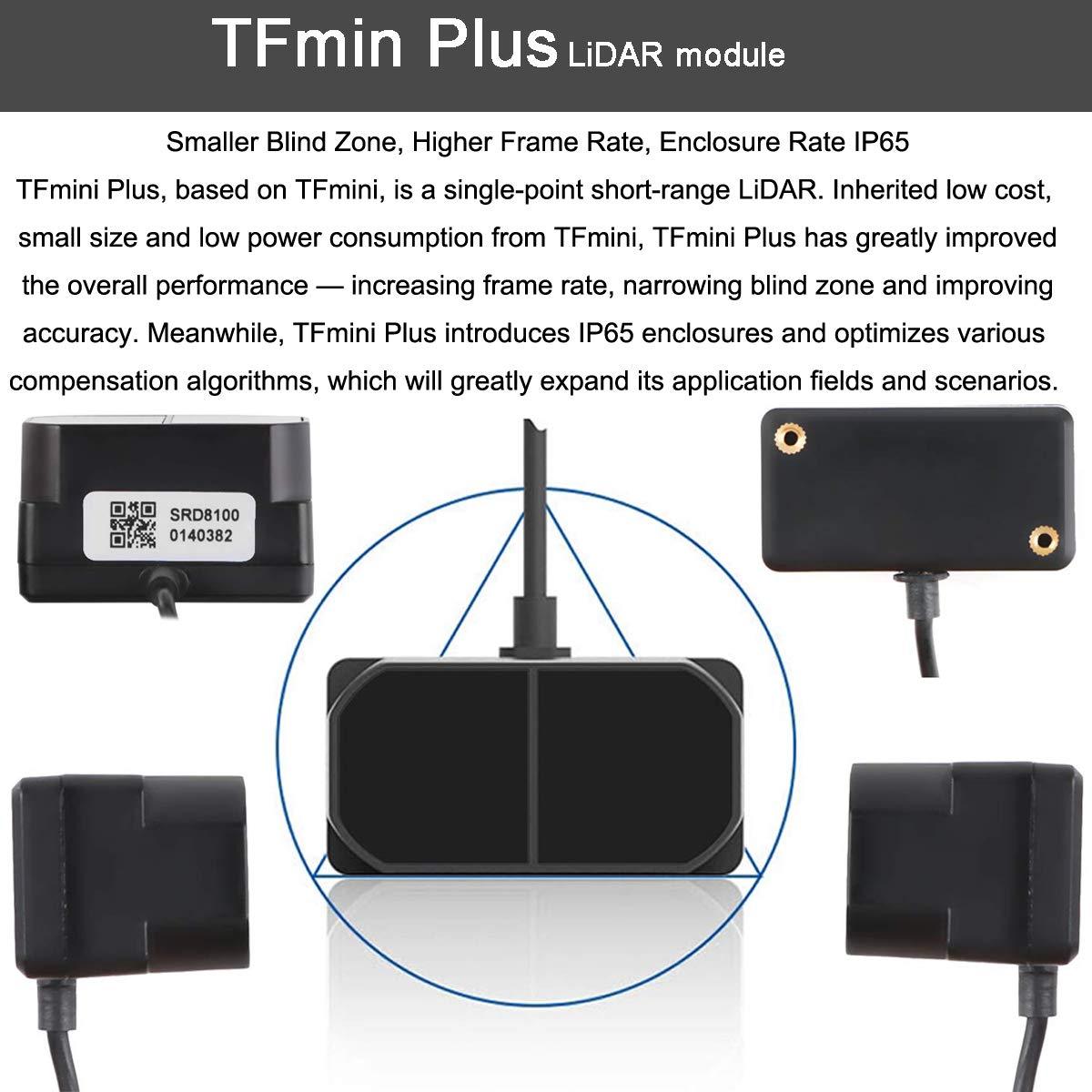

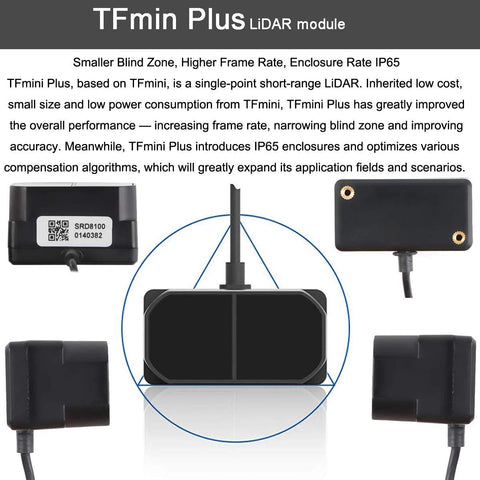

TFmini Plus, based on TFmini is a single-point short-range LiDAR. Inherited low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved its performance — increasing the measurement frequency, reducing blind zone and improving accuracy. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.

Product Parameters:

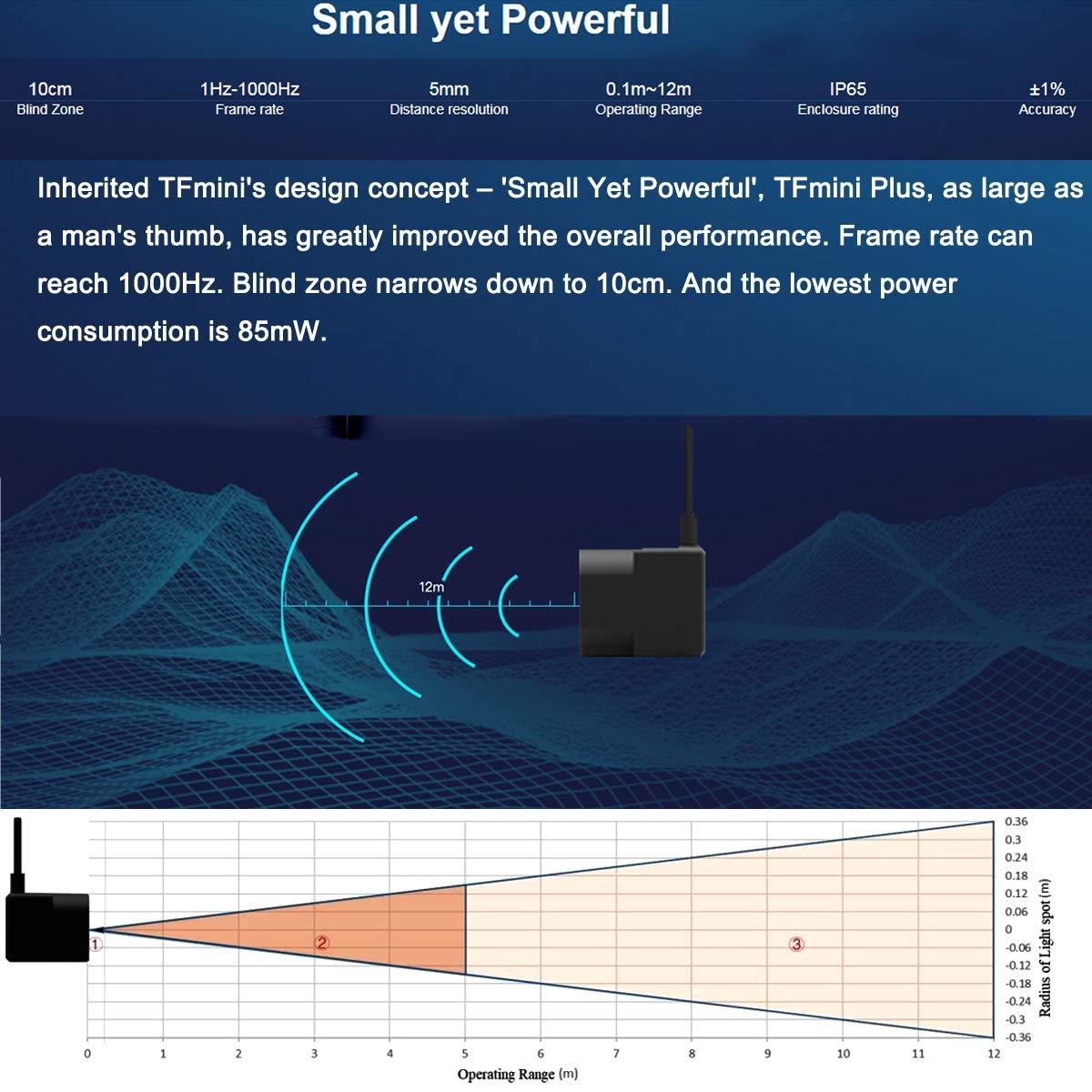

Operating Range: 0.1m~12m
Accuracy: ±5cm@(0.1-6m); 1%@(6m-12m)
Distance resolution: 5mm
Frame rate: 1-1000Hz(adjustble)
Ambient light immunity: 70klux
Operating temperature: -20℃~60℃

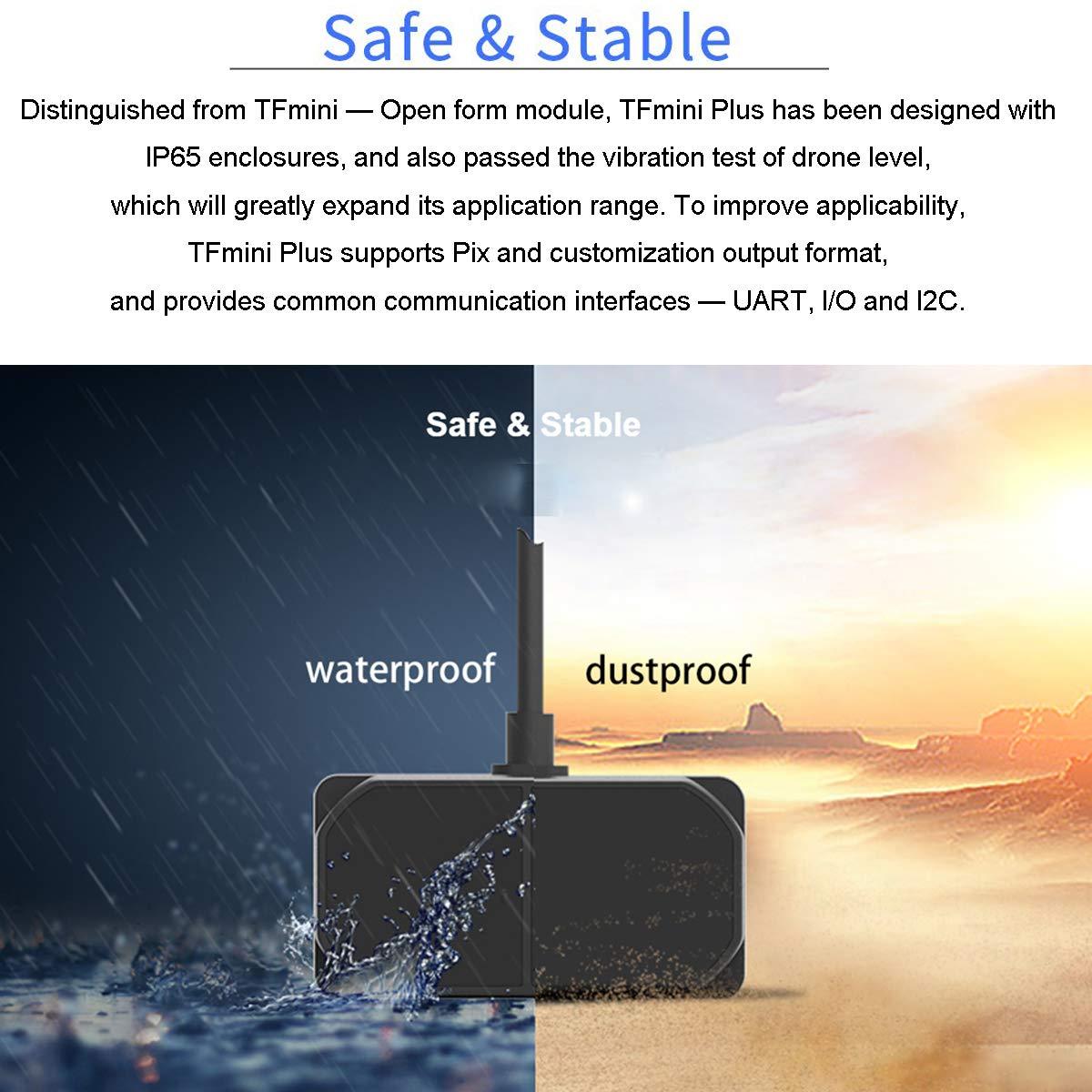

Enclosure rating: IP65

Optical parameters:
Light source: LED
Central wavelength: 850nm
FOV: 3.6°

Electrical parameters:
Supply voltage: 5V±0.5V
Average current: ≤110mA
Power consumption: 550mW
Peak current: 500mA

Miscellaneous:
Material of enclosure: ABS+PC
Storage temperature: -20℃~75℃
Weight: 11g
Wire length: 30cm



Packing List:

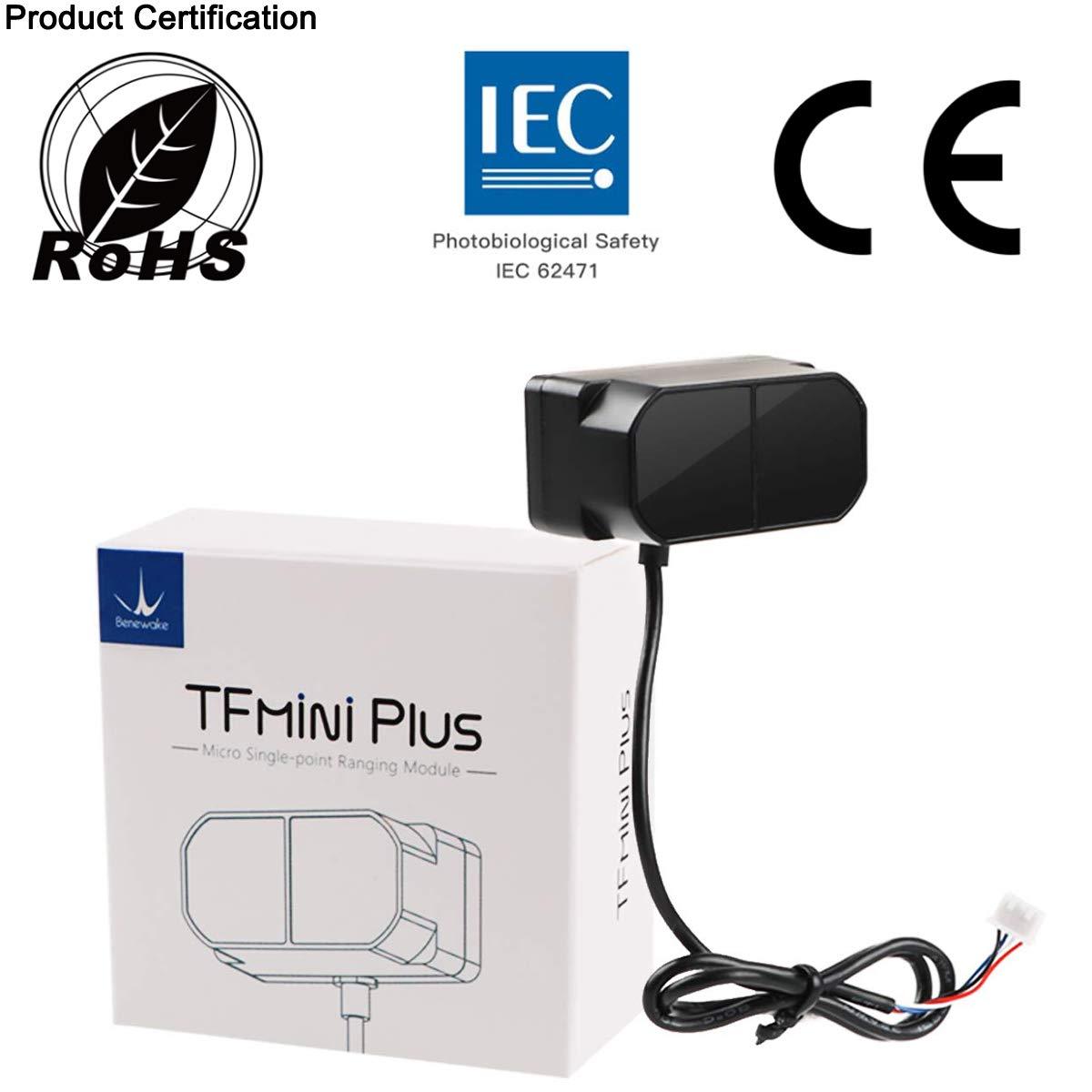

1 * Lidar Laser Ranging Module(TFmini Plus)
