Smart Bluetooth Speaker IoT Dev Kit with Dual Core BLE WiFi M5Stack ATOM ECHO Based on ESP32
- $29.98
$38.98- $29.98
- Unit price
- per
Subtotal:
$29.98
Couldn't load pickup availability
Description
xSmart Bluetooth Speaker IoT Dev Kit with Dual Core BLE WiFi M5Stack Atom Echo Based on ESP32 Support A2DP BLE 4.0 Play Music Record and Playback, for Arduino, Voice Control and IoT
[ Small Programmable Smart Speaker ] - ATOM ECHO based on the M5ATOM design. Video: https://drive.google.com/file/d/1G2y0yI0U3ASz8GWADtjjgsADuWax3b1X/view?usp=sharing; User Manual: https://drive.google.com/file/d/1MyrvGpvSYjxPTE0tDOYgAbxFuO5wShPP/view?usp=sharing. NOTE: G19 / G22 / G23 / G33 has been defined, please do not reuse the above pins, otherwise ATOM ECHO will be damaged!!!
[ Play Music ] - Music can be played using the bluetooth capabilities of the ESP32 from a mobile phone or tablet. Note: please avoid such conditions with M5Stack Atom Echo: 1. DC output from I2S channel; 2.Playing white noise for a long time; 3. Playing full square-wave audio

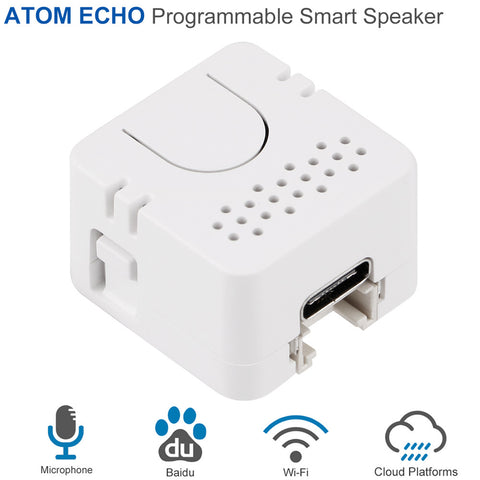

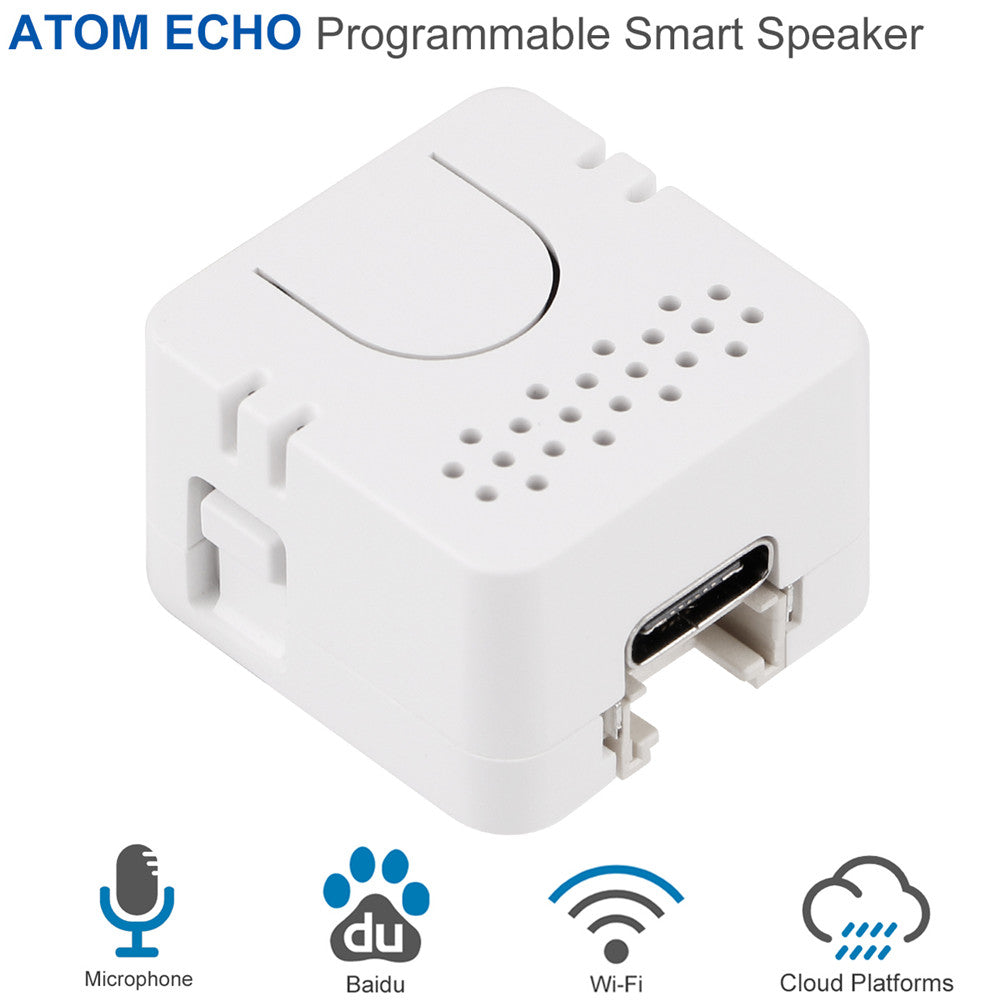

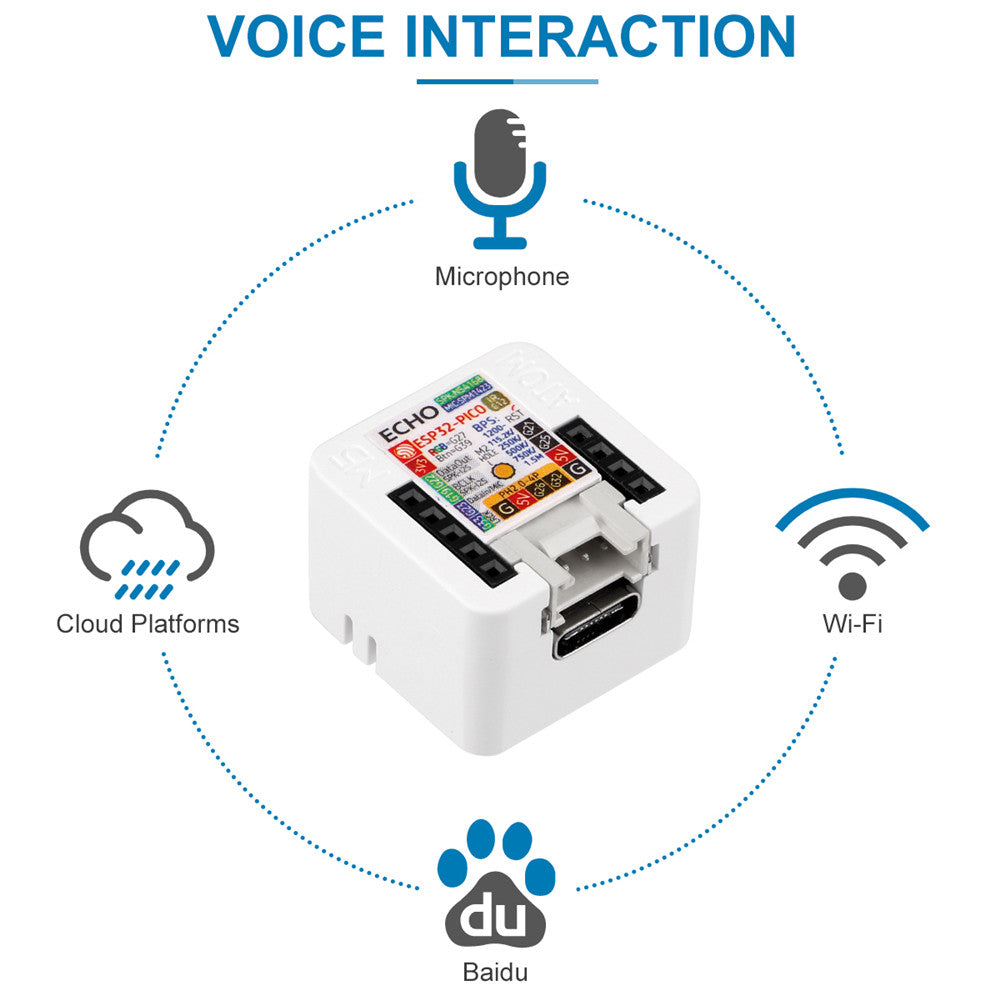

[ Voice Interaction ] - The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that ATOM ECHO has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions.
[ RGB LED Status Display] - The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a Bluetooth speaker, it still has the control ability of Atom series.
[ Pin Definition ] - You can connect devices through the grove interface, G21 / G25 can only be used for general I/O, they do not support I2C and UART.
Product description
NOTE: G19 / G22 / G23 / G33 has been defined, please do not reuse the above pins, otherwise ATOM ECHO will be damaged!

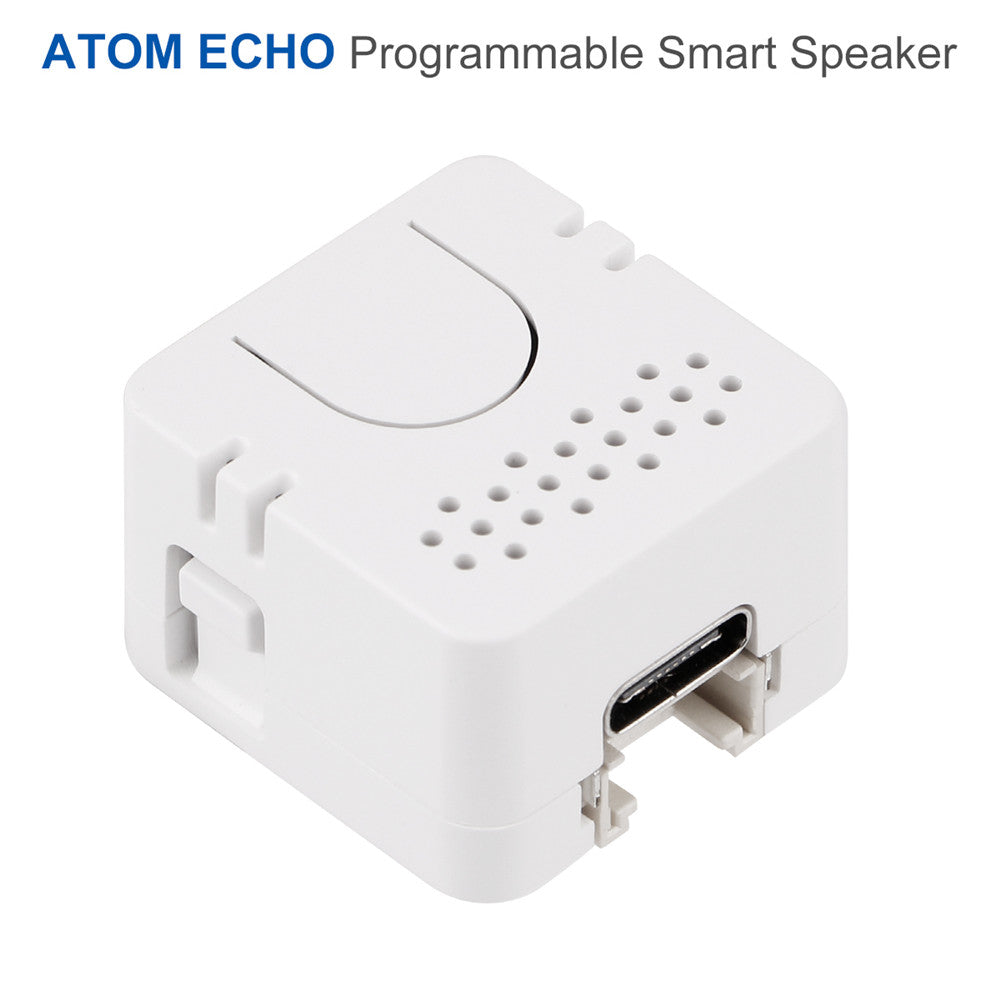

ATOM ECHO is a Programmable Smart Speaker based on the M5ATOM design.

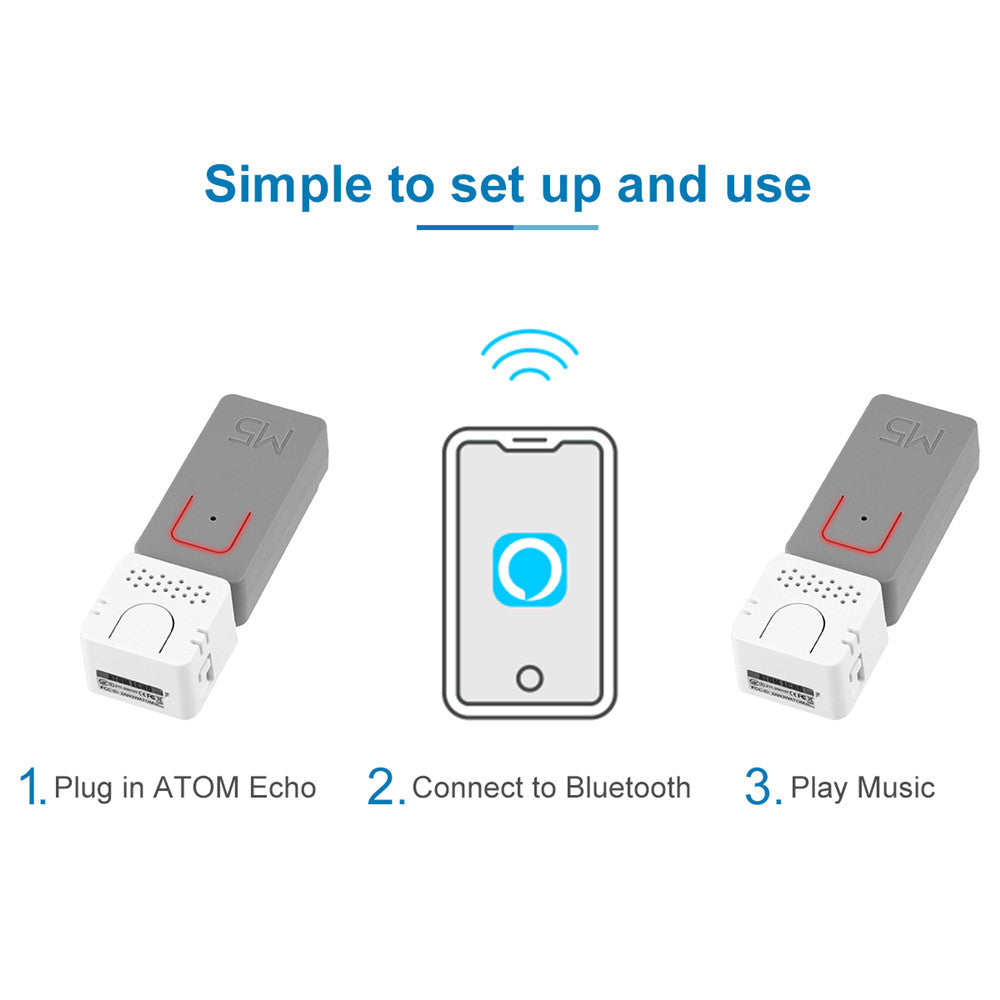

-Music can be played using the bluetooth capabilities of the ESP32 from a mobile phone or tablet.
-The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that ATOM ECHO has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions.
-The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a Bluetooth speaker, it still has the control ability of Atom series.
-You can connect devices through the grove interface, G21 / G25 can only be used for general I/O, they do not support I2C and UART.
-Screw hole on the back is convenient for users to fix.

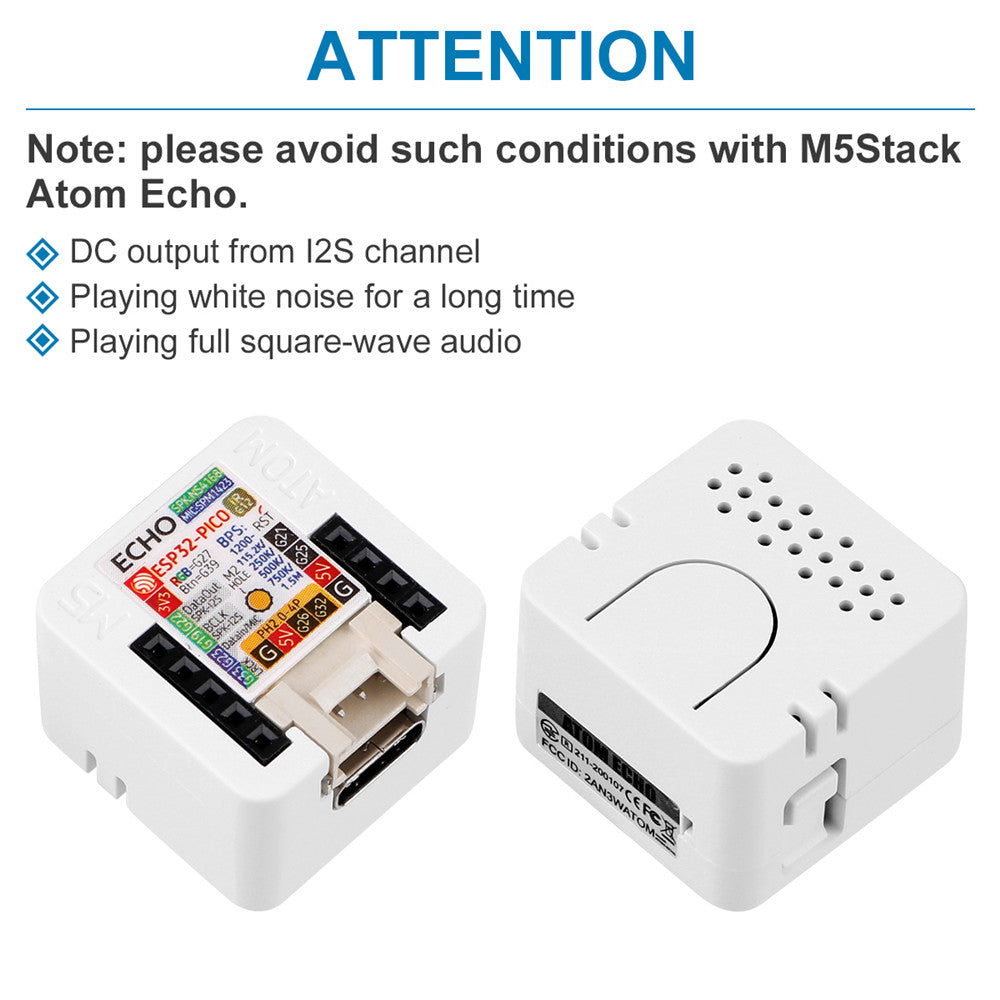

Note:
Avoid DC output from I2S channel
Avoid playing white noise for a long time
Avoid playing full square-wave audio

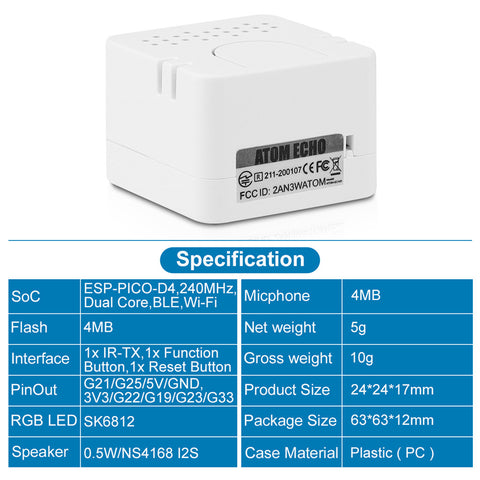

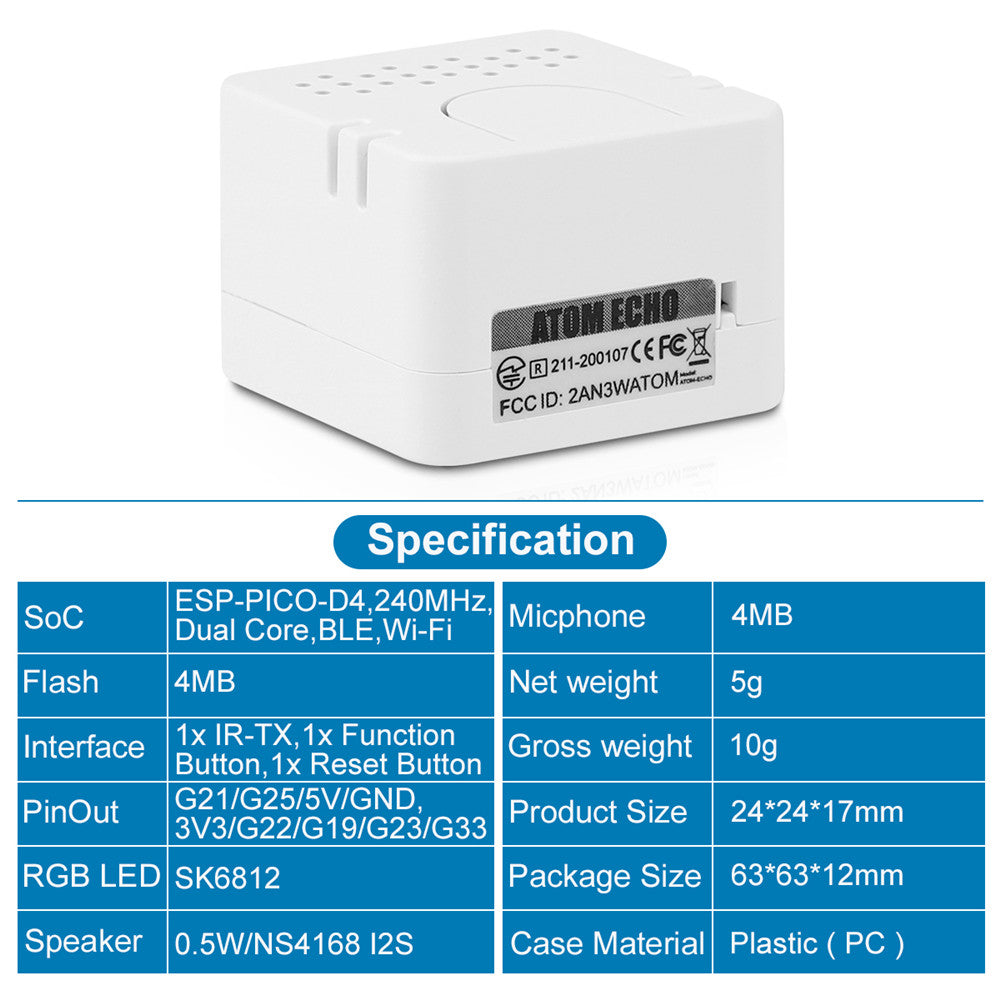

Features:

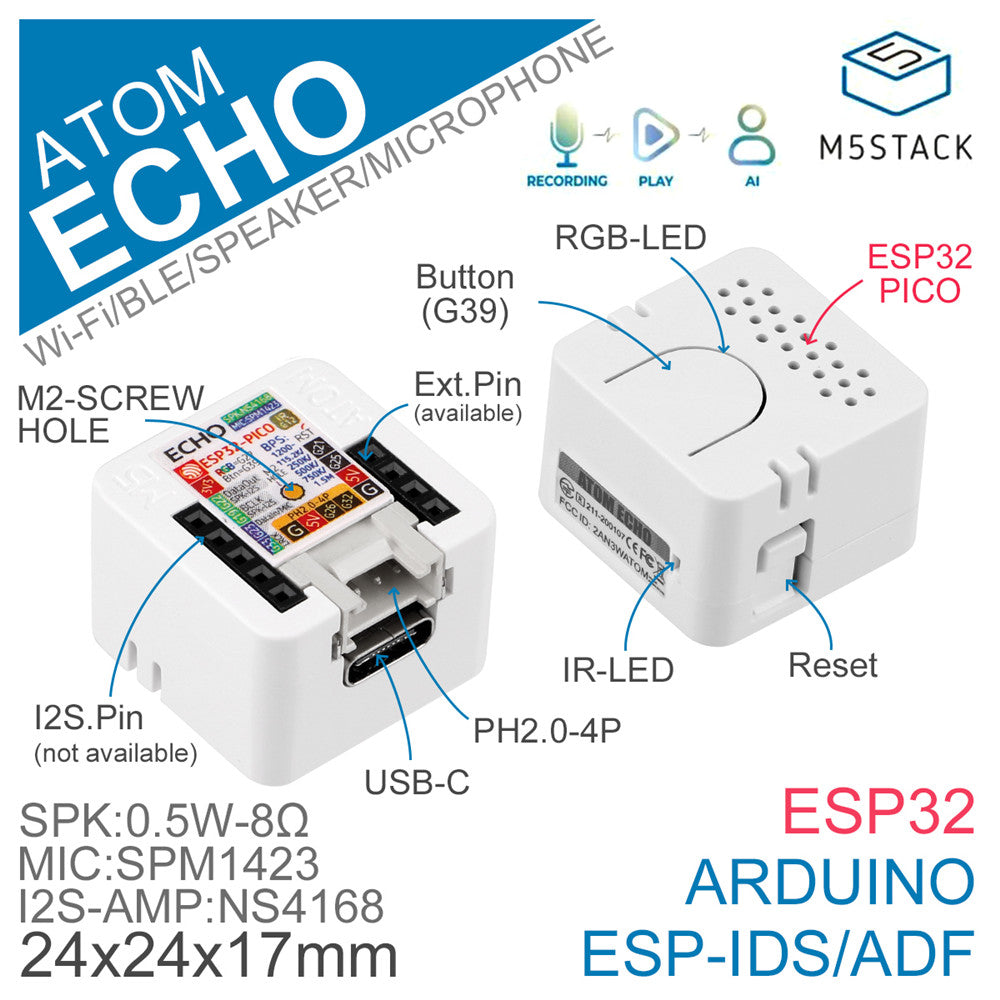

SoC: ESP-PICO-D4 ,240MHz, Dual Core, BLE,Wi-Fi
Flash: 4MB
Interface: 1x IR-TX,1x Function Button,1x Reset Button
PinOut: G21/G25/5V/GND, 3V3/G22/G19/G23/G33
RGB LED: SK6812
Light and small
Support STT services
Based on ESP32, Support A2DP, BLE 4.0
2.4G WiFi IEEE 802.11b/g/n
Built-in microphone and speaker
RGB LED status display indication
GROVE extension interface
Record and playback
Programmable key
Programming platform: For Arduino, ESP-IDF/ADF
Applications: Bluetooth Speaker, Voice control, IoT
Micphone: SPM1423 PDM
Micphone: SPM1423 PD Shortcut protection
Package Including:

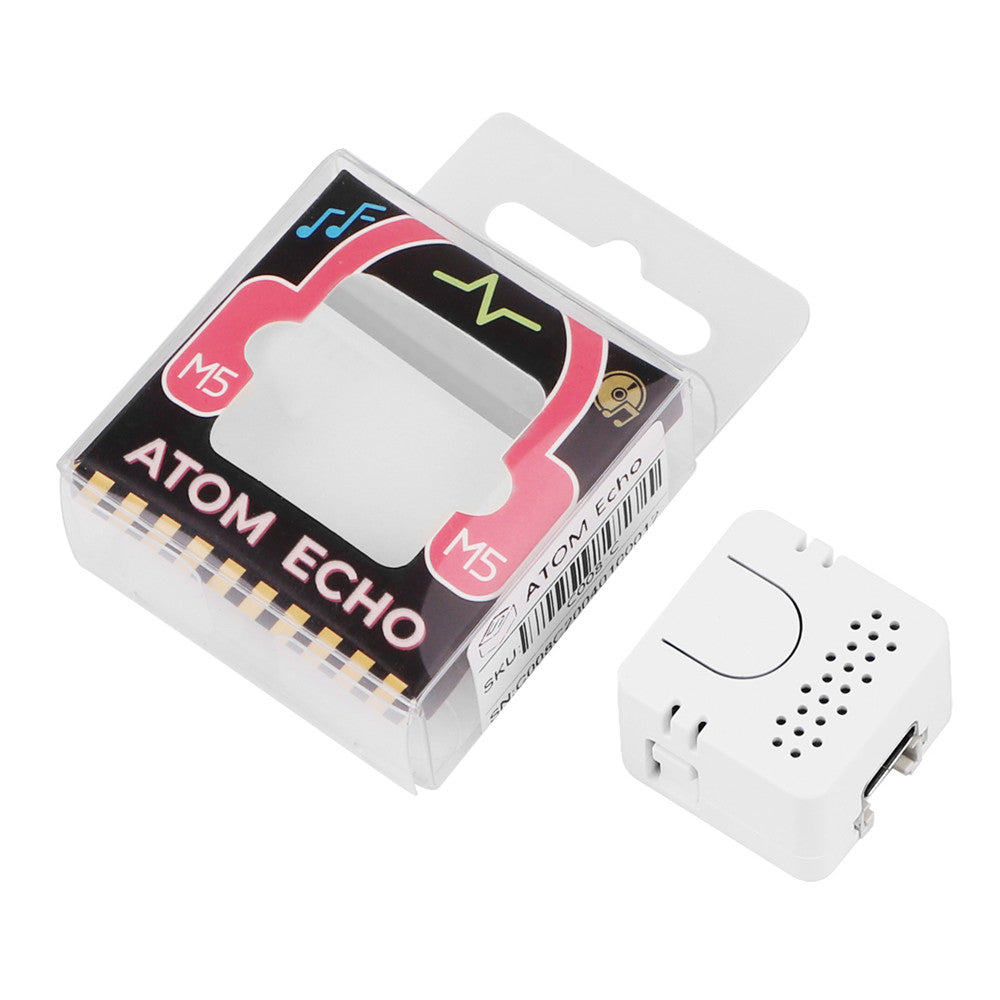

1 * ATOM Echo Smart Bluetooth Speaker
