MakerFocus Raspberry Pi Camera Board V2 Wide Angle 160 Degree FoV Supporting Video Record

  • $22.99
    Unit price per
  • Save $4


Overview:

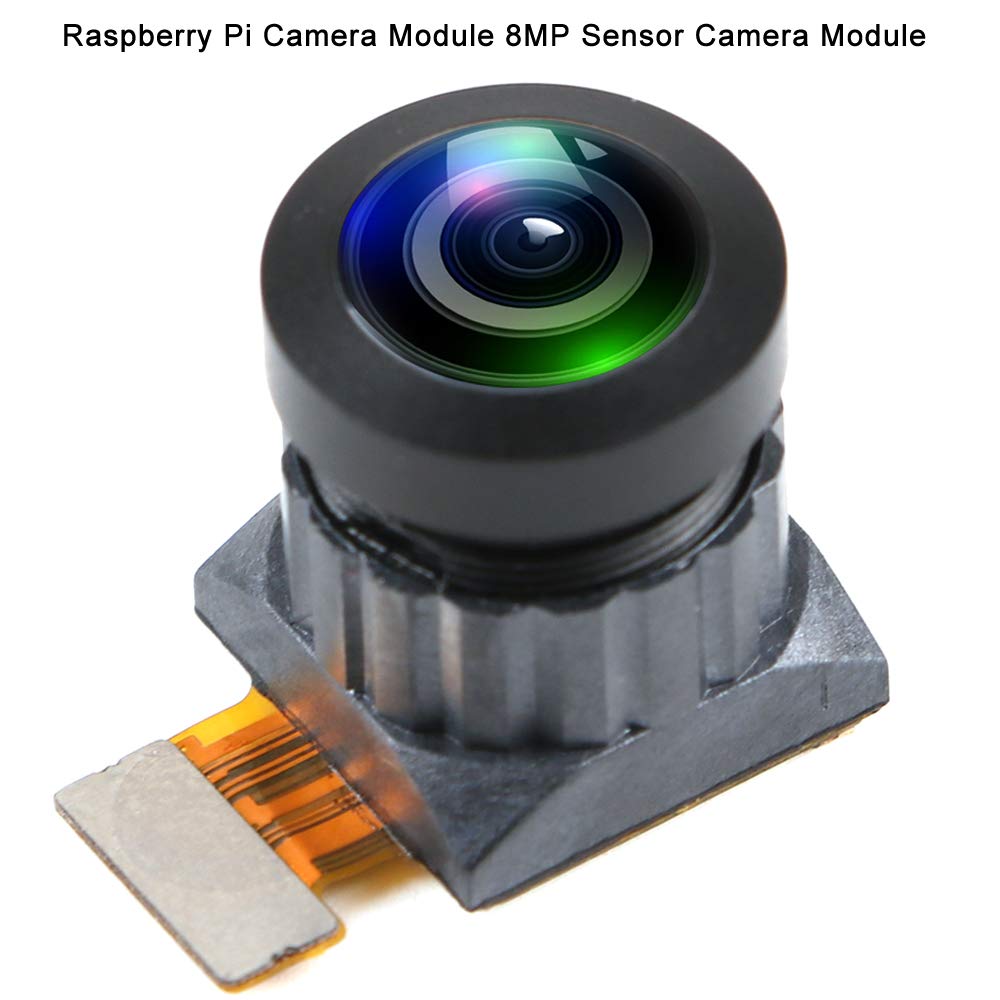

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.
If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

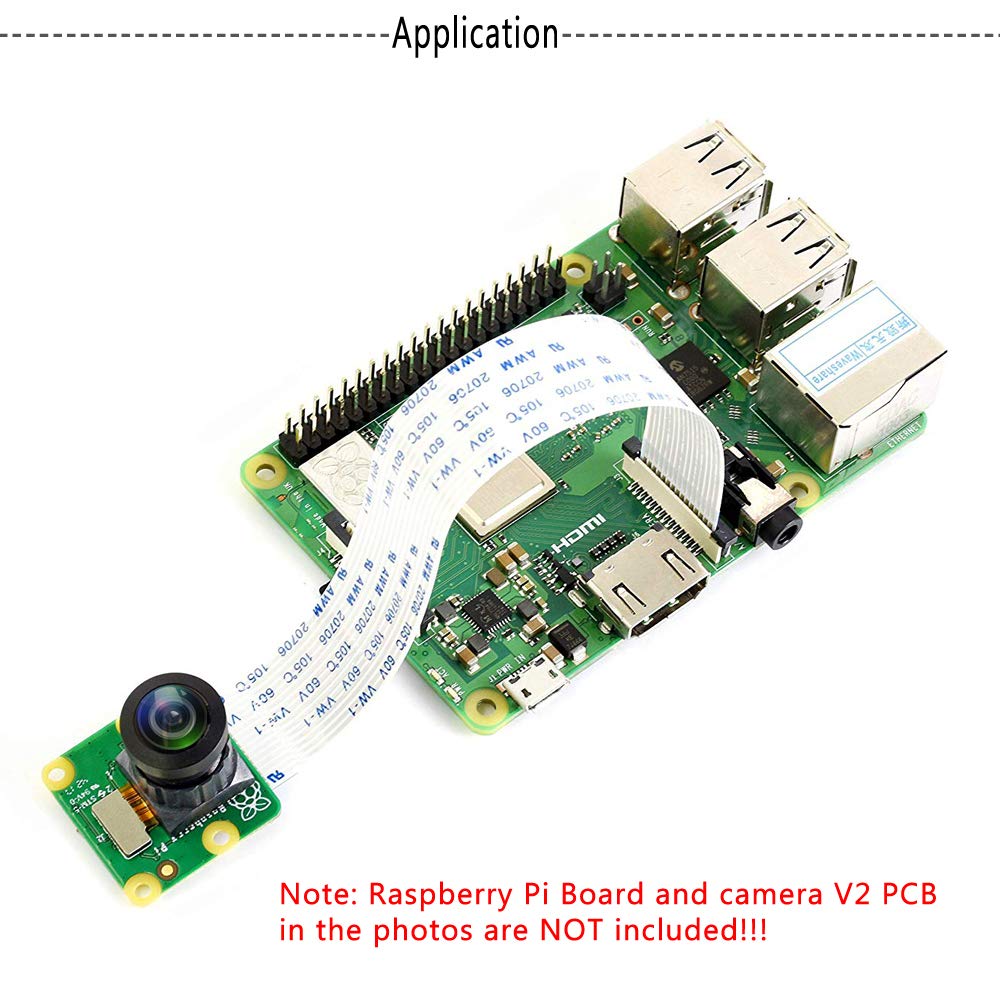

Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included!!!

Features:

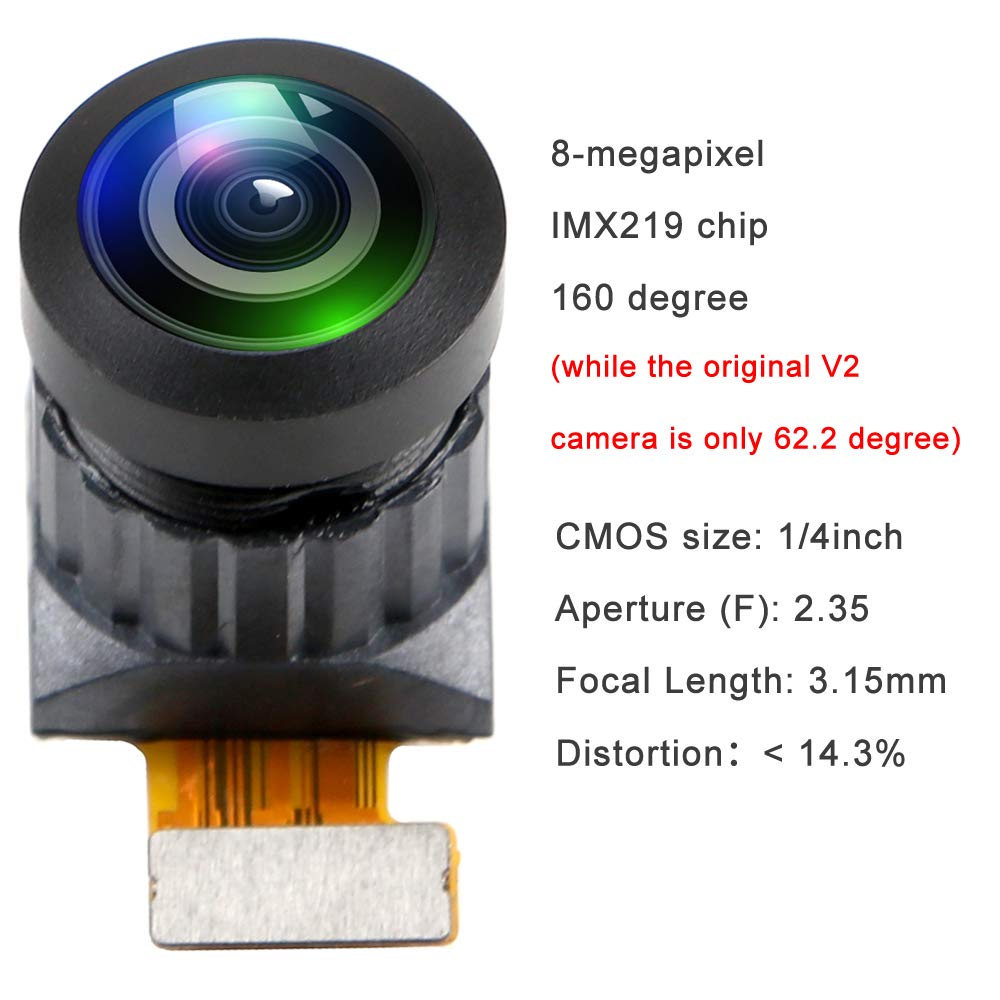

Sony IMX219 8-megapixel sensor

Camera specifications:
CMOS size : 1/4inch
Aperture (F) : 2.35
Focal Length : 3.15mm
Field of View : 160 degree (while the original V2 camera is only 62.2 degree)
Distortion: < 14.3%

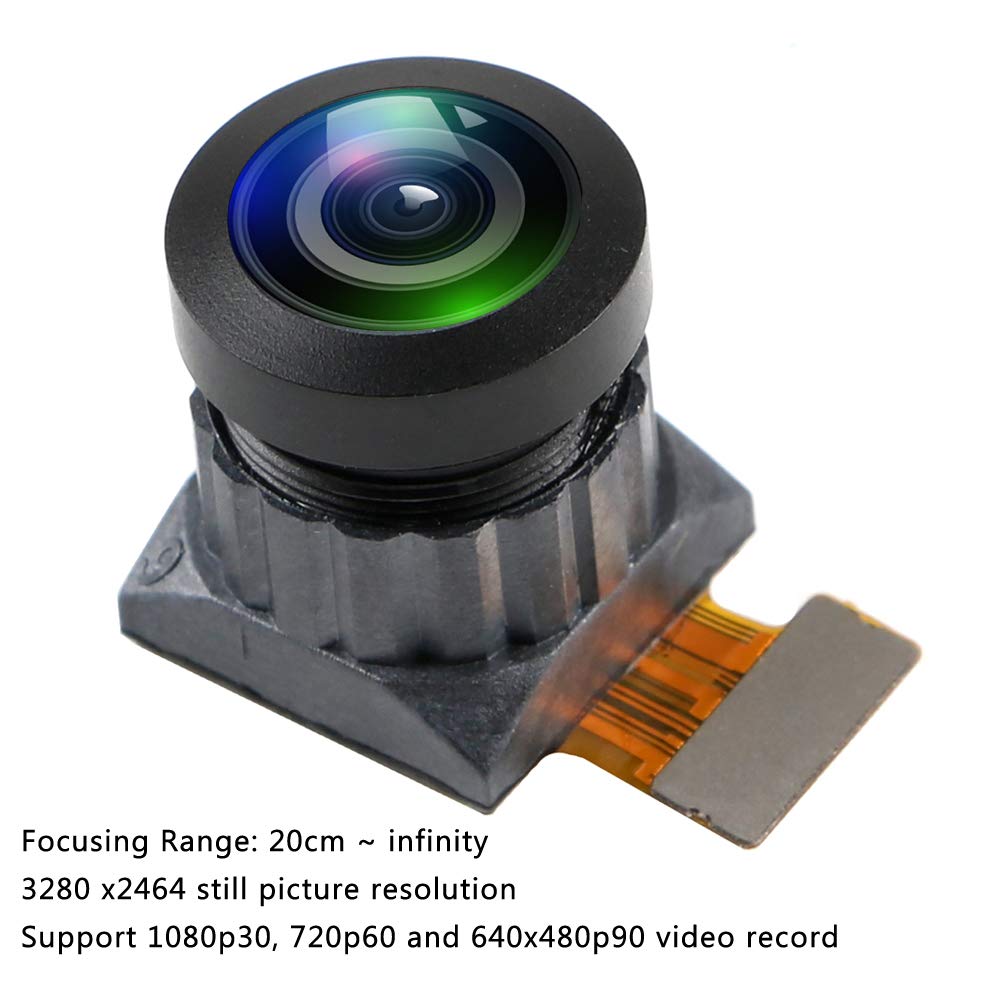

Focusing Range: 20cm ~ infinity
3280 x2464 still picture resolution
Support 1080p30, 720p60 and 640x480p90 video record



Packing List:

1 * 8MP Sensor Wide Angle 160 Degree FoV Raspberry Pi Camera Module (without driver PCB)
