Raspberry Pi 4B UPS 18650 Power Supply Board DSTIKE 18650 Pi Partner V3 with 5V Input Micro USB
What is it?

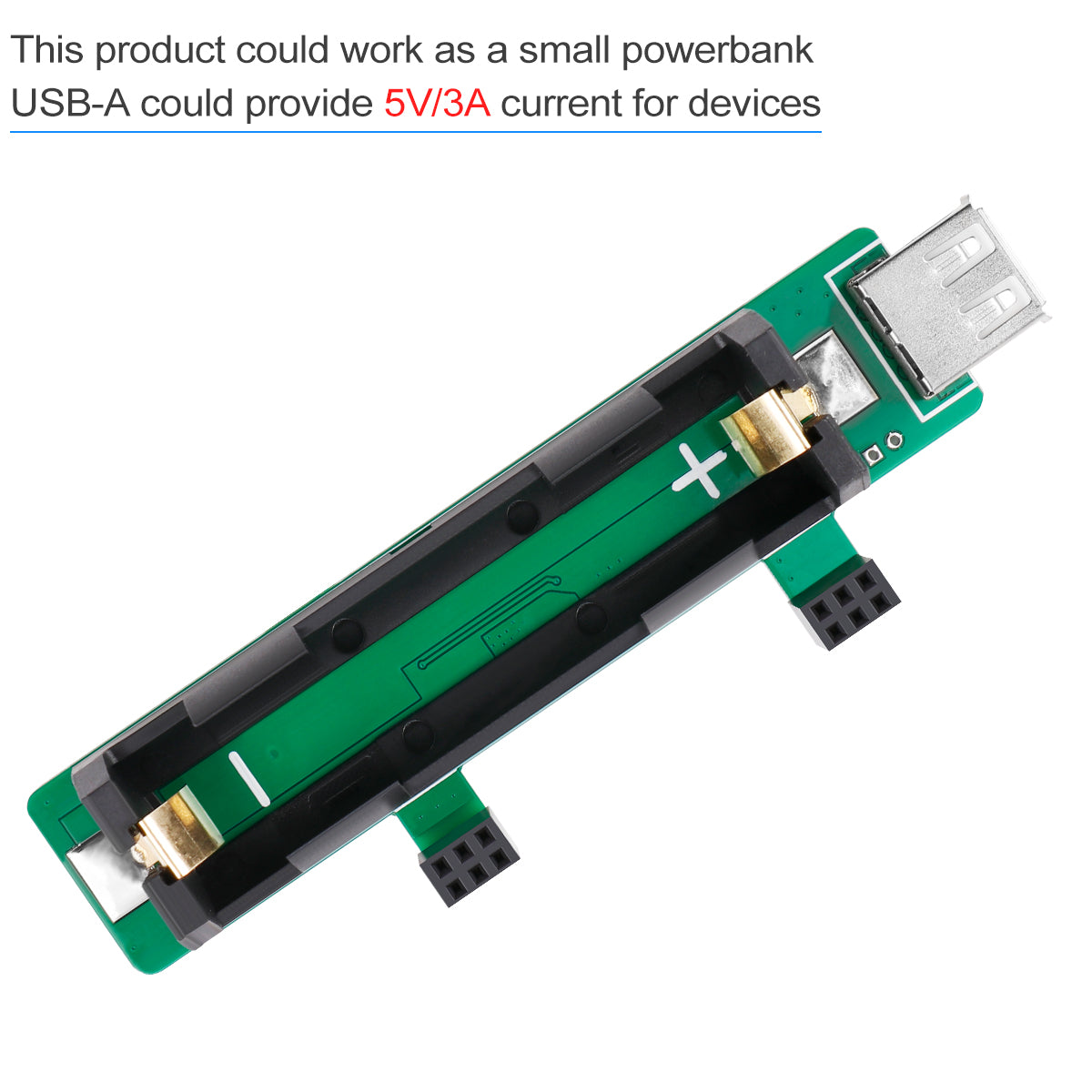

18650 Pi Partner V3 could use 18650 or other 3.7V Li-battery to provide power for Raspberry Pi. At the same time it could work separtely as a small powerbank.
Why did you make it?
I want to use a simple solution to solve the power problem of Pi.
What makes it special?

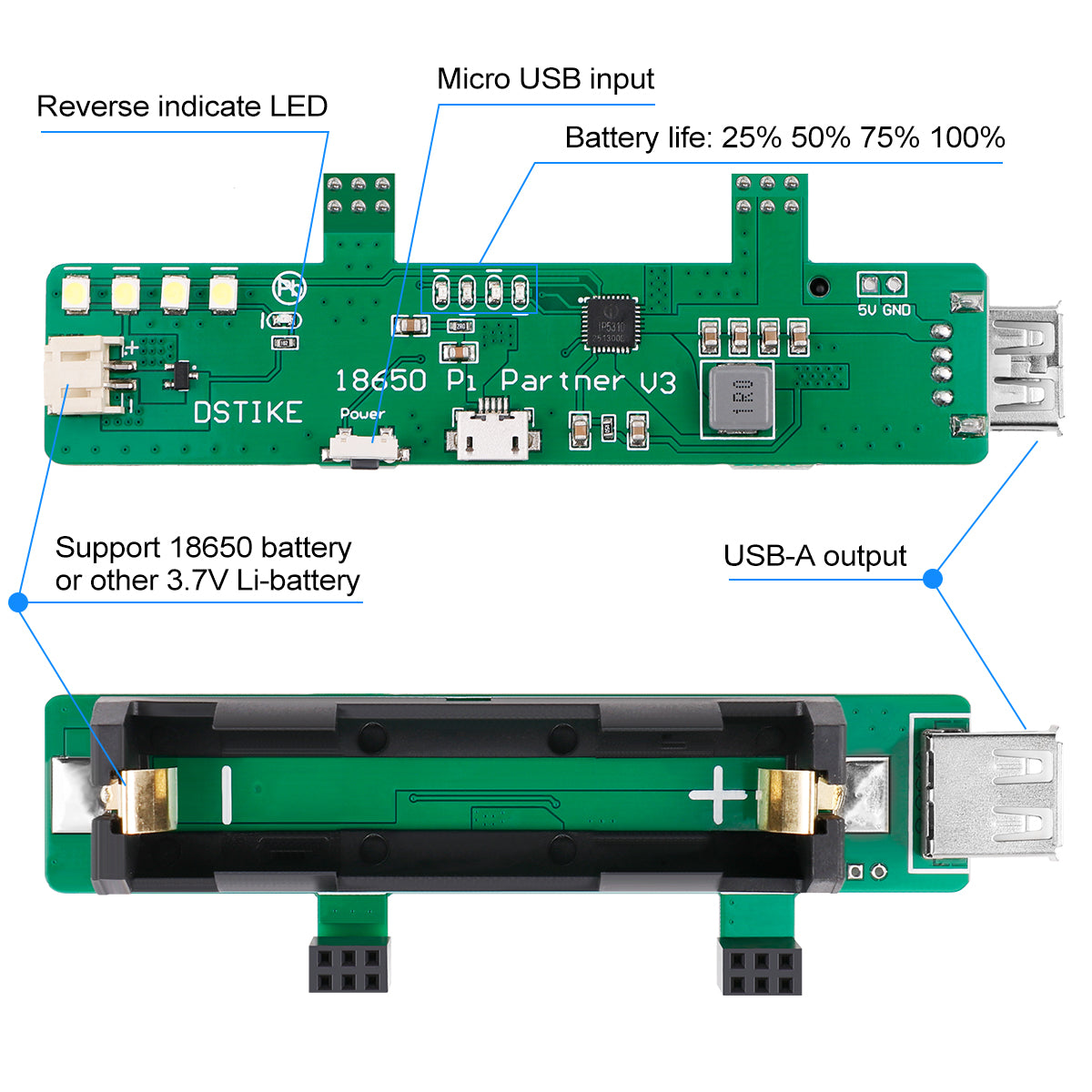

Battery reverse protection and indicate LED
4 High Light LED
1 pad could connect 5V fan
Support 18650 Battery
Support 3.7V Li-battery(Be careful of + and -)
4 Battery indicate LED(25%, 50%, 75%, 100%)
Click to turn on
Double click to turn off
Long click to open high light LED
Note: It can be used as a simple UPS to make your Raspberry Pi discharge while charging. When you unplug the power cable it will reboot! So before you unplug the power, the Raspberry Pi should be shut down in advance. !!!
1 * Raspberry Pi 18650 Battery shild (DSTIKE 18650 Pi Partner V3)
