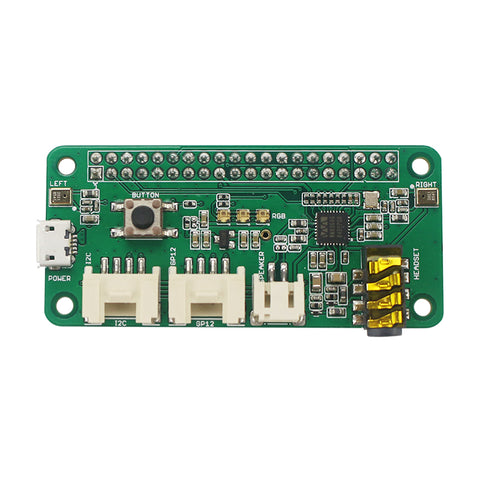

Raspberry Pi 3B Respeaker Intelligent Voice Module Dual Microphone Expansion Board Suitable For Raspberry Pi 3B+/3B/zero

  • $19.99
    Unit price per
  • Save $5


Raspberry Pi 3B Respeaker Intelligent Voice Module Dual Microphone Expansion Board Suitable For Raspberry Pi 3B+/3B/zero

Specification:
1. ReSpeaker 2-Mics Pi is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means you can build a more powerful and flexible voice product that integrates Amazon's Alexa Voice Service, Google Assistant, and so on.

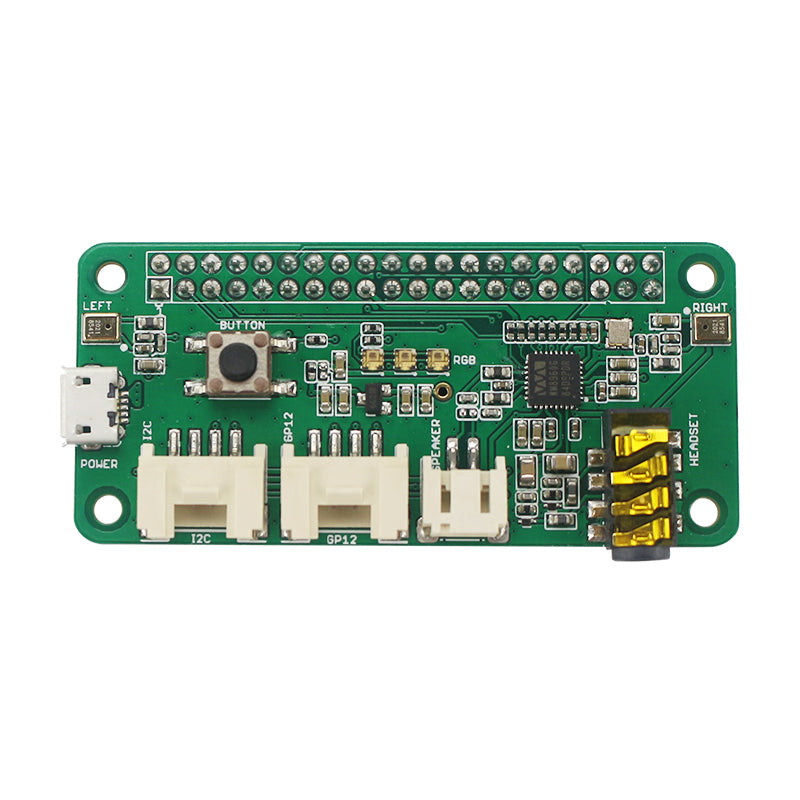

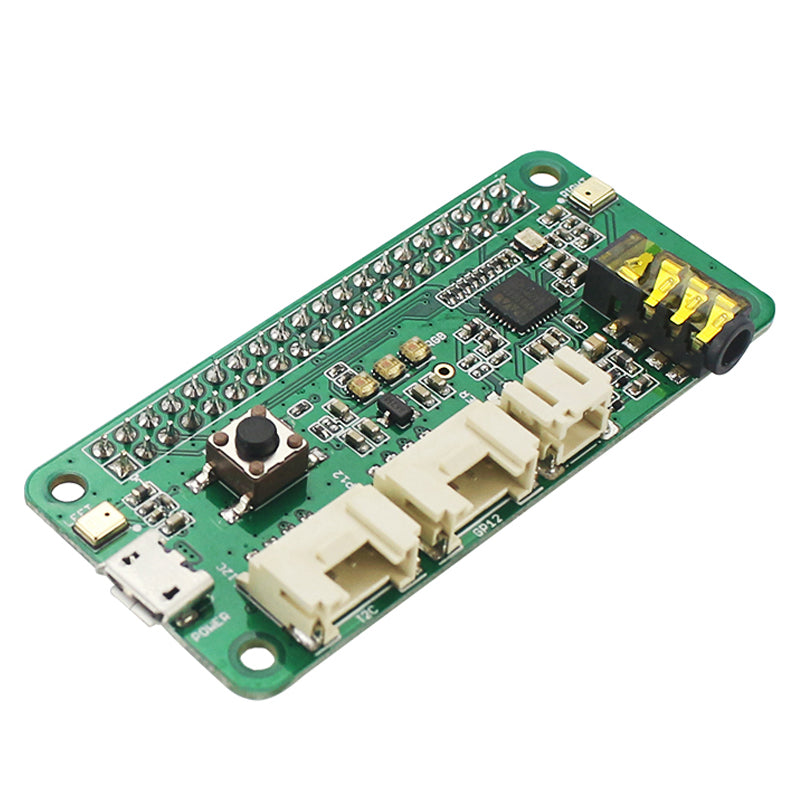

The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What's more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

1. BUTTON: a User Button, connected to GPIO17
2. MIC_Land MIC_R: 2 Microphones on both sides of the board
3. RGB LED: 3 APA102 RGB LEDs, connected to SPI interface
4. WM8960: a low power stereo codec
5. Raspberry Pi 40-Pin Headers: Support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B
6. POWER: Micro USB port for powering the ReSpeaker 2-Mics Pi, please power the board for providing enough power when using the speaker.
7. I2C: Grove I2C port, connected to I2C-1
8. GPIO12: Grove digital port, connected to GPIO12 & GPIO13
9. JST 2.0 SPEAKER OUT: for connecting speaker with JST 2.0 connector
10. 3.5mm AUDIO JACK: for connecting headphone or speaker with 3.5mm Audio Plug

Package List:
1 x Raspberry Pi ReSpeaker Module
