Filter TL-Smoother Plus Addon Module Pattern Elimination Motor Filter Clipping Filter 3D Printer

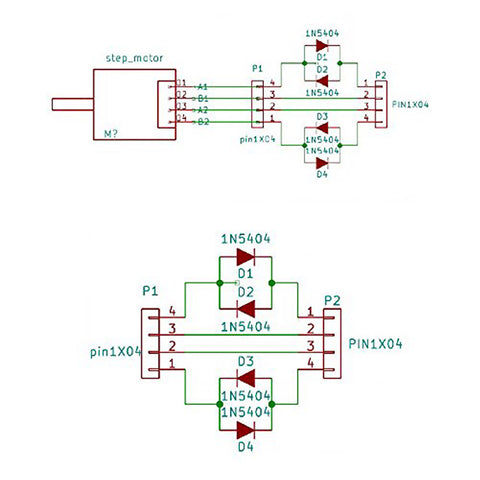

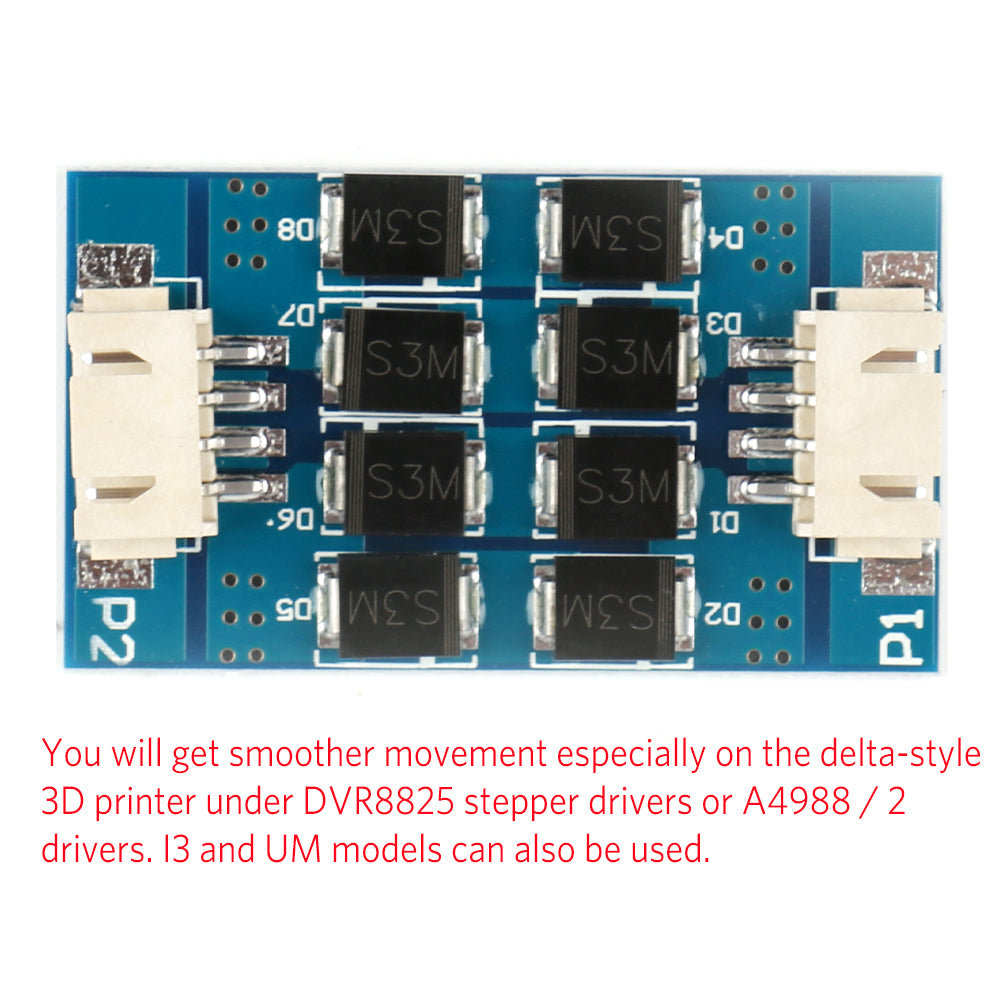

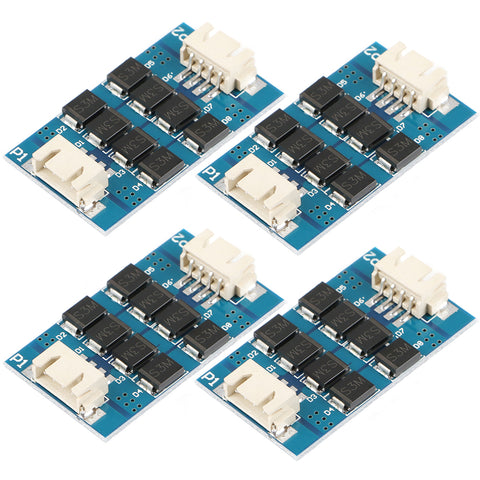

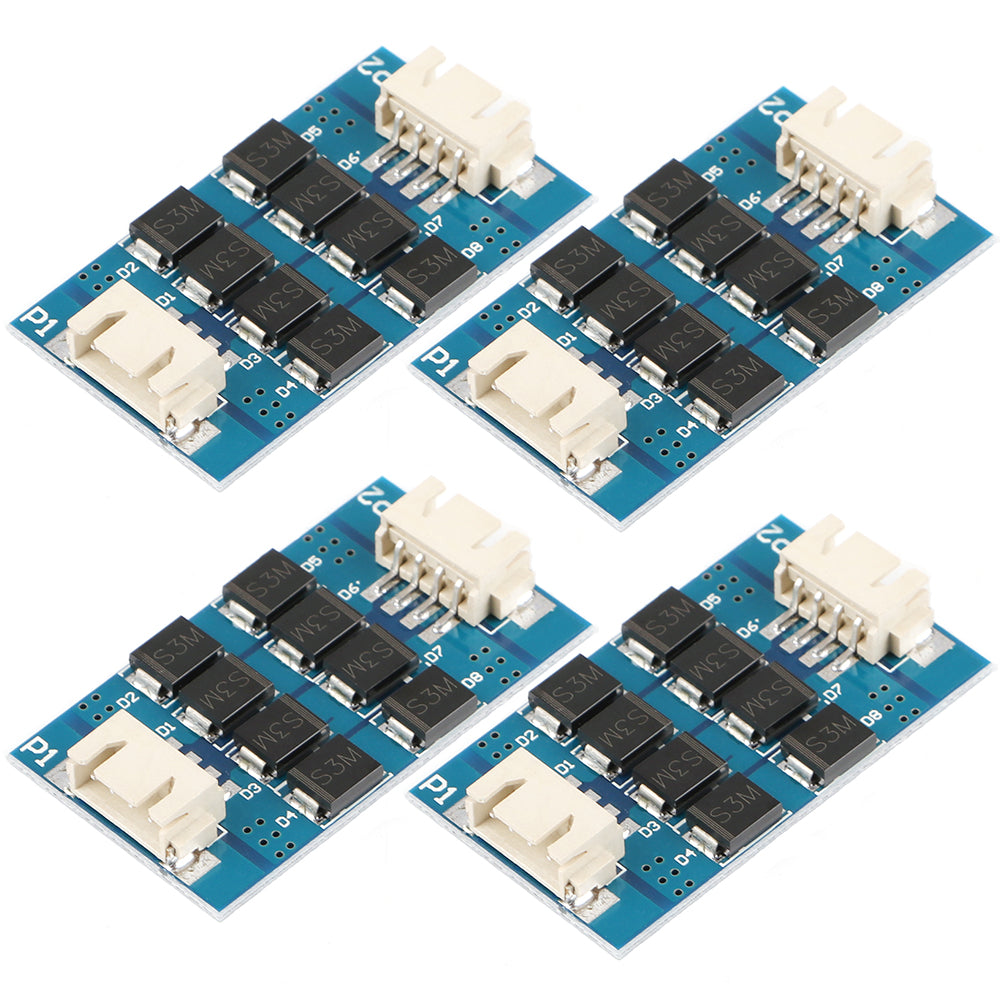

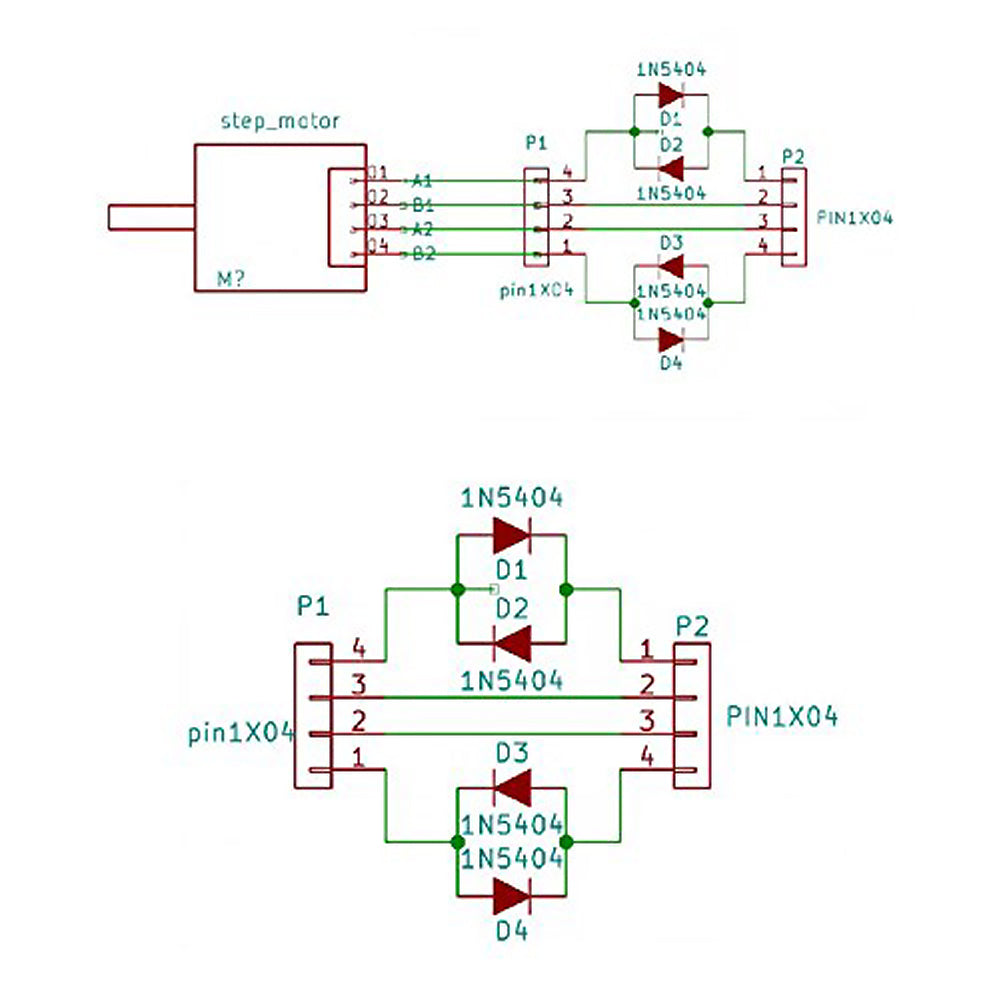

The TL-Smoother is an addon module for 3D printer stepper motor drivers. The board provides flyback diodes (freewheeling diodes) for the motor outputs, so that they are also protected against induction voltages in the unpowered state of the driver. You will got smoother movement especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988/2 drivers.
Size: 12cm x 12cm x 2cm(4.72 * 4.72 * 0.79in)

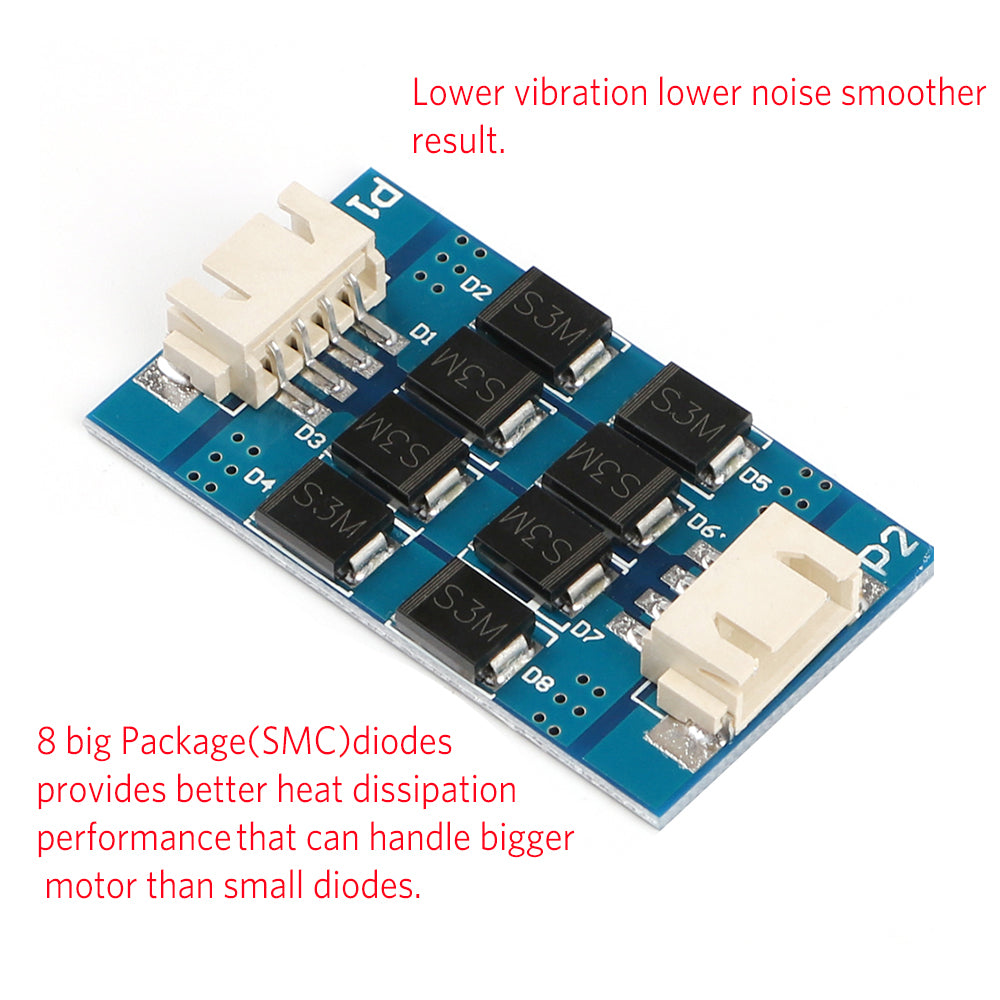

1. 8 big Package(SMC)diodes provides better heat dissipation performance
that can handle bigger motor than small diodes.
2. Lower vibration lower noise smoother result.

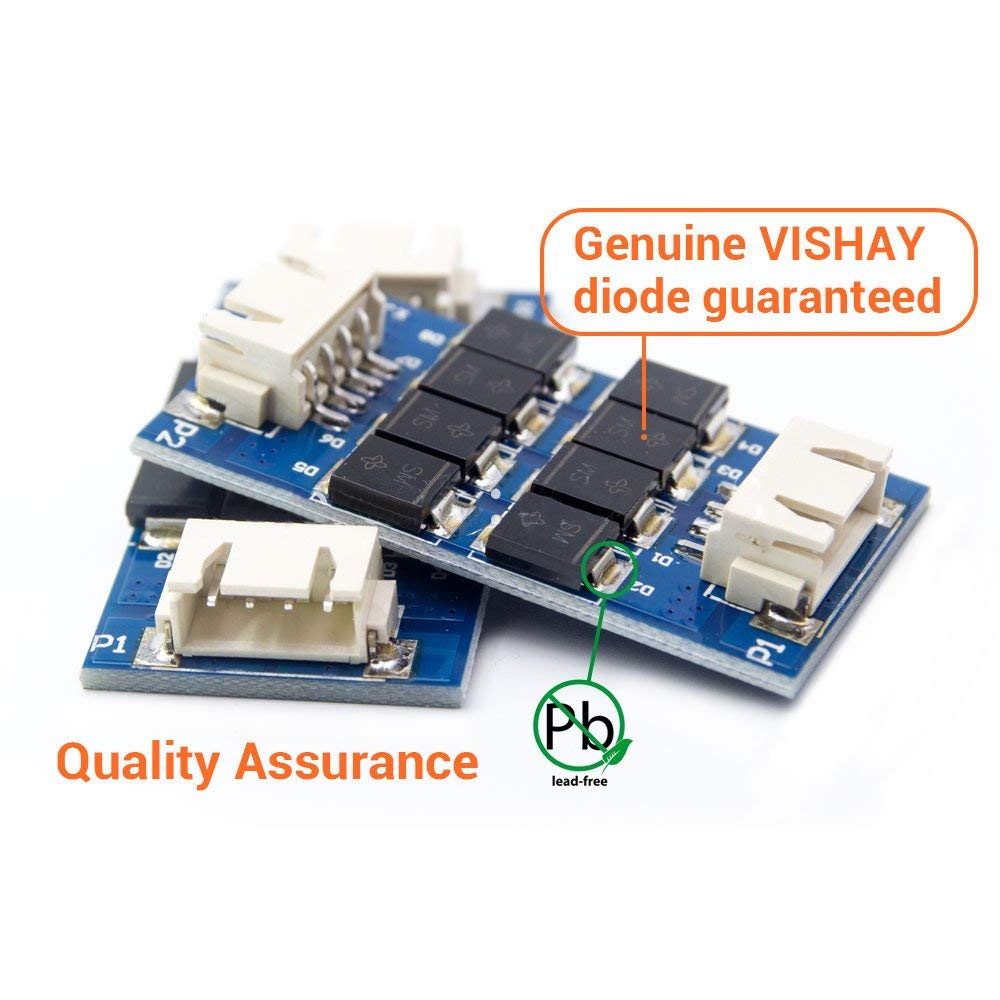

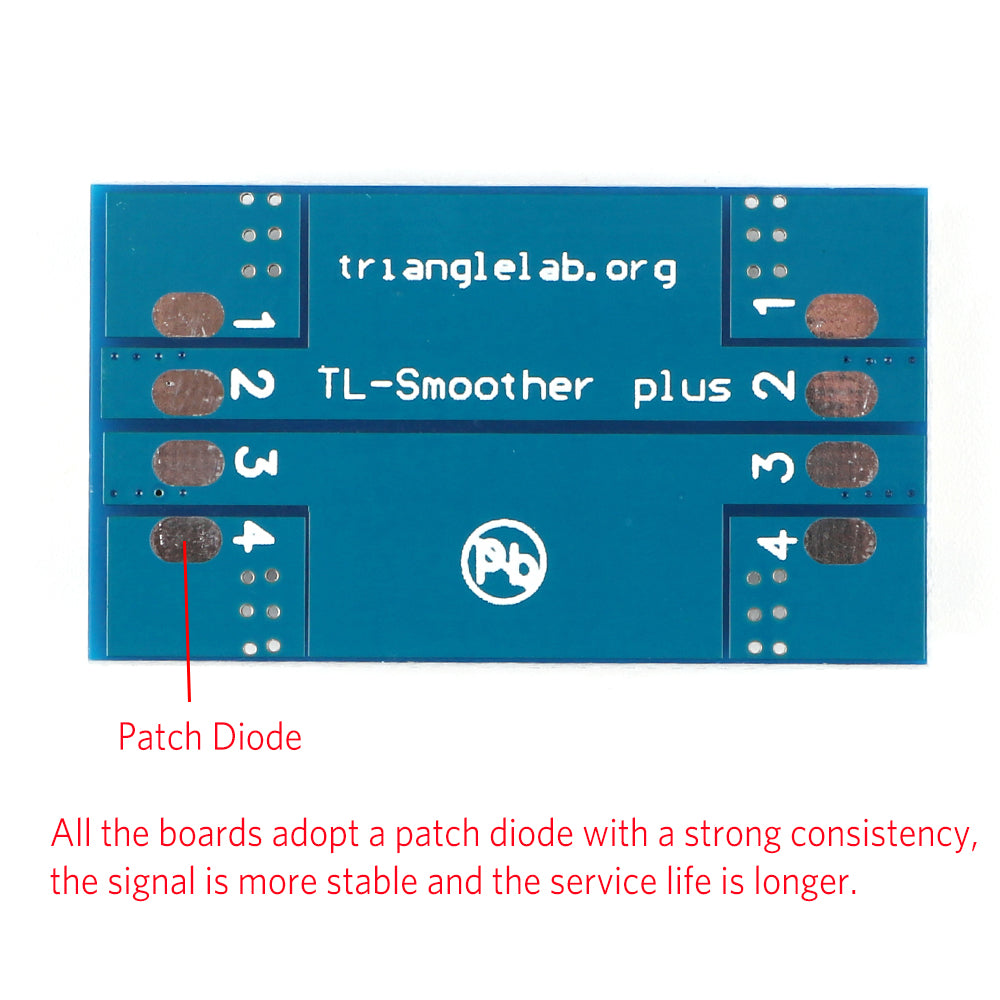

3. All the boards adopt a patch diode with a strong consistency, the signal is more stable and the service life is longer.

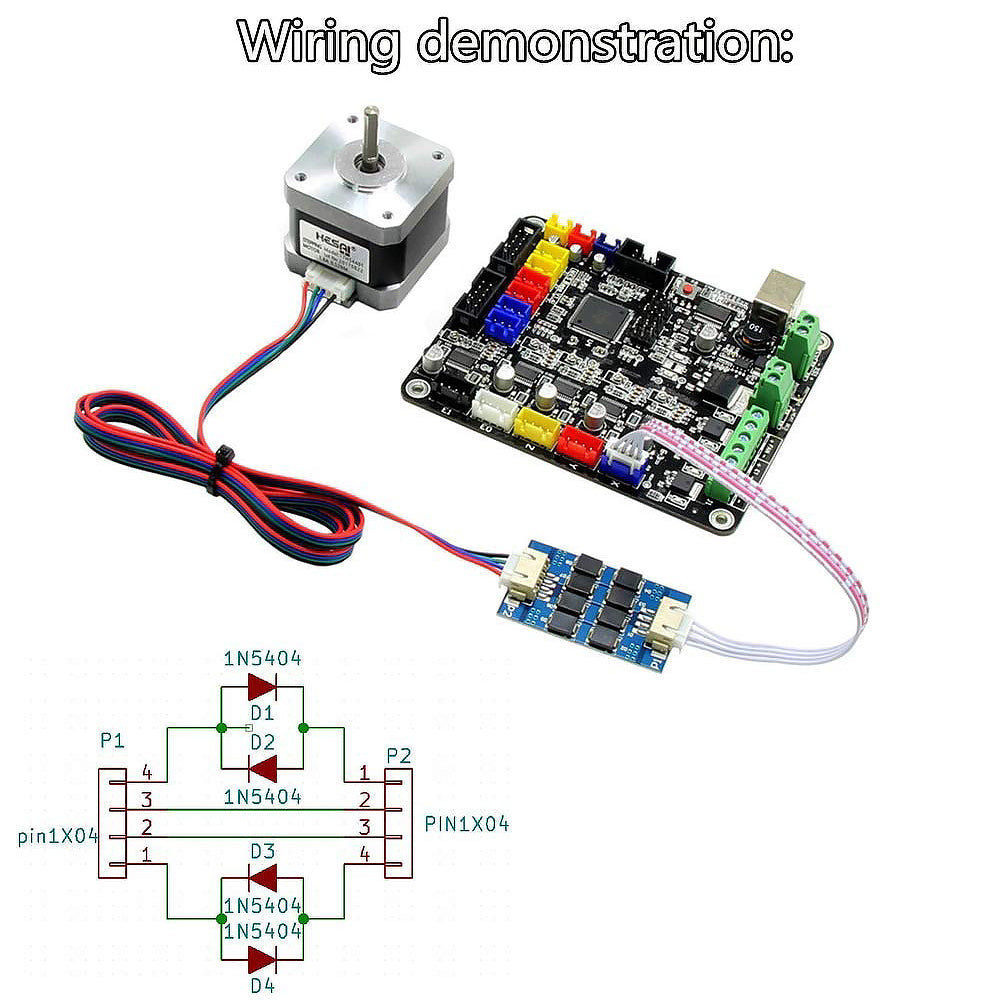

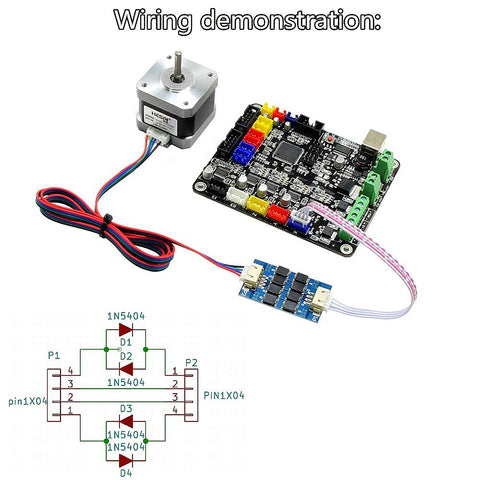

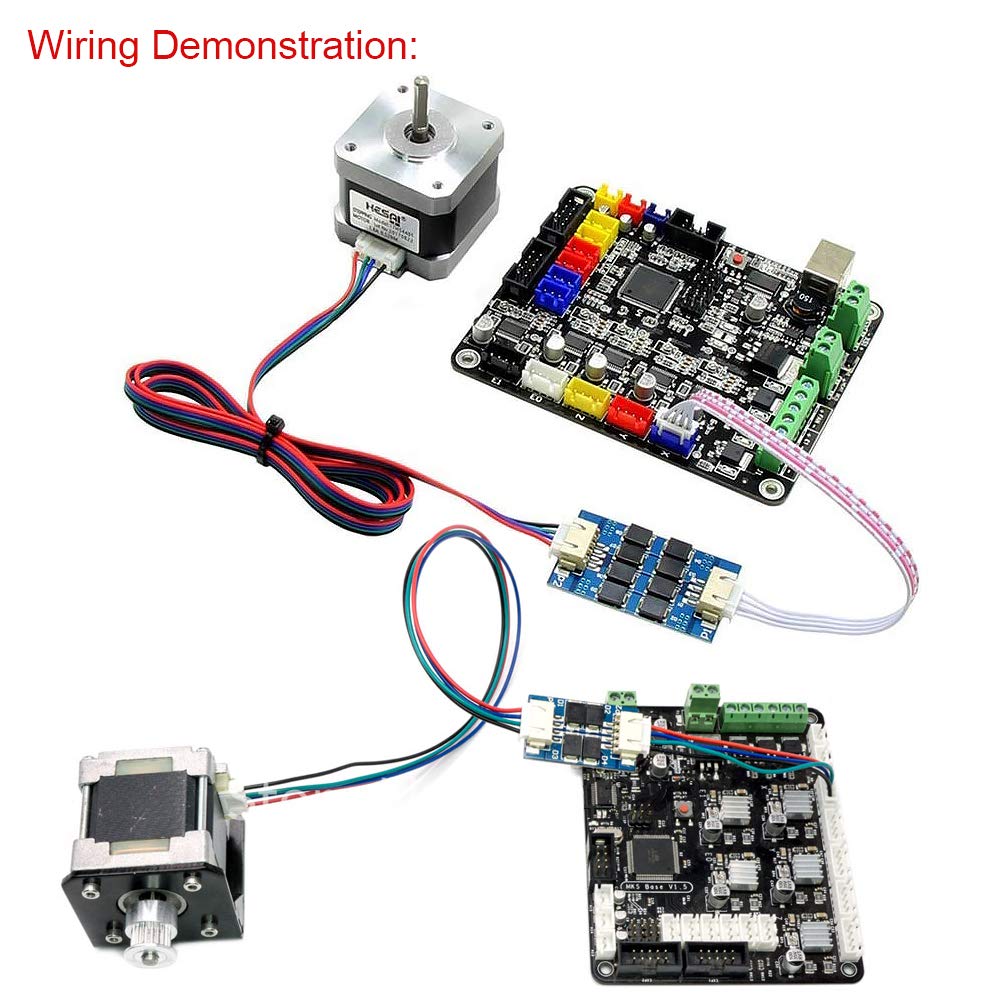

4. How to use: Connect this TL-Smoother Module to the motherboard's corresponding drive socket and motor.
TL-Smoother assembly instructions:

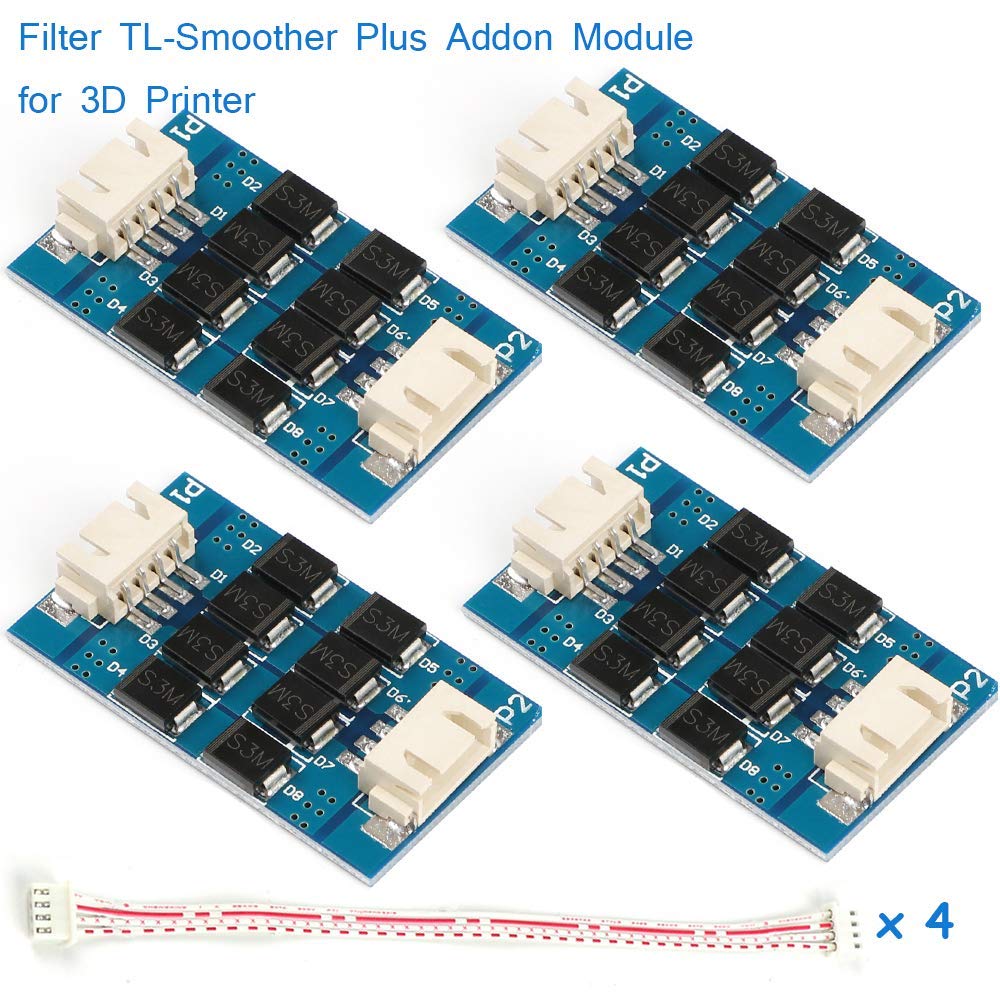

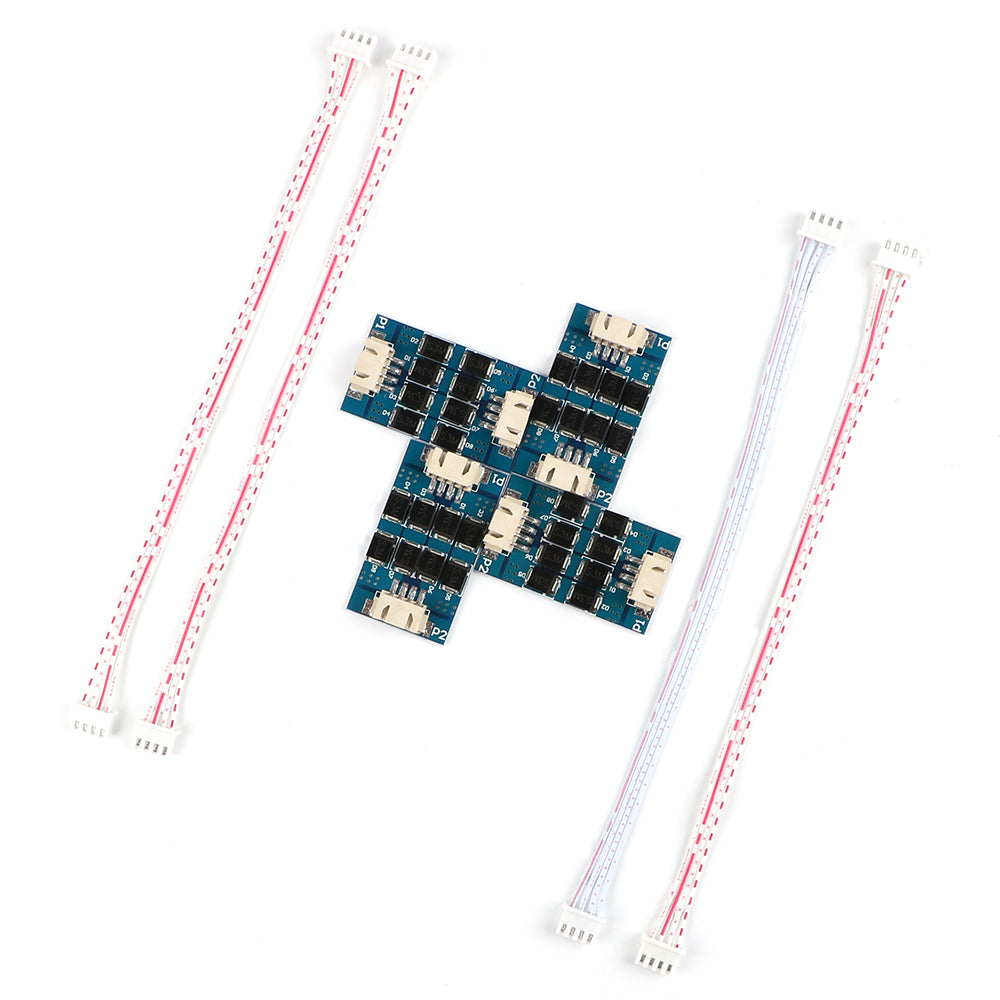

4 * 3D Printer Filter
4 * Du-Pont Lines
