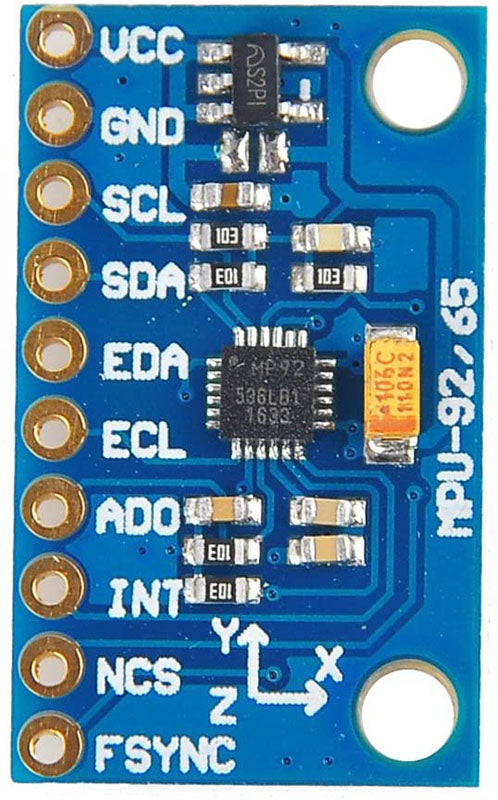

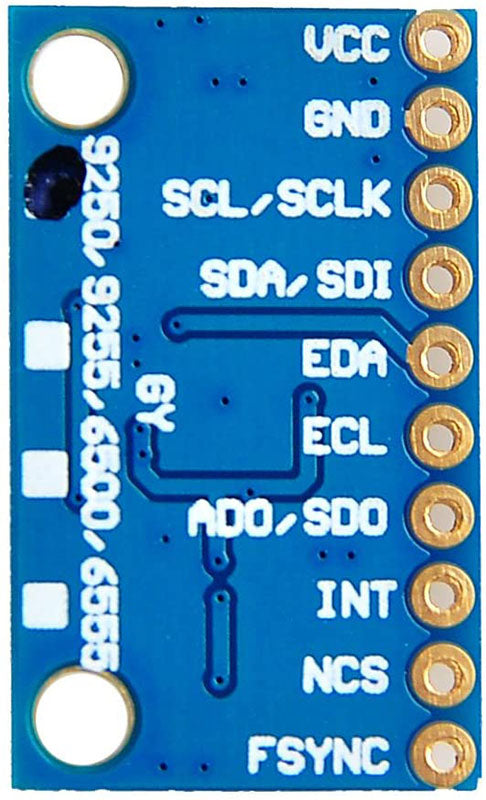

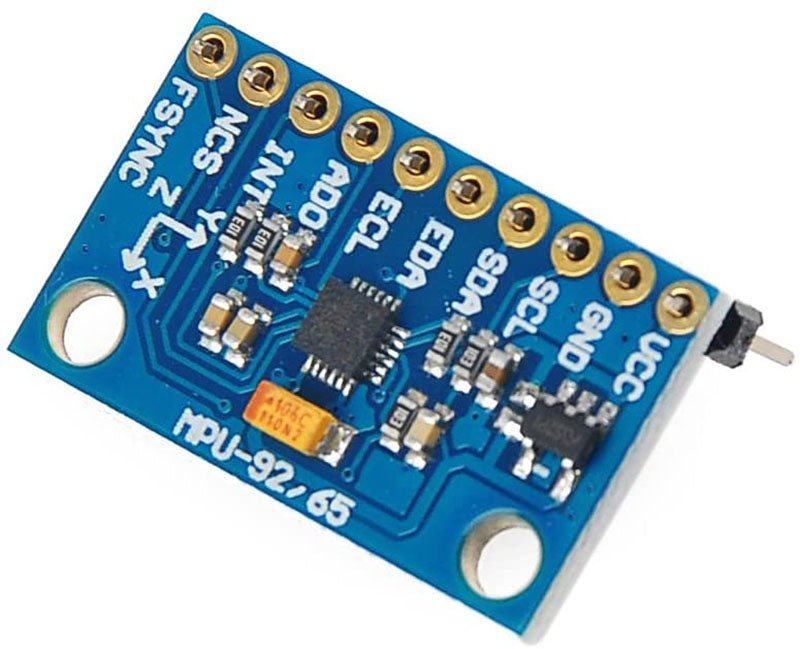

MPU-9250 9DOF Module 9 Axis Gyroscope Accelerometer Magnetic Field Sensor


  • $17.99
    Unit price per
  • Save $2
Shipping calculated at checkout.

Note: if you need the document, please send us an e-mail !!
The type of module: GY-9250
Chip: MPU-9250
9 axes: 3-axis gyroscope + 3-axis accelerometer + 3-axis magnetic field sensor

Power supply: 3-5v (internal low dropout regulator)
Communication: standard IIC / SPI communication protocol
16 bit AD data output of the 16 bit chip converter
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Magnetic field: ± 4800uT
Using PCB Immersion Gold, soldering process to ensure quality
Pin spacing: 2.54mm
Module size: 15mm * 25mm

Package included

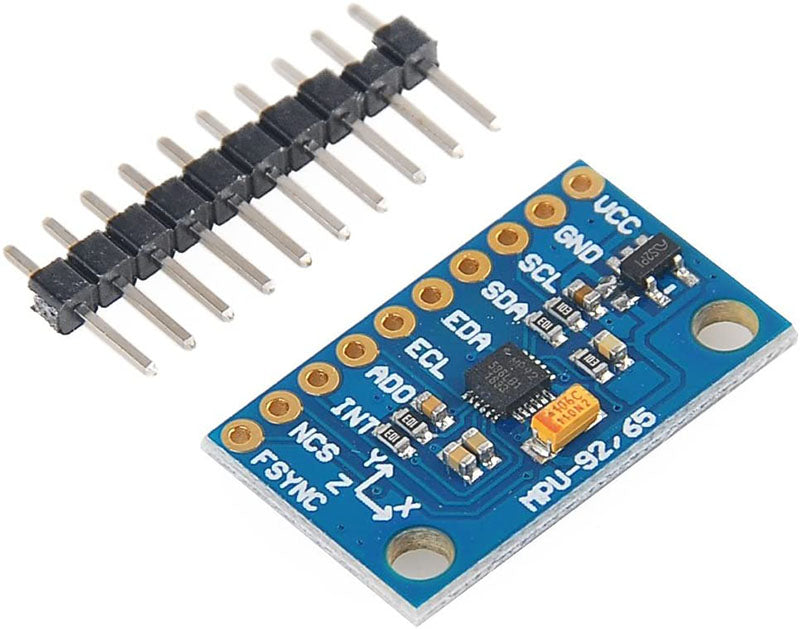

1 * 9DOF MPU-9250 module
