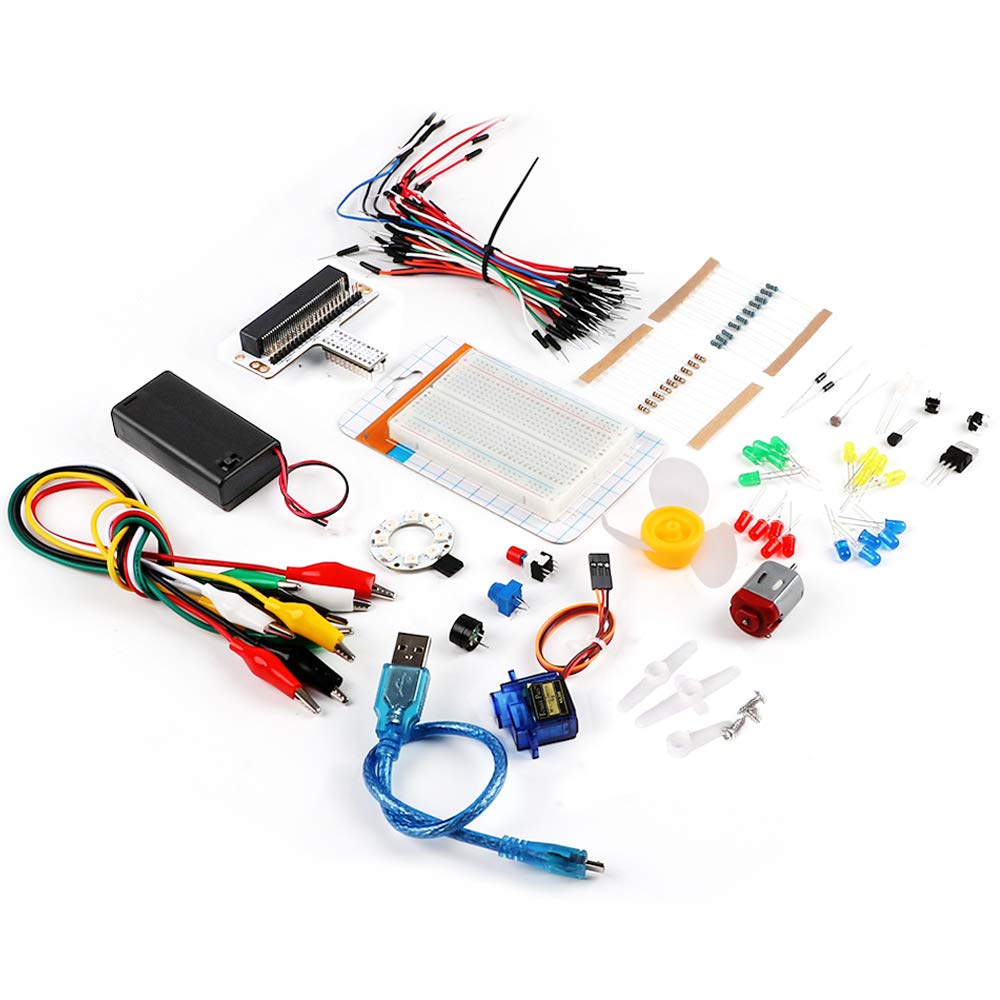

MakerFocus Micro:bit Starter Kit Without Development Board For Learning and Programming

Description:

ElecFreaks Micro:bit Starter Kit is designed for people who is at the door step of learning electric circuit and programming knowledge.

You can not only learn basic knowledge of these elements, but also use it to design circuit. With the help of Micro:bit programming technique, your circuit becomes more animated.Micro:bit Starter kit can help you enter a wonderful of electronic world.

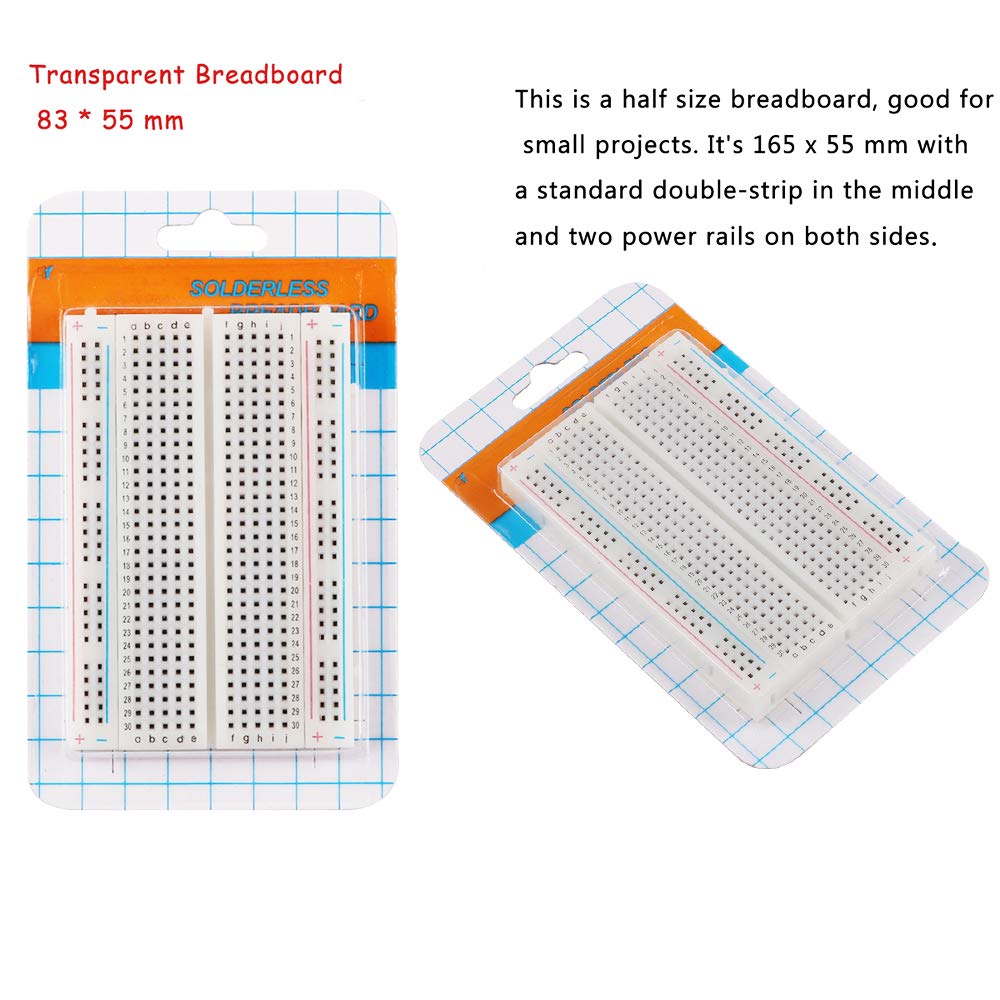

Transparent Breadboard-A half size breadboard, good for small projects. It's 165 x 55 mm with a standard double-strip in the middle and two power rails on both sides. You can pull the power rails off easily to make the breadboard as thin as 3.5cm and stick it onto an Arduino protoshield.

You can also cut these in half with a saw to create 2 tiny breadboards, or "snap" these breadboards together either way to make longer and/or wider breadboards.

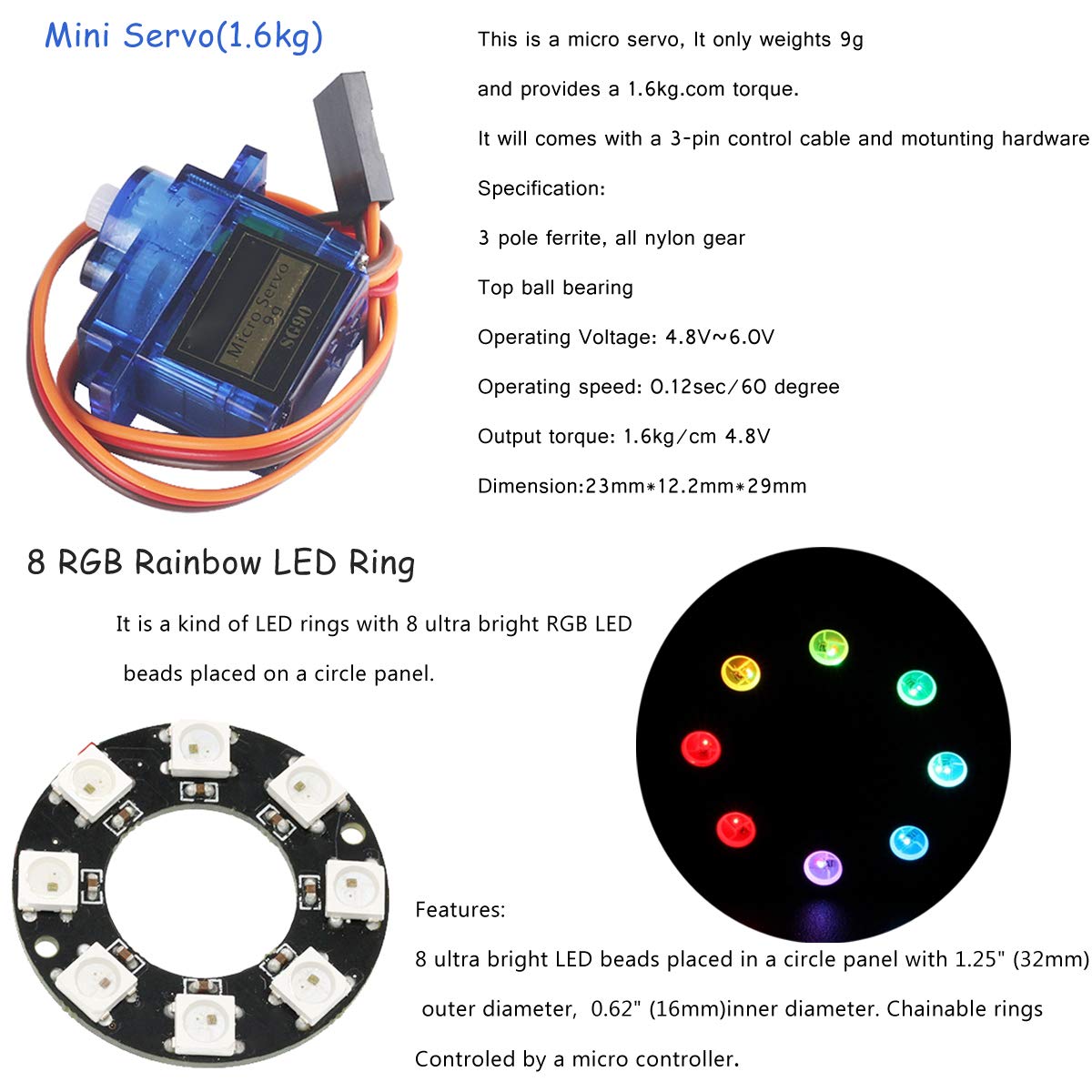

TowerPro SG-90 Mini Servo is a micro servo from Towerpro. It only weights 9g and provides a 1.6kg.com torque. It will comes with a 3-pin control cable and motunting hardware

8 RGB Rainbow LED Ring is a kind of LED rings with 8 ultra bright RGB LED beads placed on a circle panel. The ring is chainable.This circle has 1.25" (32mm) outer diameter and 0.62" (16mm) inner diameter.

On the circle panel, you can see one output pin of a bead connected to an input pin of another bead. With the only one built-in microcontroller pin, you can use an outer device to control this LED ring.

Every bead on the circle panel is addressable for it has internal driver chip. You can design a program to control these LED beads and make them illuminate with different colors. Because of each LED bead has about 18mA constant current drive, so the brightness of each bead will keep the same.

Even if the voltage changes, you don't have to add any external choke resistors.

To make the ring start to work properly, you have to power up it with 5V DC ( or within 4-7V range).

Acrylic Base Board for Breadboard 90mm*130mm is suitable for 83mm*55mm breadboard and can make breadboard fixation more stable.

Specification:

Transparent Breadboard:

Dimensions: 165 x 55 mm

Horizontal: 1-30

Vertical: A-J

TowerPro SG-90 Mini Servo:

3 pole ferrite, all nylon gear

Top ball bearing

Operating Voltage: 4.8V~6.0V

Operating speed: 0.12sec/60 degree

Output torque: 1.6kg/cm 4.8V

Dimension:23mm*12.2mm*29mmWeight: 9g

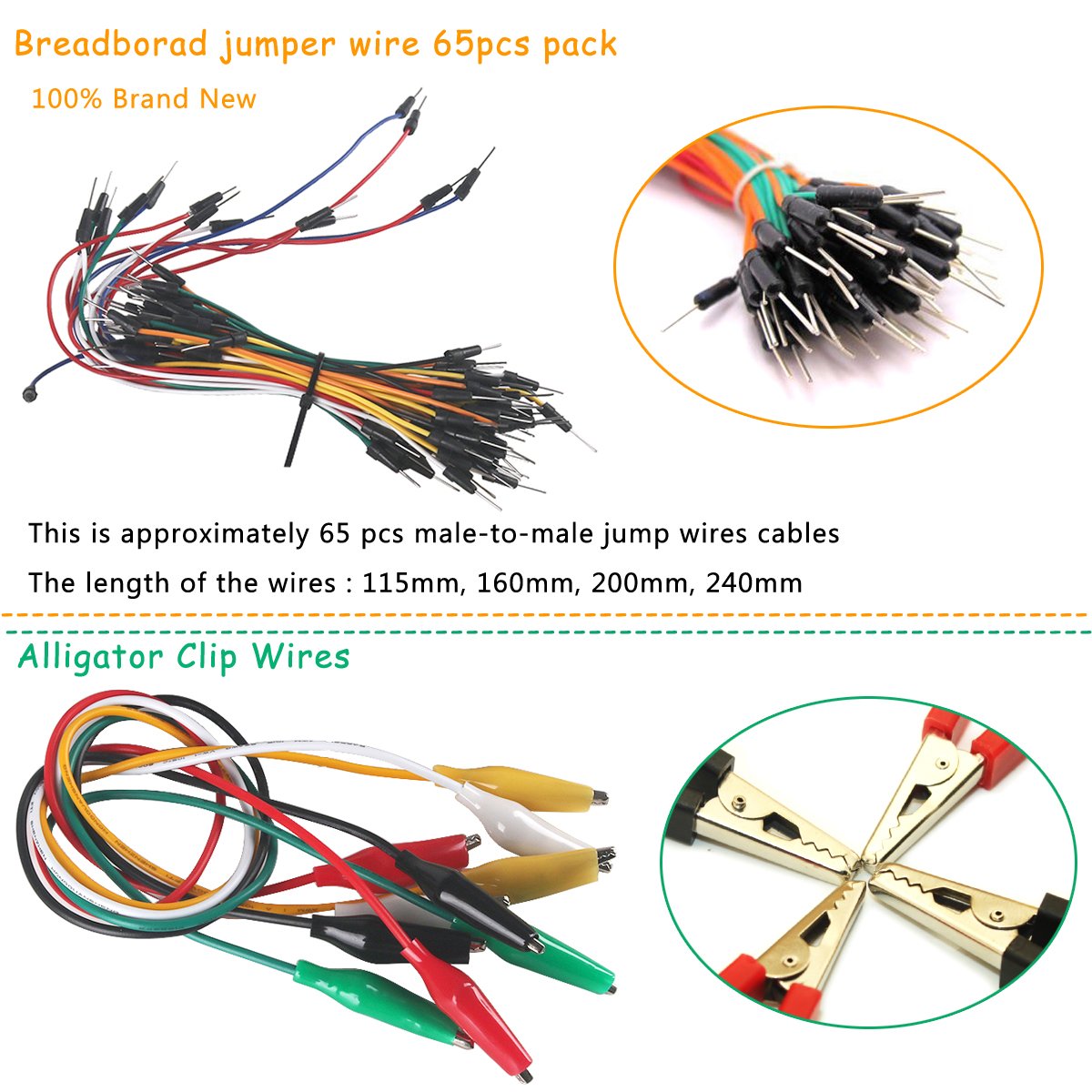

Breadborad Jumper Wire 65pcs Pack:

This is approximately 65 pcs male-to-male jump wires cables;

The length of the wires : 115mm, 160mm, 200mm, 240mm.

8 RGB Rainbow LED Ring:

8 ultra bright LED beads placed in a circle panel with 1.25" (32mm) outer diameter, 0.62" (16mm)inner diameter.

Chainable rings;

Controled by a micro controller.

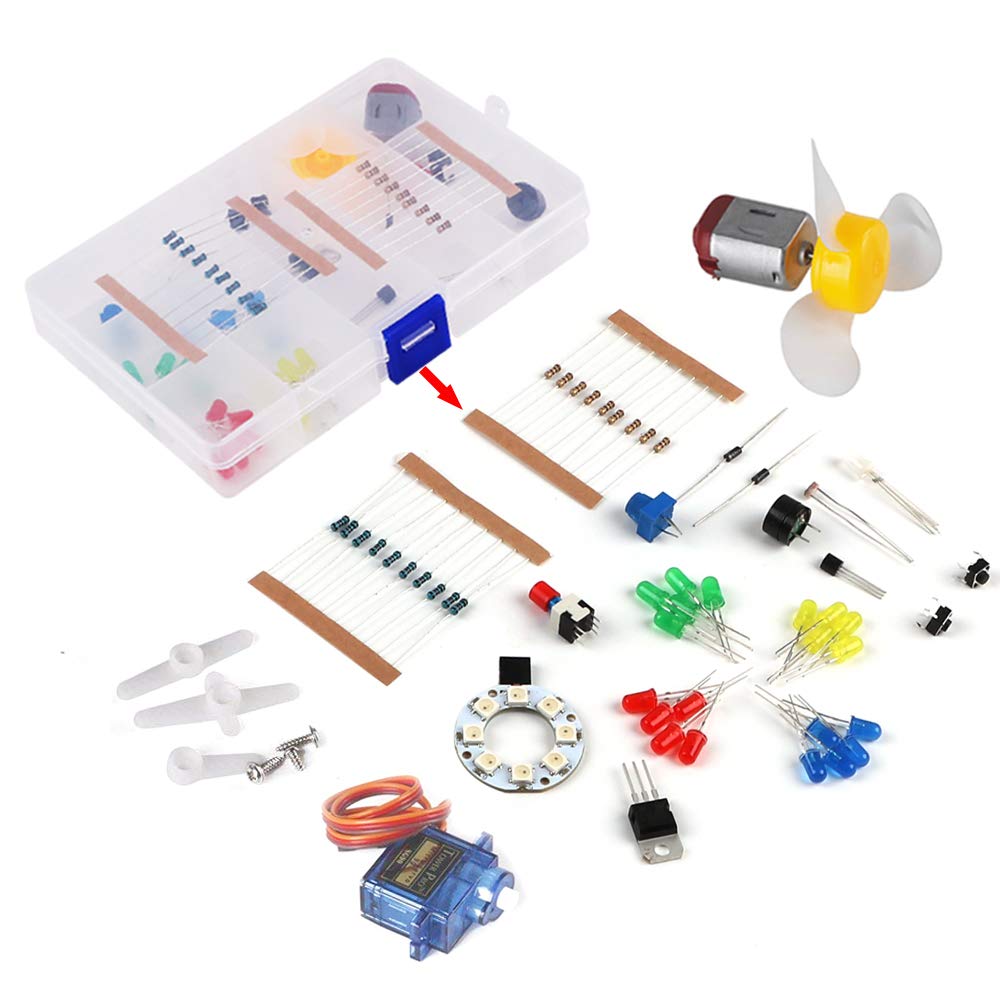

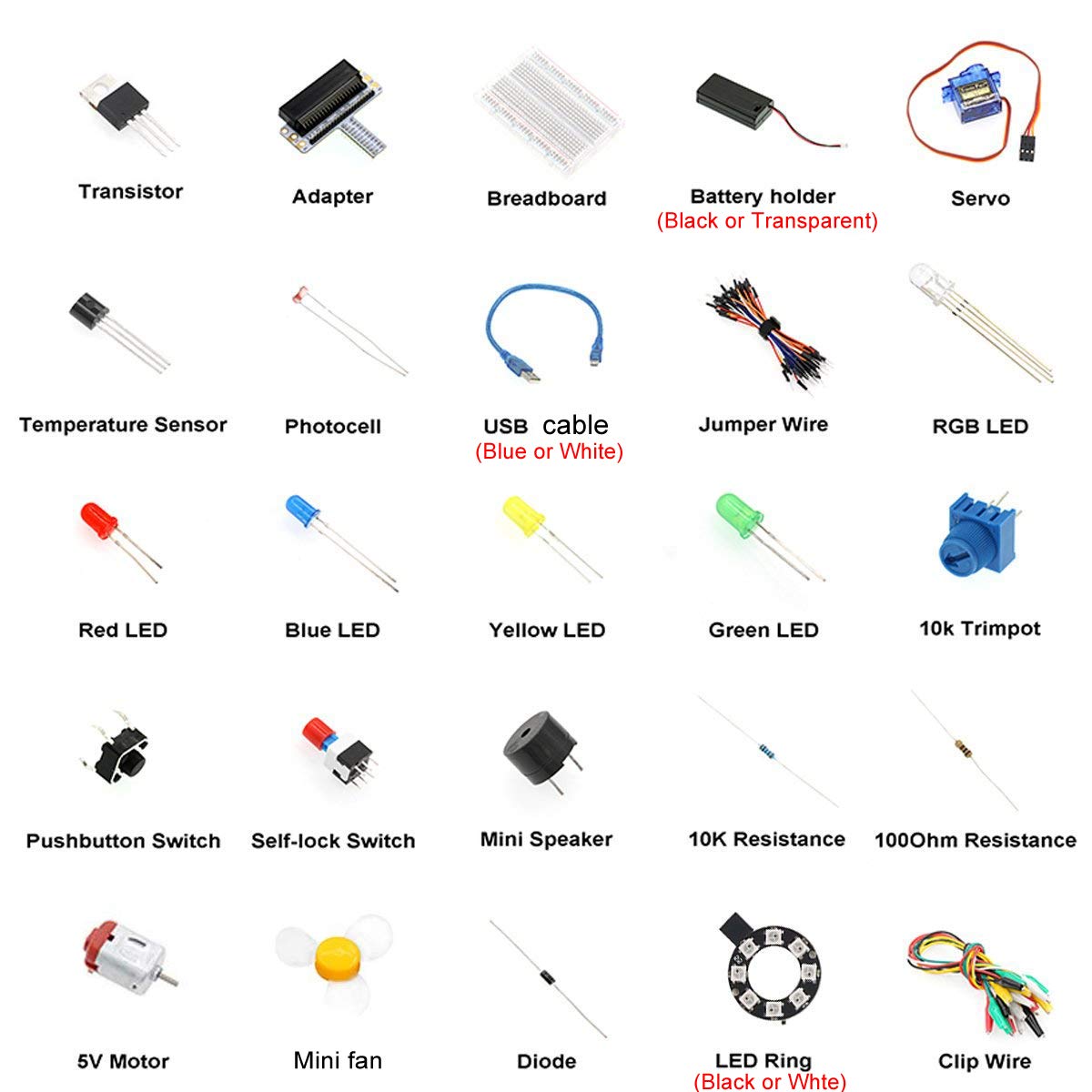

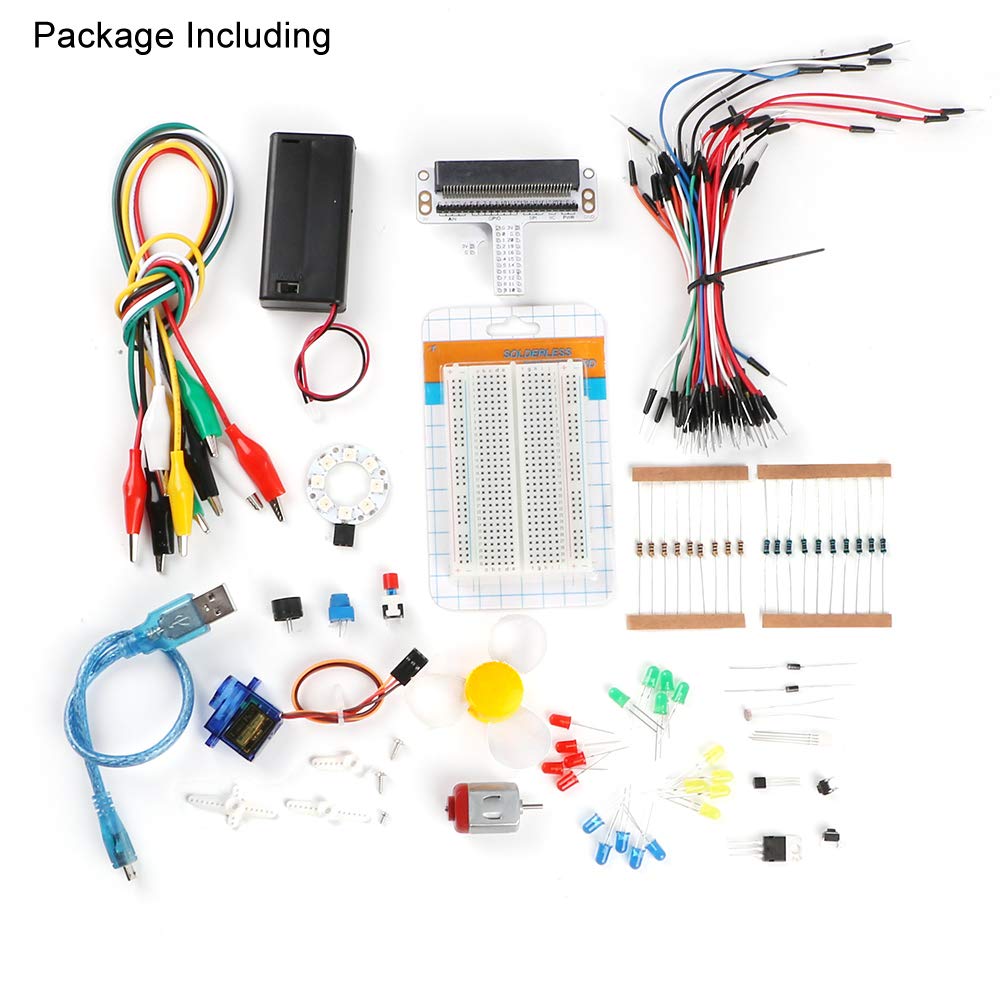

Packing List:

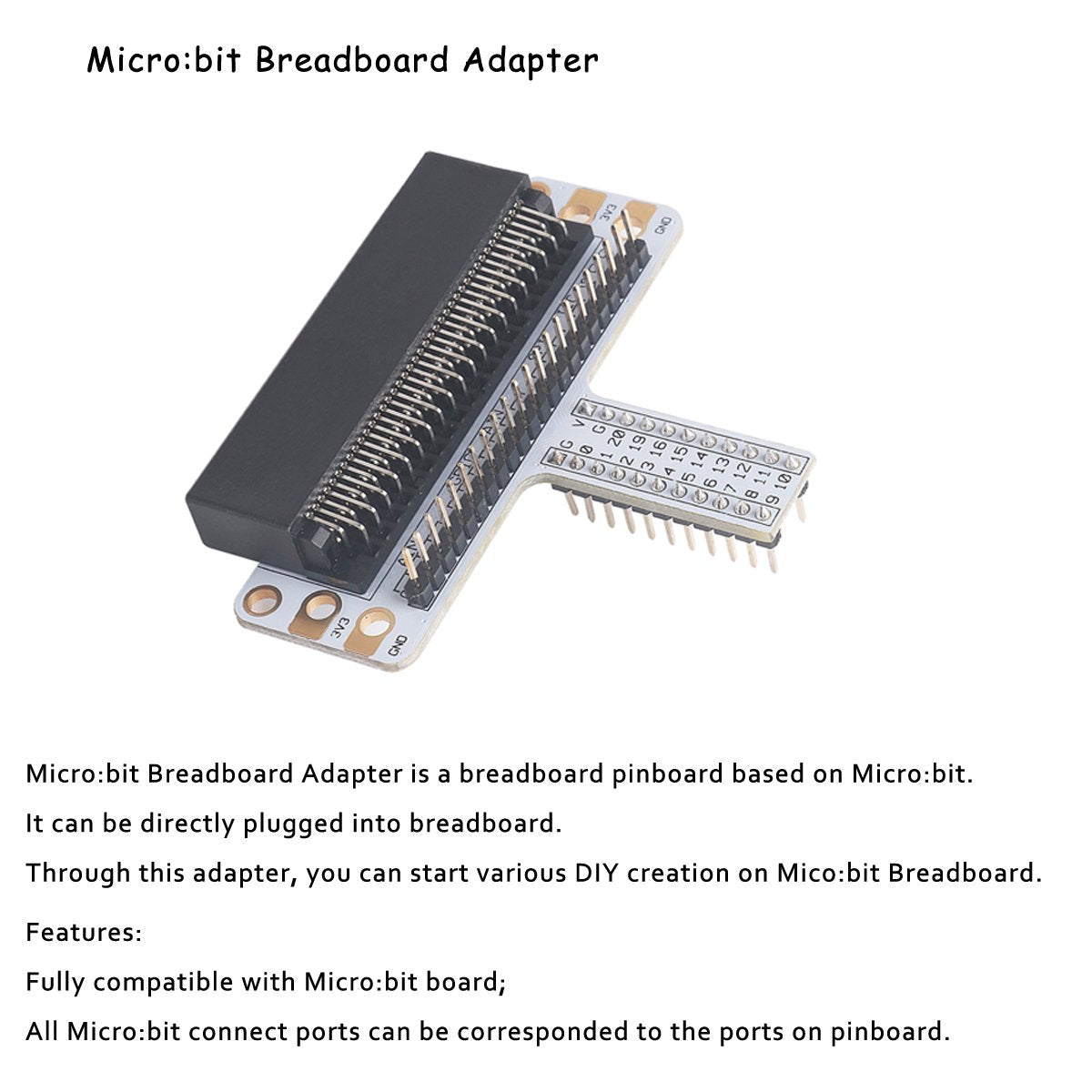

1 * Micro:bit Breadboard Adapter
1 * Transparent Breadboard - 83 * 55 mm
1 * Micro:bit Battery Holder - 2xAA
1 * TowerPro SG-90 Mini Servo(1.6kg)
1 * TMP36 Temperature Sensor
1 * Photocell
1 * MicroB USB Cable
1 * Breadborad Jumper Wire 65pcs Pack
1 * RGB Diffused LED
5 * Red LED
5 * Blue LED
5 * Yellow LED
5 * Green LED
1 * 10K Trimpot
2 * Momentary Pushbutton Switch
1 * Self-lock Switch
1 * Mini Speaker
10 * 100 Ohm Resistors
10 * 10K Ohm Resistors
5 * Alligator Clip Wires
1 * 5V Miniature Motors
1 * TIP 120 NPN Transistor
2 * 1N4007 Diodes
1 * 8 RGB Rainbow LED Ring
1 * Acrylic Base Board for Breadboard
