Makerfocus TF02-Pro-W-485 Single-point Ranging LiDAR Mid-range Distance Sensor

Makerfocus TF02-Pro-W-485 LiDAR Mid-range Distance Sensor

Features:
TF02-Pro-W-485 is a single-point ranging LiDAR based on TF02-W upgrade. The
performance and accuracy of different reflectivity are improved, it can achieve stable,
accuracy, sensitive and high frequency range detection:
The range up to 25 meters
High frame rate(up to 1000Hz)
Automatic dust removal

Application:
Material level detection

Specification:
Product performance
Operating Range
0.1~25m@90% reflectivity
0.1~12m@10% reflectivity
0.1~25m@90% reflectivity(100Klux)
0.1~12m@10% reflectivity(100Klux)
Accuracy1:±6cm（0.1~6m),±1%（6~25m）
Distance Resolution:1cm
frame rate 100Hz
Repeatability 1σ:＜2cm(0.1~25m@90% reflectivity)
Ambient light resistance 100Klux
Operation temperature -20~60℃
Protection Level IP5X

Optical Parameters
Light source:VCSEL
Central wavelength:850nm
FOV:3°
Photobiological safety:Class 1(EN60825）

Electrical Parameters
Supply voltage:DC 7~30V
Average Current:≤200mA@12V
Power consumption:≤4.8W
Peak Current:400mA@12V
Communication interface:RS-485

Other parameters
Dimensions 85x59x43mm(L*W*H)
Weight 92g（Including connect cable）
Enclosure material PC/ABS
Storage temperature -30~80℃
Cable length 120cm

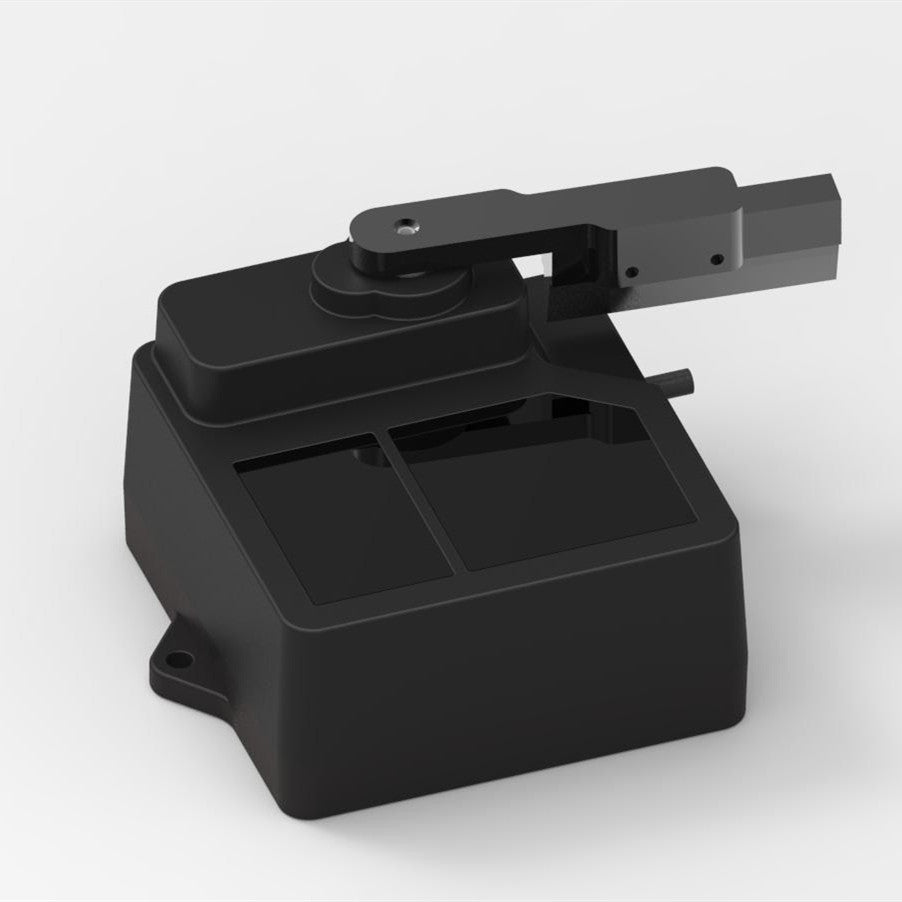

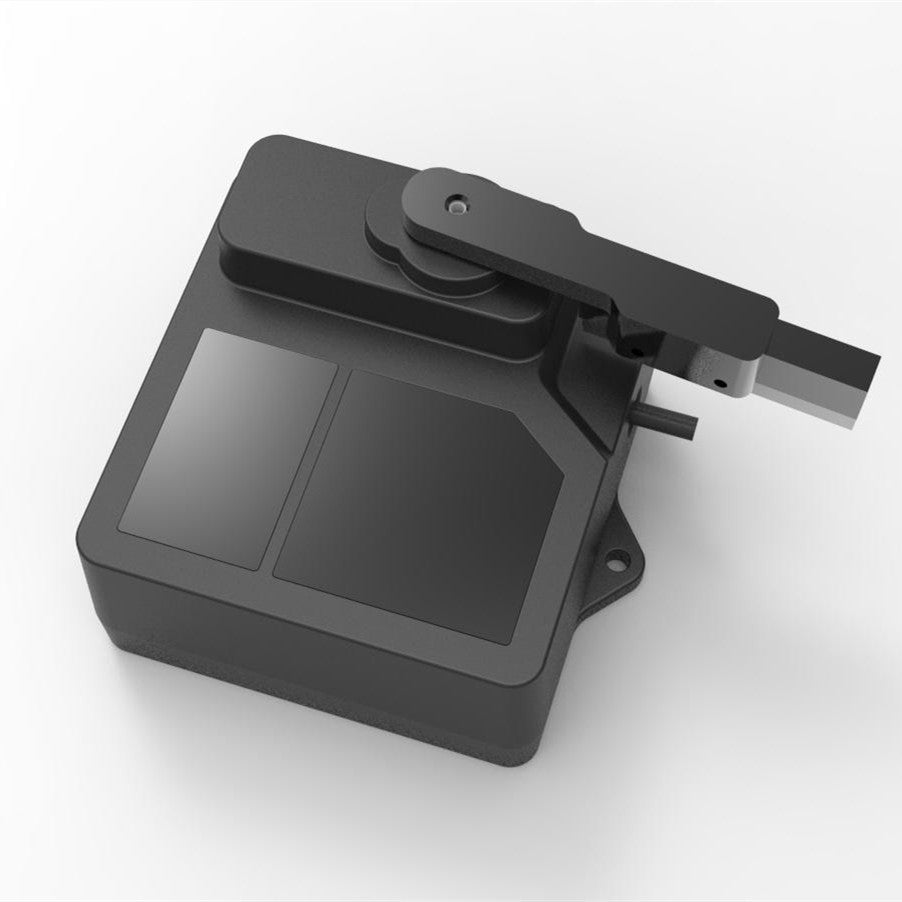

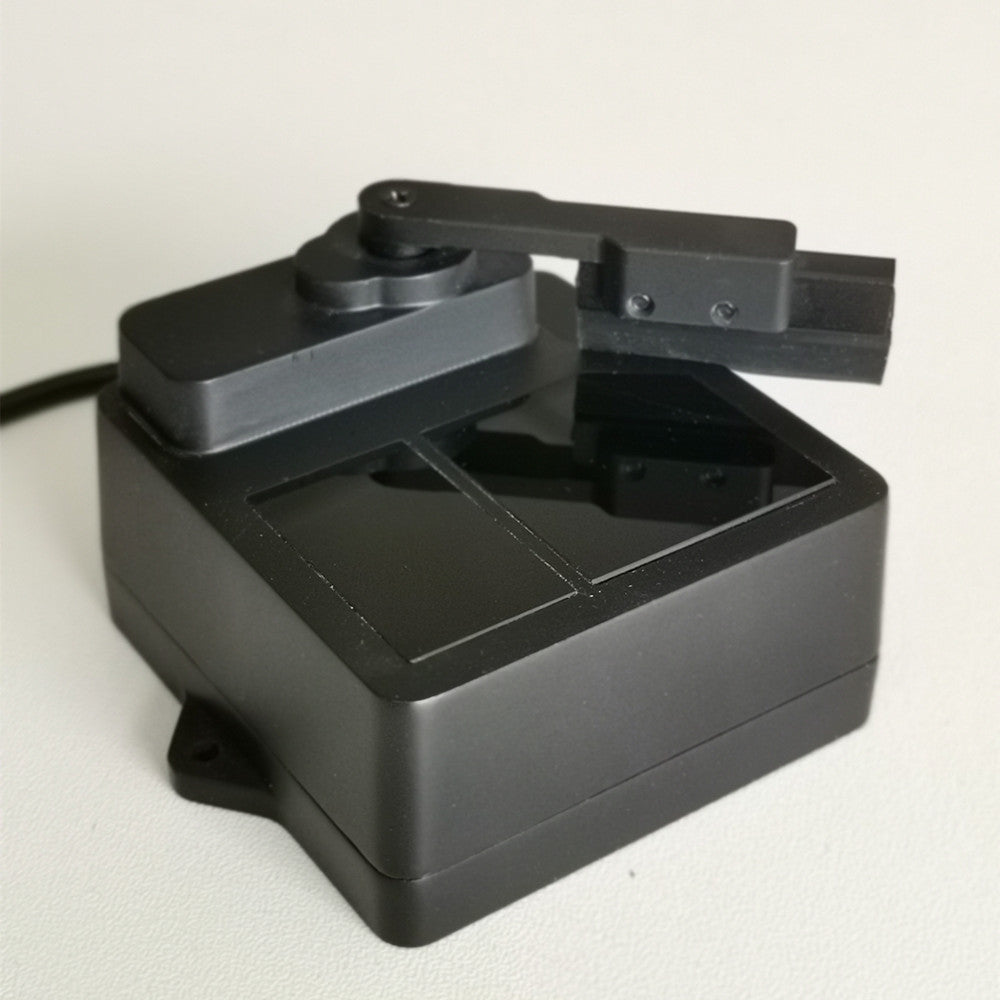

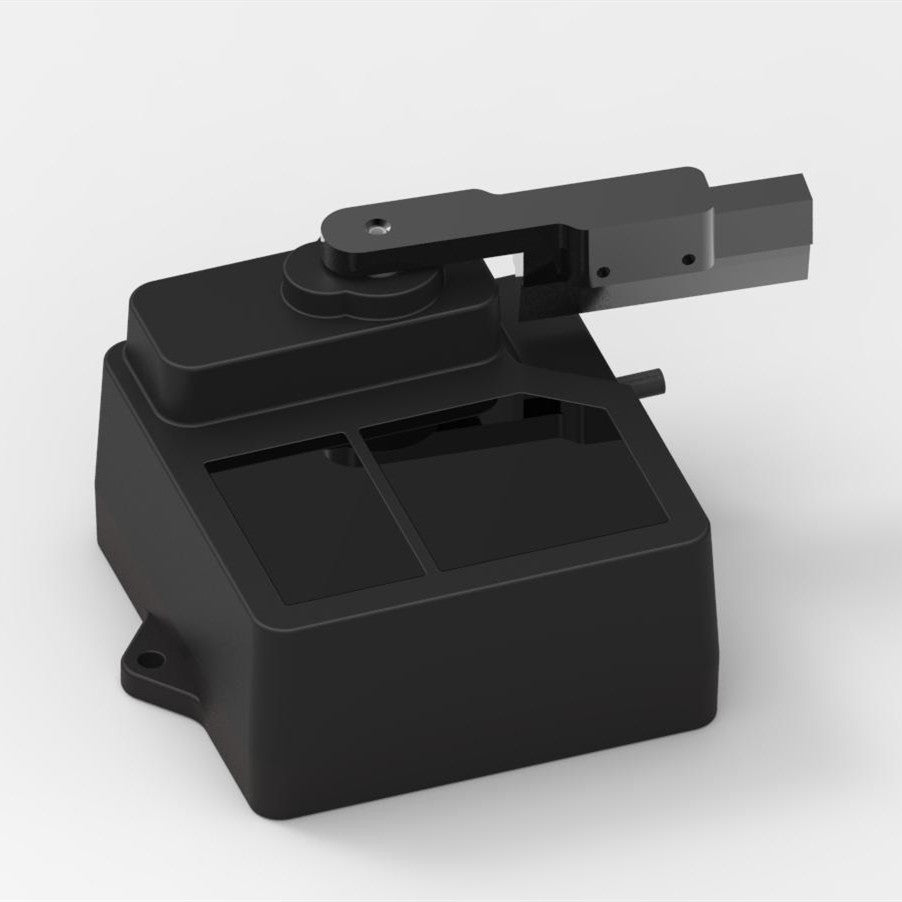

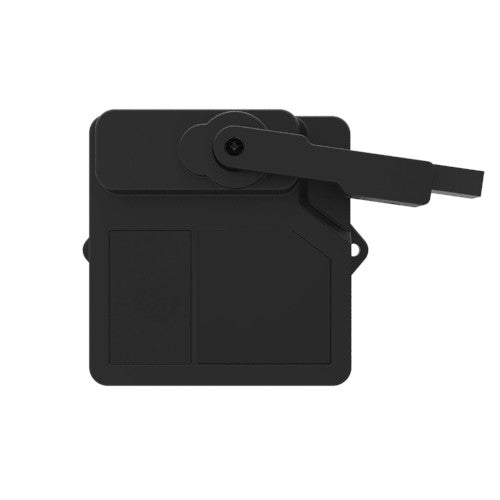

Product Appearance and Structure

Communication Interface
Default Baud rate:115200
Data bits:8
Stop bit:1
Parity:No

Package Included:
1*TF02-Pro-W-485 Single-point Ranging LiDAR
