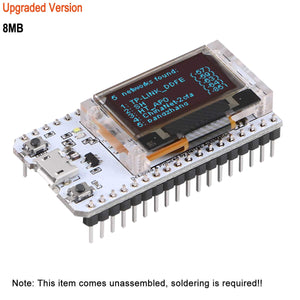

MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU
MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU

MakerFocus ESP32 Development Board with 0.96 Inch OLED WiFi Kit for Arduino ESP8266 NodeMCU

Regular price $16.99 now $12.99 Unit price  per

Description:
WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment


Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 C to + 90 C
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Flash Size : 4MByte(32M-bits)
Module Size:50*25.4*10.3 mm
Lithium battery interface:2Pin-1.25mm interface
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps
Supports Sniffer, Station, softAP and Wi-Fi Direct modes



Packing List:

1 * ESP32 Development Board with OLED
2 * Pin headers
