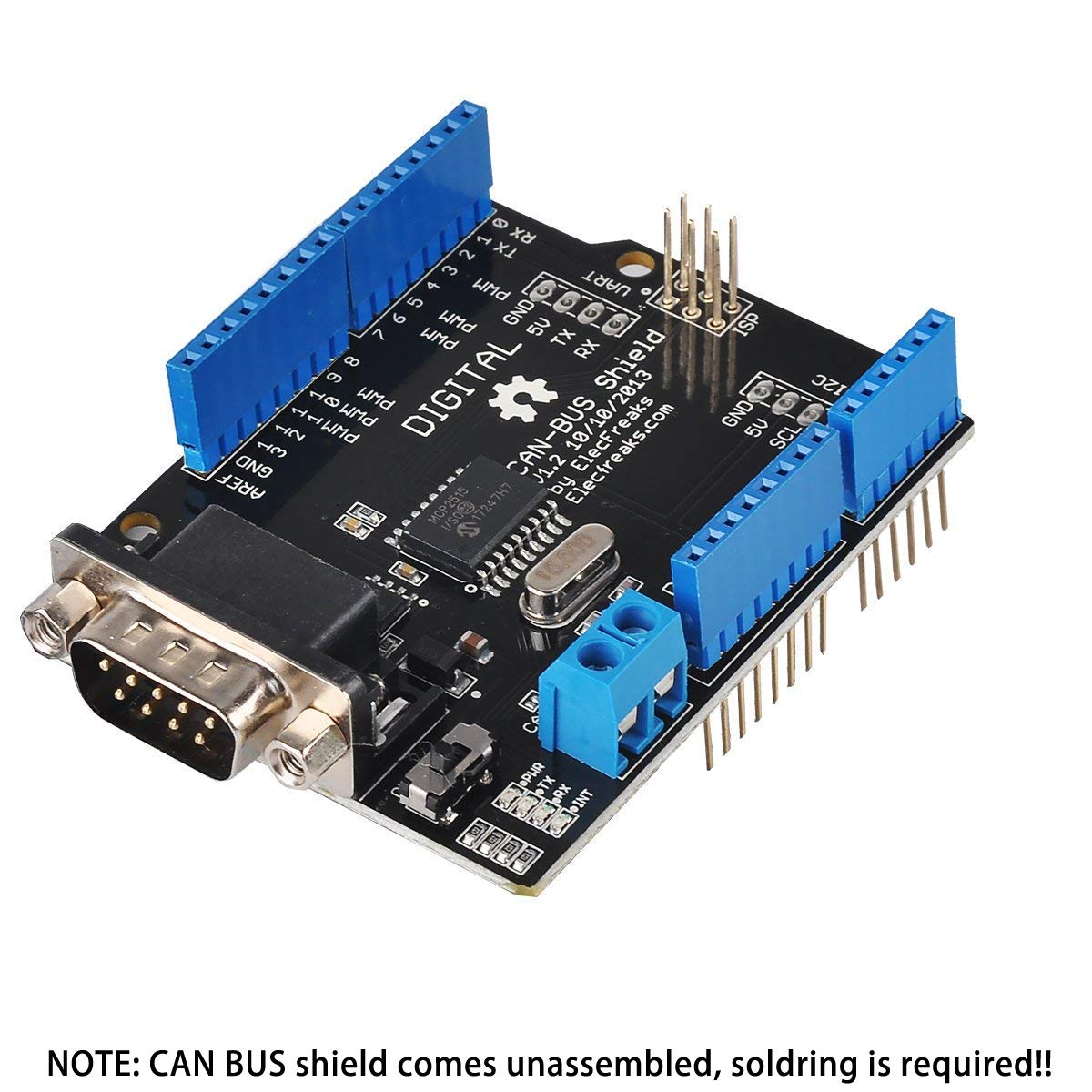

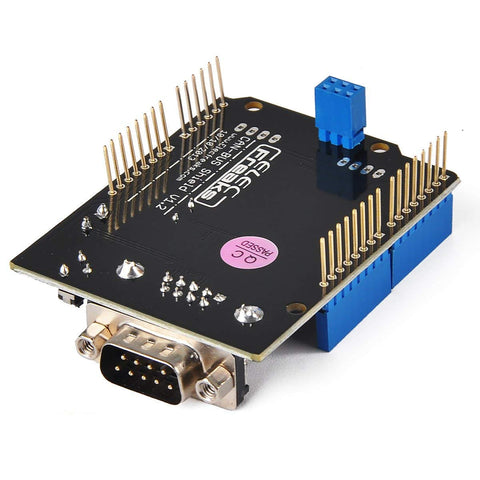

MakerFocus CAN-Bus Shield V1.2


  • $15.99
    Unit price per
  • Save $2
Shipping calculated at checkout.

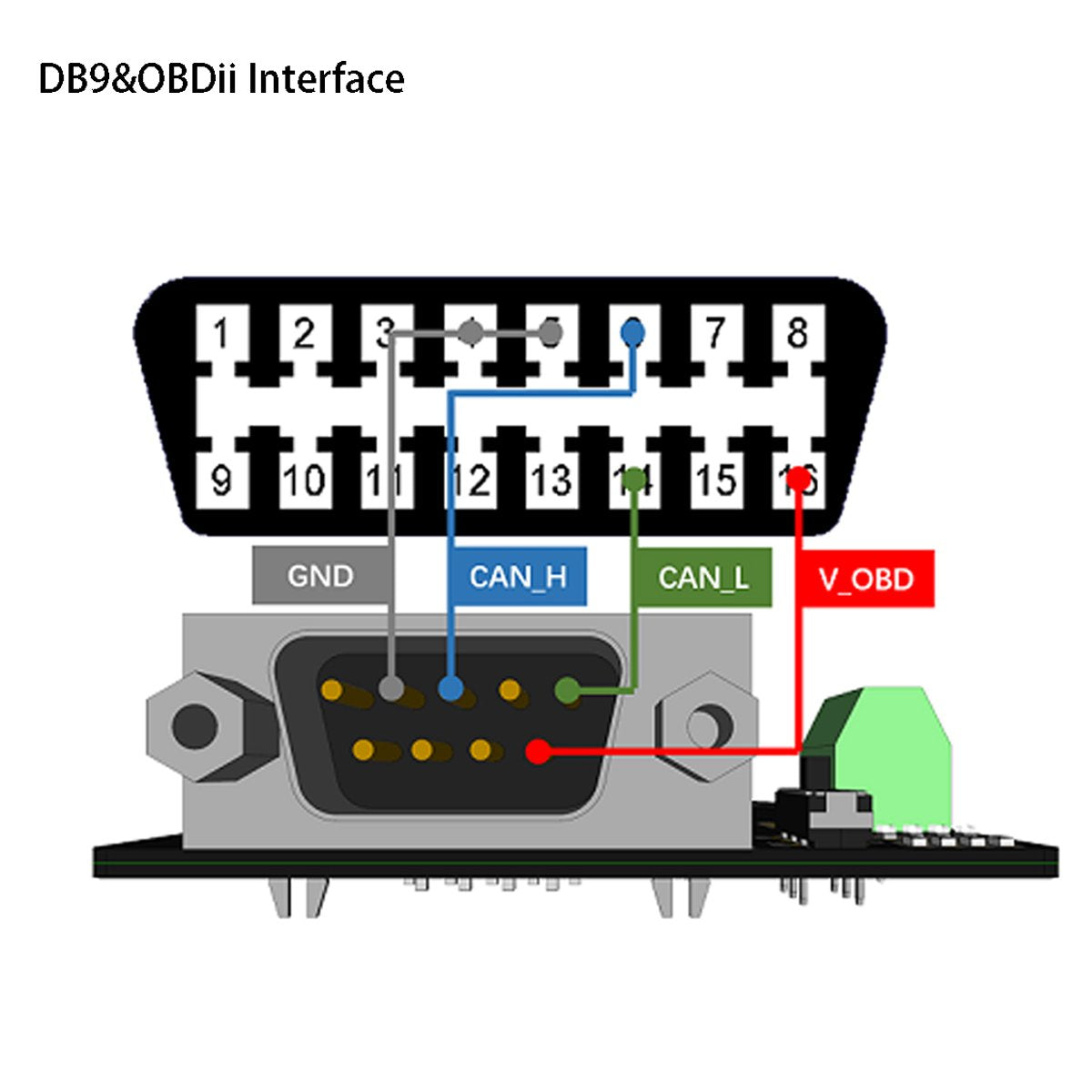

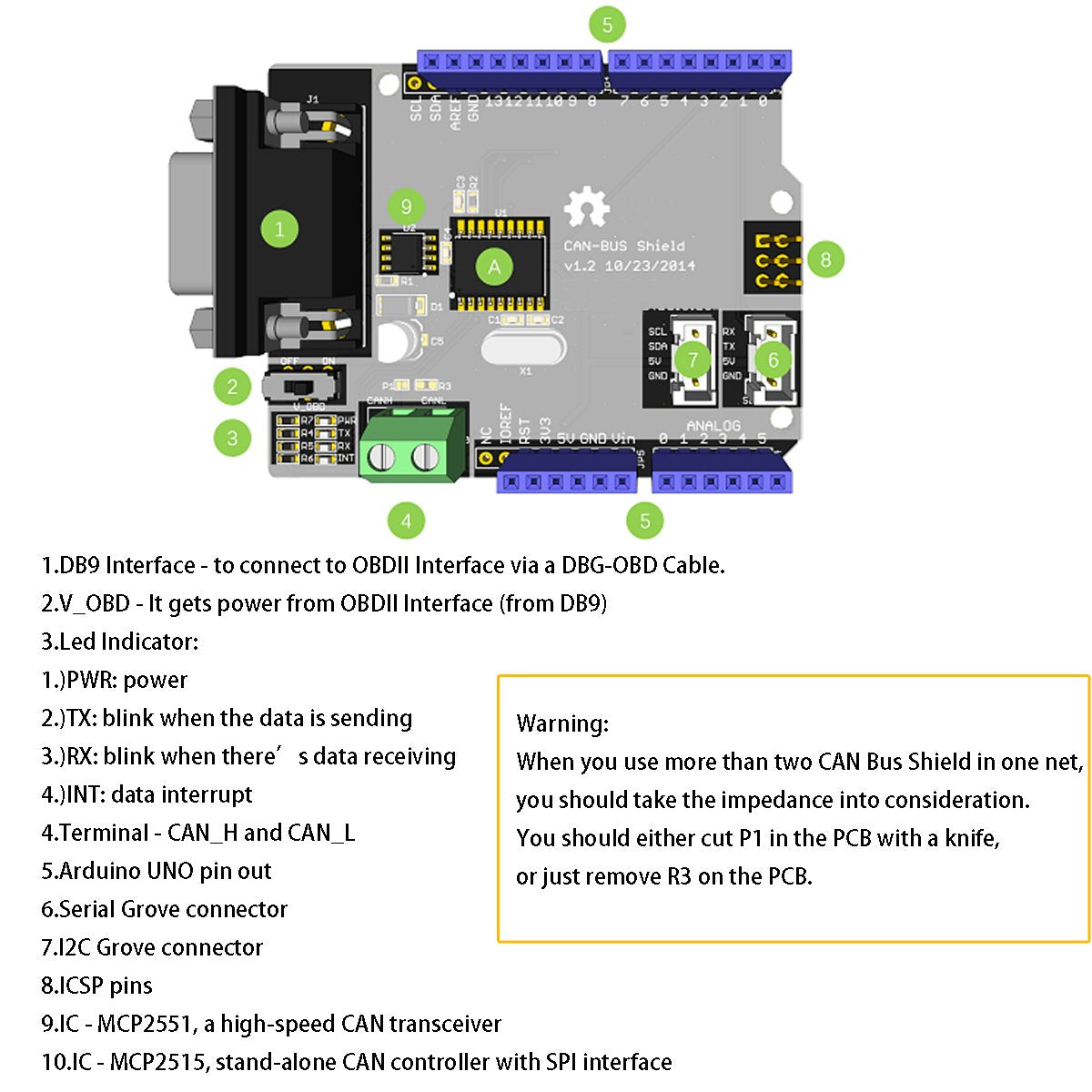

CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus. This CAN-BUS Shield adopts MCP2515 CAN Bus controller with SPI interface and MCP2551 CAN transceiver to give your Arduino/Seeeduino CAN-BUS capability. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device or data logger.

Implements CAN V2.0B at up to 1 Mb/s
SPI Interface up to 10 MHz
Ariduino/ Freaduino Completely compatible
Standard (11 bit) and extended (29 bit) data and remote frames
Industrial standard 9 pin sub-D connector
Two receive buffers with prioritized message storage

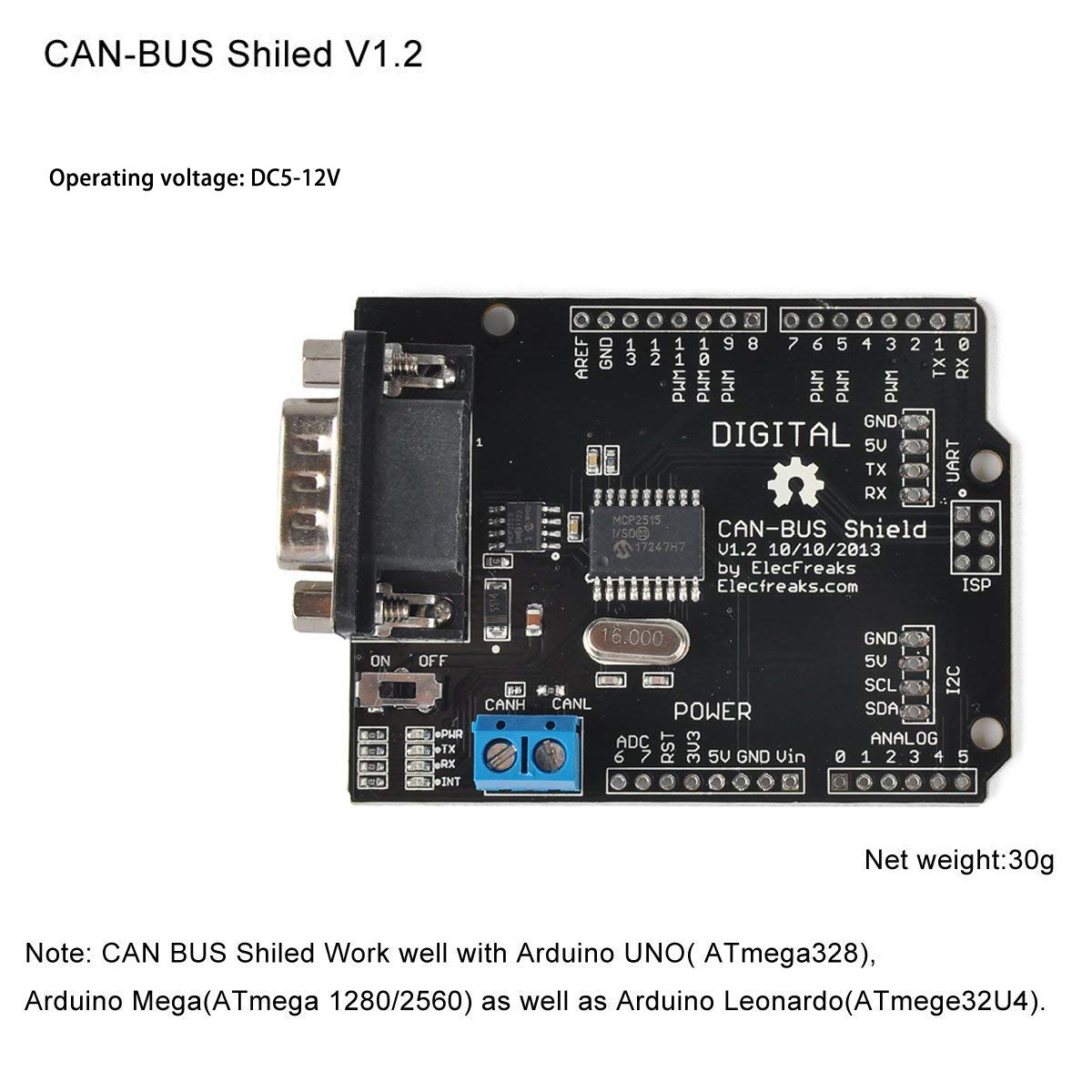

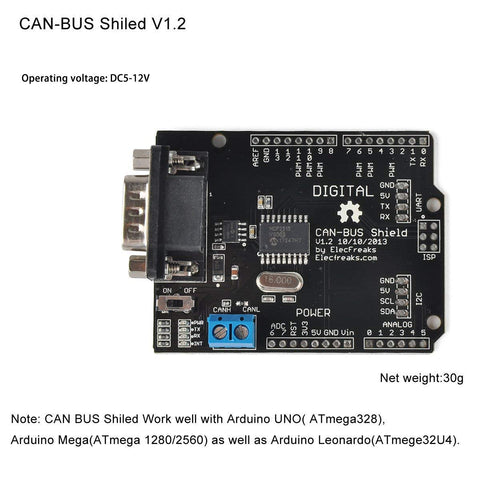

Operating voltage: DC5-12V

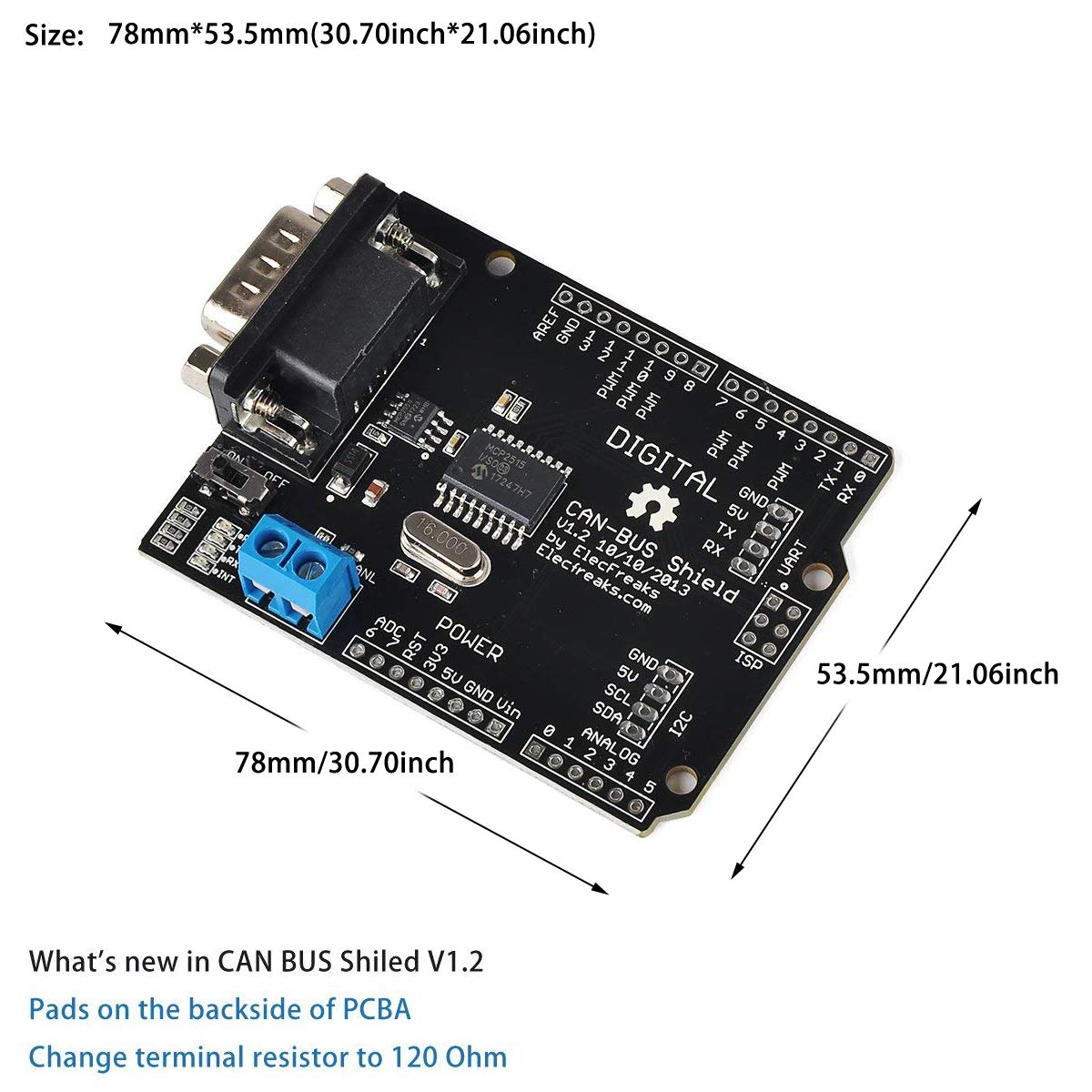

Size: 78mmx53.5m

Industrial control
Car control field

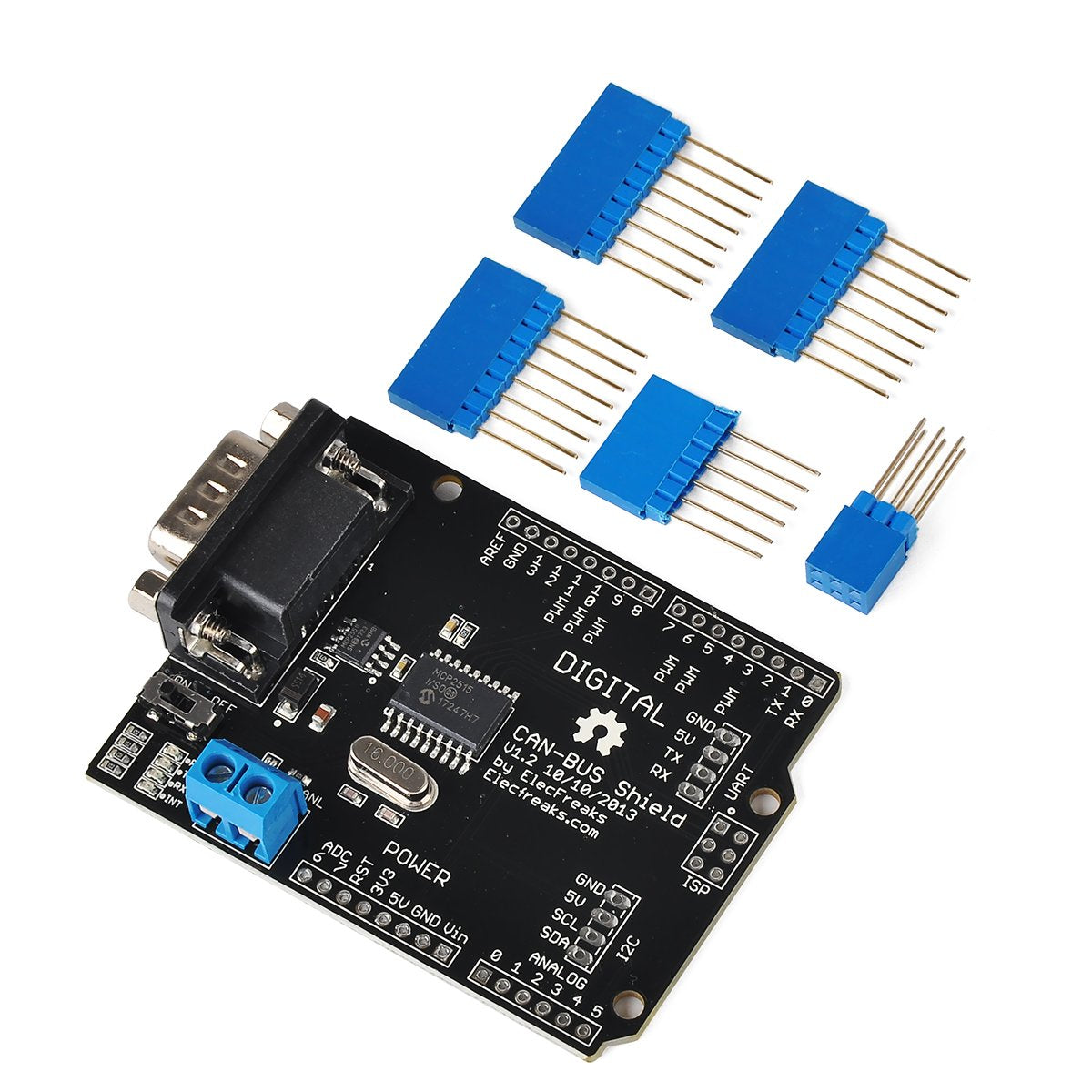

Packing List:
3 * 8p header
1 * 6p header
1 * SPI header
