M5Stack Micro Servo Motor Kit 180 Degree with Metal Gear Compatible with Le Go Stand for Arduino

  • $15.99
    Unit price per
  • Save $5


[Compatible With LE GO]: Servo Kit 180° is a 9g servo with LEGO compatible fixed bracket. The independent design of the fixed bracket can be easily disassembled, and the product is completely designed according to the LEGO standard unit,so that you can easily combine with LEGO series products, play unlimited creativity. Video: https://drive.google.com/file/d/1_uDCJ8pXL-g1Z96bVxbxE2CNpZX6vIdN/view?usp=sharing
[Easy to Program]: The rudder plate is redesigned, it can be directly connected with LEGO parts. It is very easy for beginners to use. Even if you dont know how to program, you can easily drive it with UIFlow. Instructions: https://drive.google.com/file/d/1d9QP6l6jsnzdHp0aNpJvgdZEMrbQaT7-/view?usp=sharing

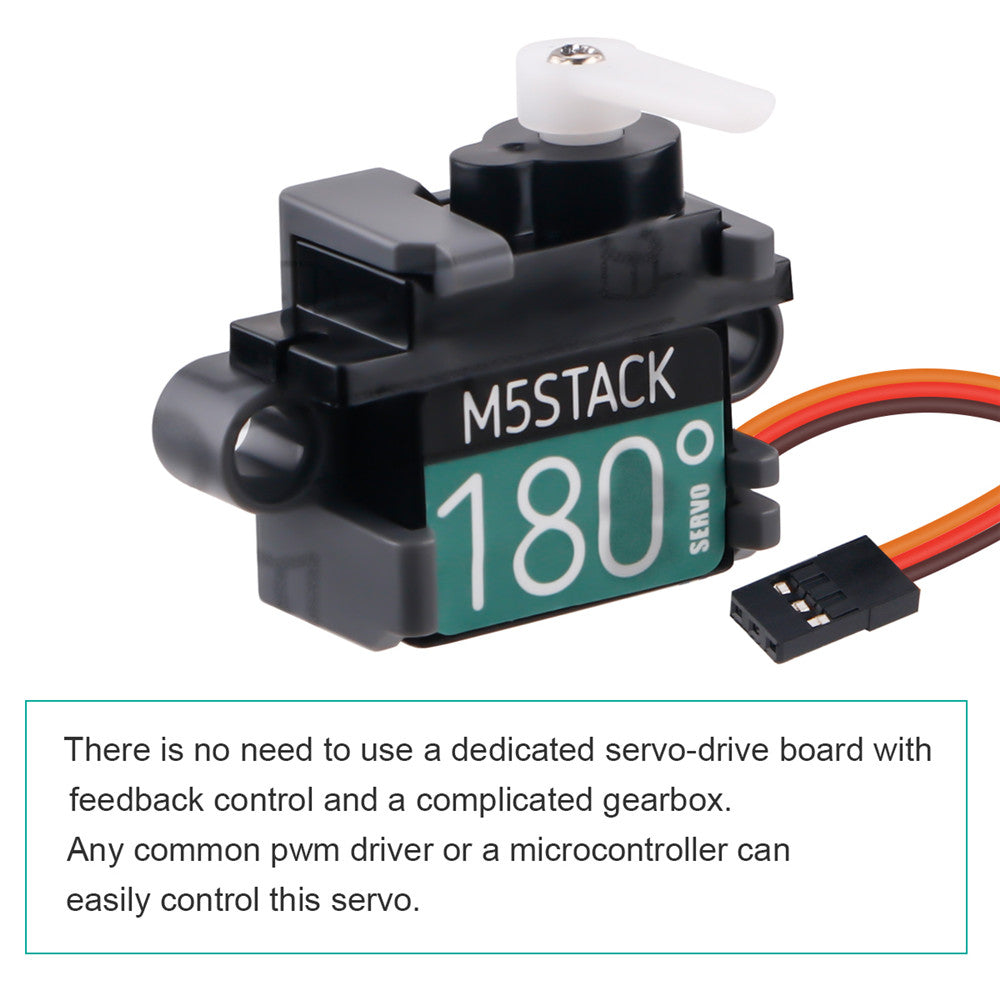

[Simple Using]: There is no need to use a dedicated servo-drive board with feedback control and a complicated gearbox. Any common pwm driver or a microcontroller can easily control this servo. Compared to driving a stepper motor, a servo is much simpler to use.
[Application]: You can use it to do interesting small projects requiring angular movement. If you feel that the cable is not long enough, you can purchase the servo extension cable to extend it. The yellow wire is for the control signal, brown is for the ground, and the red wire is for the VCC (voltage).
[Note]: 180° servo can control angle. When using the servo, pay attention to the power supply current and voltage to prevent burnout.

Product description

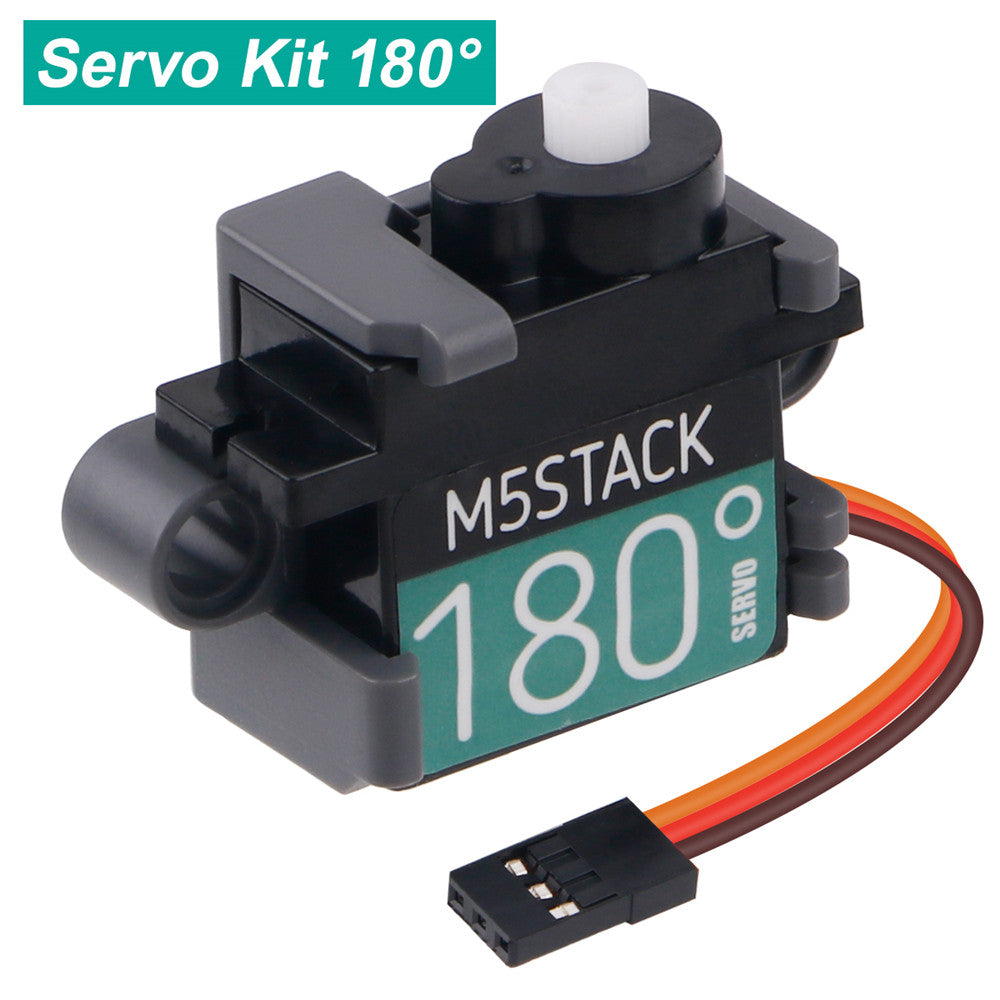

M5Stack Servo Kit 180°

Instructions:
https://drive.google.com/file/d/1d9QP6l6jsnzdHp0aNpJvgdZEMrbQaT7-/view?usp=sharing

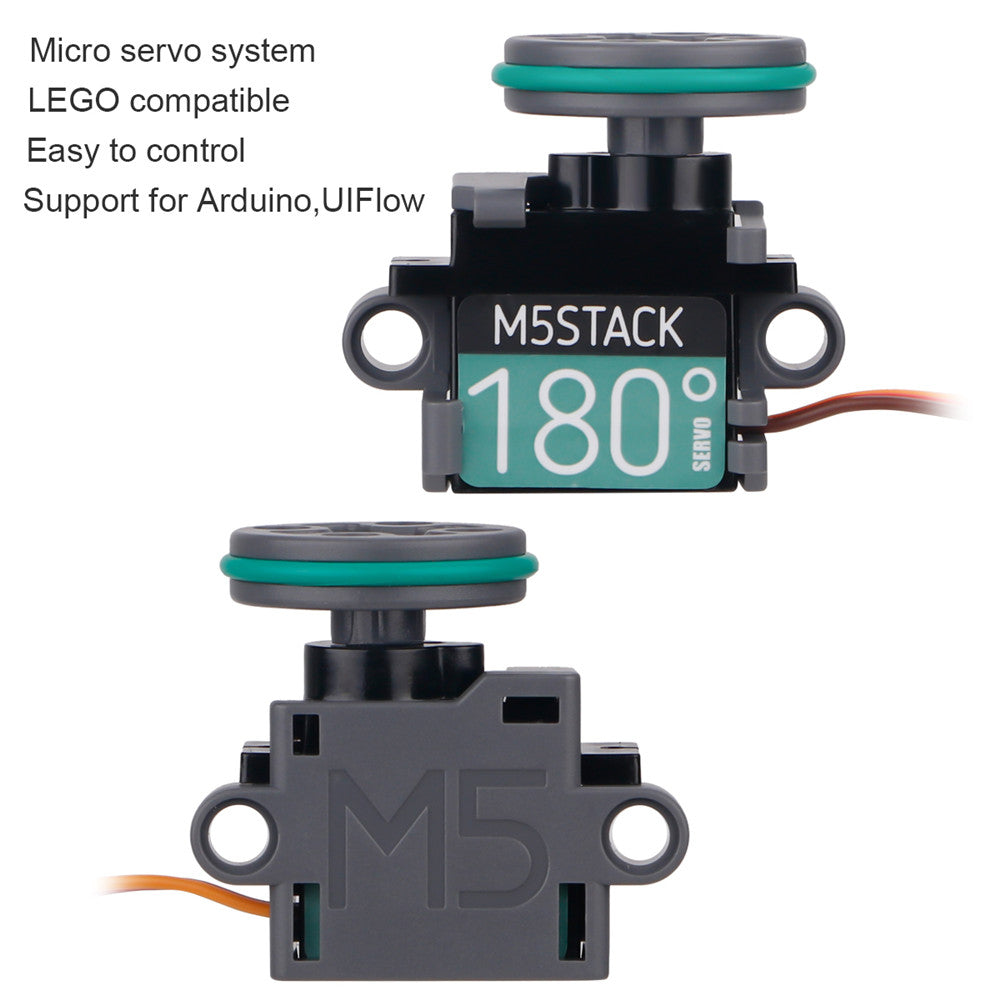

Features:
Micro servo system
Compatible with LE GO
Easy to control
Support for Arduino and UIFlow

Specification:
Resources: Parameter

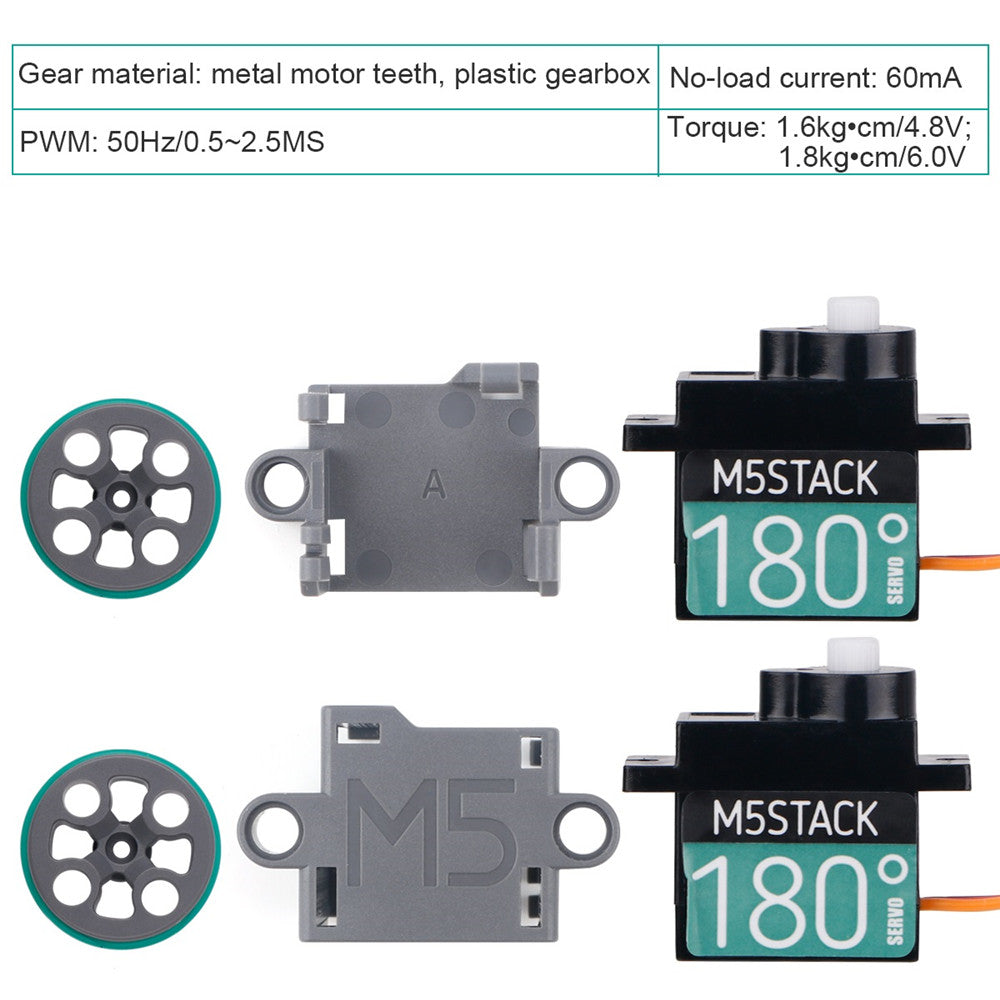

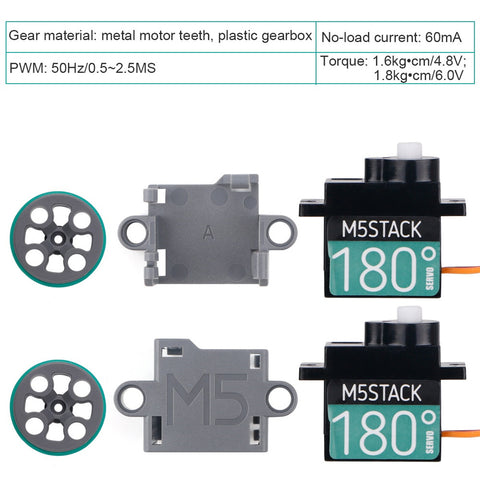

Gear Material: Metal motor teeth, plastic gearbox
PWM: 50 Hz / 0.5~2.5 MS
Servo Weight: 9 g
Locked Rotor Current: 750 mA
No-load Current: 60 mA
Torque: 1.6 kgâ€cm / 4.8 V; 1.8 kgâ€cm / 6.0 V
180° Servo Speed: 0.1 sec / 60° / 4.8 V; 0.09 sec / 60° / 6.0 V

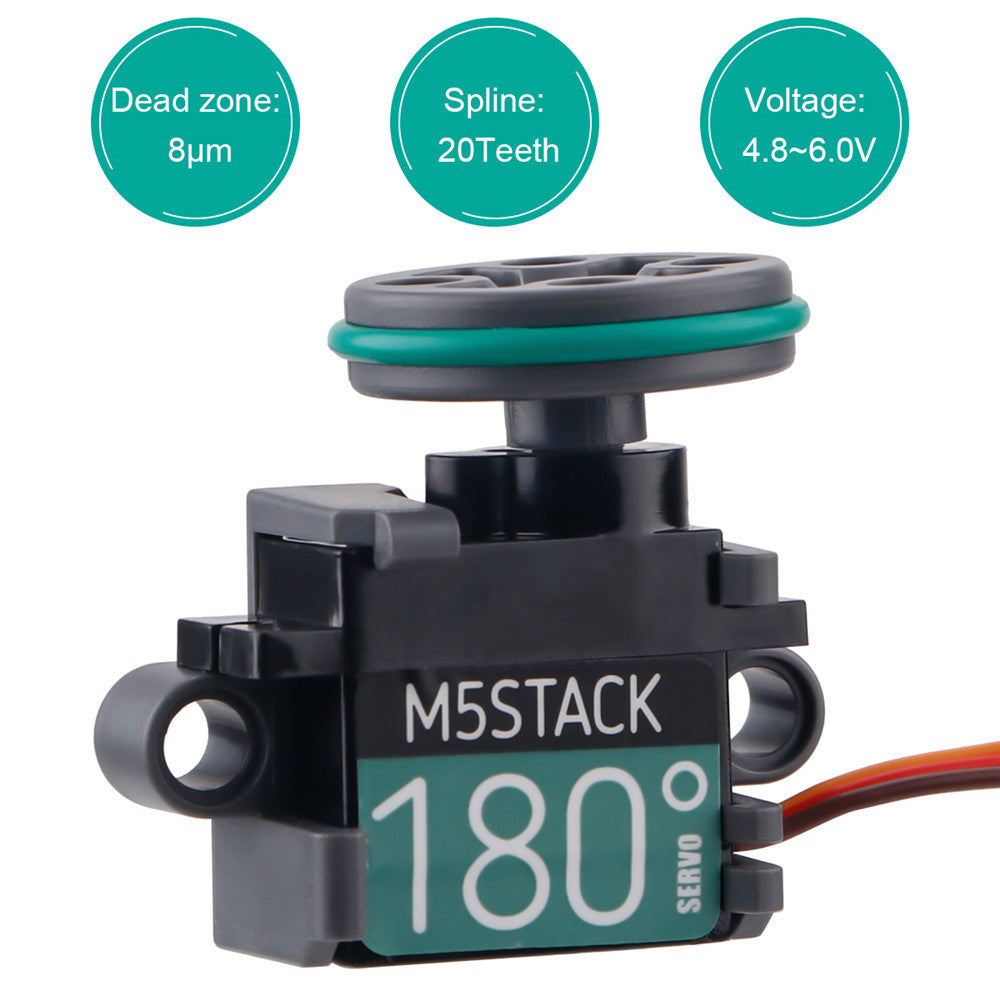

Dead Zone: 8μm
Voltage: 4.8~6.0 V
Spline: 20 Teeth
Cable Length: 3 cm
Net Weight: 44 g

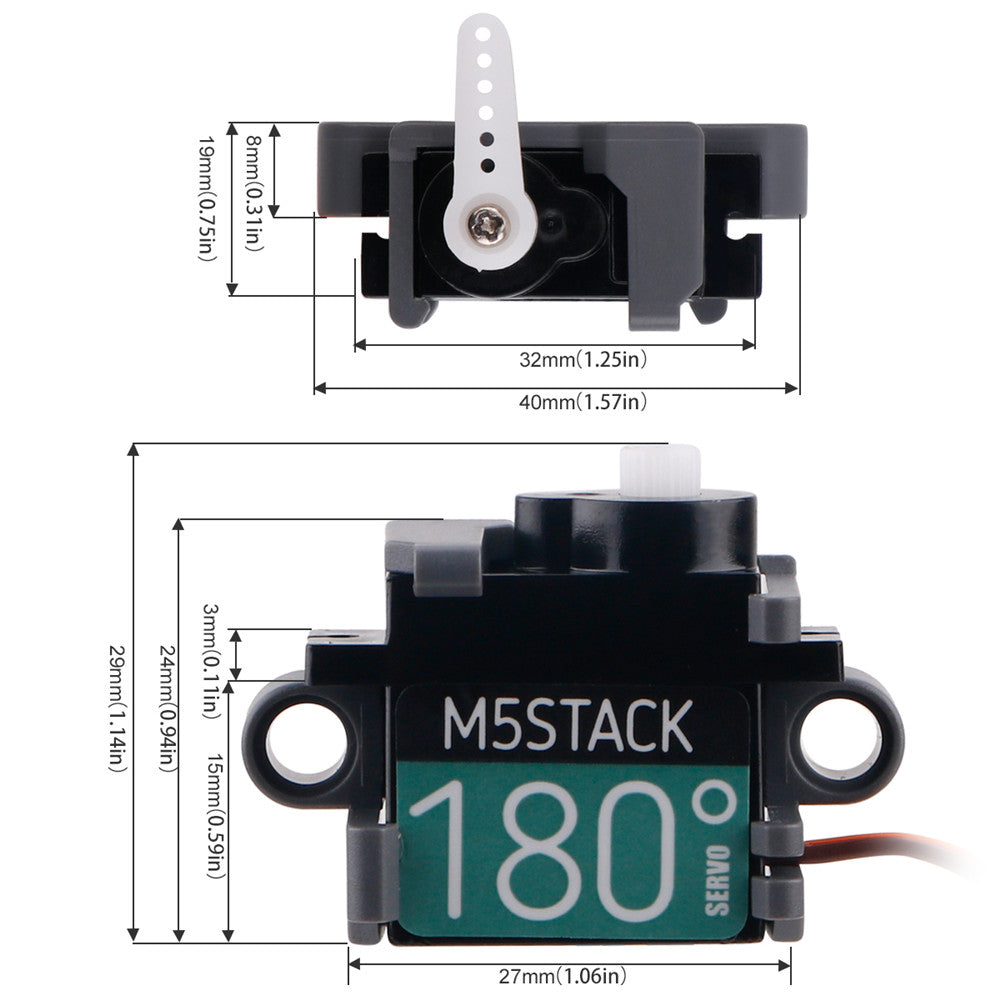

Product Size: 40 * 12 * 36 mm

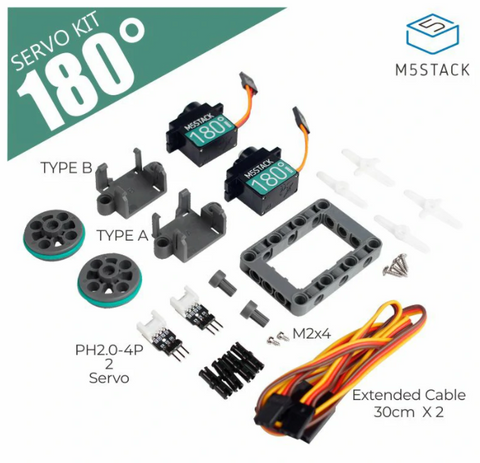

Package Including
2 * SG90 Servo 180°
2 * GROVE2SERVO adapter
2 * Elastic
2 * Fixed base of servo
2 * Special steering wheel
2 * Axle connector
4 * Connector peg with friction
1 * Frame 5x7-module
2 * Servo accessories package
2 * M2*4 mm self tapping screw
2 * Extension wire 30 CM
