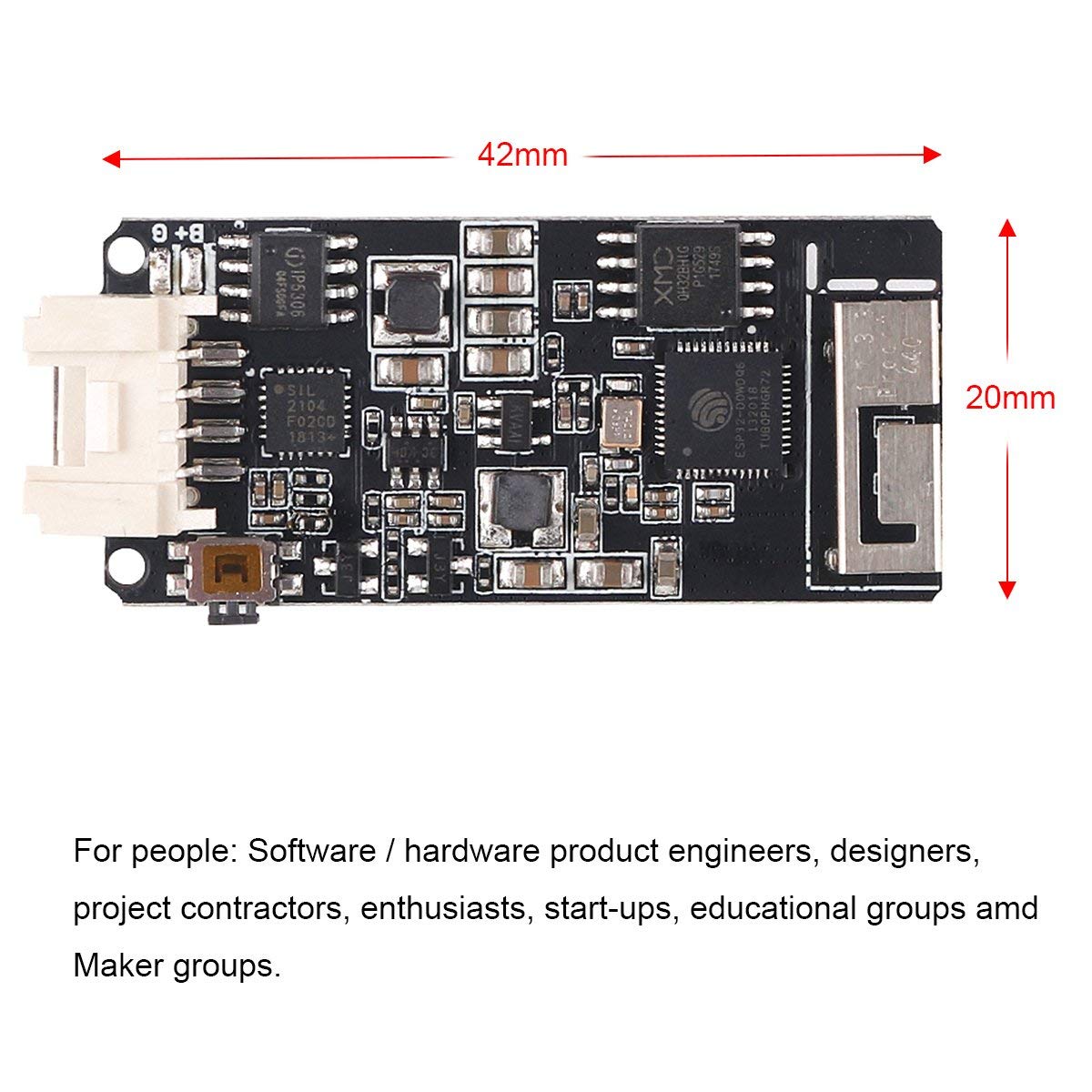

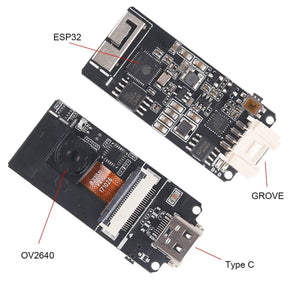

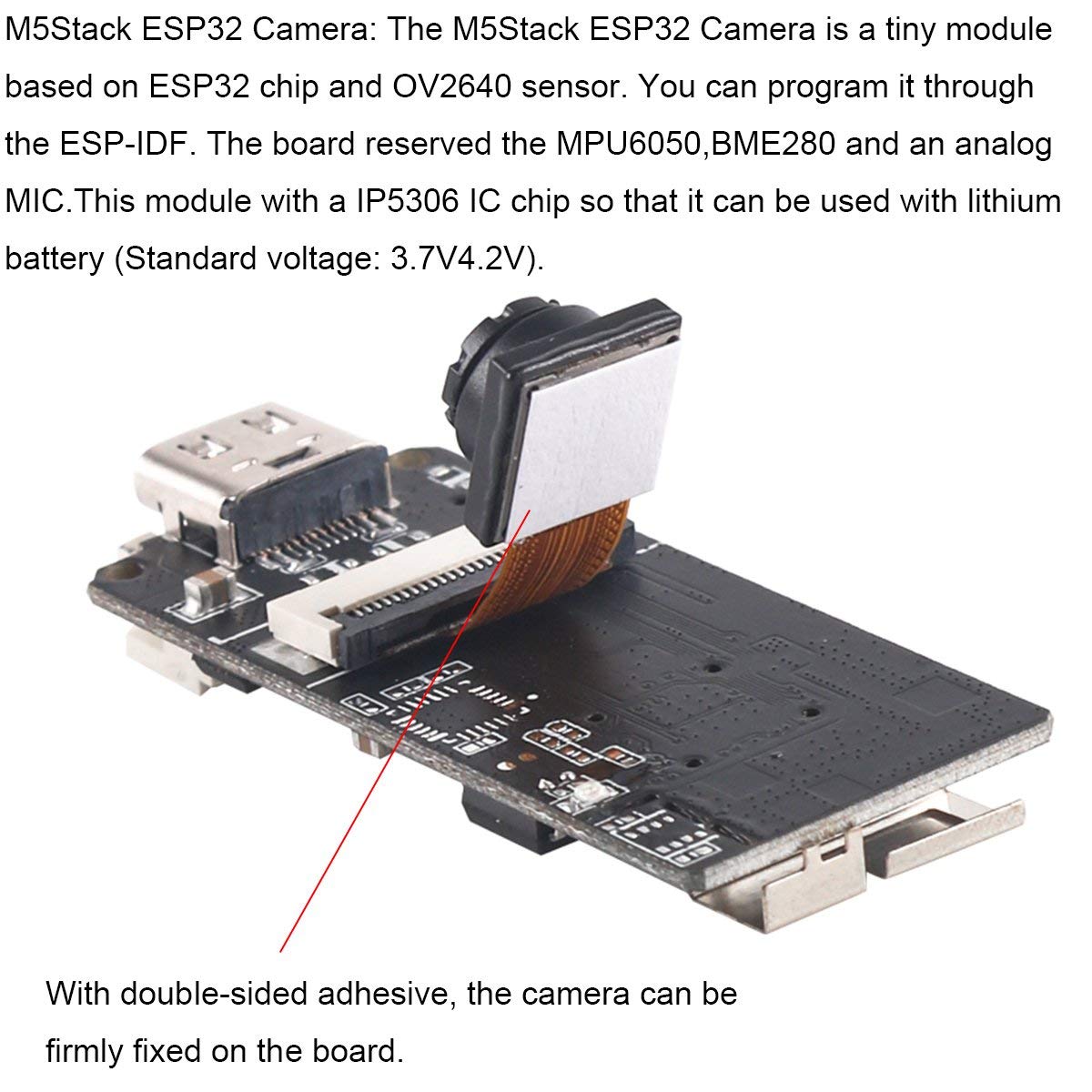

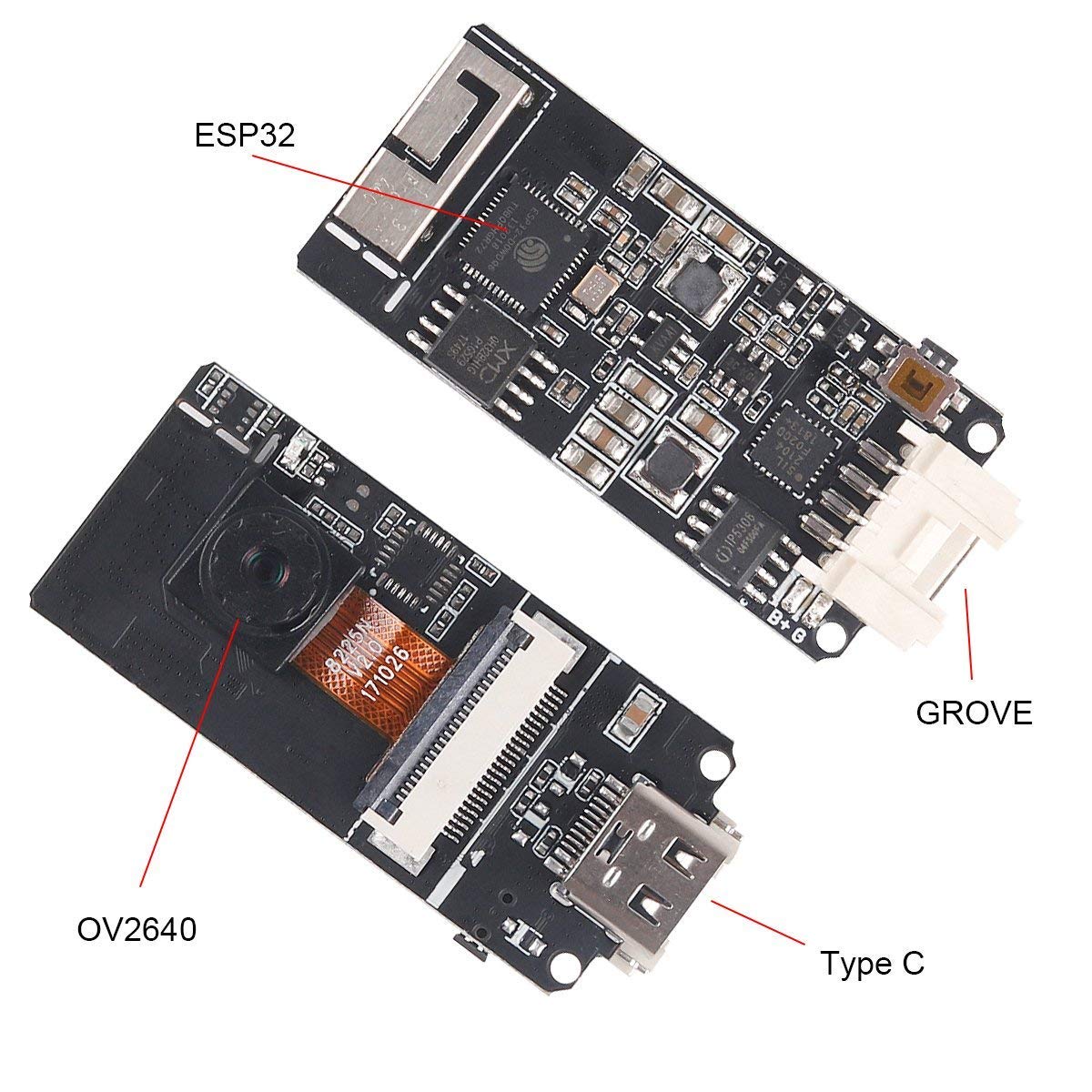

M5Stack ESP32 Mini Camera OV2640 2 MP Camera with 3D WiFi Antenna for Arduino/Raspberry Pi

  • $12.35
    Unit price per
  • Save $0.64

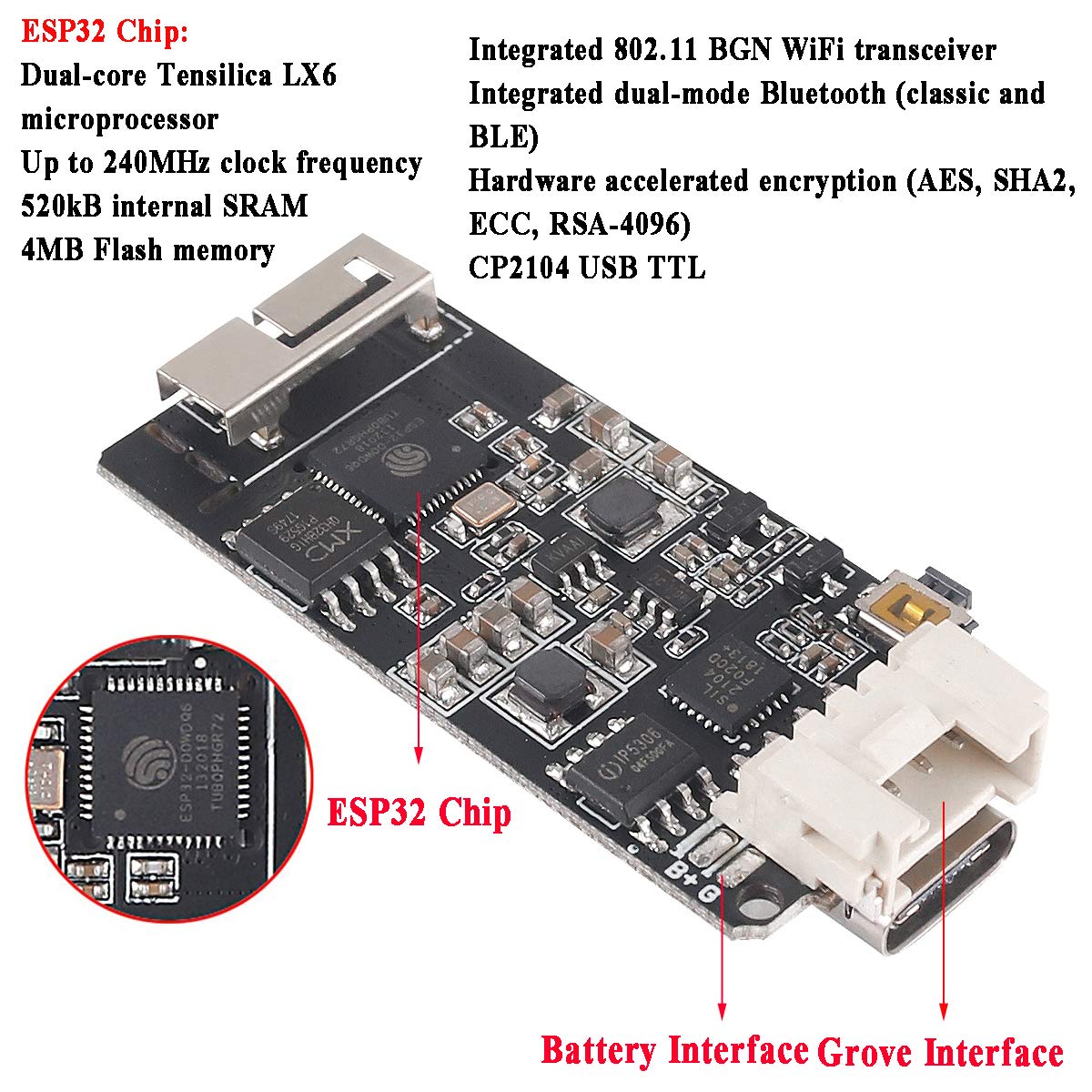

ESP32 Chip:
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
520kB internal SRAM
4MB Flash memory
Integrated 802.11 BGN WiFi transceiver
Integrated dual-mode Bluetooth (classic and BLE)
Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
CP2104 USB TTL

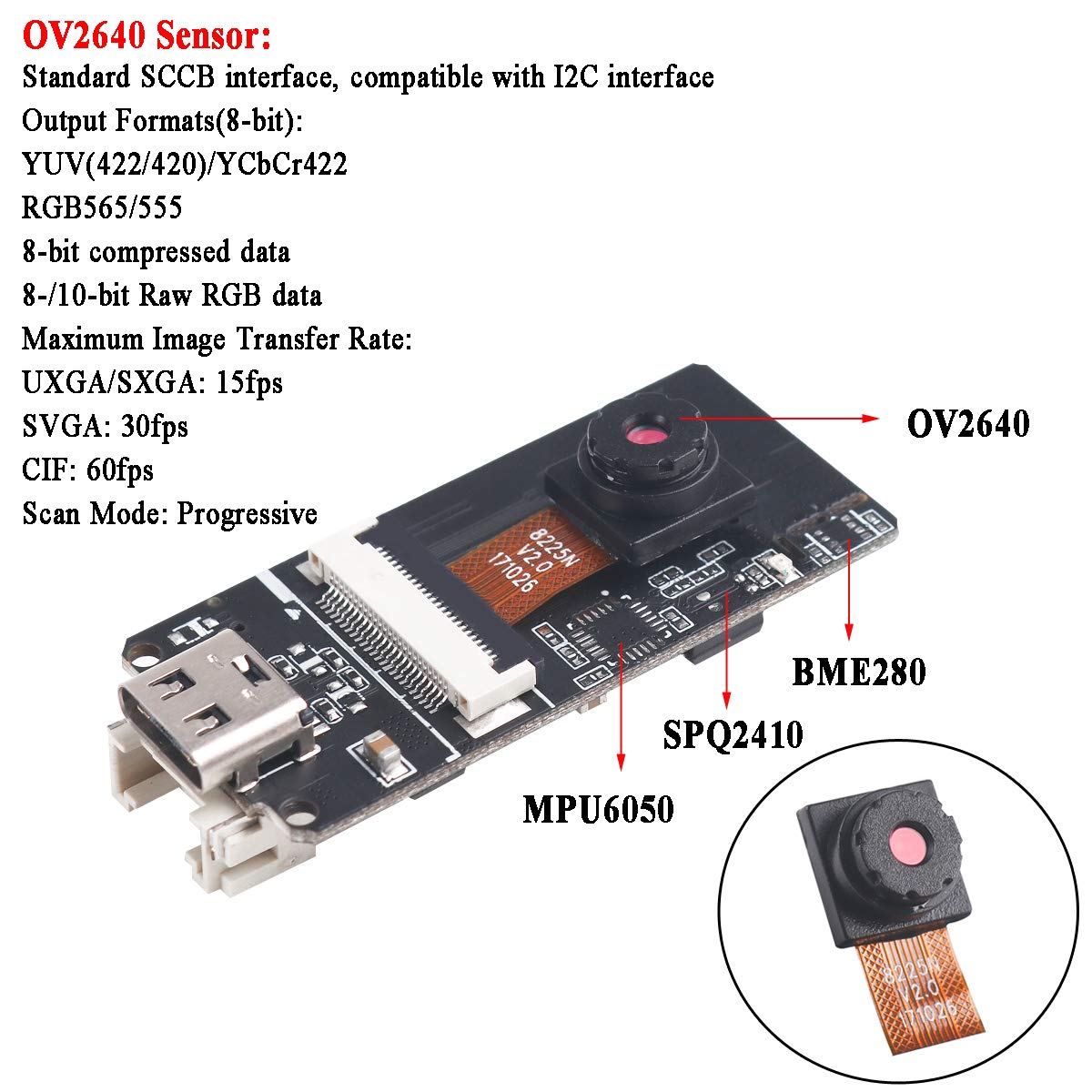

OV2640 sensor:
Standard SCCB interface, compatible with I2C interface
Output Formats(8-bit):
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8-/10-bit Raw RGB data
Maximum Image Transfer Rate
UXGA/SXGA: 15fps
SVGA: 30fps
CIF: 60fps
Scan Mode: Progressive

Camera:
CMOS size: 1/4"
Field of View : 78°
best sensor resolution: 1600 * 1200
IO voltage: 1.7V-3.3V
Analog voltage: 2.5-3.0v (internal LDO powers 1.2V to the core)
Power Consumption: TBD Sleep andlt;20μA
Temperature Operation: -30°C to 70°C
Stable work: 0°C to 50°C
Maximum rms rate: 15fps SXGA
Sensitivity: 1.3V/(Lux-sec)
Signal to noise ratio: 40 dB
Dynamic range: 50 dB
Scan Mode: Progressive
Electronic exposure: Line 1 to Line 1247
Pixel area: 2.2μm x 2.2μm
Dark current: 15mV/s at 60°C

Package Including:
1 * EESP32 Module Development Board with OV2640 Camera
