Raspberry Pi 4B POE Hat Power Over Ethernet Hat POE Extension Board
MakerFocus Raspberry Pi 4B POE Hat Power Over Ethernet Hat POE Extension Board Support IEEE 802.3af or 802.3at PoE Standard DC 5V with 30 x 30 x 7 mm Cooling Fan for Raspberry Pi 4B, 3B+

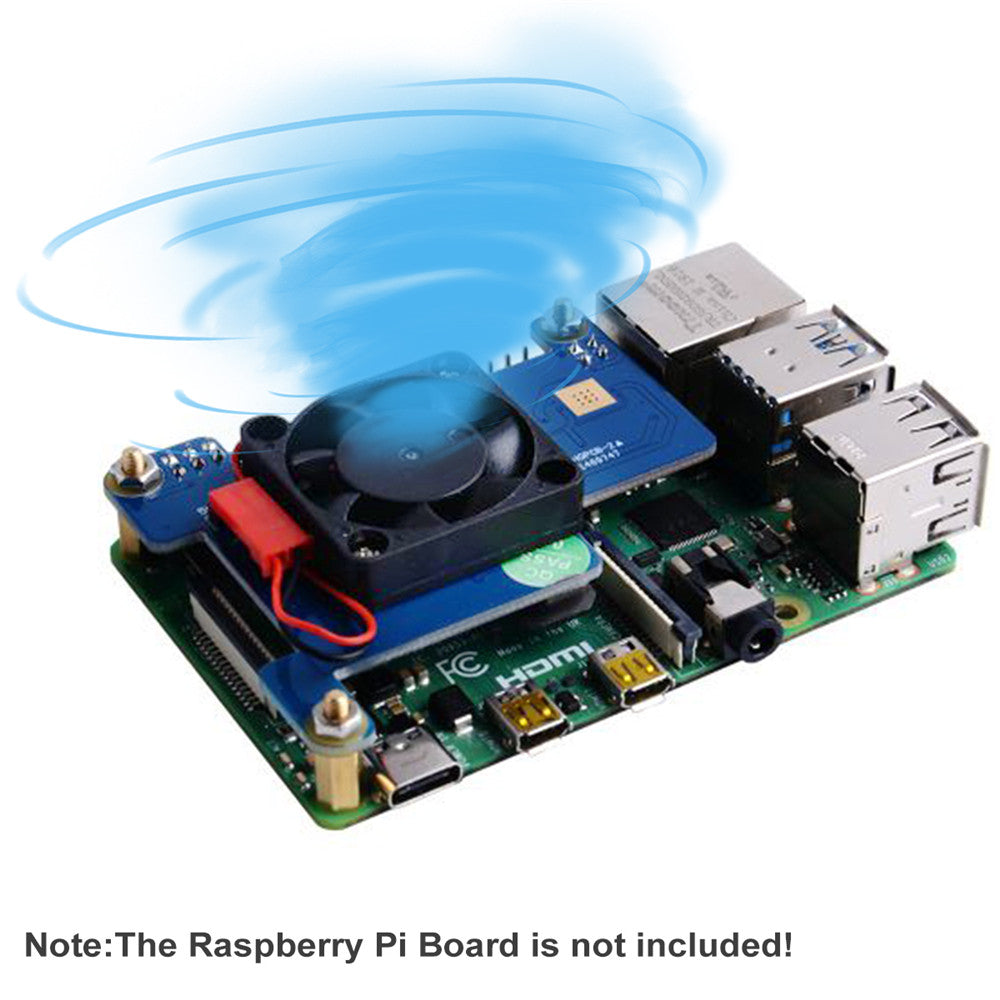

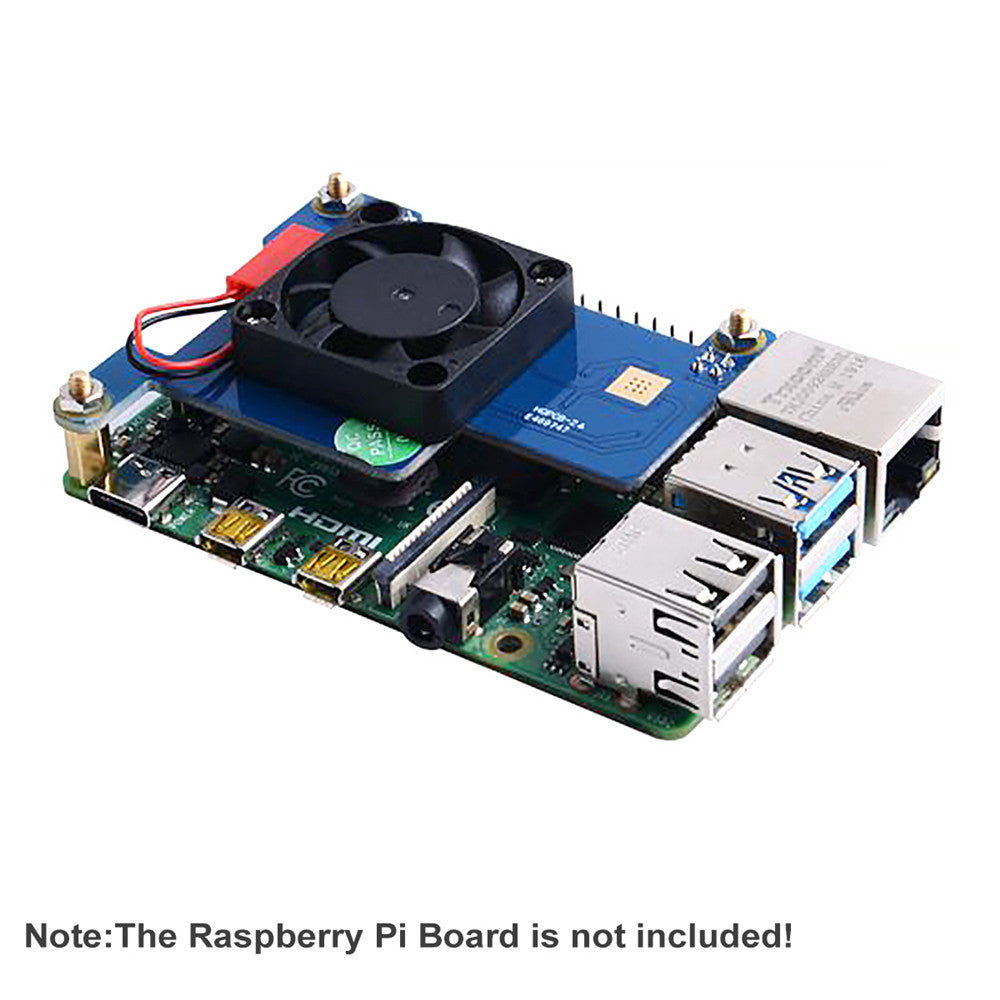

User Manual - https://wiki.52pi.com/index.php/Power-Over-Ethernet_(PoE)_HAT_for_RPi_4B/3B%2B_SKU:_EP-0115. Note: Raspberry Pi board is not included!
Rich Application Scenarios - The module is ideal for any space limited PoE applications such as IP cameras, biometric readers, RFID, wireless access points, HDBaseT extenders, VOIP phones, networked audio etc.
Easy to assemble - Built-in Cooling Fan and Plug-and-play.
Perfectly for Using in IoT Based Projects - Its tiny size is suitble for Raspberry Pi 4B and 3B+ in IOT and building automation applications. It is ultimate power solution for Raspberry Pi 4B/3B+.
Convenient and Cost-Effective - The Power-over-Ethernet (POE Module) allows you to put a DC voltage onto specific pairs of the Ethernet cable so that devices connected to the network can use it as a power source.
The Power-over-Ethernet (POE) hat offers a convenient and cost-effective way to deliver power to your device. It delivers clean and reliable power to PI 3B+ and Pi 4.
1. PoE power output must be within the budget of the switch when powering multiple boards!!! STANDARDS COMPLIANT POWER OVER ETHERNET SWITCH REQUIRED!!!
2. The network switch or power sourcing equipment (PSE) must be compliant with the IEEE 802.3af or 802.3at PoE standard, particularly section 33.4.1 with regards to PSE electrical isolation of the leads.
3. "Passive PoE" (DC 24V or 48V) is not standards compliant and may cause damage to equipment.
4.Do not use this product in an enclosed case without active air circulation!!

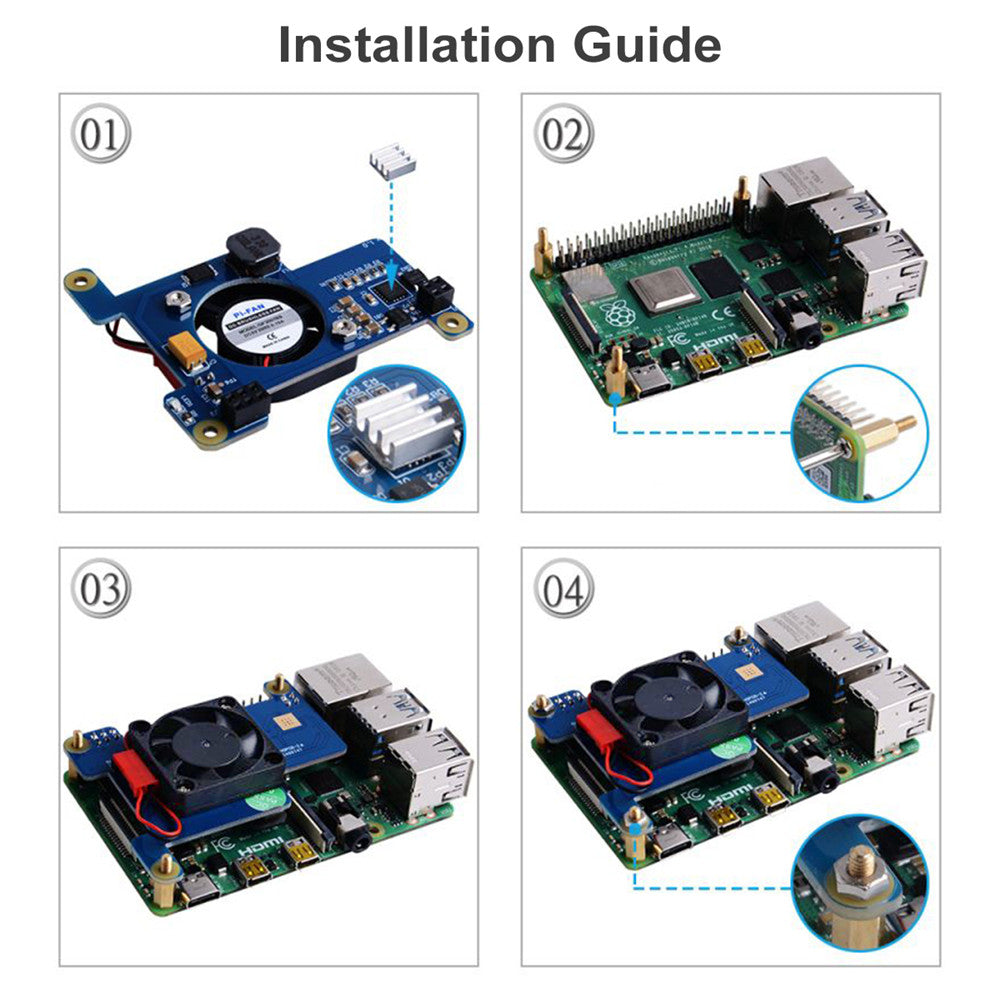

Easy to assemble
Compatible With Raspberry Pi 4B / Raspberry Pi 3B+

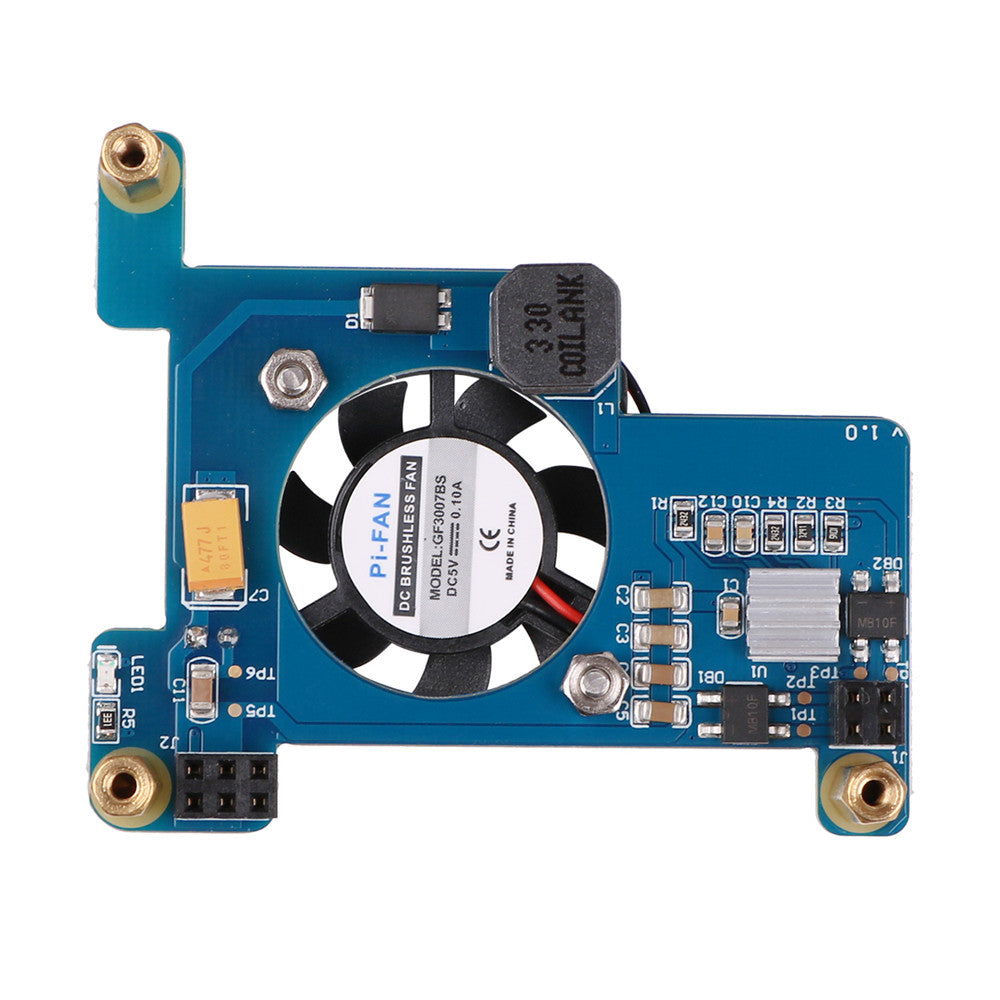

Built-in Cooling Fan
Support IEEE 802.3af or 802.3at PoE standard

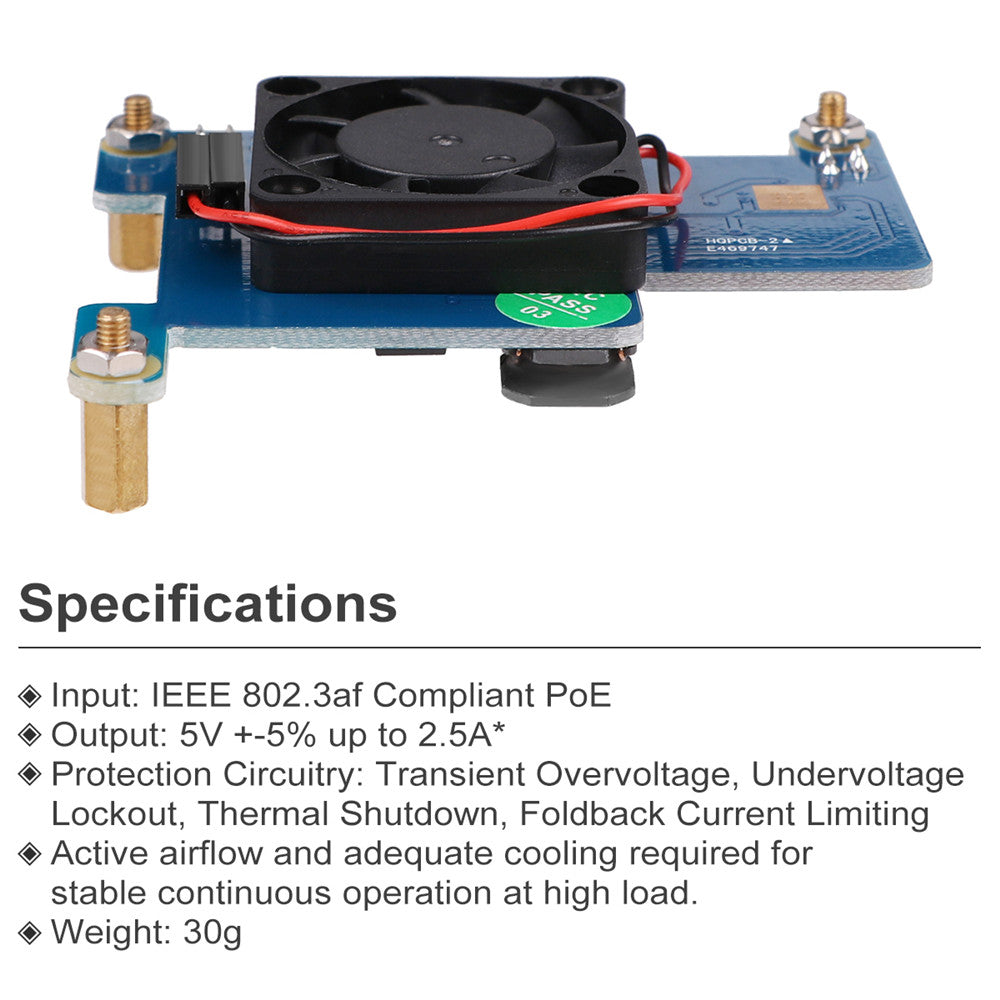

Input: IEEE 802.3af Compliant PoE
Output: 5V +-5% [up to 2.5A]
Protection Circuitry: Transient Overvoltage, Undervoltage Lockout, Thermal Shutdown, Foldback Current Limiting
Active airflow and adequate cooling required for stable continuous operation at high load.

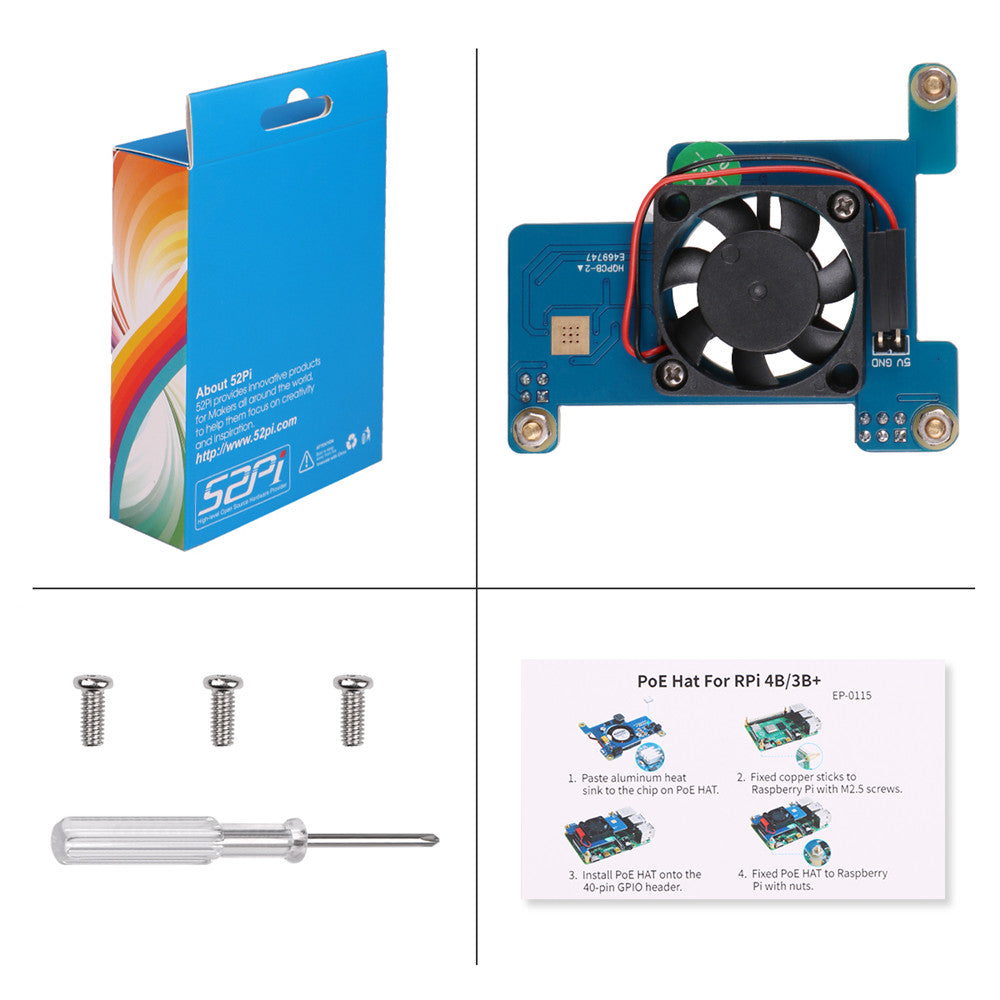

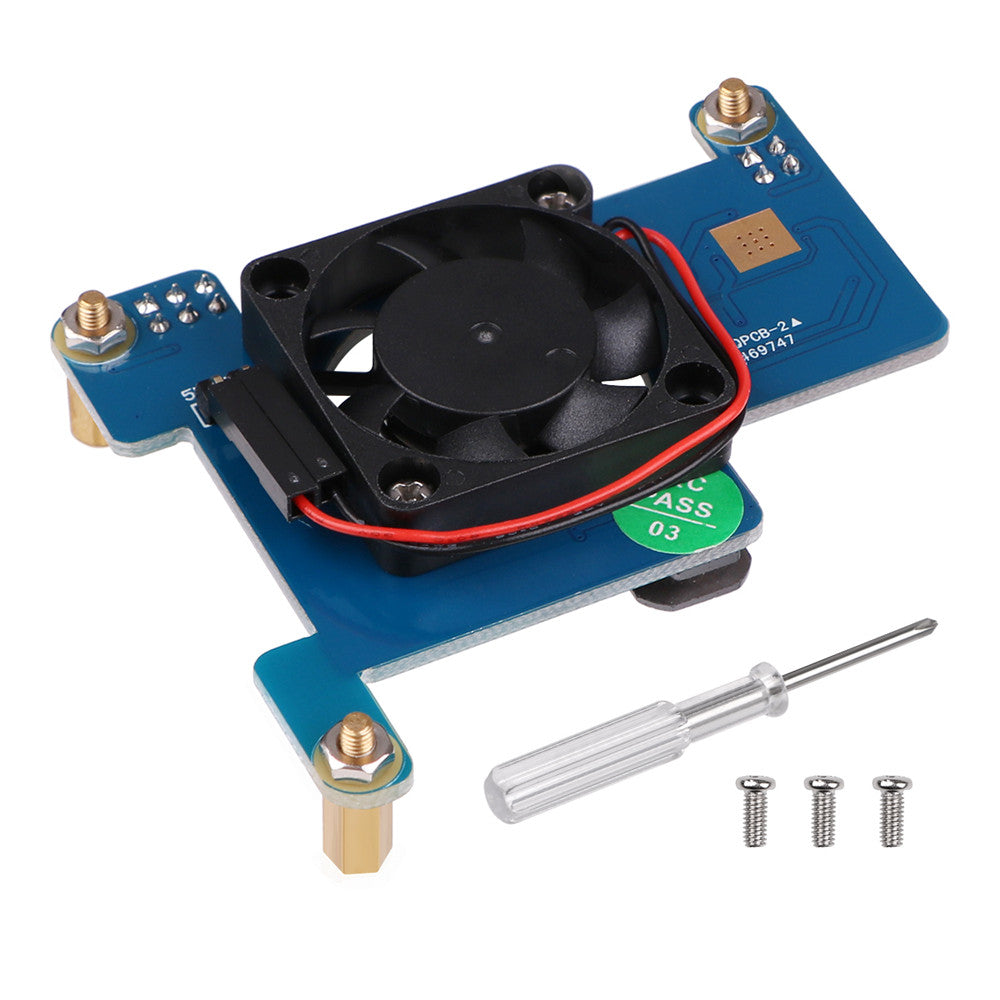

1 * Power-Over-Ethernet (PoE) Hat with 3007 Cooling Fan
3 * M2.5*9+6 Copper Stick
3 * M2.5 Screws
3 * M2.5 Nuts
1 * Aluminum Heat Sink
1 * Screw Driver
