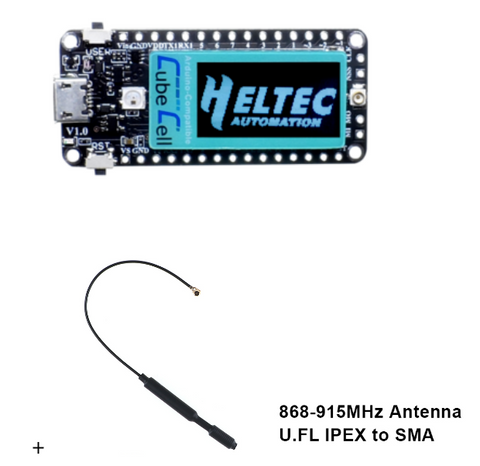

Lora Module SX1262 LoRaWAN 868 915 mHz IoT Development Board  for Arduino and Intelligent Scene

Lora Module SX1262 LoRaWAN 868 915 mHz IoT Development Board for Arduino and Intelligent Scene

Regular price $18.99 now $16.99 Unit price  per

Description
Lora Module SX1262 LoRaWAN 868 915 mHz IoT Development Board CP2102 ASR6502 MCU 128KB Flash Ultra Low Power Consumption Solar Energy Powered Design with Antenna for Arduino and Intelligent Scene

Featurues
1. Perfect compatible with arduino
2. CE and FCC certification;
3. Based on ASR6502), those chips are already integrated MCU and SX1262;
4. LoRaWAN 1.0.2 support
5. Ultra low power design, 3.5uA in deep sleep;
6. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
7. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
8. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
9. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
10. Good impendence matching and long communication distance.
11. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information;

Parameters:
MCU: ASR6502 (128KB FLASH, 16KB SRAM )
LoRa Chip: ASR6502 (Transceiver SX1262)
LoRa working band: 868-915 MHZ
LoRa maximum output power: 22 ± 1dB
Hardware resources: UART x 2; SPI x 2; I2C x 2; SWD x 1; ADCx 3; 12 – bits ADC; 8 – channel DMA engine; 14 x GPIO
FLASH: 128KB internal FLASH
Interface: Micro USB * 1; LoRa (IPEX) * 1
Size: 50.9 x 22.9 x 8 mm
USB-UART bridge: CP2102
Battery Type: 3.7V Lithium (SH1.25 x 2 socket)

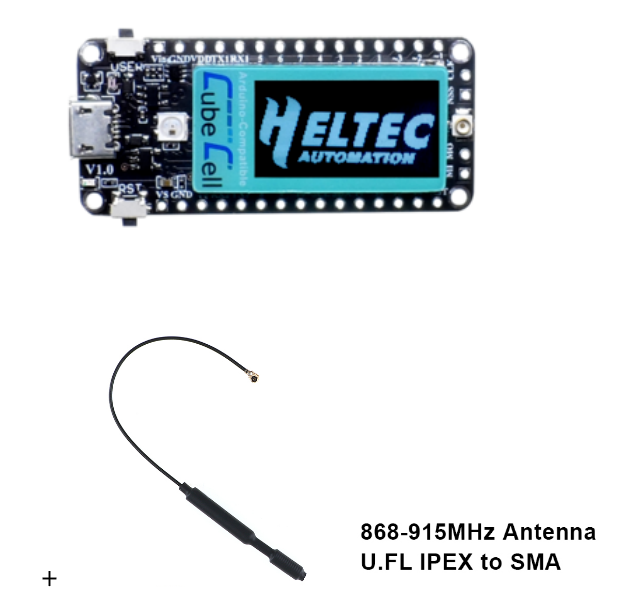

Package Including:
1 * LoRa LoRaWAN Development Board (868-915mHz)
1 * IPEX Antenna
