LoRa GPS Module LoRaWAN 868 915mHz Development Board Antenna for Arduino and Intelligent Scene
Description:
LoRa GPS Module LoRaWAN 868 915mHz Development Board LoRa Kit Ultra Low Power Design CP2102 SX1262 ASR6502 Chip with 0.96 inch OLED Display and Antenna for Arduino and Intelligent Scene

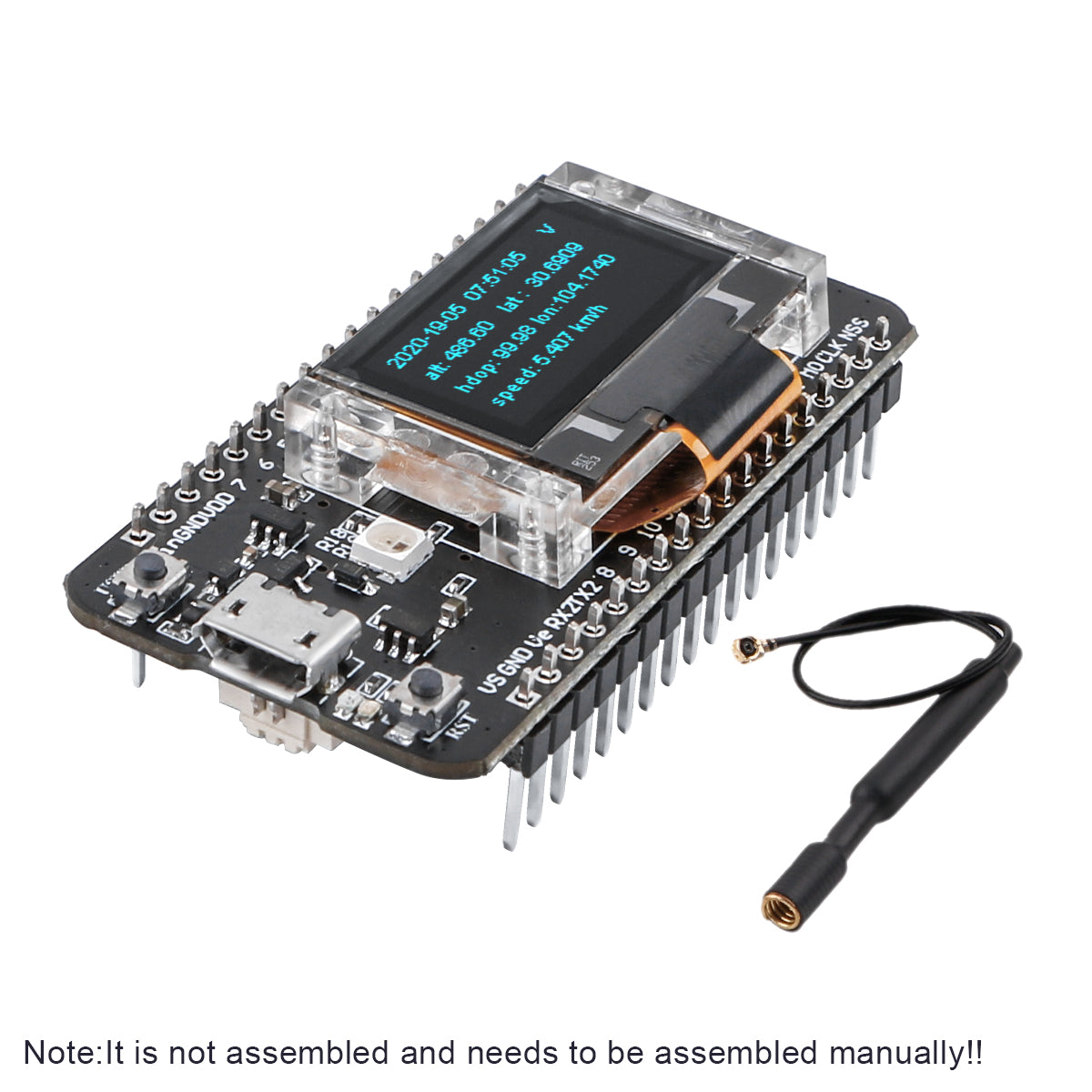

HTCC-AB02S is a Dev Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions.
Feature:
1. Compatible with Arduino
2. LoRaWAN 1.0.2 support;
3. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
4. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
5. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
7. Good impedance matching and long communication distance; Use Air530 GPS module, GPS / Beidou Dual-mode position system support;
8. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.
Parameter:
MCU: ASR6502 (128KB FLASH, 16KB SRAM )
LoRa Chip: ASR6502 (Transceiver SX1262)
LoRa working band: 868-915
LoRa maximum output power: 22 ± 1dB
Hardware resources: UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1; 12 – bits ADC; 8 – channel DMA engine; 14 x GPIO
FLASH: 128KB internal FLASH
Interface: Micro USB x 1; LoRa (IPEX) x 1
Size: 55.9 x 27.9 x 9.5 mm
USB-UART bridge: CP2102
Battery Type: 3.7V Lithium (SH1.25 x 2 socket)
Package Including

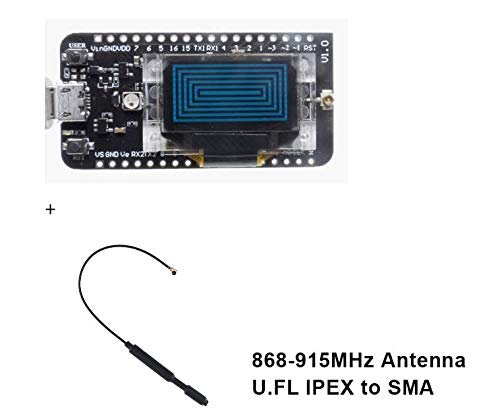

1 * LoRa GPS LoRaWAN Development Board (868-915mHz)
1 * IPEX Antenna
