LoRa GPS Module LoRaWAN 433 470mHz Development Board LoRa Kit for Arduino and Intelligent Scene
Description:
HTCC-AB02S is a Dev-Board. Already integrated AIR530 GPS module, friendly designed for developers, easy to verify communication solutions.
Feature:
1. Based on ASR6052, those chips are already integrated the MCU and SX1262;
2. LoRaWAN 1.0.2 support;
3. Ultra low power design, 50uA in deep sleep;
4. Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
5. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
6. Good impedance matching and long communication distance; Use Air530 GPS module, GPS / Beidou Dual-mode position system support;
7. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information.
Parameter:
MCU: ASR6502 (128KB FLASH, 16KB SRAM )
LoRa Chip: ASR6502 (Transceiver SX1262)
LoRa working band: 433-470
LoRa maximum output power: 22 ± 1dB
Hardware resources: UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1; 12 – bits ADC; 8 – channel DMA engine; 14 x GPIO
FLASH: 128KB internal FLASH
Interface: Micro USB x 1; LoRa (IPEX) x 1
Size: 55.9 x 27.9 x 9.5 mm
USB-UART bridge: CP2102
Battery Type: 3.7V Lithium (SH1.25 x 2 socket)

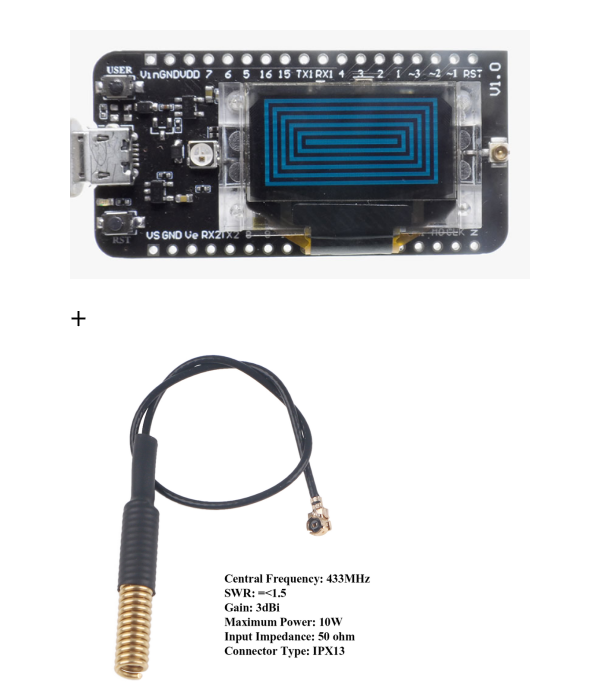

Package Including
1 * LoRa GPS LoRaWAN Development Board (433-470mHz)
1 * IPEX Antenna
