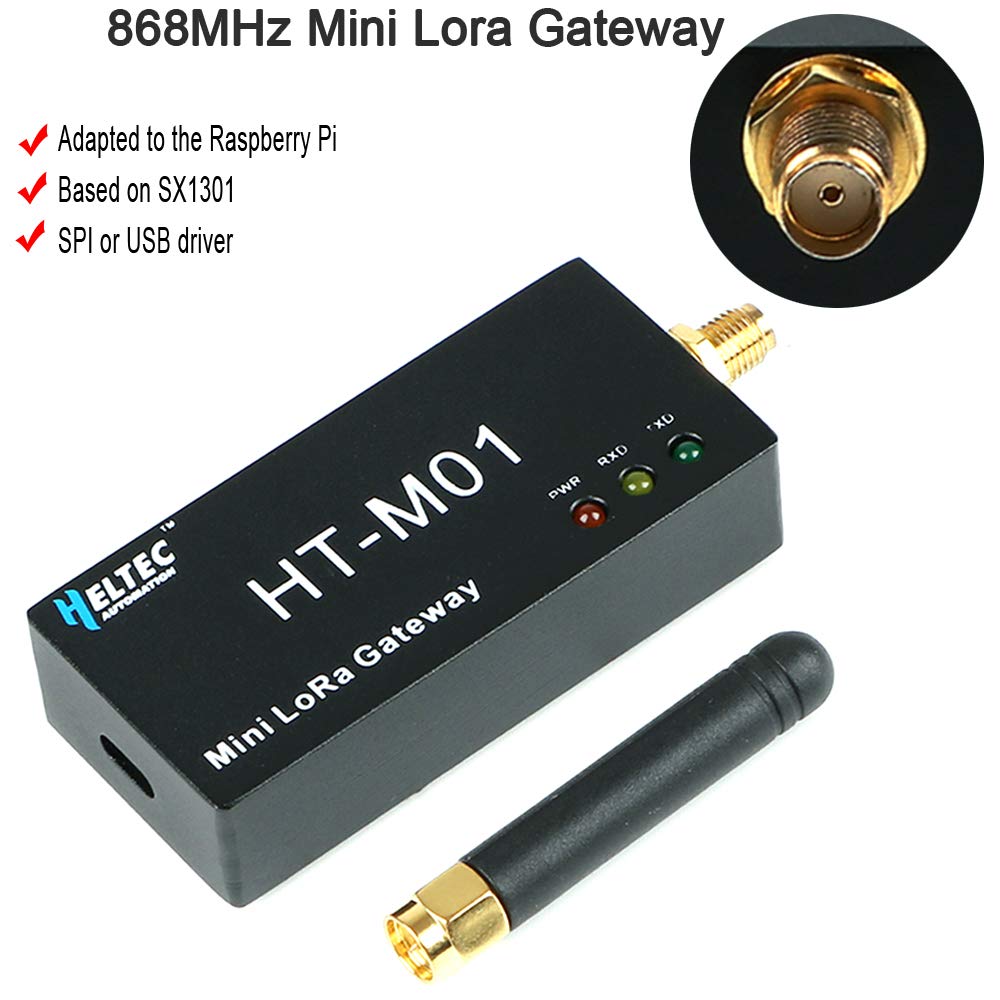

MakerFocus Lora Gateway LoraWan Measure Distance 17KM with 868MHz Antenna for Raspberry Pi


  • $125.99
    Unit price per
  • Save $14
Shipping calculated at checkout.

The core chip of the HT-M01 LoRa gateway is the SX1301 baseband chip.It's industrial-grade standard LoRa/LoRaWAN gateway module which with high performance and small size. This LoRa Gateway is mainly aimed at wireless sensor networks, Internet of things, embedded applications, it can help customers quickly complete the development of LoRaWAN networking working with our product.

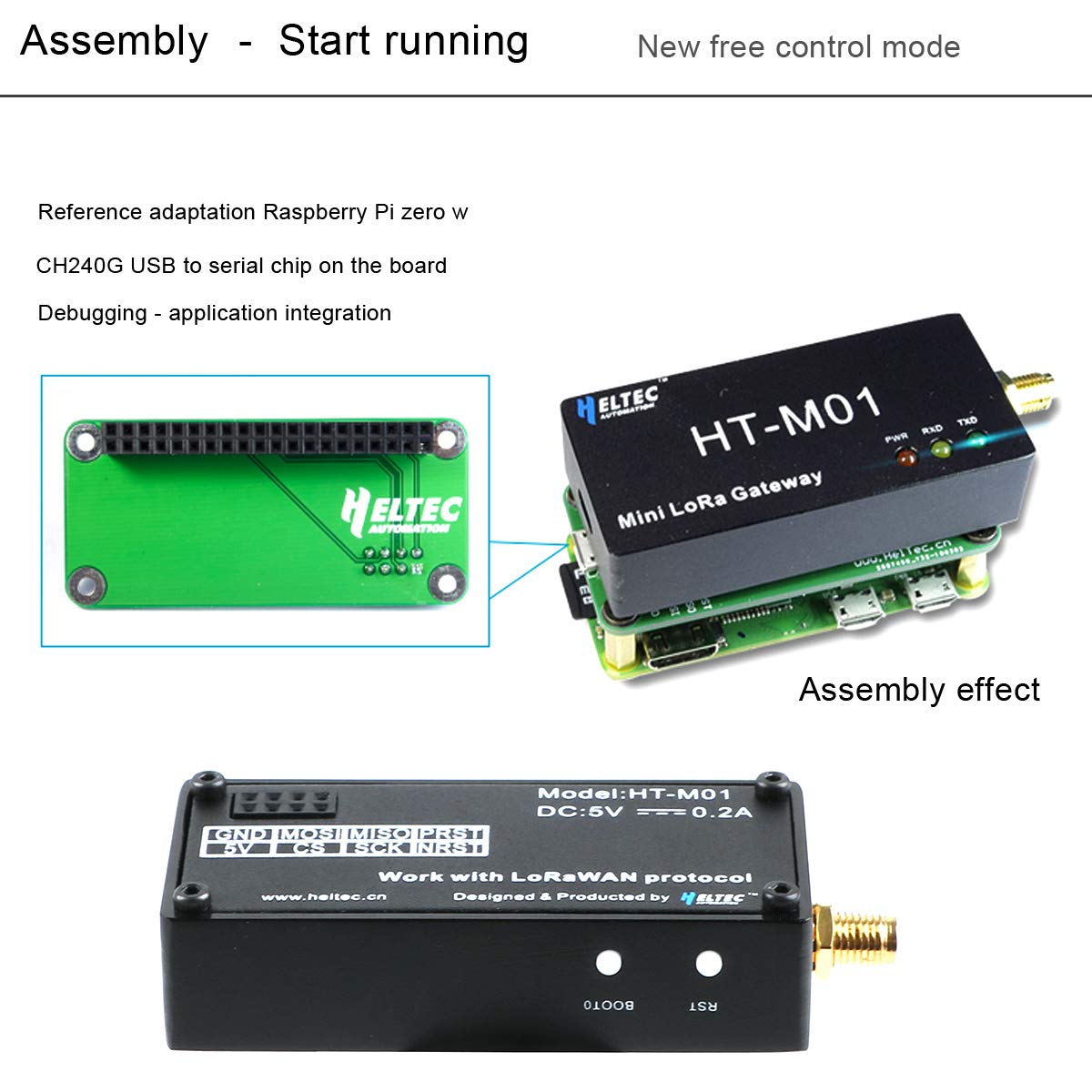

Ultra-small size & Pretty Design-The shell is made of aluminum alloy material CNC precision machining and it's surface treated with sandblasting oxidation,suit for raspberry pi zero;can be integrated for Raspberry Pi through dedicated adapter board;

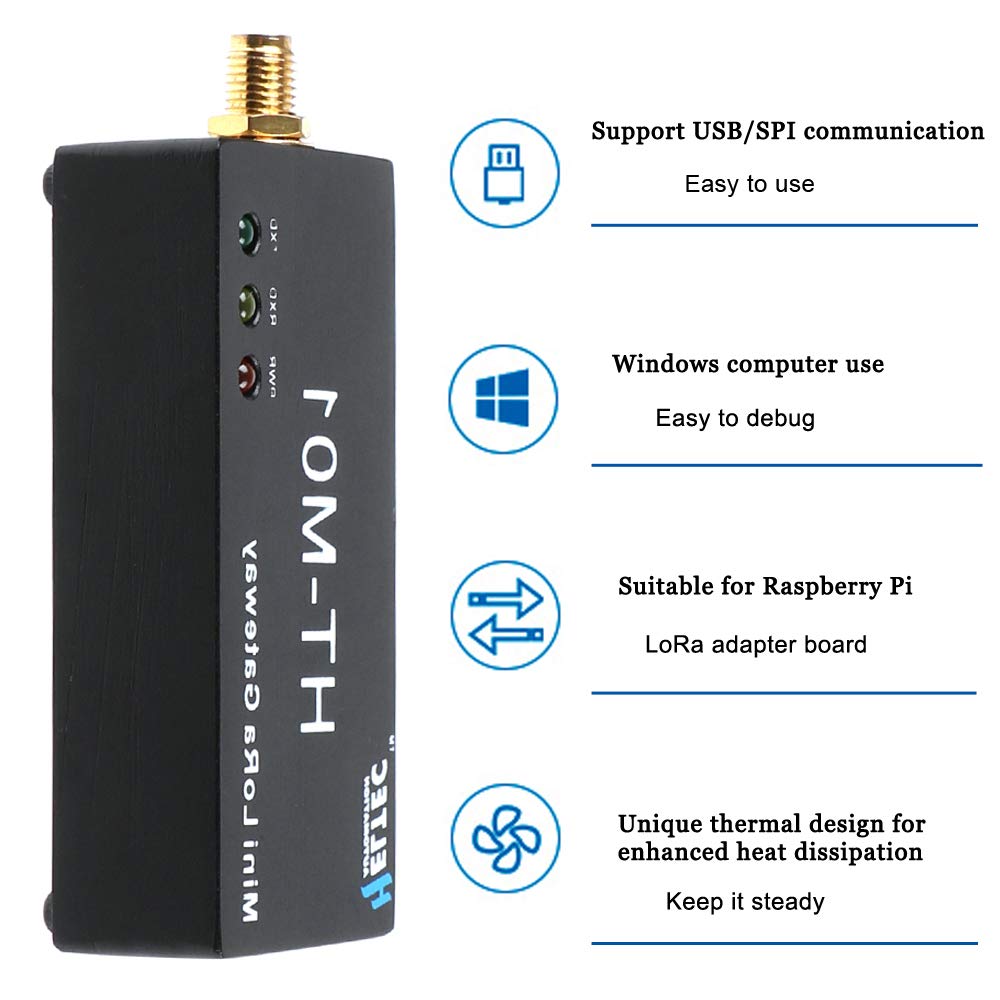

Various Adaptation- Support usb,SPI communication
Easy to Install-It can be used after installing
General scene-Easy to work in big scene

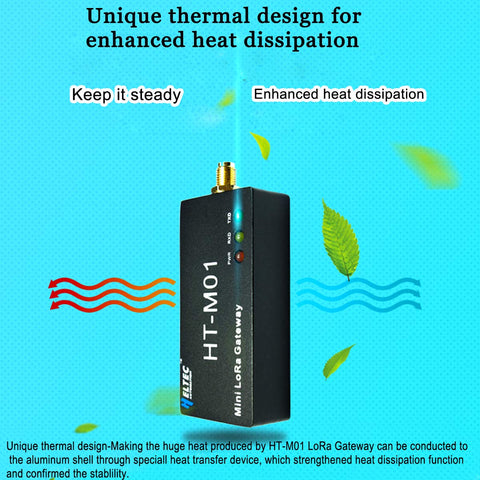

Unique thermal design-Making the huge heat produced by HT-M01 LoRa Gateway can be conducted to the aluminum shell through speciall heat transfer device, which strengthened heat dissipation function and confirmed the stablility.
Can connect to 1000+ lora node, the erection height is more than 60m and the effective transmission and reception distance of the measured open area data is 17km;
Support run on windows.

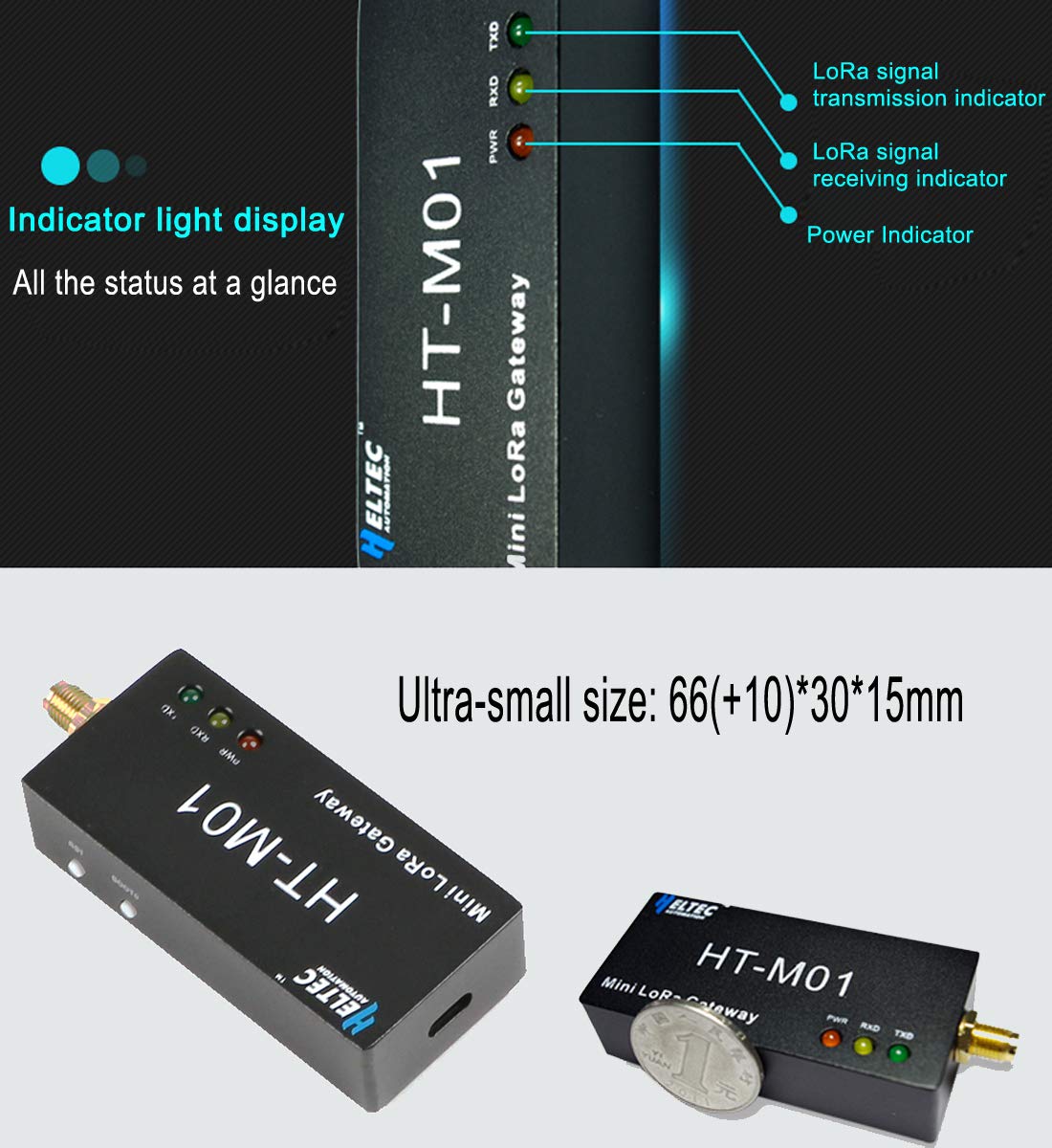

Size: 66 * 30 * 15 mm
Embedded 49 pcs LoRa demodulators;
10pcs programmable parallel demodulation paths;
Automatic adaptive spreading factor,optional for each channel SF7 to SF12;
Maximum output power: 25dBm
Receiver sensitivity: -142.5dBm@300bps
Communication Interface: SPI or USB
5V power supply;
Support LoRaWAN Class A, Class B, Class C protocol

Application Area:
Internet of Things
Meter reading concentrator
Industrial Control Concentrator
Security Alert System Gatewan
LPWAN base station

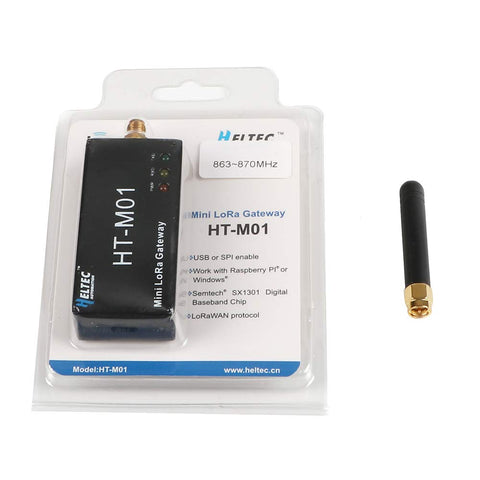

Packing List:

1 * 868MHz Mini Lora Gateway
1 * 868MHz Antenna(IPEX U.FL interface)
