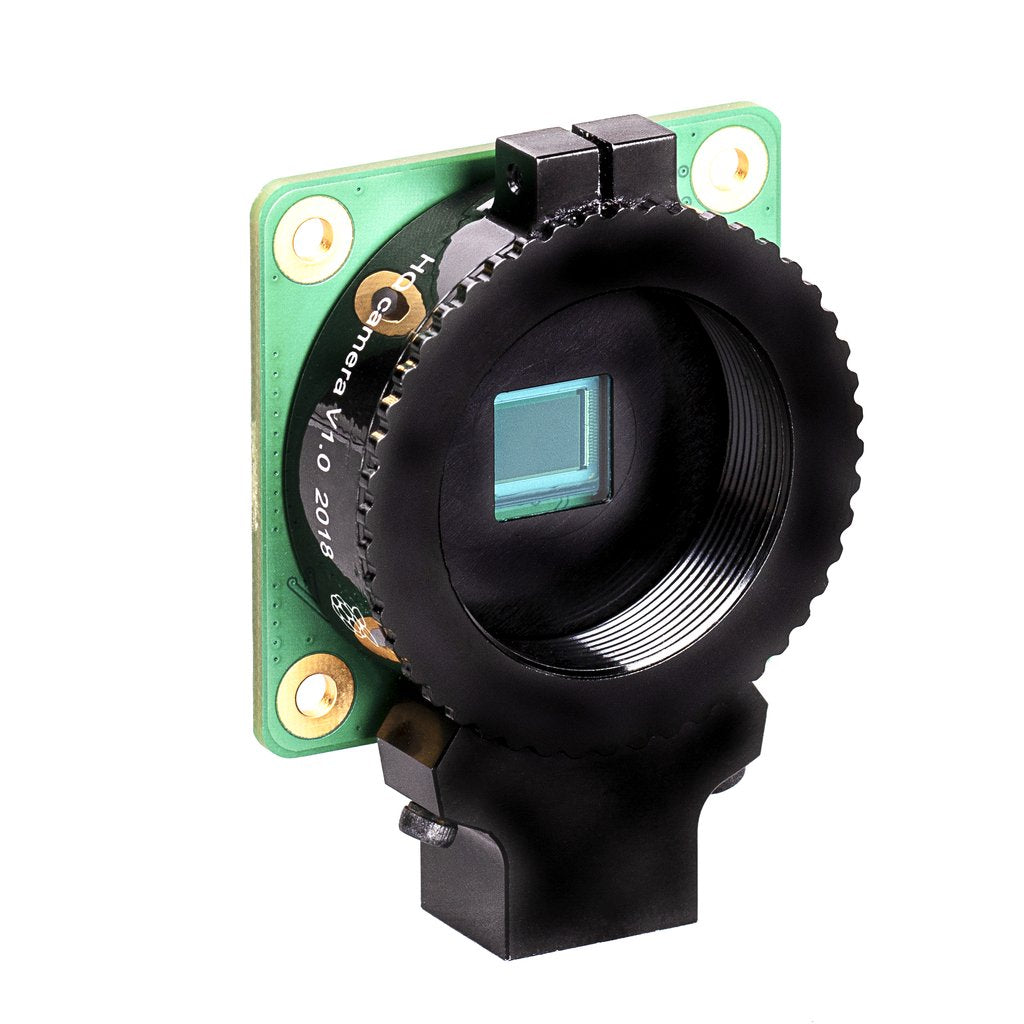

Raspberry Pi High Quality Camera Support for C - and CS-mount lenses Specifications
The Raspberry Pi High Quality Camera is an upgraded 12 megapixel, high sensitivity camera for Raspberry Pi with an adjustable focus aluminium lens mount.
Note: A C- or CS-mount lens is essential but not included!
It offers higher resolution (12 megapixels instead of 8 megapixels) and improved low-light performance (approximately 50% greater area per pixel) compared to the existing Camera Module v2. The milled aluminium adjustable focus lens mount is designed to work with a variety of C- and CS-mount lenses and also includes an integrated tripod mount.
The HQ camera is great for projects where you want to see all the details (such as security cameras), or for ones where you want to use specialist lenses (such as wildlife or sky photography!) It's compatible with all models of Raspberry Pi* running the latest version of Raspbian.
More Details
12 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus and support for C- and CS-mount lenses Specifications
Sony IMX477R stacked, back-illuminated sensor, 12 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
Ouput: RAW12/10/8, COMP8
Back focus: Adjustable (12.5 mm–22.4 mm)
Lens standards: C-mount, CS-mount (C-CS adapter included)
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
Note: A C- or CS-mount lens is essential but not included!
It offers higher resolution (12 megapixels instead of 8 megapixels) and improved low-light performance (approximately 50% greater area per pixel) compared to the existing Camera Module v2. The milled aluminium adjustable focus lens mount is designed to work with a variety of C- and CS-mount lenses and also includes an integrated tripod mount.
The HQ camera is great for projects where you want to see all the details (such as security cameras), or for ones where you want to use specialist lenses (such as wildlife or sky photography!) It's compatible with all models of Raspberry Pi* running the latest version of Raspbian.
More Details
12 megapixel Sony IMX477 sensor, 7.9mm diagonal image size, and back-illuminated sensor architecture, with adjustable back focus and support for C- and CS-mount lenses Specifications
Sony IMX477R stacked, back-illuminated sensor, 12 megapixels, 7.9 mm sensor diagonal, 1.55 μm × 1.55 μm pixel size
Ouput: RAW12/10/8, COMP8
Back focus: Adjustable (12.5 mm–22.4 mm)
Lens standards: C-mount, CS-mount (C-CS adapter included)
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
