Regular price $9.99 now $9.49 Unit price  per

Description:

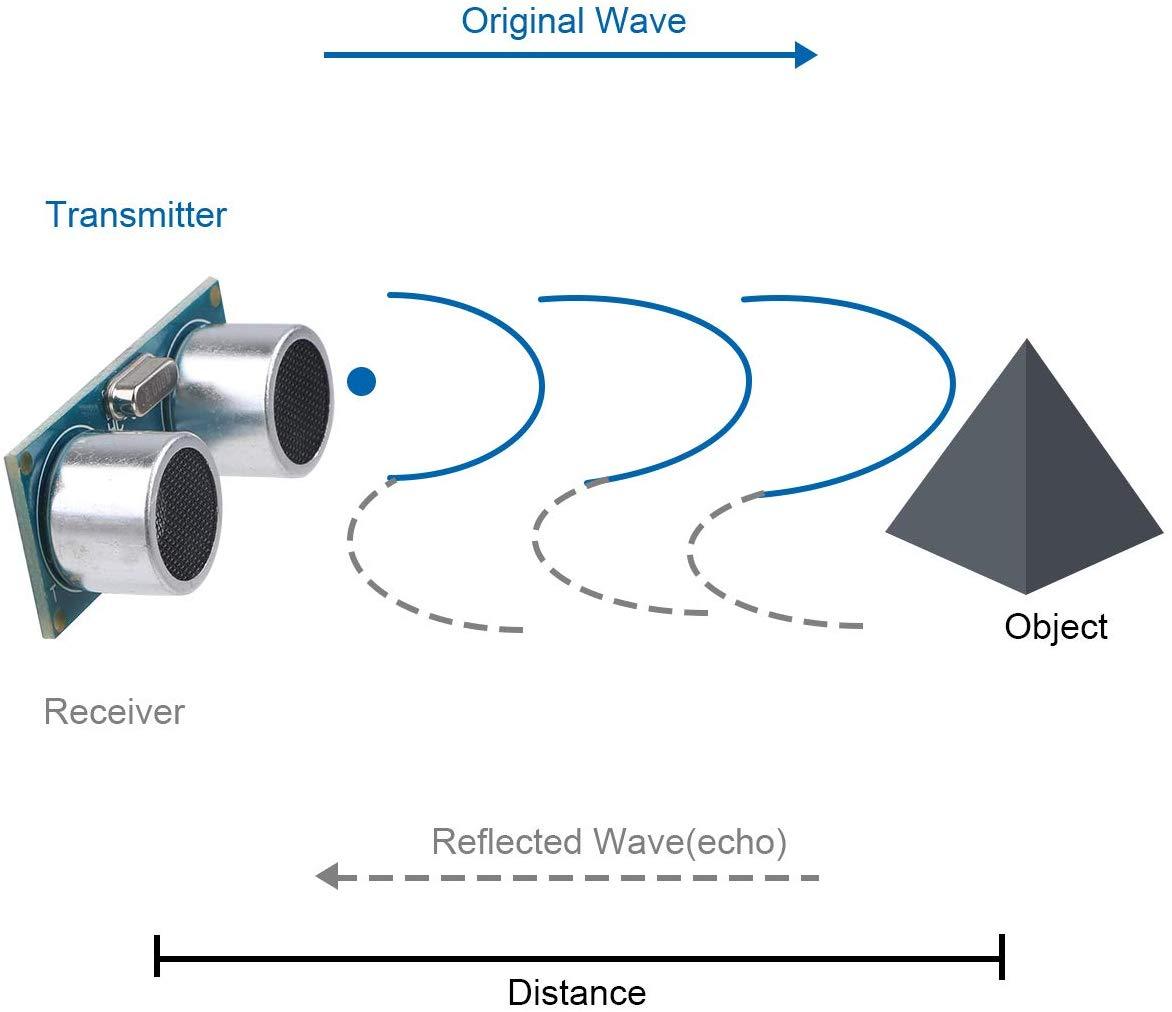

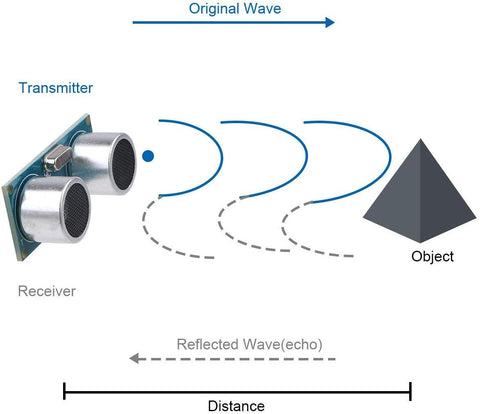

The HC-SR04 ultrasonic sensor is a device that uses acoustic waves to measure the distance of an object. It measures the distance by emitting a sound wave of a specific frequency and listening to the sound wave bounce. By recording the elapsed time between the generated sound waves and the bounced sound waves, we can calculate the distance between the sonar sensor and the object.

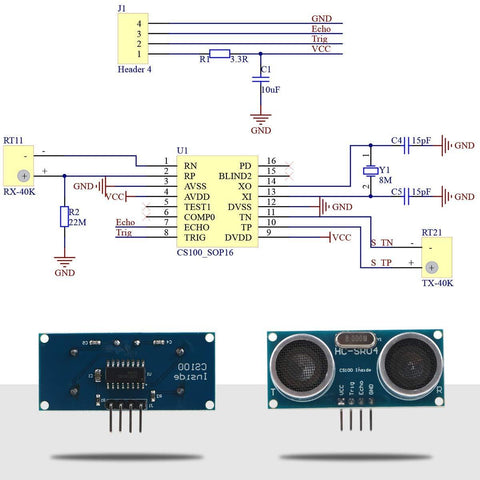

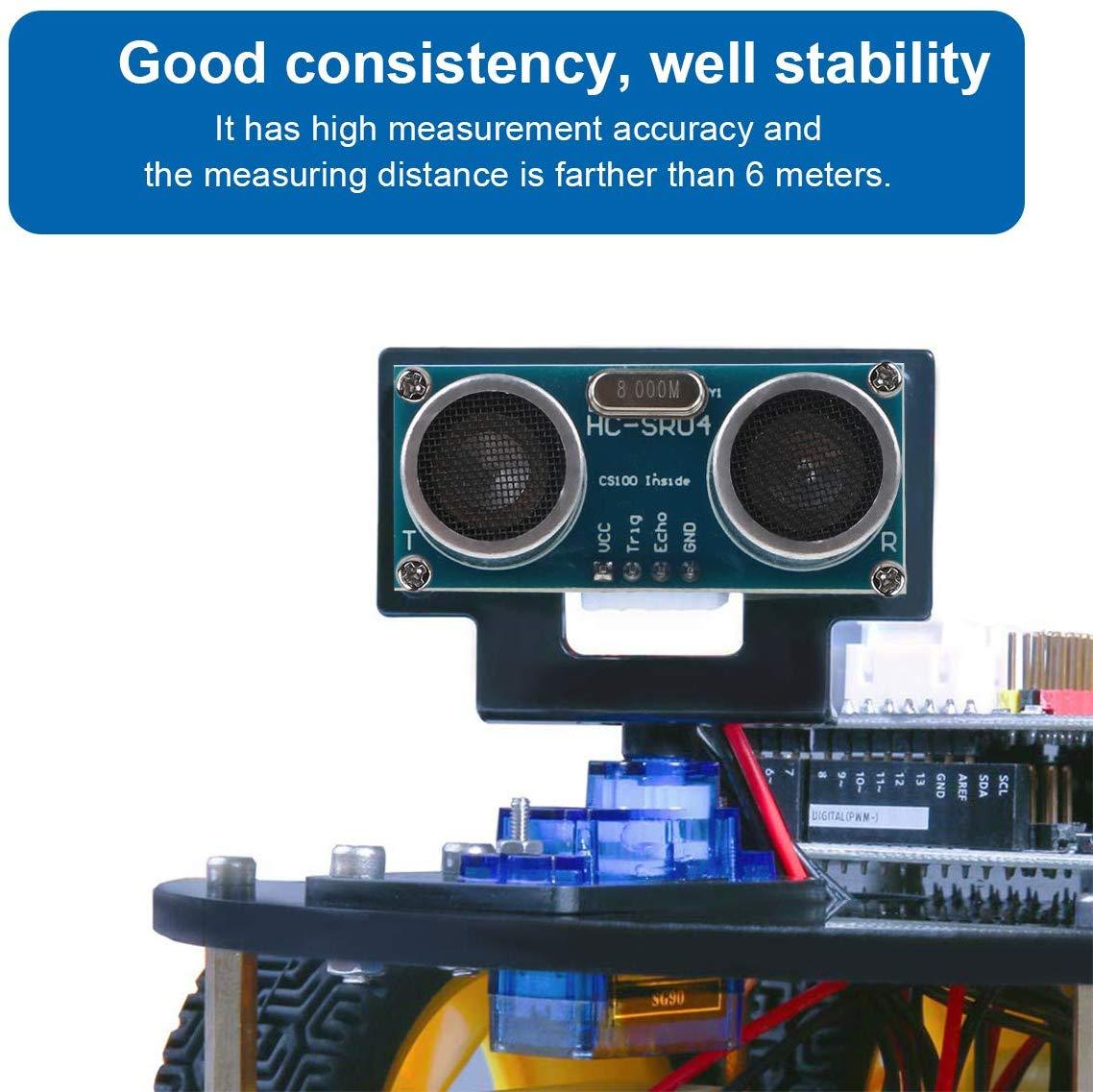

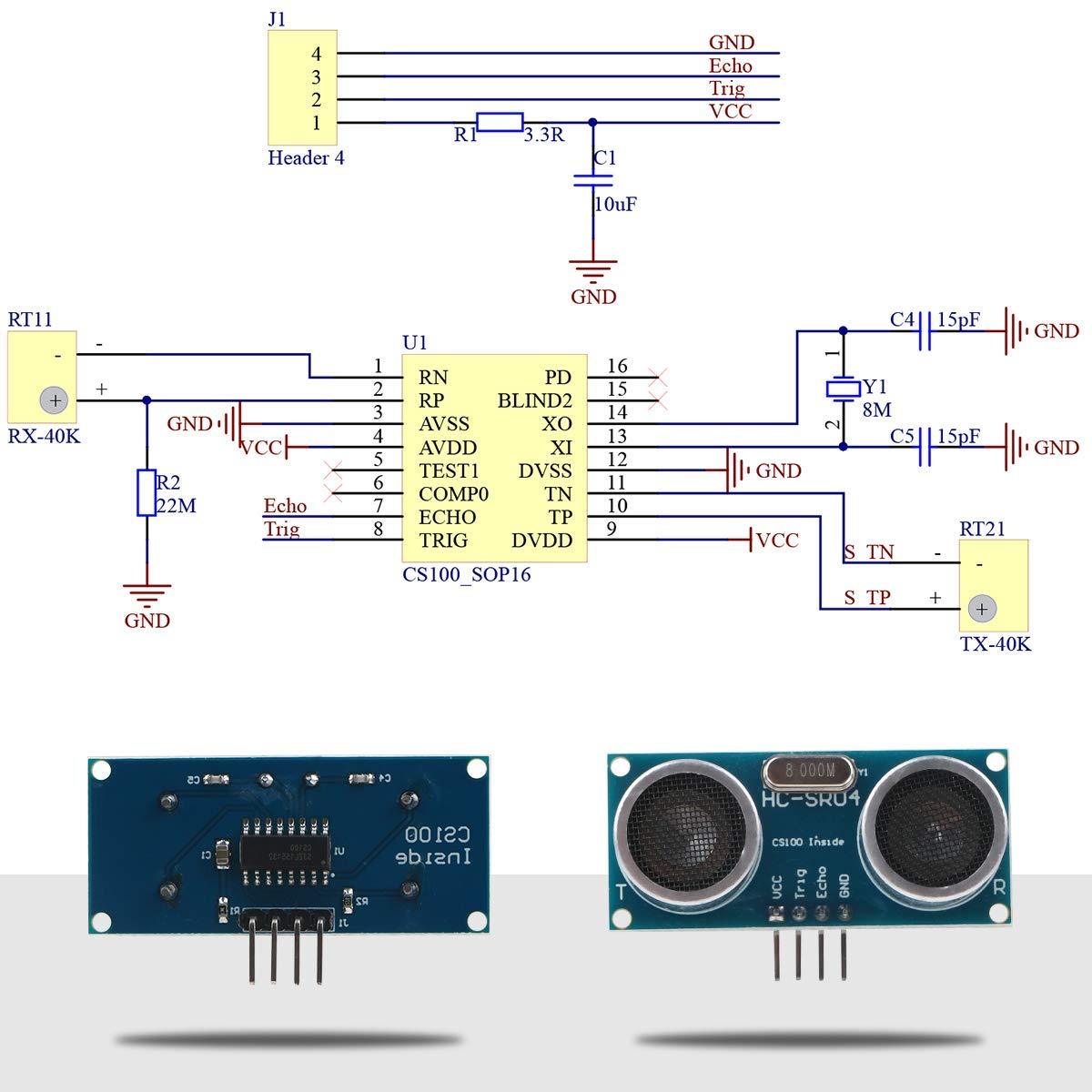

The HC-SR04 is ideal for measuring the distance of all category items, such as avoiding obstacles. The HC-SR04 provides 0.78-236 in / (2cm-600cm) non-contact measurement with a range accuracy of 0.19in. The module includes an ultrasonic transmitter, a receiver and a control circuit.

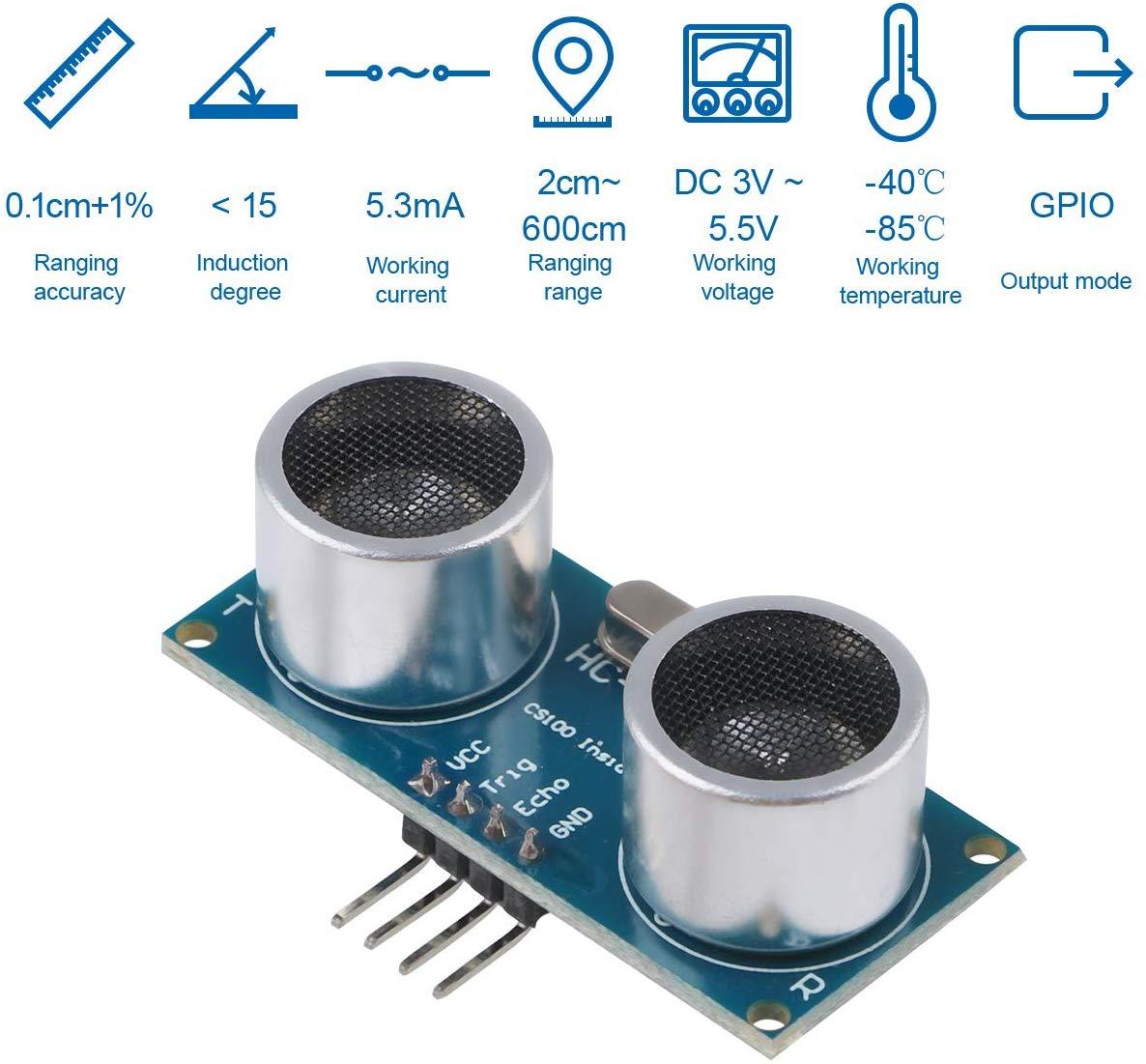

Specification:

Working voltage: DC 3V-5.5V

Working current: 5.3mA

Working temperature: -40°C -85°C

Output method: GPIO

Effective angle: <15°

Distance measurement: 0.79 " -236 " /2cm - 600cm

Detection accuracy: 0.04 "  +1%

Resolution: 0.3cm

Measuring angle: 30degrees

Trigger input pulse width: 10uS

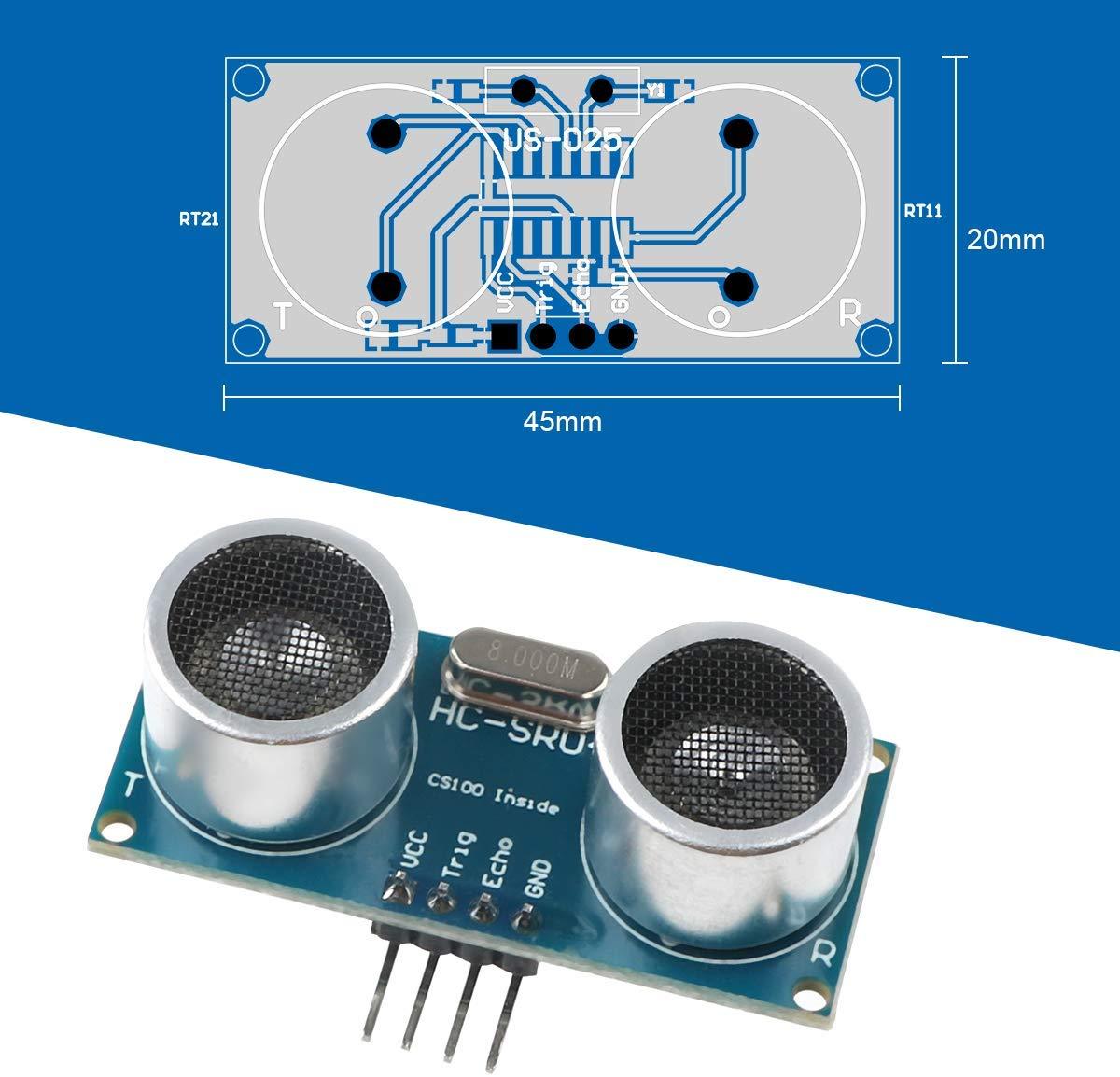

Dimensions: 1.56 " x0.79 "  x0.59 " pins

Trig: Trigger (INPUT)

Echo: echo (output)

GND: GND

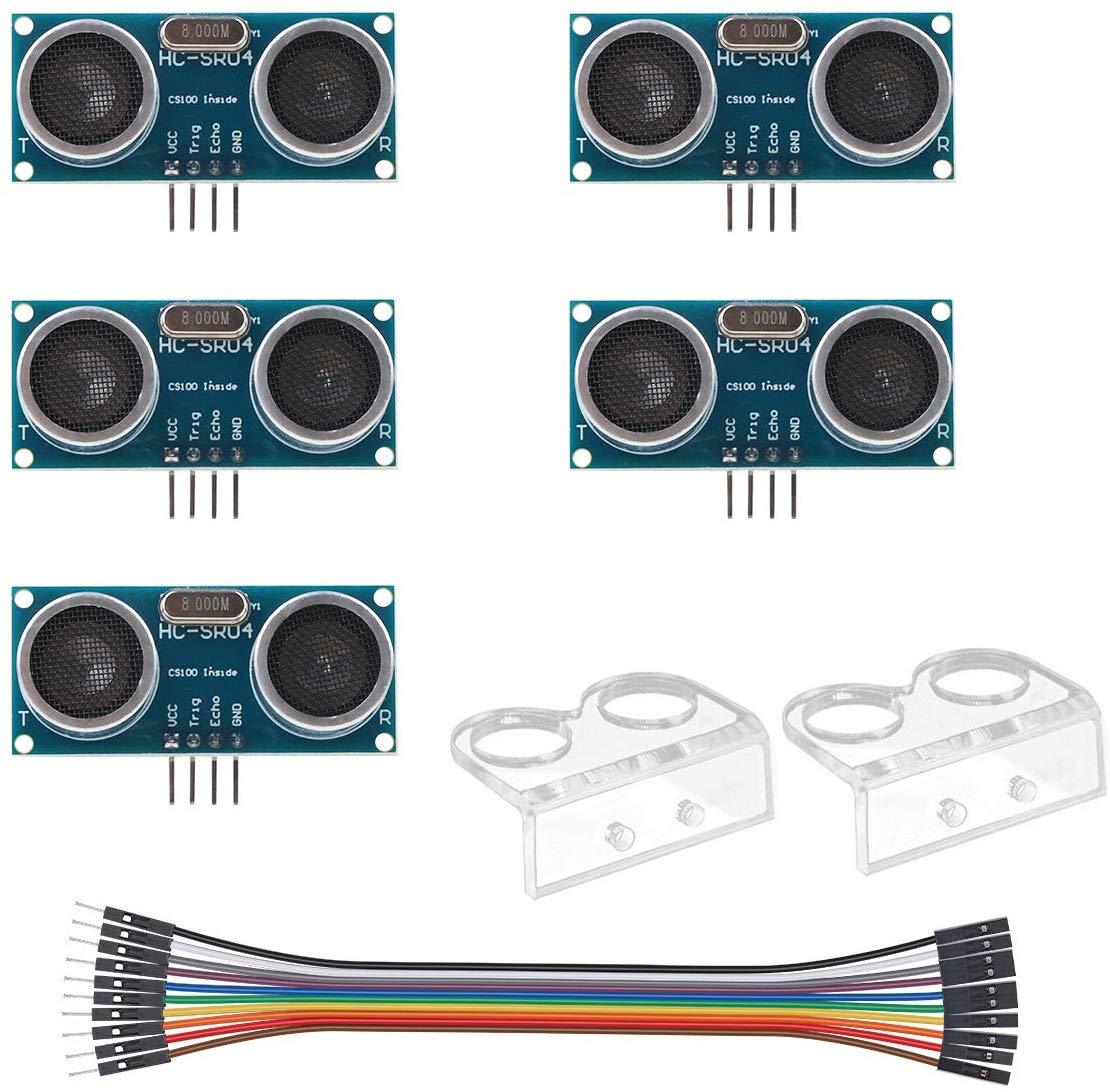

Packing List:

5 * HC-SR04 ultrasonic module
2 * Acrylic mounting bracket
10 * Male to female Du-Pont wire
