GPS Module GPS NEO-6M(Ar duino GPS, Drone Microcontroller GPS Receiver) Compatible with 51 Microcontroller STM32 Ar duino UNO R3 with IPEX Antenna High Sensitivity for Navigation Satellite Positioning

  • $18.99
    Unit price per
  • Save $6


Brand: MakerFocus

UPC: 673400175052

Product Advantages:
This GPS moduel has 4M FLASH, can store the configuration permanently. Small size, low power consumption and high ensitivity makes diy possible

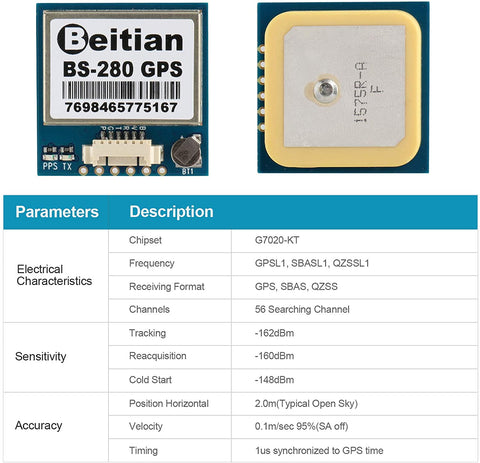

Electrical Characteristics:
Chipset: G7020-KT
Frequency: GPS L1, SBAS L1, QZSS L1
Receiving Format: GPS, SBAS, QZSS
Channels: 56 Searching Channel

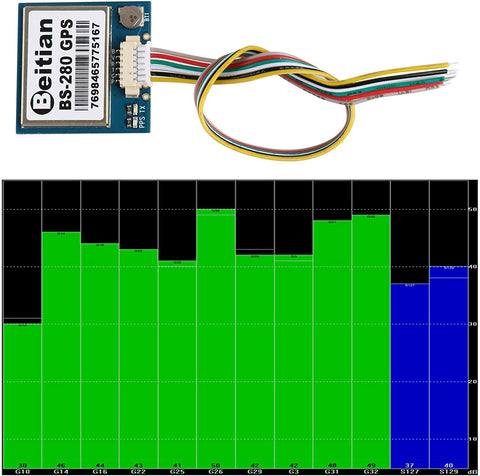

Sensitivity:
Tracking: -162dBm
Reacquisition: -160dBm
Cold Start: -148dBm

Accuracy:
Position Horizontal:2.0 m (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time

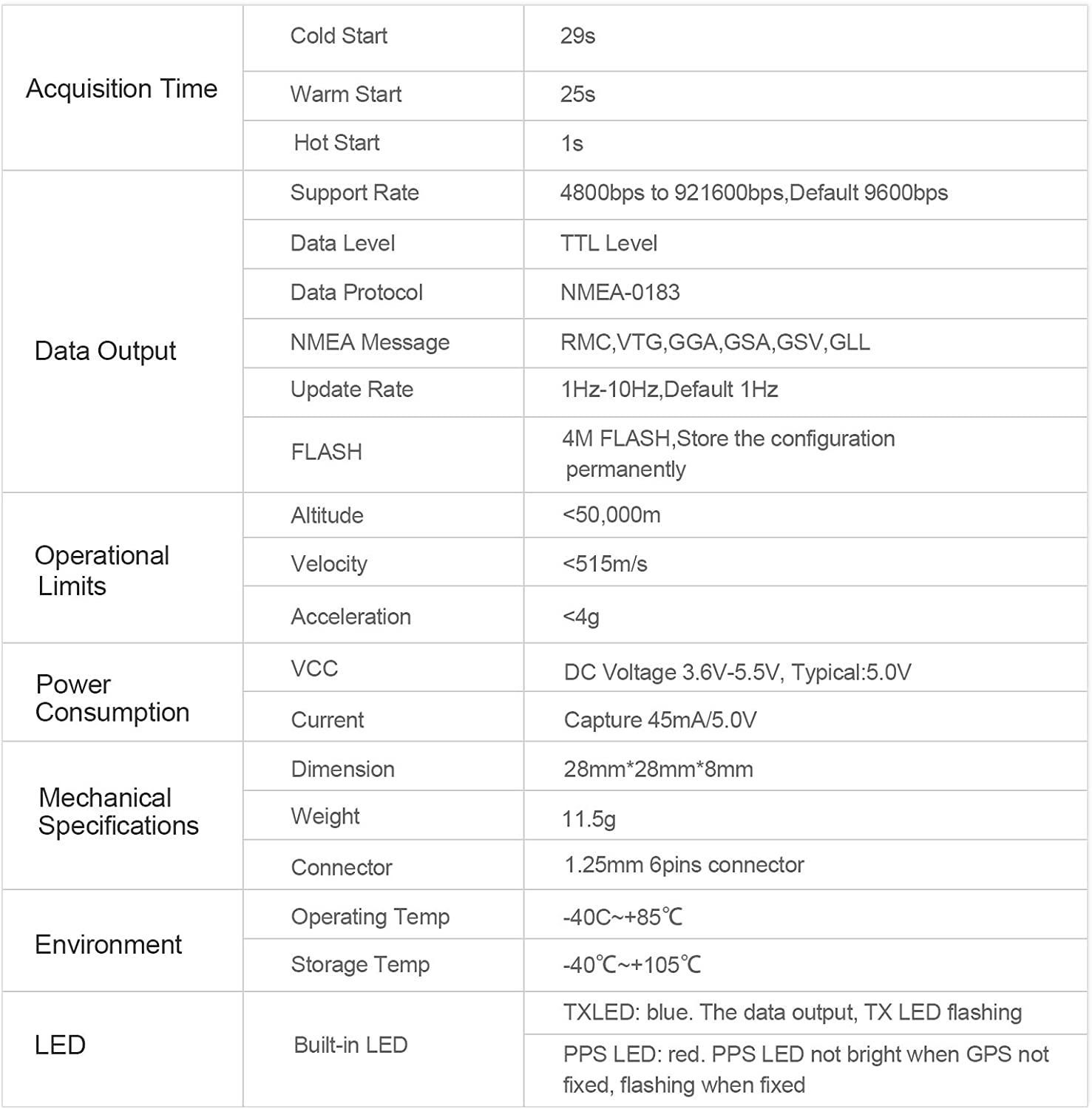

Acquisition Time:
Cold Start: 29s
Warm Start: 25s
Hot Start: 1s

Data Output:
Support Rate: 4800bps to 921600bps, Default 9600bps
Data Level: TTL Level
Data Protocol: NMEA-0183
NMEA Message: RMC, VTG, GGA, GSA, GSV, GLL
Update Rate:1Hz-10Hz, Default 1Hz
FLASH: 4M FLASH, Store the configuration permanently

Operational Limits:
Altitude: <50,000m
Velocity: <515m/s
Acceleration: <4g

Power Consumption:
VCC: DC Voltage 3.6V-5.5V, Typical: 5.0V
Current: Capture 45mA/5.0V

Built-in LED:
TX LED: blue. The data output, TX LED flashing
PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed

Specifications:

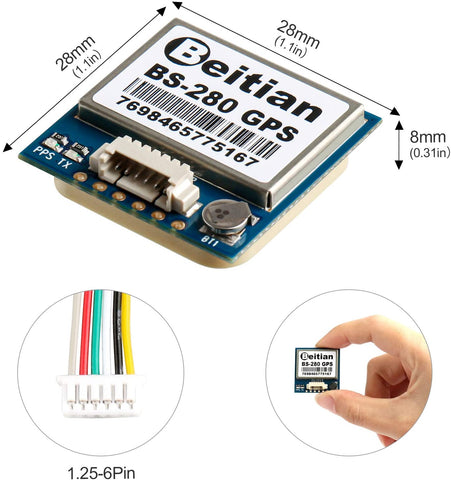

Dimension: 28mm*28mm*8mm

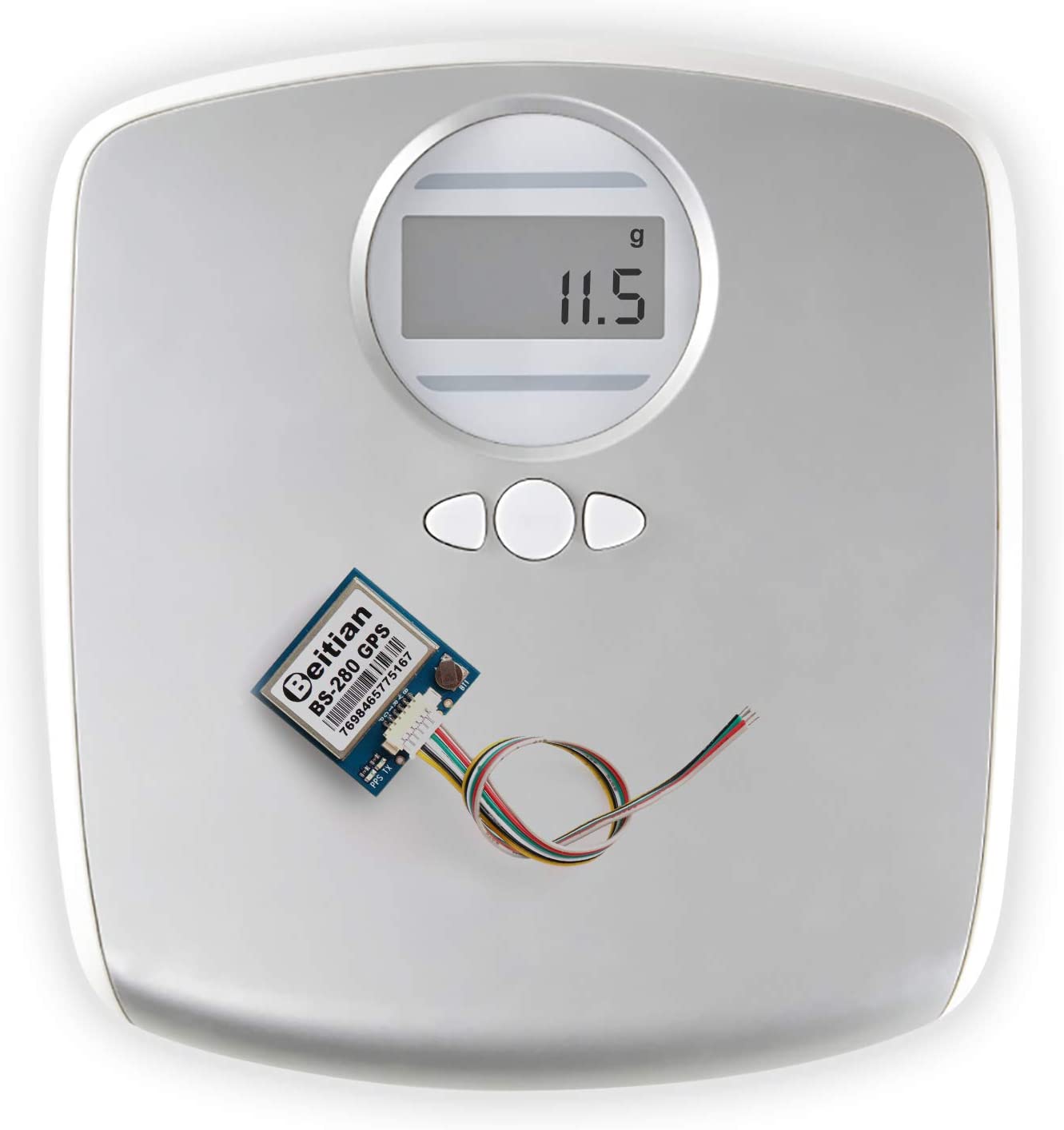

Weight: 11.5g \

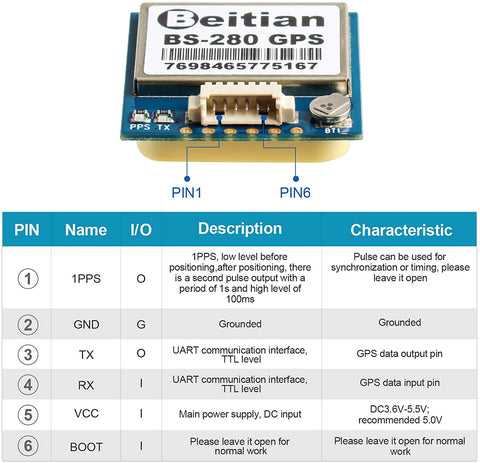

Connector:1.25mm 6pins connector

Environment:
Operating Temp: -40 °C ~ +85°C
Storage Temp: -40°C ~ +105°C

Application areas:
Vehicle-mounted
Handheld devices such as PDAs
Vehicle monitoring
Mobile phones, camcorders and other mobile positioning systems
Sharing bike
Sharing mobile power.

Package Including

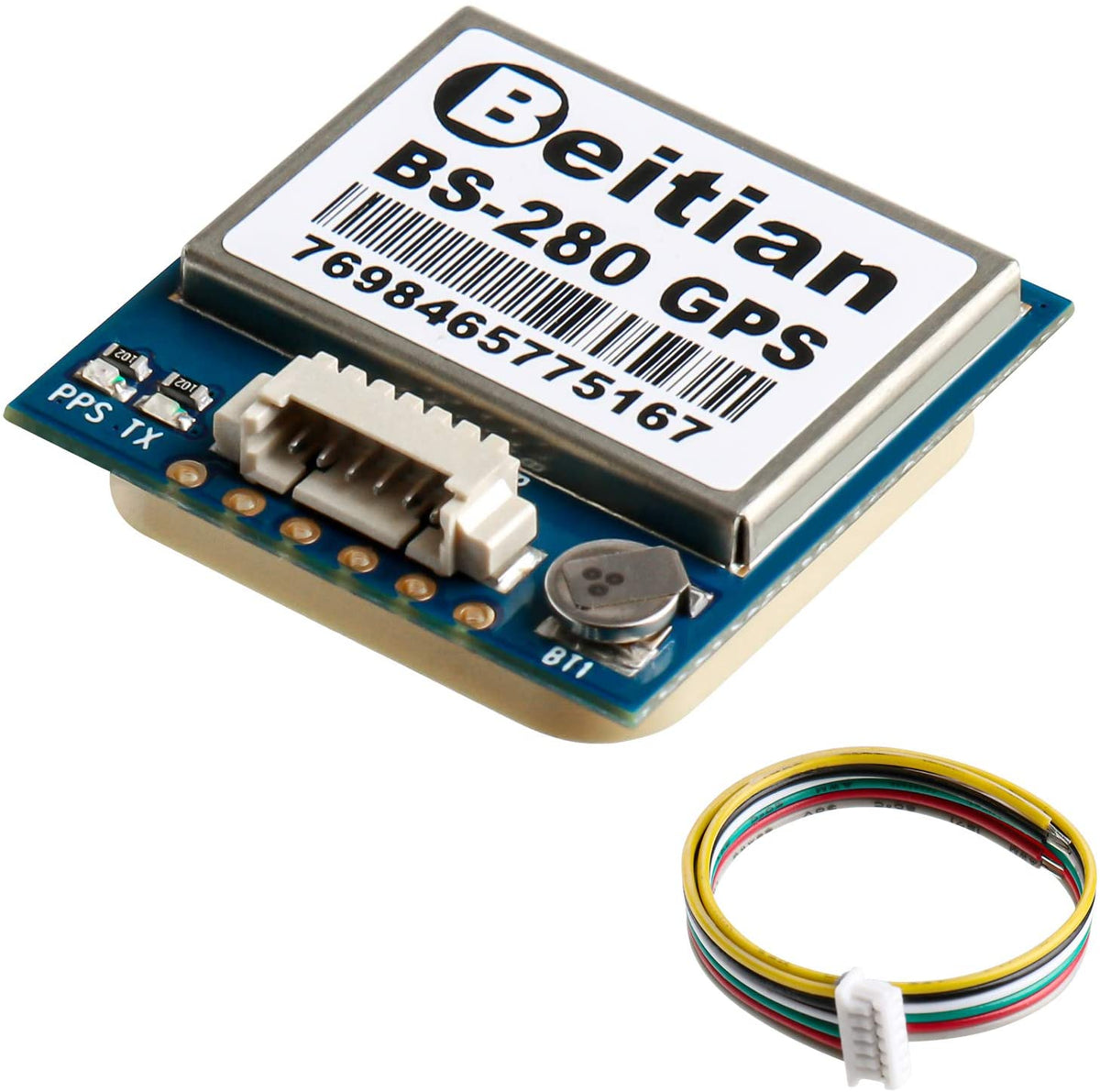

1 * GPS Module with Built-in Antenna
