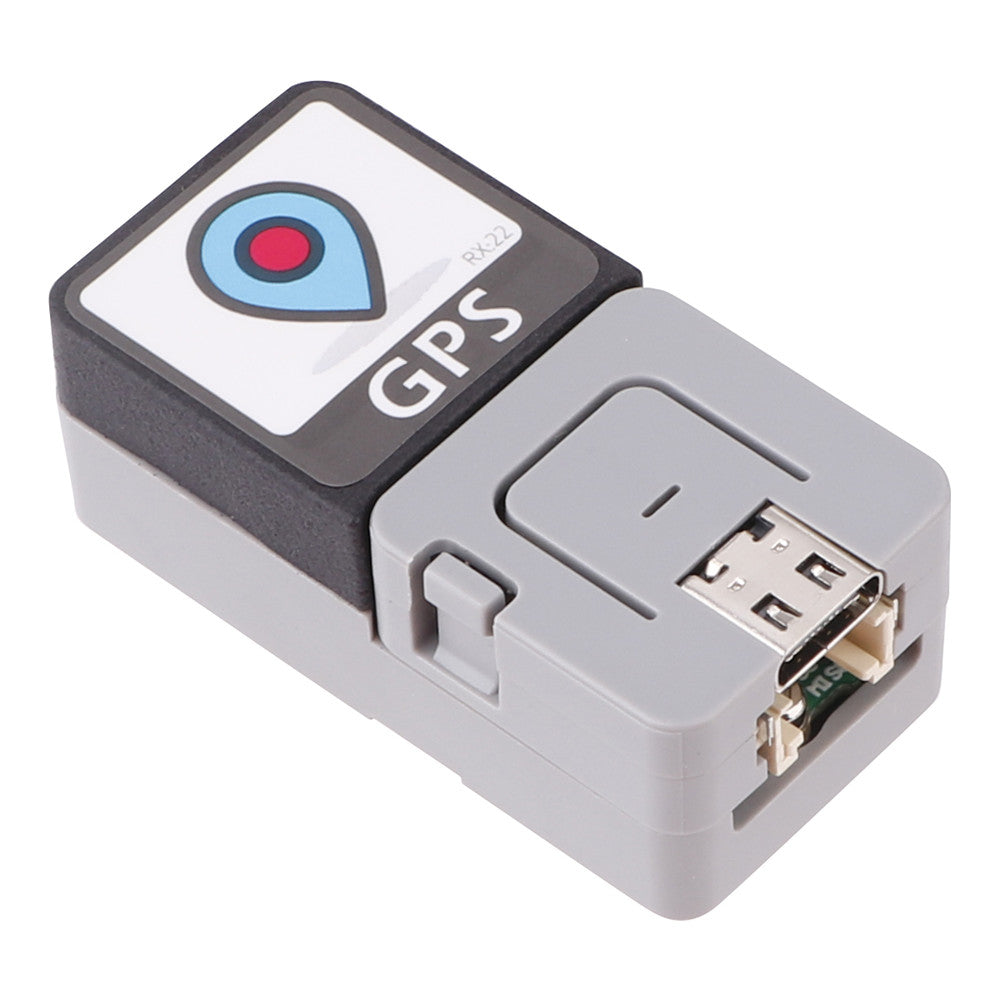

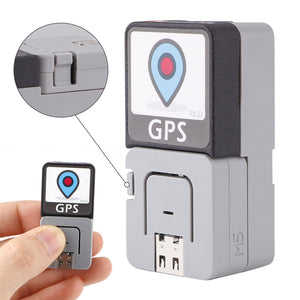

GPS Kit GPS Tracker Navigation Module M5Stack ATOM for Vehicle Ship Track Record and File Reading

  • $31.98
    Unit price per
  • Save $4


GPS Kit GPS Tracker Navigation Module M5Stack ATOM Lower Power High Signal Acquisition Sensitivity 72 Search Channels Built in Self-elastic TF Card Slot for Vehicle Ship Track Record and File Reading

[ User Manual ] - ATOM GPS is a GPS positioning module which is part of the M5atomic series. Before using it, pls downloard EasyLoader: https://drive.google.com/file/d/1u1P4ejlYCOye-NRxh0SRvD2k_YQdS8ck/view?usp=sharing. Video: https://drive.google.com/file/d/1Z_WUykK4240u3kmZOjhqiqVJyZhj8i4s/view?usp=sharing.
[ Lower Power & Strong Compatibility ] - ATOM GPS has built-in flash and a coin cell battery, which can save the users configuration. It also adopts NMEA-0183 protocol output, supports GPS, GLONASS, Galileo, BDS, SBAS and QZSS satellite systems.
[ High Signal Acquisition Sensitivity ] - It can sensitively and accurately capture signals, which is very convenient in daily life.
[ Built in Self-elastic TF (MicroSD) Card Slot ] - It is possible to read and write GPS and other file data, so you could export GPS data in a specific format to view the motion tracking in the map software, or read and write files as a common card reader.
[ Wide Range of Applications ] - The ATOM GPS has 72 search channels, an adjustable refresh rate, and can be widely used in vehicle monitoring such as bus stop reporting, vehicle navigation, ship navigation, track tracking and other applications.

Product description
Description:
ATOM GPS is a GPS positioning module which is part of the M5 atomic series. The navigation chip is m8030-kt, which has built-in flash and a coin cell battery, which can save the users configuration. It adopts NMEA-0183 protocol output, supports GPS, GLONASS, Galileo, BDS, SBAS and QZSS satellite systems, has 72 search channels, an adjustable refresh rate, and can be widely used in vehicle monitoring such as bus stop reporting, vehicle navigation, ship navigation, track tracking and other applications. In addition, a self elastic TF(MicroSD) card slot is built in.

Features:

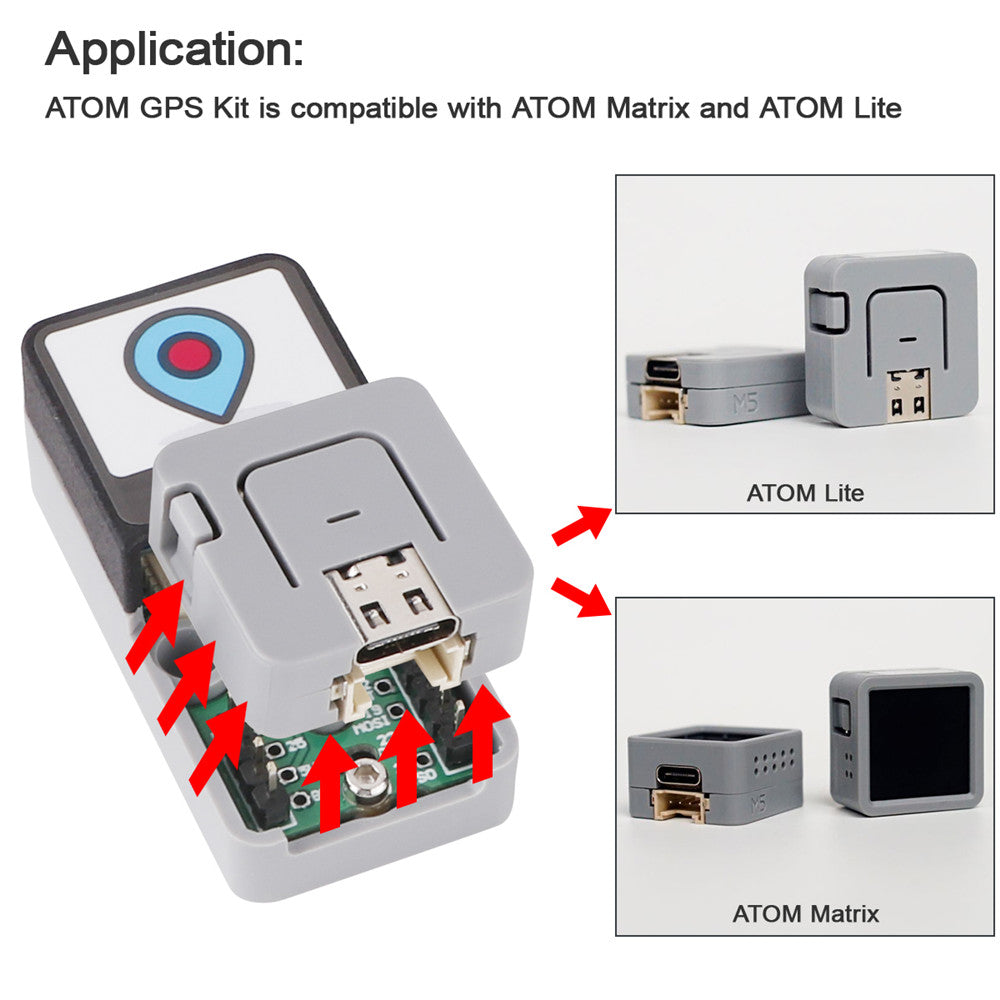

Compatible with Atom Matri /Atom Lite
High signal acquisition sensitivity
Support single system positioning of BDS / GPS / GLONASS / Galileo / SBAS / QZSS multiple satellite navigation systems
Built in self-elastic TF (micro SD) card slot - It is possible to read and write GPS and other file data, for example, you could export GPS data in a specific format to view the motion tracking in the map software, or read and write files as a common card reader.
Low power

UART Parameter setting:
Baud rate(default: 9600bps)
Start bit(1 bit)
Stop bit(1 bit)
Check bit(None)

Applications:
Vehicle and ship positioning and navigation
Track record
File reading and writing

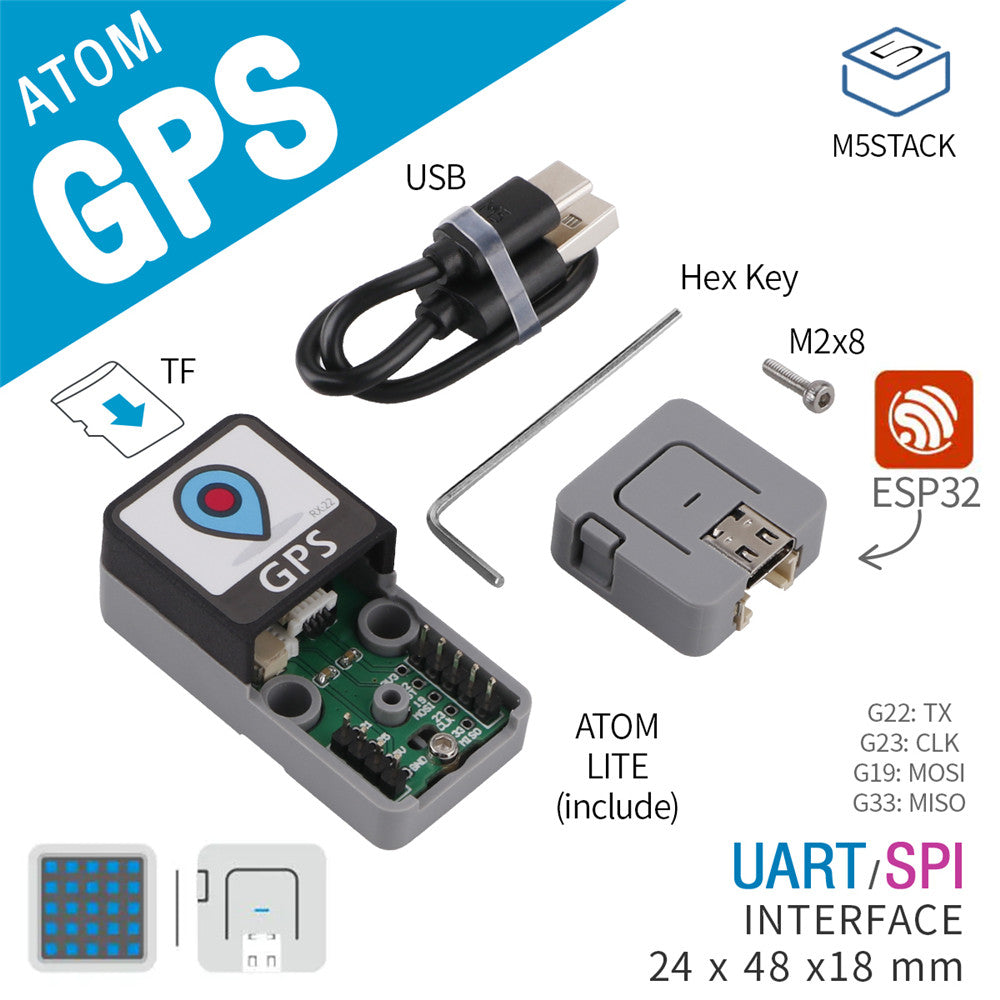

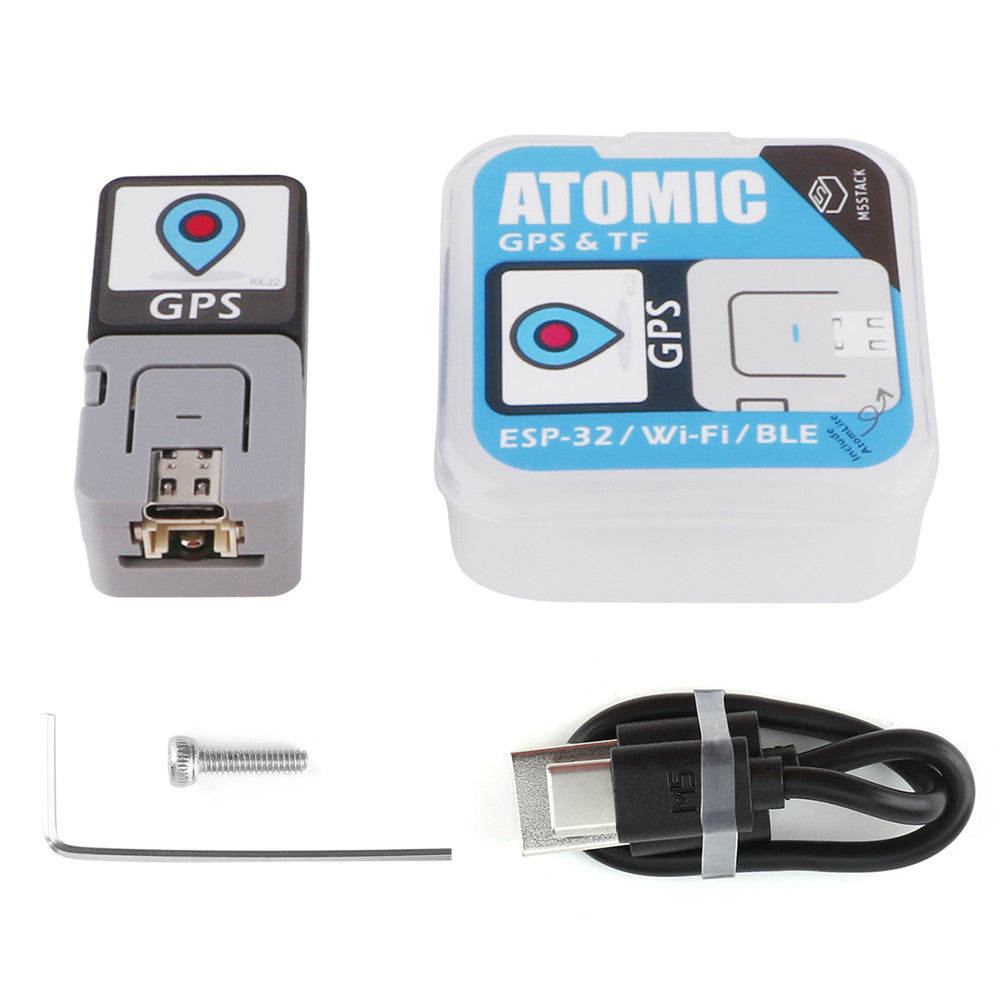

Package Including:
1 * M5Stack ATOM GPS Kit
1 * ATOM Lite
1 * Hex Key
1 * M2*3mm He*agon self-tapping screw
1 * M2*8mm He*agon socket cup head machine screw
1 * TYPE-C Cable
