ESP32 Development Kit M5Stack Atom Matrix PICO USB Type-C 4 MByte Flash with IMU Sensor
- $18.99
$22.99- $18.99
- Unit price
- per
Subtotal:
$18.99
Couldn't load pickup availability
Description
xESP32 Development Kit M5Stack Atom Matrix ESP32 PICO Development Kit USB Type-C 4 MByte Flash with IMU Sensor for Arduino UIFLOW and MicroPython
Note: The brightness of the RGB LED is limited to 20, so please do not set it to a too high brightness value to avoid damage to the LED and acrylic screen!!!

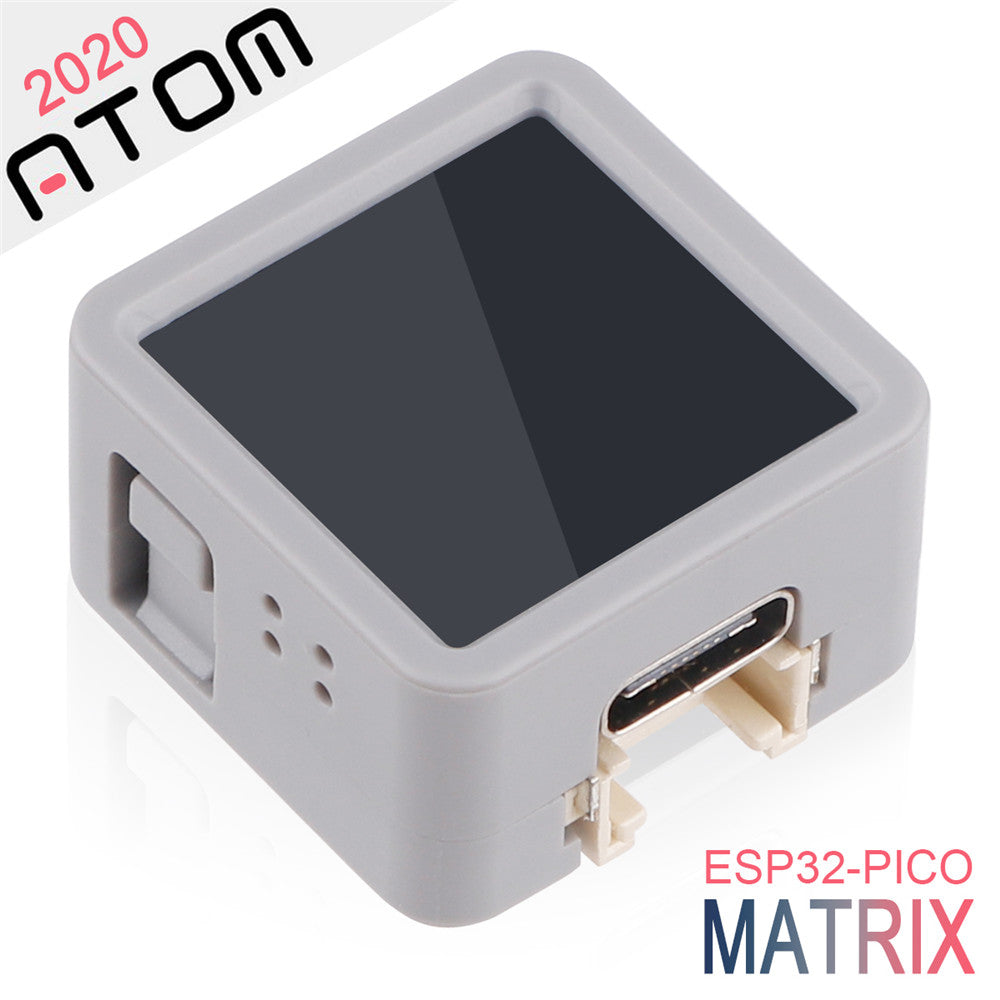

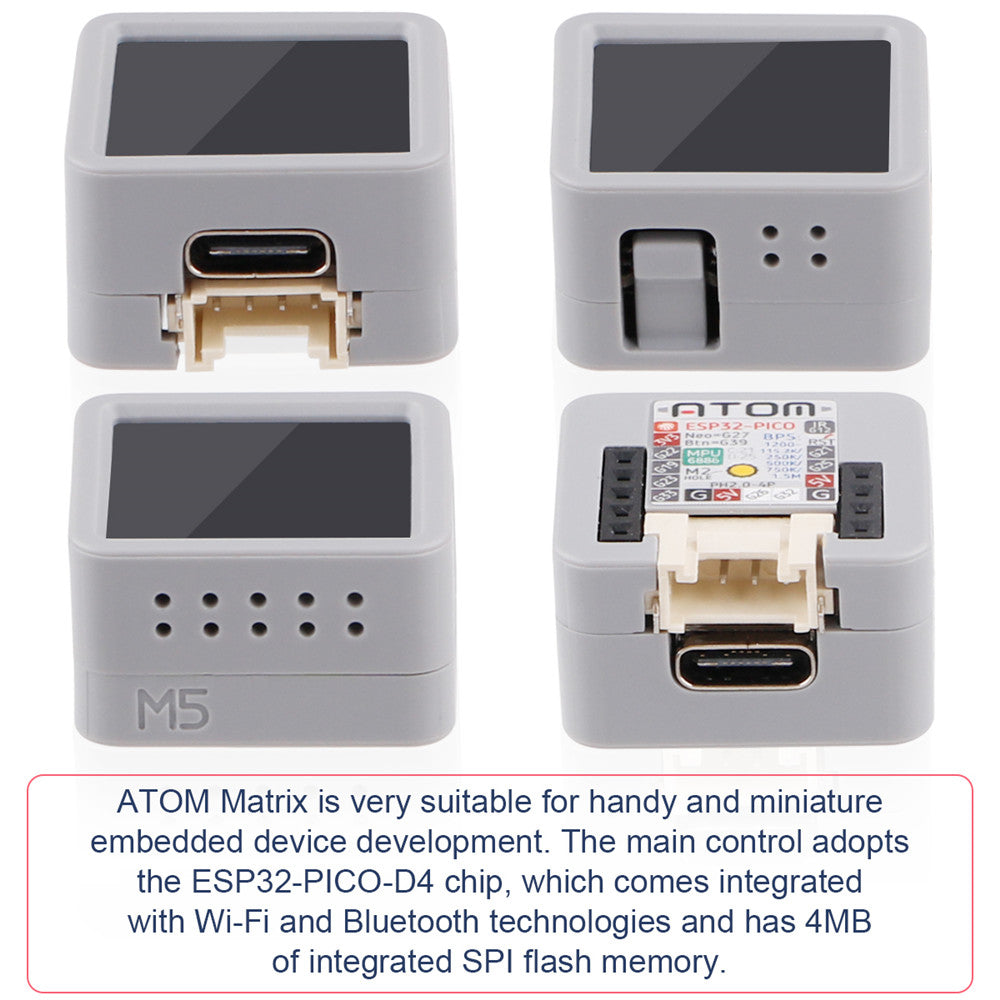

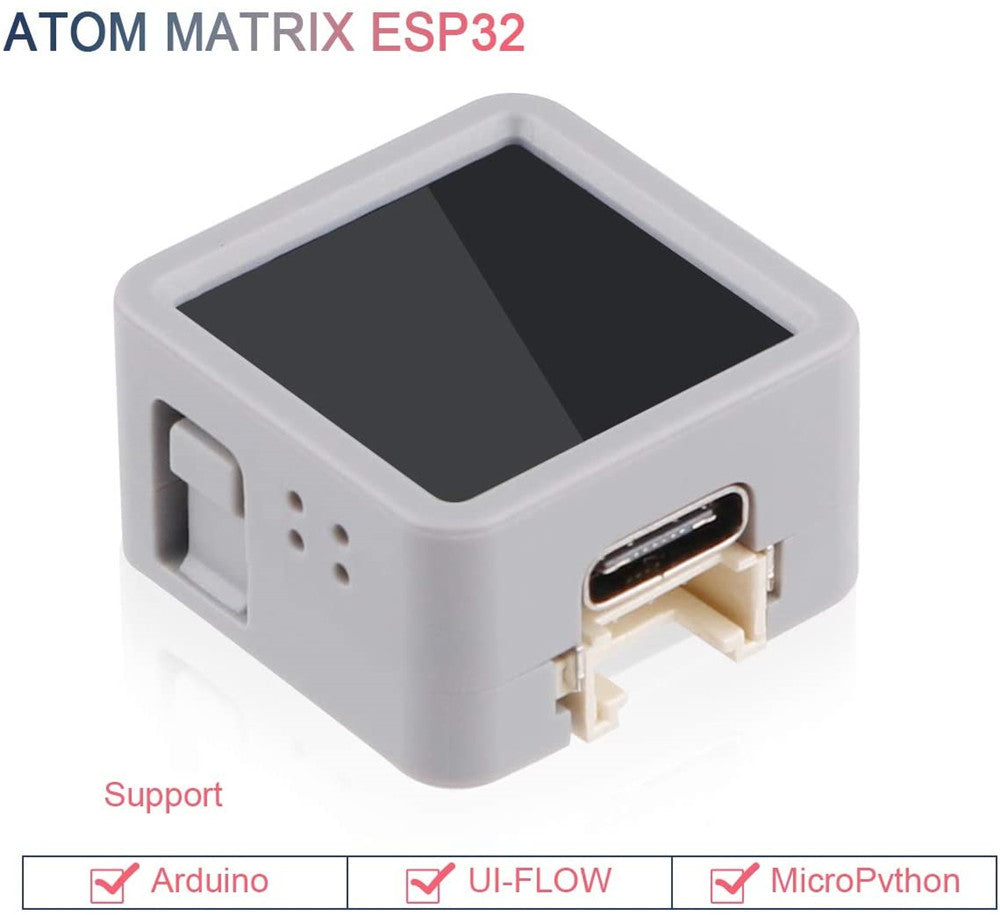

ATOM Matrix is the most compact development board in the M5Stack development kit series. It provides more GPIO pins and is very suitable for handy and miniature embedded device development.
The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi and Bluetooth technologies and has 4MB of integrated SPI flash memory.

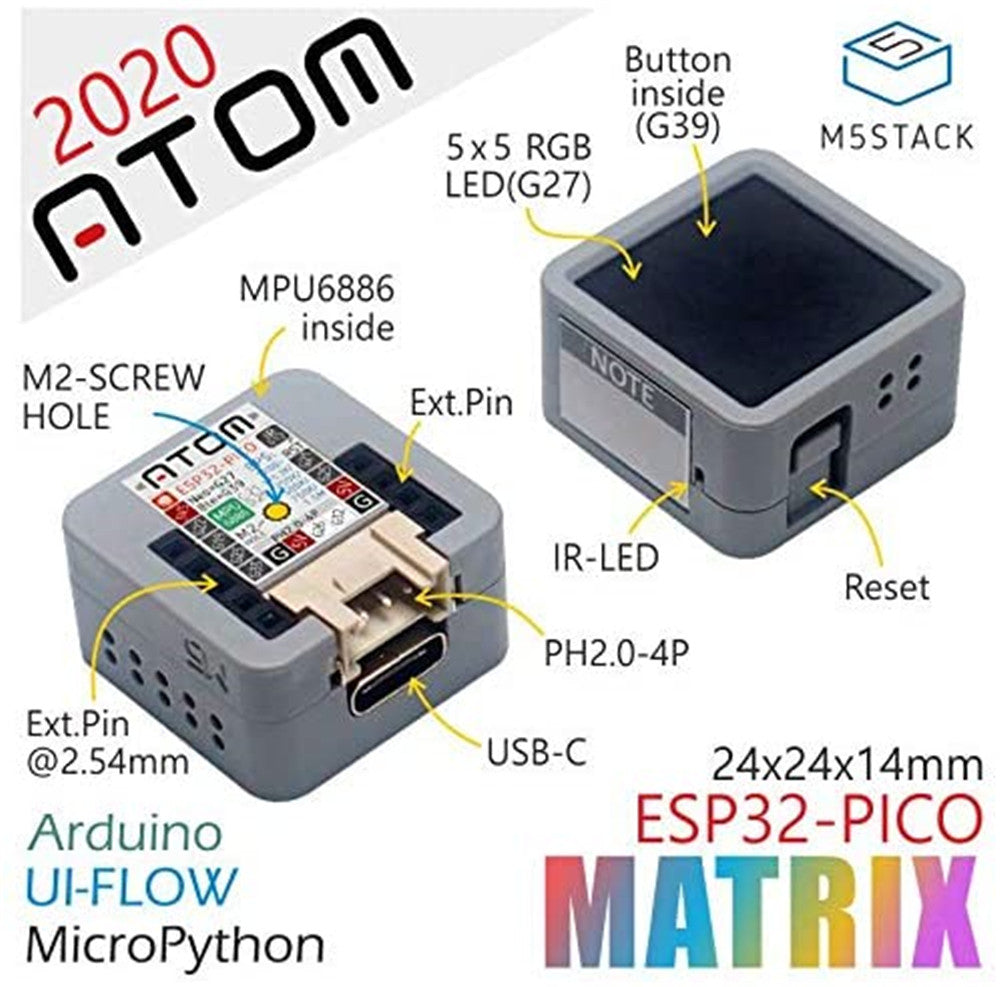

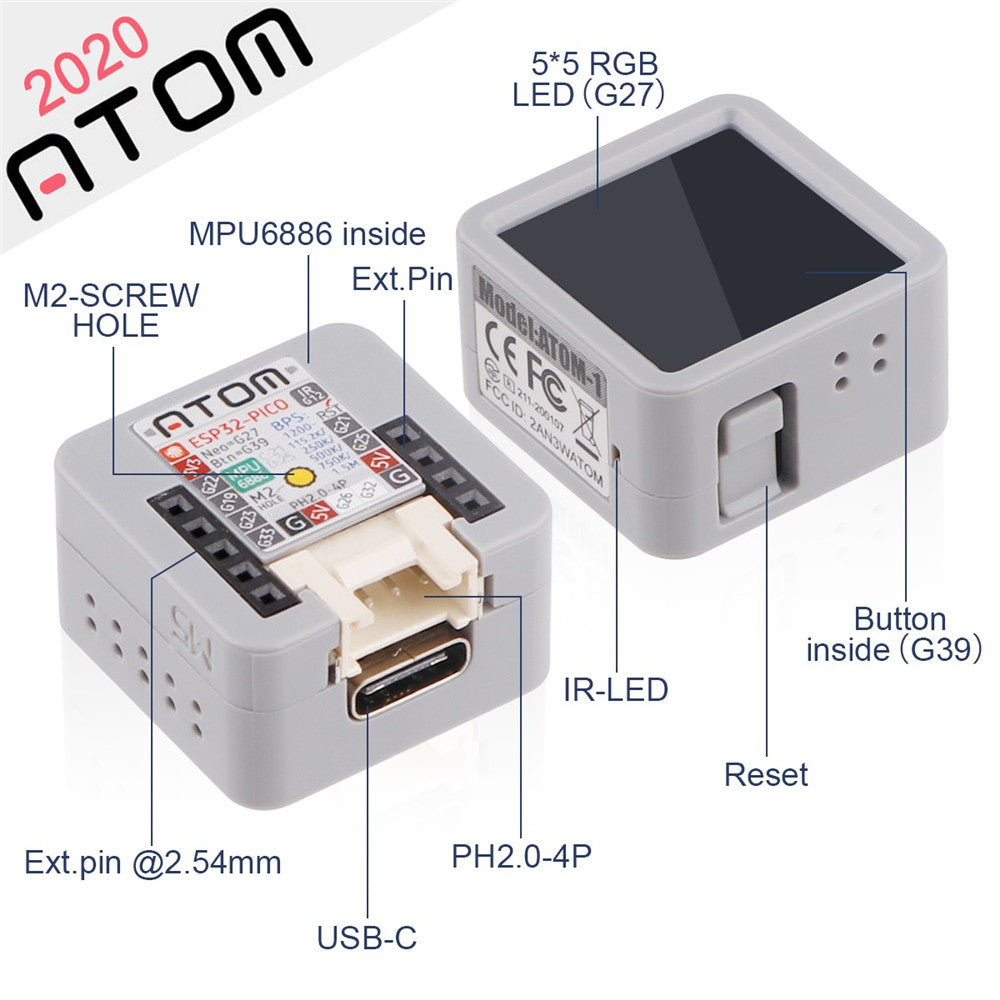

The Atom board provides an Infra-Red LED along with the 5*5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a PH2.0 interface. A general purpose programmable button is provied below the Neo Led matrix to enable users to add input support to their various projects.

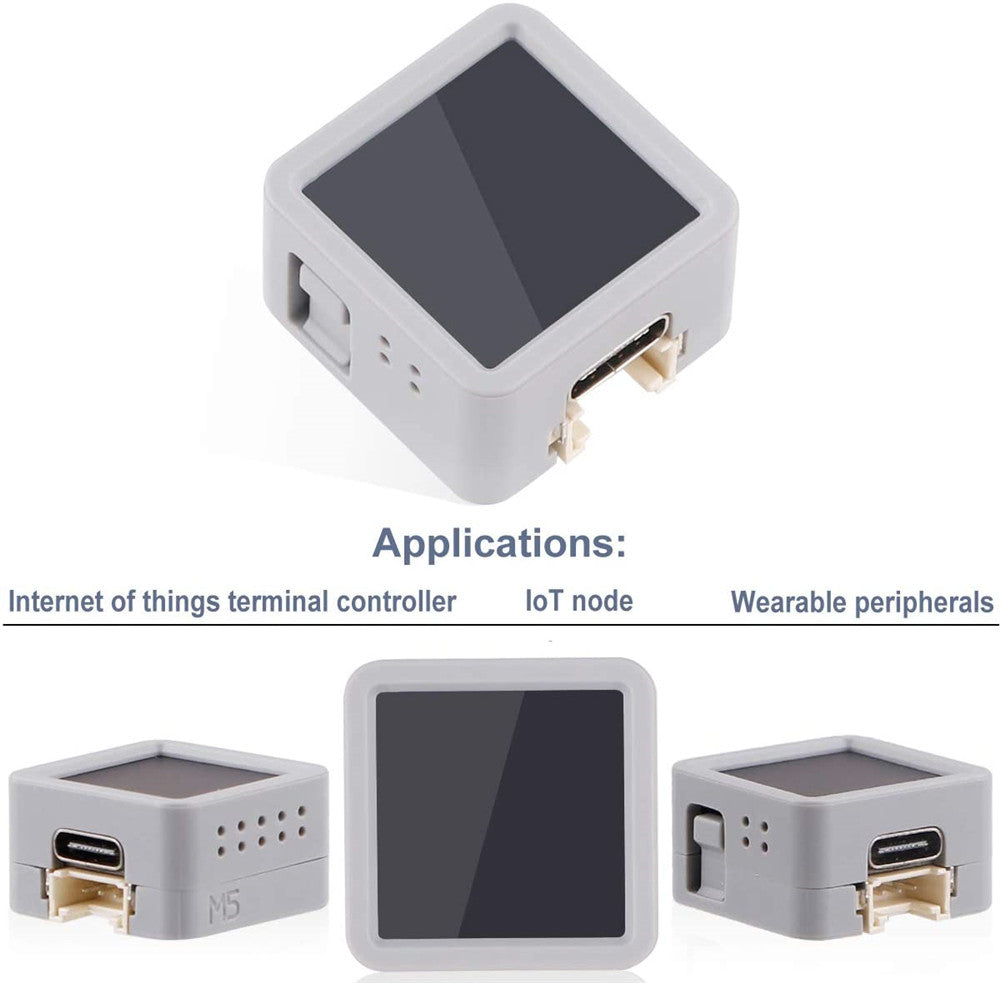

The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board. Applications: Internet of things terminal controller, IoT node, Wearable peripherals.
Product description
ATOM Matrix is the most compact development board in the M5Stack development kit series yet with a size of only 24 * 24mm. It provides more GPIO pins and is very suitable for handy and miniature embedded device development. The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi and Bluetooth technologies and has 4MB of integrated SPI flash memory. The Atom board provides an Infra-Red LED along with the 5*5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a PH2.0 interface. A general purpose programmable button is provied below the Neo Led matrix to enable users to add input support to their various projects. The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board.

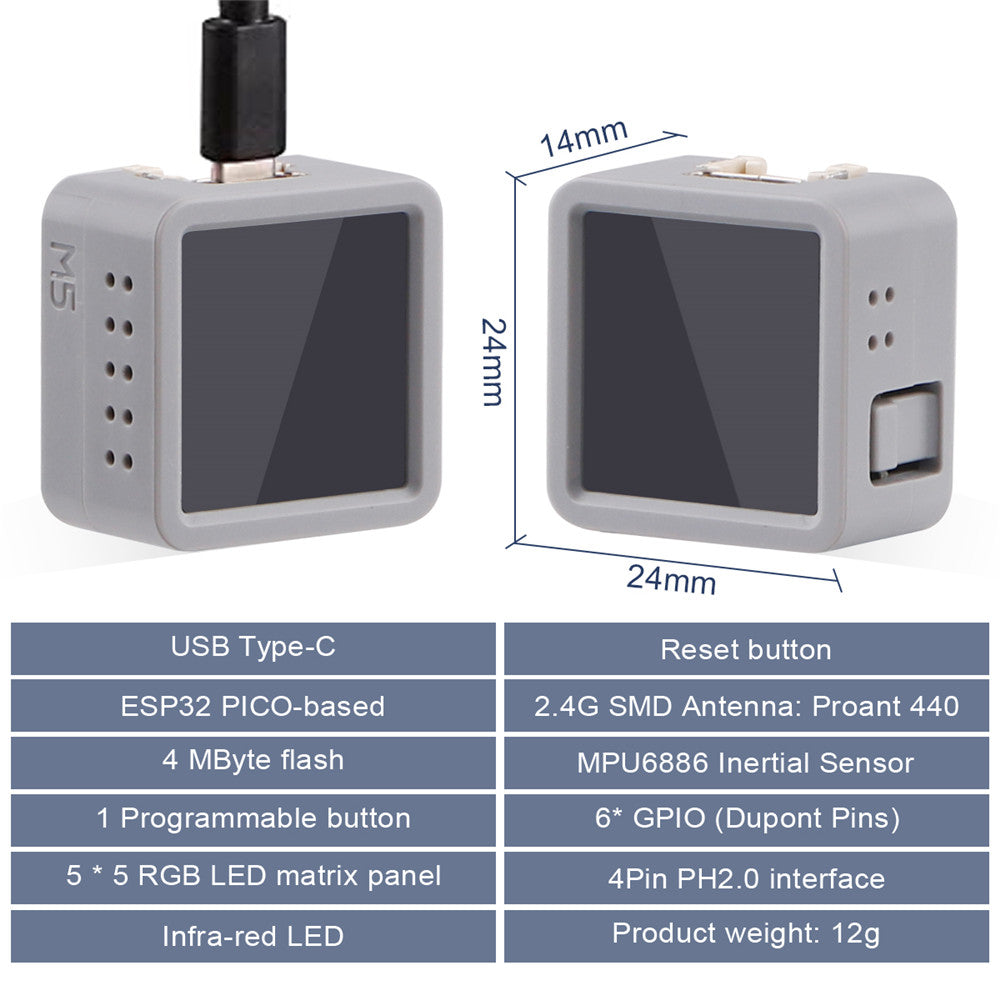

Product Features:
USB Type-C
ESP32 PICO-based
4 MByte flash
1 Programmable button

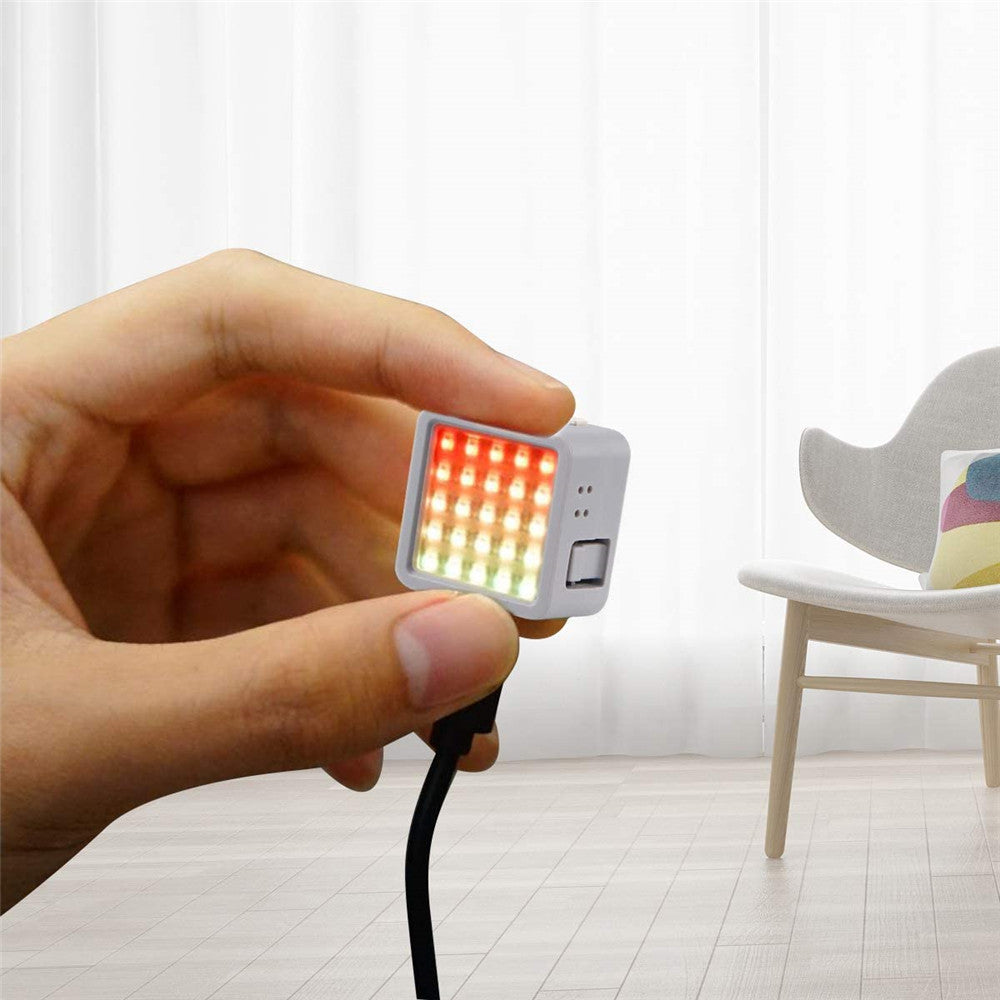

5 * 5 RGB LED matrix panel
Infra-red LED
Reset button
2.4G SMD Antenna: Proant 440
MPU6886 Inertial Sensor

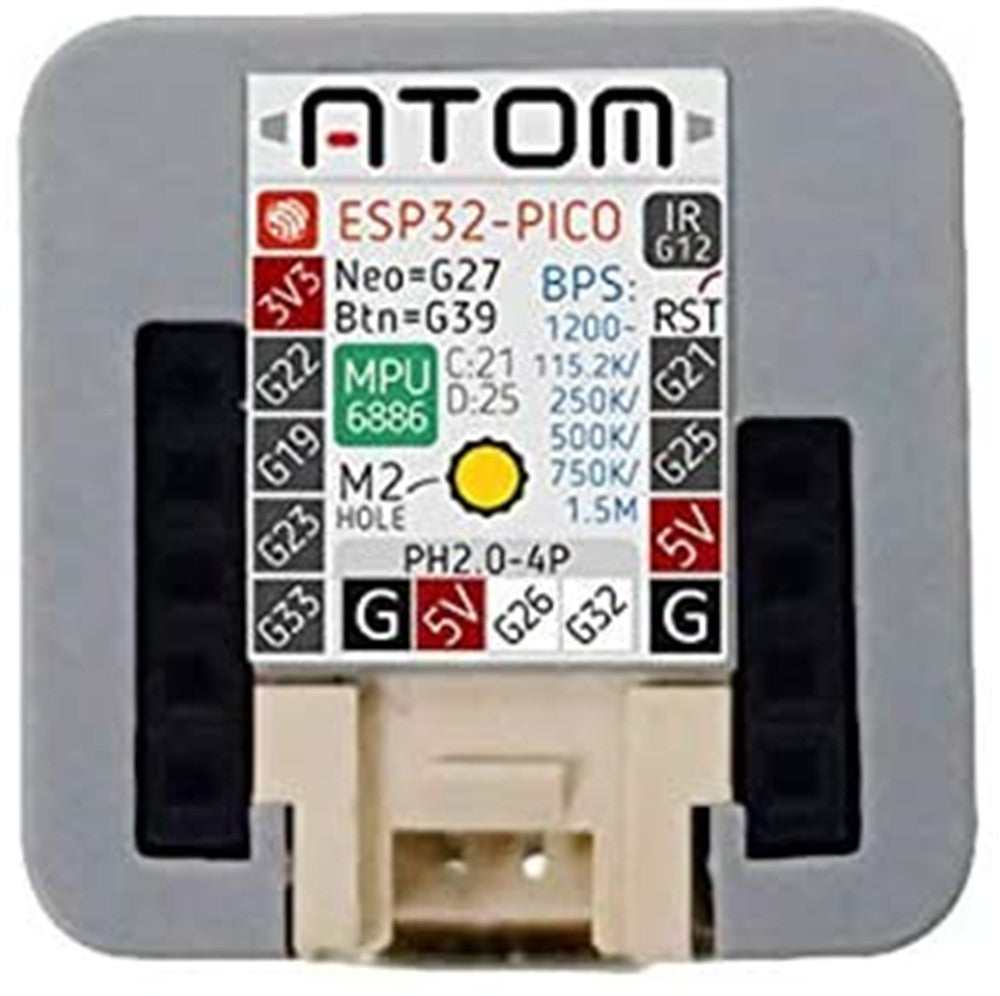

6* GPIO (Dupont Pins)
4Pin PH2.0 interface

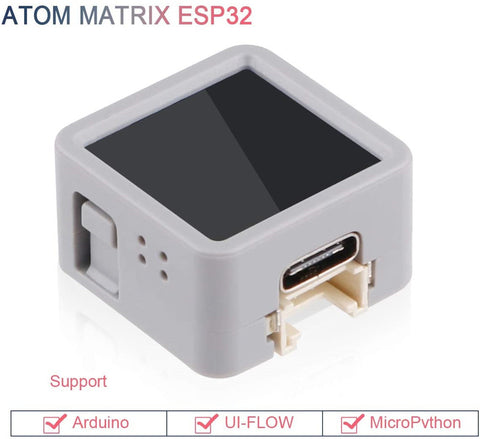

Program Platform: MicroPython, Arduino(https://www.arduino.cc/), UIFLOW(https://flow.m5stack.com/)
Product Size: 24 * 24 * 14mm
Product weight: 12 g

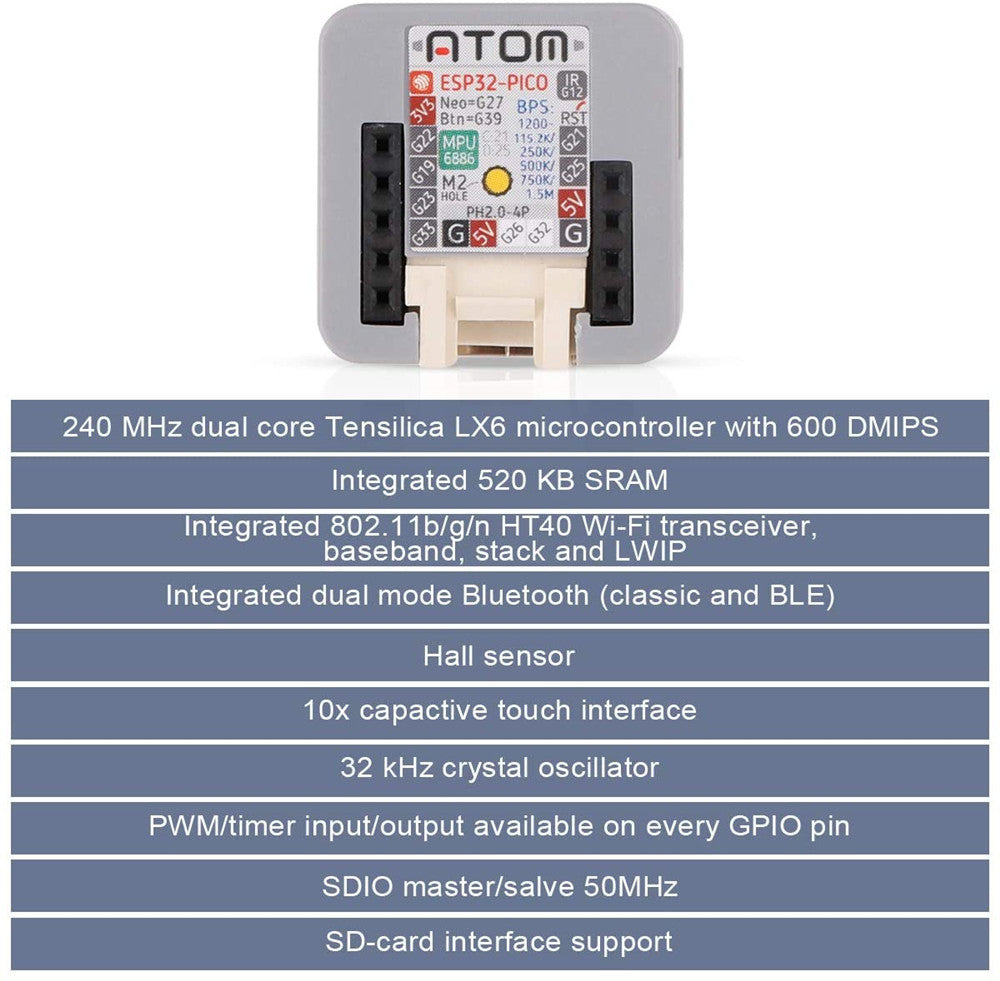

ESP32 Features:
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
Hall sensor
10x capactive touch interface
32 kHz crystal oscillator
PWM/timer input/output available on every GPIO pin
SDIO master/salve 50MHz
SD-card interface support
Package Including:
1 * M5Stack ATOM Matrix ESP32 Development Kit
Note: The brightness of the RGB LED is limited to 20, so please do not set it to a too high brightness value to avoid damage to the LED and acrylic screen!!!
ATOM Matrix is the most compact development board in the M5Stack development kit series. It provides more GPIO pins and is very suitable for handy and miniature embedded device development.
The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi and Bluetooth technologies and has 4MB of integrated SPI flash memory.
The Atom board provides an Infra-Red LED along with the 5*5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a PH2.0 interface. A general purpose programmable button is provied below the Neo Led matrix to enable users to add input support to their various projects.
The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board. Applications: Internet of things terminal controller, IoT node, Wearable peripherals.
Product description
ATOM Matrix is the most compact development board in the M5Stack development kit series yet with a size of only 24 * 24mm. It provides more GPIO pins and is very suitable for handy and miniature embedded device development. The main control adopts the ESP32-PICO-D4 chip, which comes integrated with Wi-Fi and Bluetooth technologies and has 4MB of integrated SPI flash memory. The Atom board provides an Infra-Red LED along with the 5*5 RGB LED matrix on the panel, a built-in IMU sensor (MPU6886), and a PH2.0 interface. A general purpose programmable button is provied below the Neo Led matrix to enable users to add input support to their various projects. The on-board USB interface (Type-C) enables rapid program uploading and execution. One M2 screw hole is provided on the back for mounting the board.
Product Features:
USB Type-C
ESP32 PICO-based
4 MByte flash
1 Programmable button
5 * 5 RGB LED matrix panel
Infra-red LED
Reset button
2.4G SMD Antenna: Proant 440
MPU6886 Inertial Sensor
6* GPIO (Dupont Pins)
4Pin PH2.0 interface
Program Platform: MicroPython, Arduino(https://www.arduino.cc/), UIFLOW(https://flow.m5stack.com/)
Product Size: 24 * 24 * 14mm
Product weight: 12 g
ESP32 Features:
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
Hall sensor
10x capactive touch interface
32 kHz crystal oscillator
PWM/timer input/output available on every GPIO pin
SDIO master/salve 50MHz
SD-card interface support
Package Including:
1 * M5Stack ATOM Matrix ESP32 Development Kit
