Regular price $36.89 now $33.49 Unit price  per

What is it?
It is a bootloader flash tool for Arduino products. It is a bootloader flash tool for Arduino products. If you do not understand what is bootloader I suggest you have a look this:
Bootloader Development: https://www.arduino.cc/en/hacking/bootloader
Arduino as ISP and Arduino Bootloaders: https://www.arduino.cc/en/tutorial/arduinoISP

What makes it special?

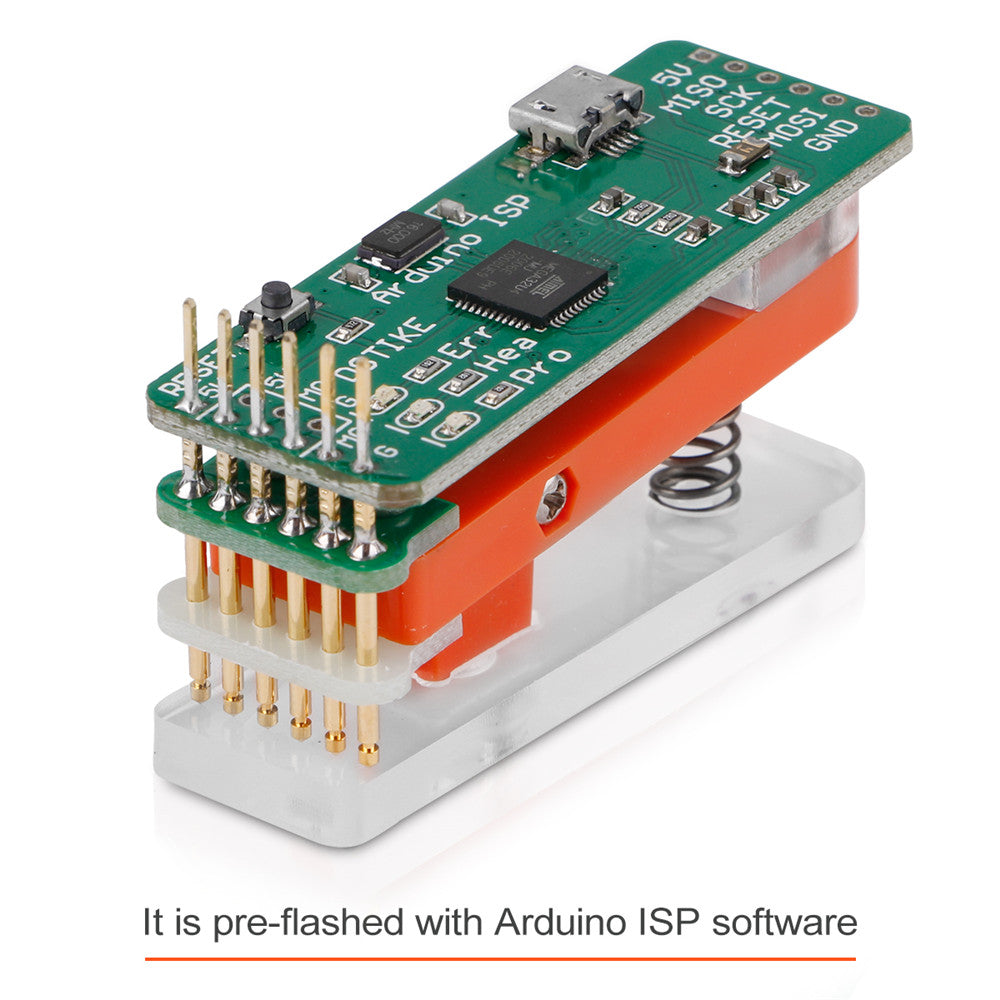

It is pre-flashed with Arduino ISP software: https://www.arduino.cc/en/tutorial/arduinoISP

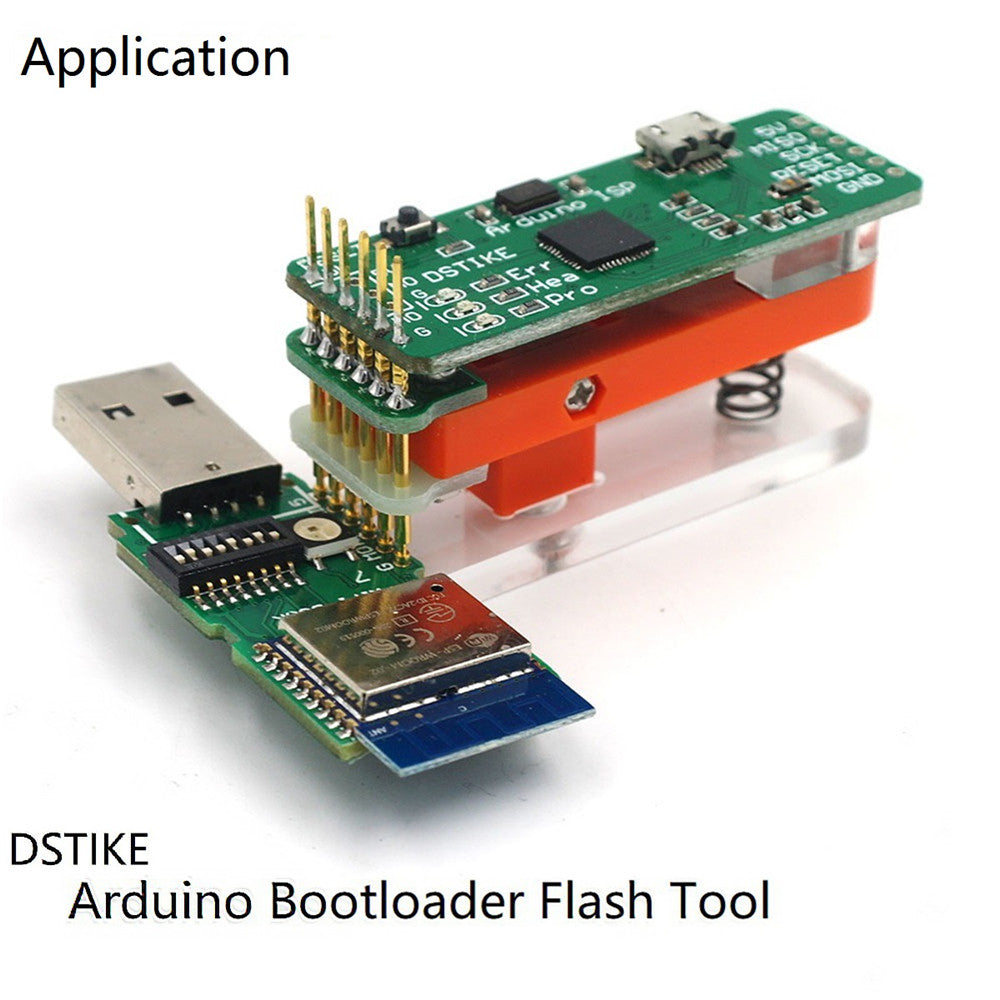

Connect Flash Tool and computer via a Micro-USB cable. Connect Flash Tool to the target board. Indicate LED will turn off for about 10 seconds. Wait until LED turn up . Open Arduino IDE and select the item in the Tools->Board menu that corresponds to the board on which you want to burn the bootloader (Arduino Uno,Nano,Leonardo...). Select Port COMXX(Arduino Leonardo) . Select the Arduino as ISP(Atmega32u4) in the Tools>Programmer menu. Use the Burn Bootloader command. You will see Indicate LED is twinkling when burning process start. Twinkling LED will be off and software says "Finish" at the same time when buring process finish.

Package Including:
1 * DSTIKE Arduino Bootloader Flash Tool
