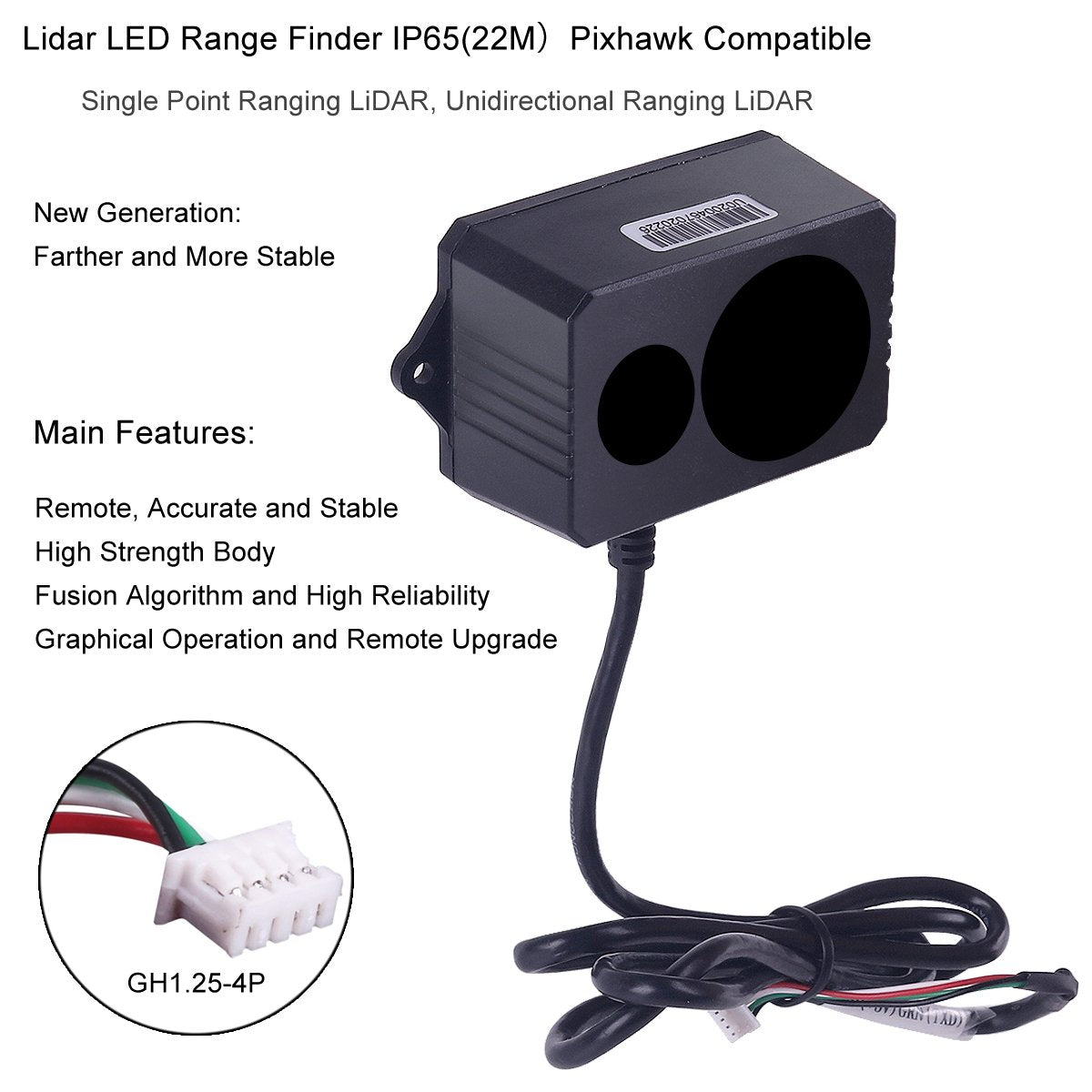

Distance Sensor Lidar Laser Range Finder Module Single-Point Micro Distance Sensor Module

  • $119.99
    Unit price per
  • Save $10


Product description
Distance Sensor Lidar Laser Range Finder Module Single-Point Micro Distance Sensor Module Altitude Holding Terrain Following Time of Flight for UAV Machine Driving Robotics Pixhawk Compatible

Description:
This TF02 Single-Point Micro Ranging Module is a newly developed product based on the widespread application experience of TF01. On the basis of preserving multiple advantages from the last generation.

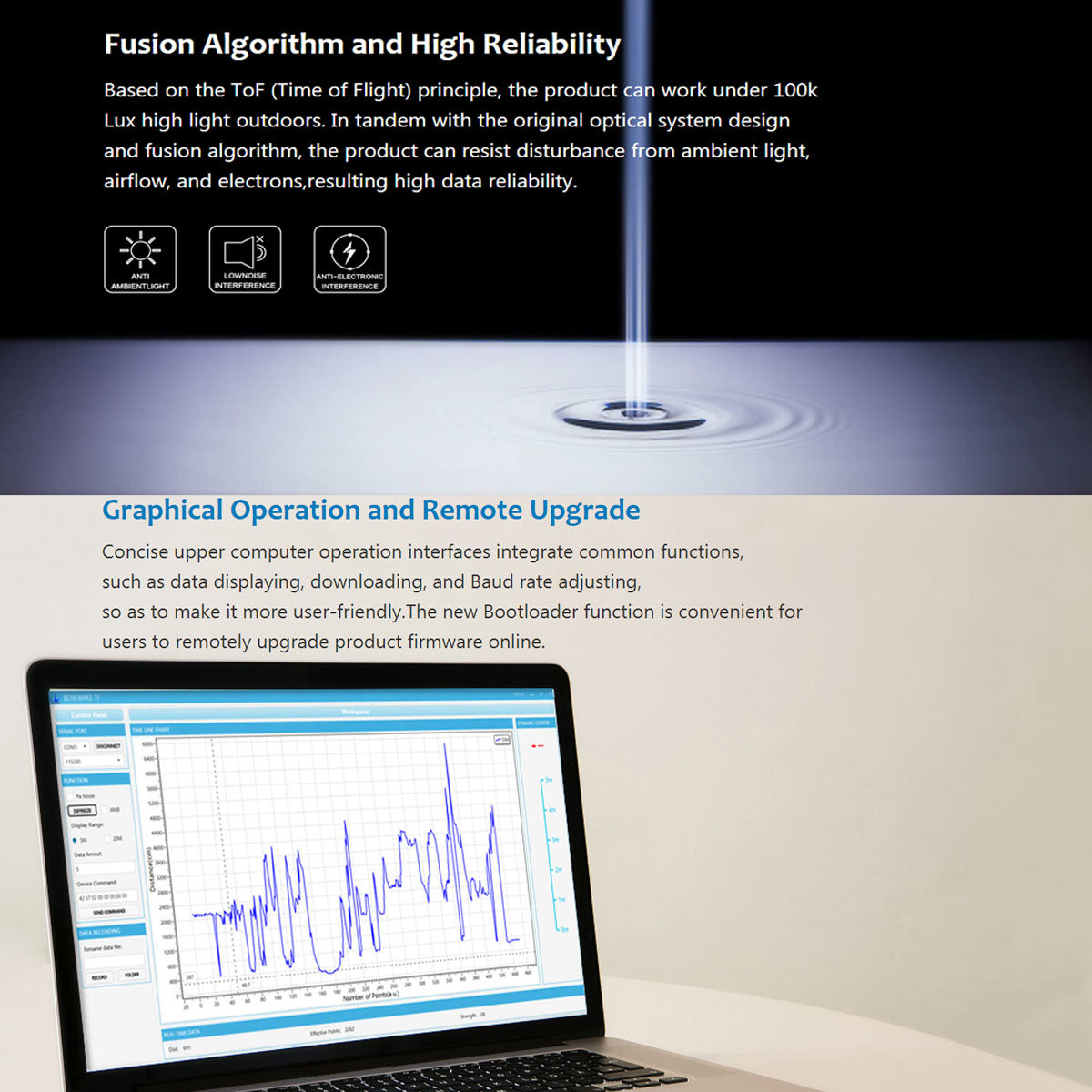

TF02 highly optimizes the energy system, product structure, fusion algorithm,and shell material so as to achieve a 22-meters-long range and a more stable ranging performance.

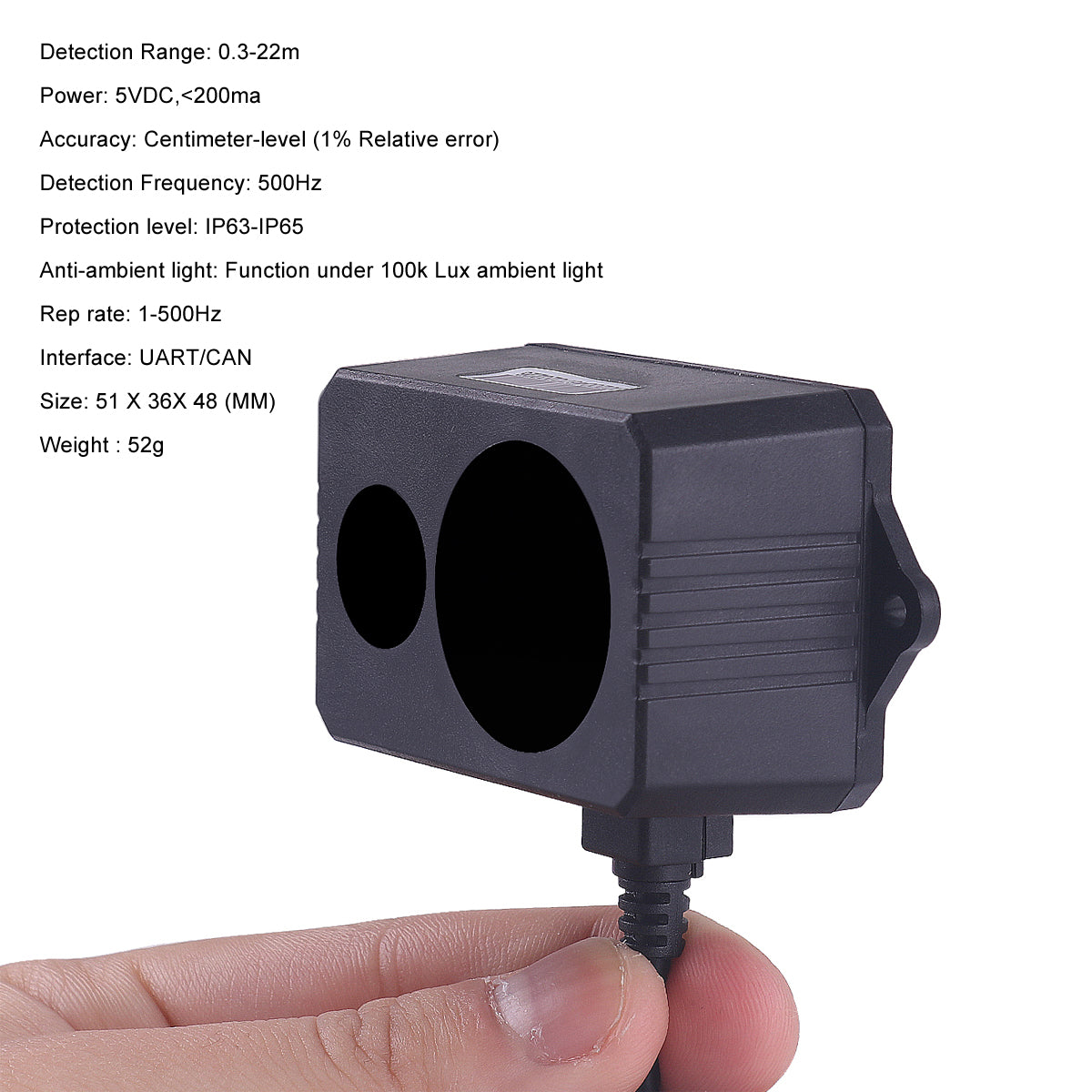

Specifications:
Operating Voltage: 5V
Indoor Working distance (10% reflectivity): 0.4 to to 10 meters
Indoor Working distance (90% Reflectivity): 0.4 to 22 meters
Outdoor Working Distance (100K LUX): 0.4 to 10 meters

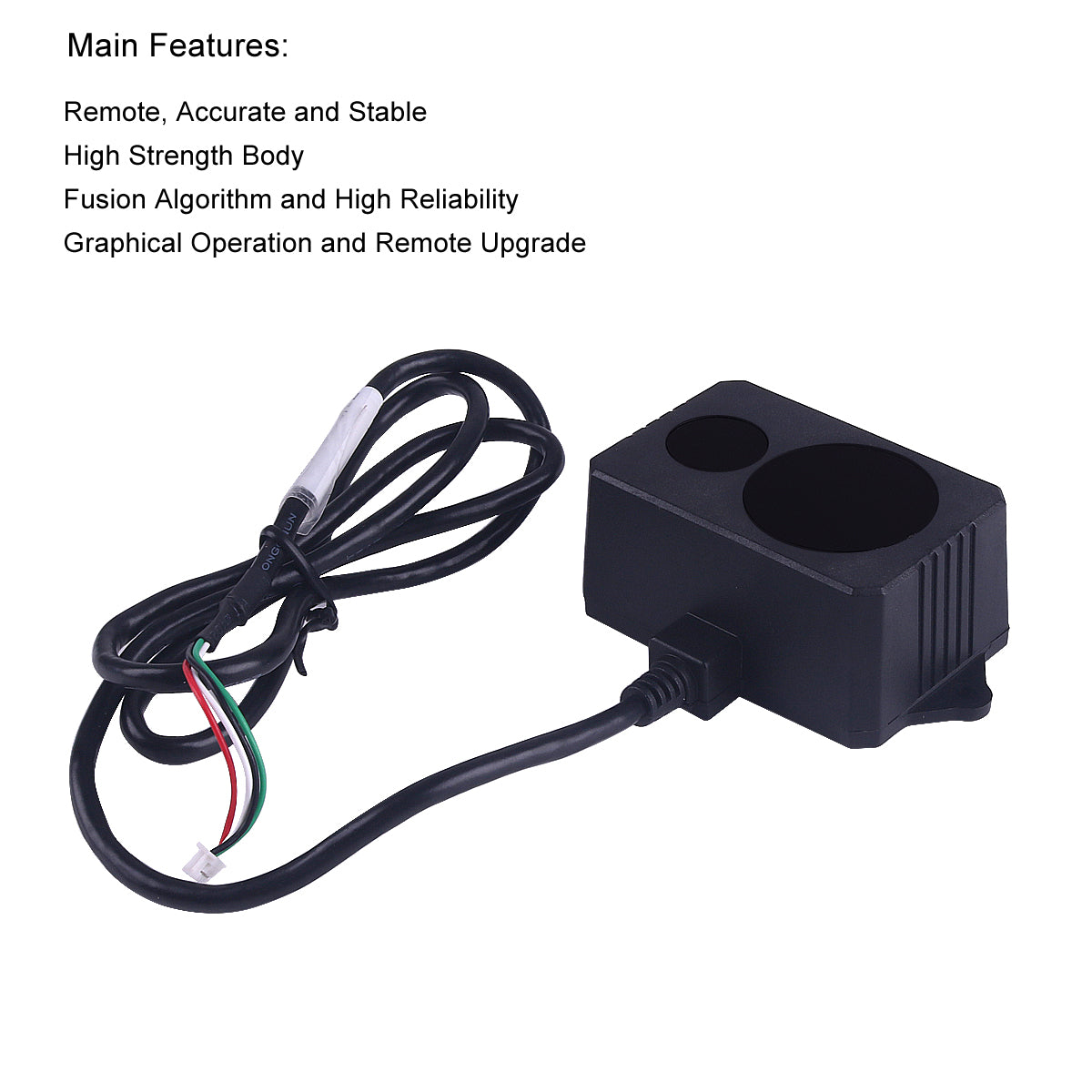

Pinout: Red=+5V, Black=GND, White=TTL-RXD, Green=TTL-TXD
Communications protocol: 115200 baud, 8 data bits, 1 stop bit, no parity
Technical Details
Weight: G.W 52g
Battery: Exclude

Major Applications:
Drone altitude holding and terrain following
Machine control and safe sensors
Distance measuring instrument
Electrical Properties

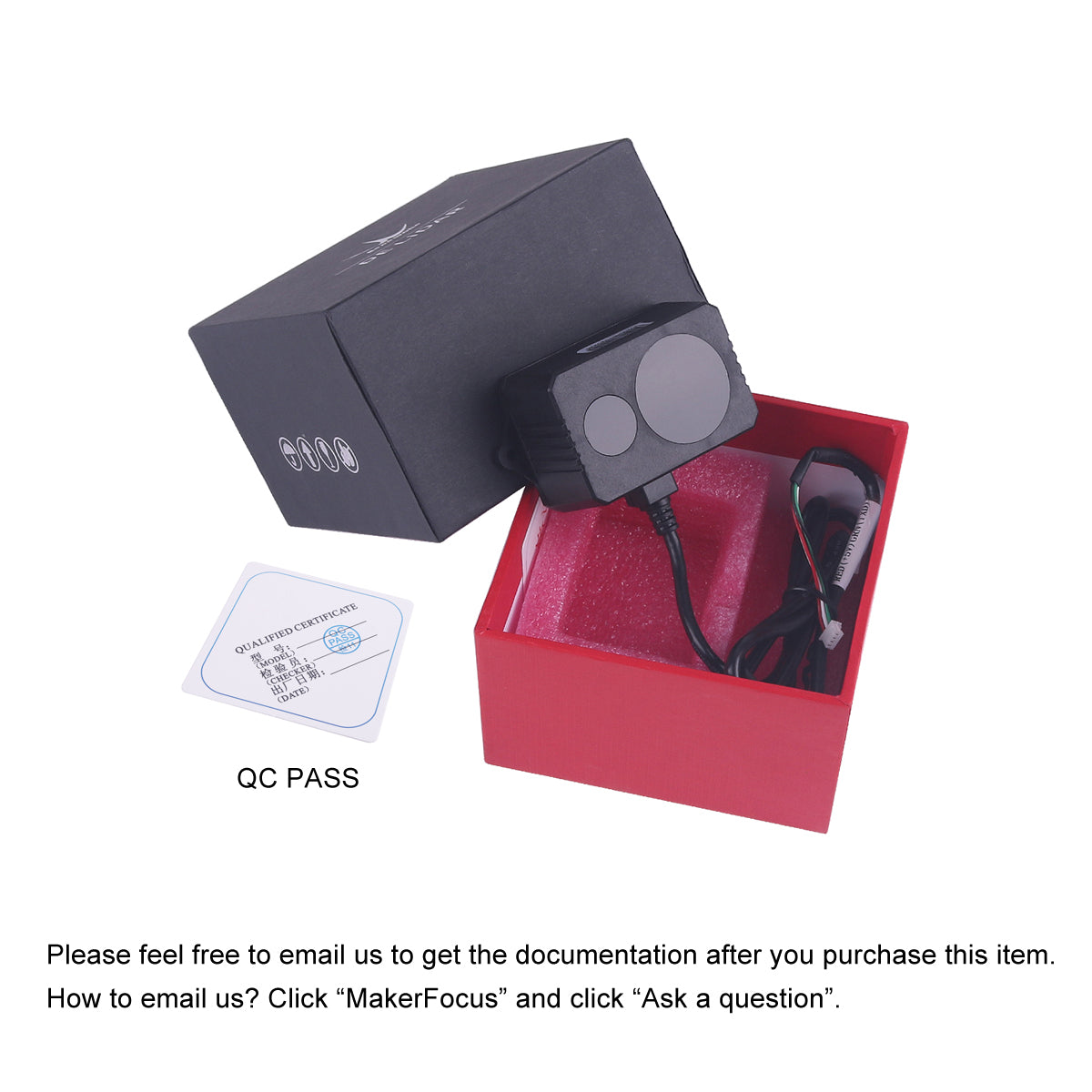

Package Including:

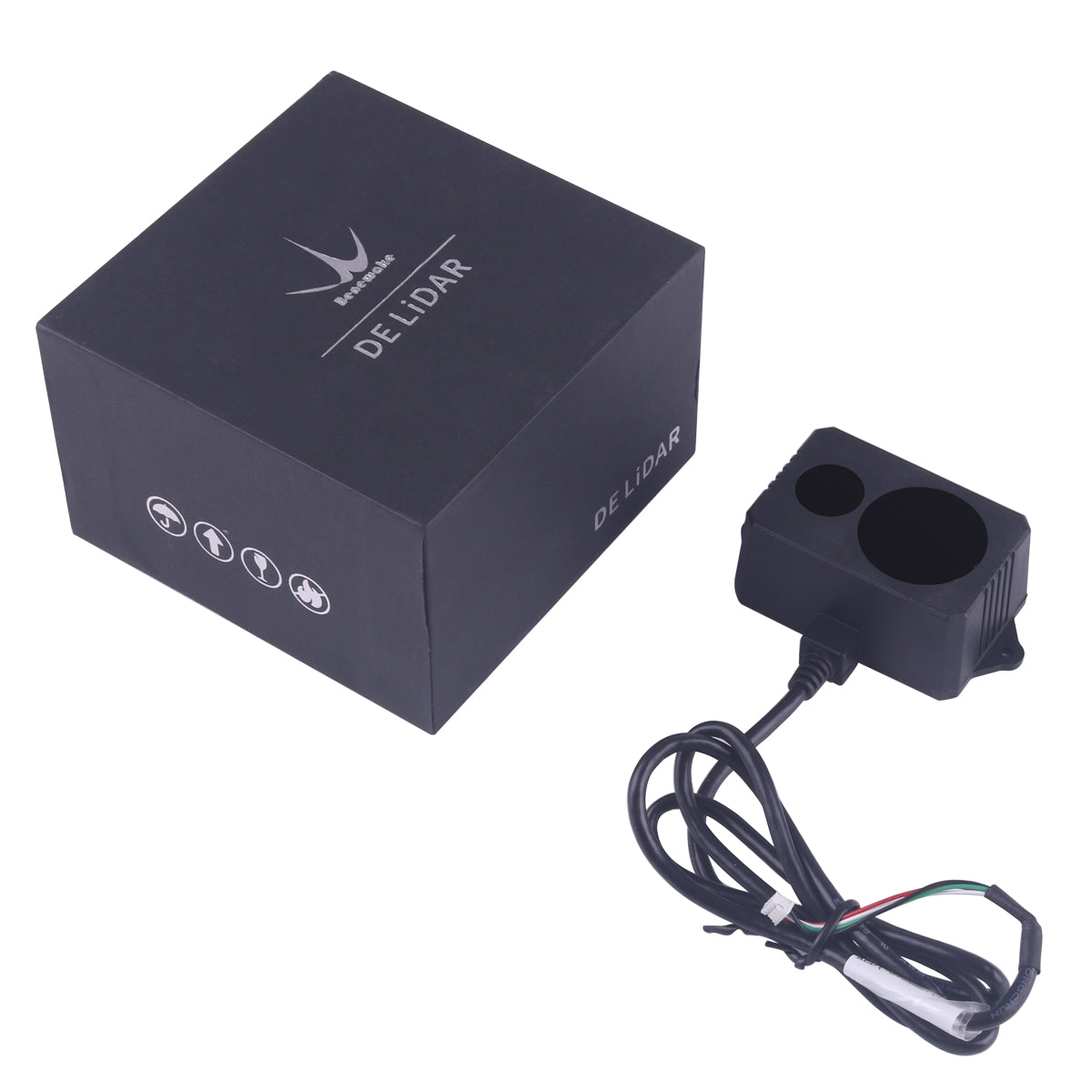

1 * TF02 Single-Point Micro Distance Sensor Module
