Digital Servo 25KG Full Metal Gear High Torque Waterproof DS3225 25T Servo Arm for RC Car Robot
- $18.99
$21.99- $18.99
- Unit price
- per
Subtotal:
$18.99
Couldn't load pickup availability
Description

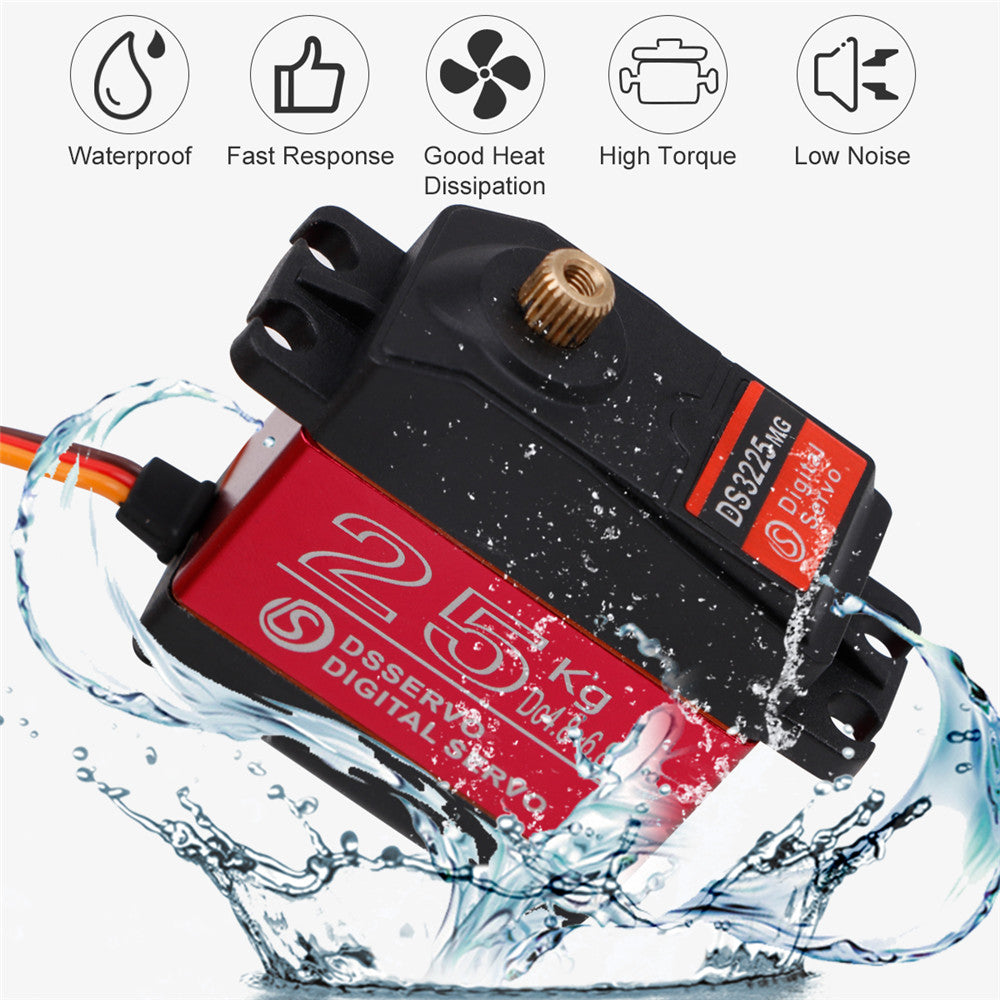

x[New Model]: DS3225MG 25kg waterproof digital servo. Can be widely used for robots, mechanical arms, climbing cars, remote control boat, remote control aircraf etc.
[Large Torque]: Maximum torque can up to 25kg.cm (6.8V)
[High Performance]: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.

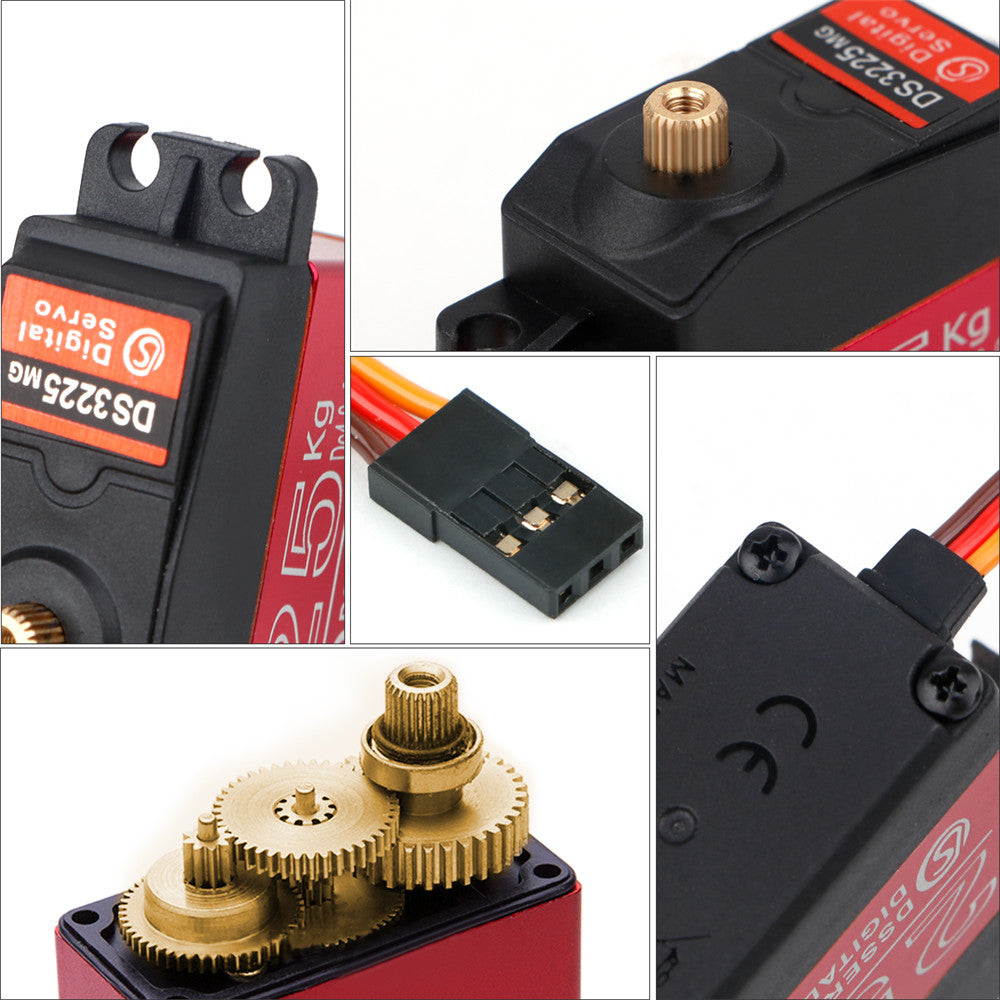

[High Quality]: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
[High Rotation]: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.
Product description
Edition:DS3225
DS3225MG RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots. It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive. It is tailored for RC hobbyist to provide different experience and delight.
Electrical Specification：
Operating voltage range: 4.8-6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: 3μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500μsec)
Product Specification:

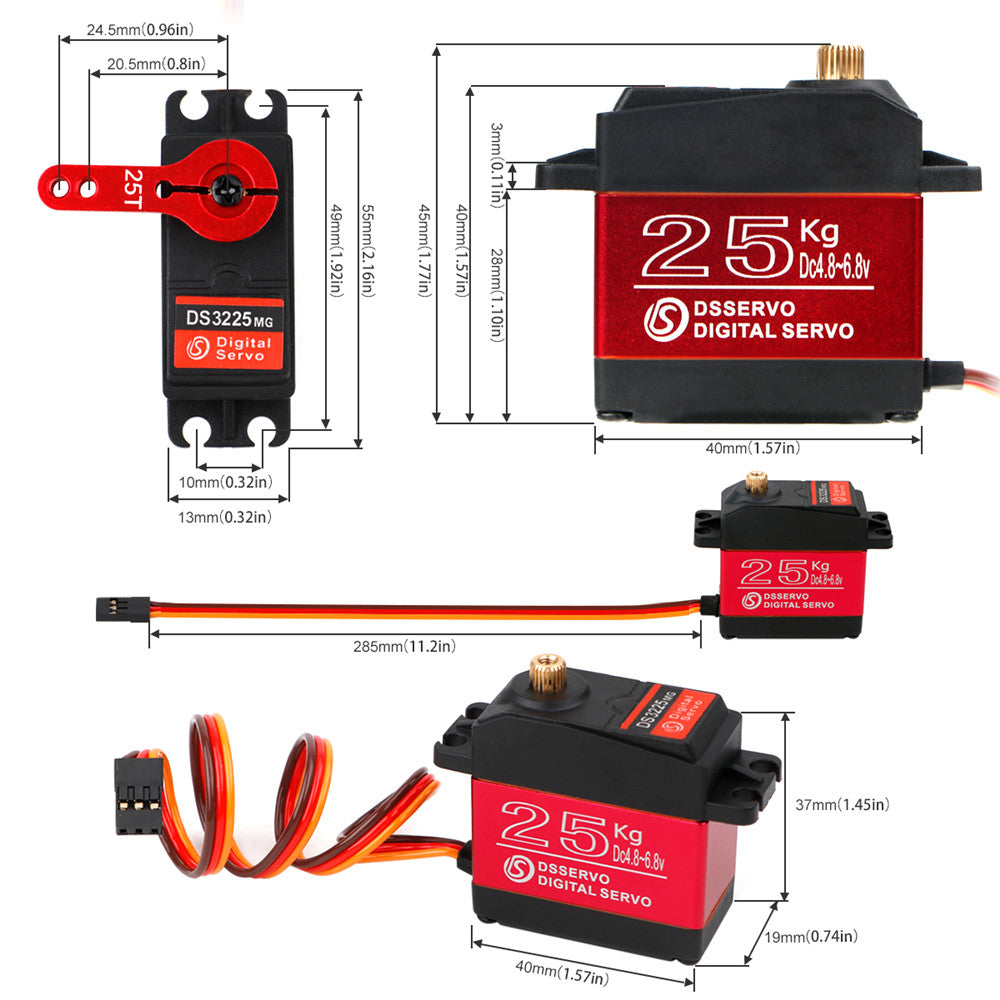

Size: 40 * 20 * 40.5mm
Weight: 67g

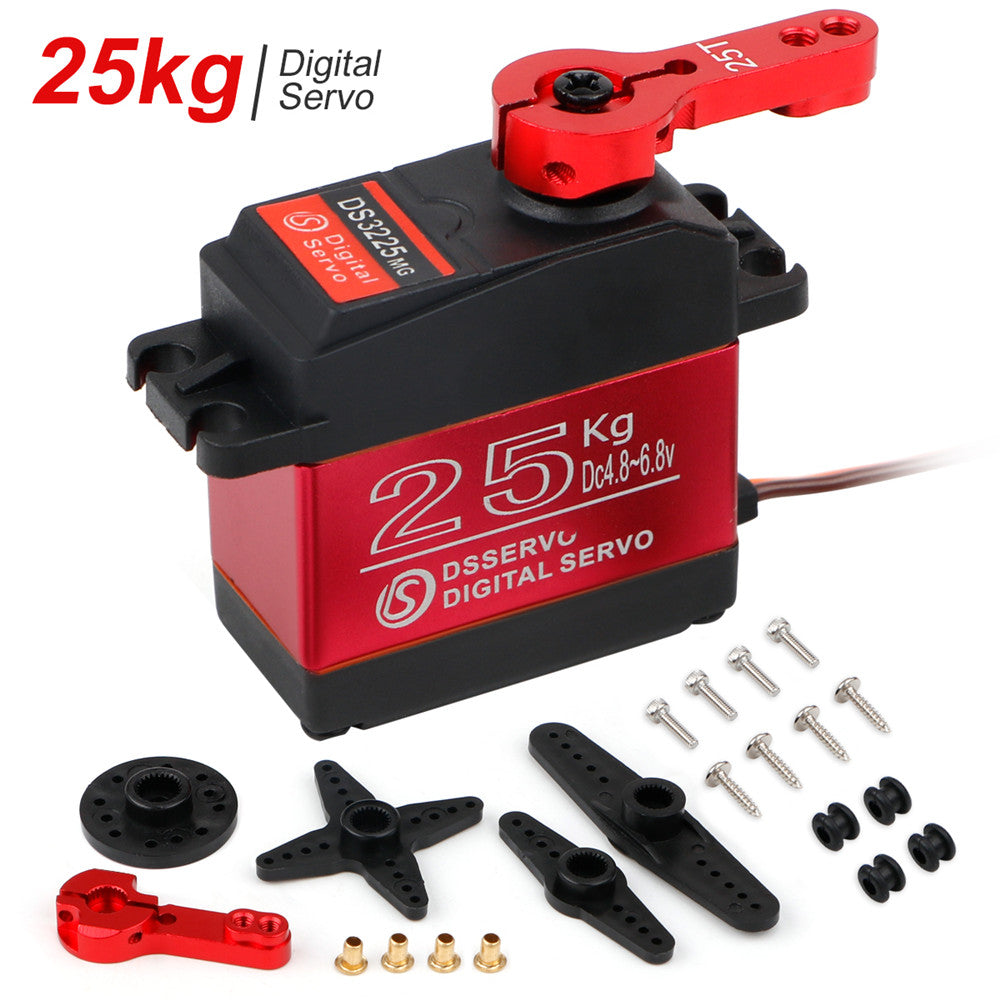

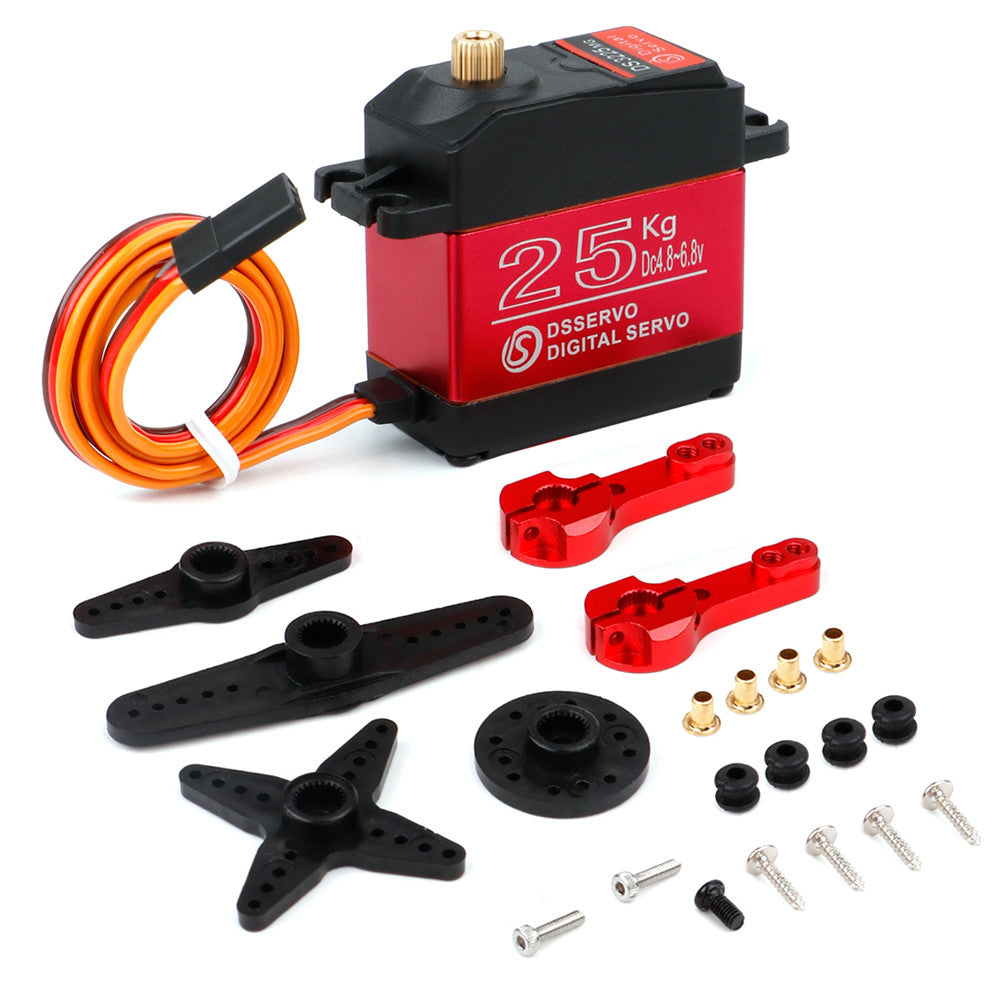

Package Including
1 * DS3225 25kg Digital Servo
2 * 25T Adjustable metal servo arm
1 * Accessories set as shown
[Large Torque]: Maximum torque can up to 25kg.cm (6.8V)
[High Performance]: Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability, low noise, fast heat dissipation.
[High Quality]: Waterproof rubber seals screws, made of first-grade material ensure the longevity of the products. High-precision metal gear with hard anodizing for better accuracy and longer service life. CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well.
[High Rotation]: 180 degree rotation. Controllable angle range from 0 to 180 degrees, excellent linearity, precision control. Can be rotated within 360 degrees when power off, perfect for robot joint activities.
Product description
Edition:DS3225
DS3225MG RC servos are designed for remotely operating model vehicles,such as cars, airplanes and robots. It provides the functionality of a light weight standard-sized servo, HV high torque, waterproof, sensitive and responsive. It is tailored for RC hobbyist to provide different experience and delight.
Electrical Specification：
Operating voltage range: 4.8-6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:
Control System: PWM (Pulse width modification)
Pulse width range: 500-2500μsec
Neutral position: 1500μsec
Running degree: 180° (when 500-2500μsec)
Dead band width: 3μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500μsec)
Product Specification:
Size: 40 * 20 * 40.5mm
Weight: 67g
Package Including
1 * DS3225 25kg Digital Servo
2 * 25T Adjustable metal servo arm
1 * Accessories set as shown
