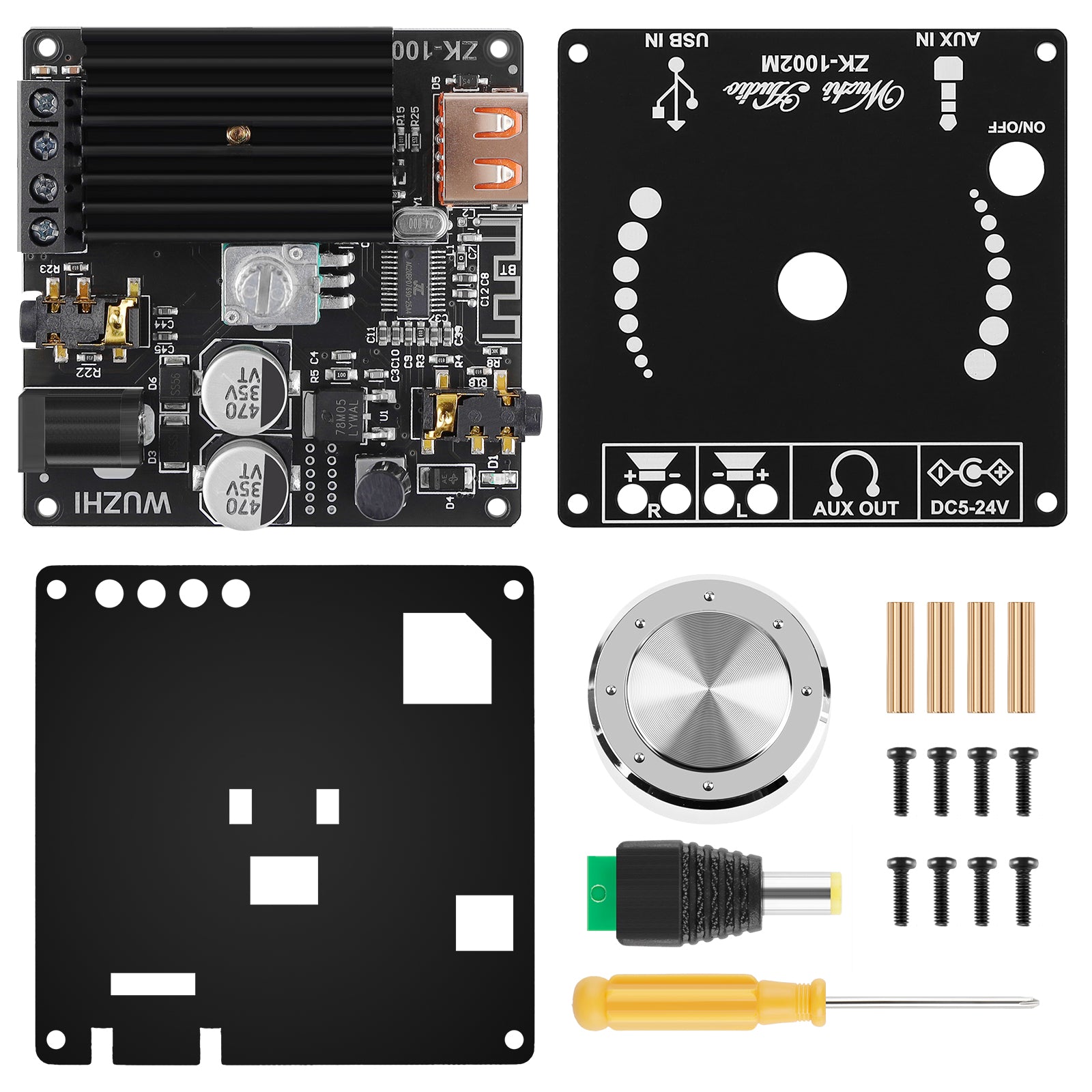

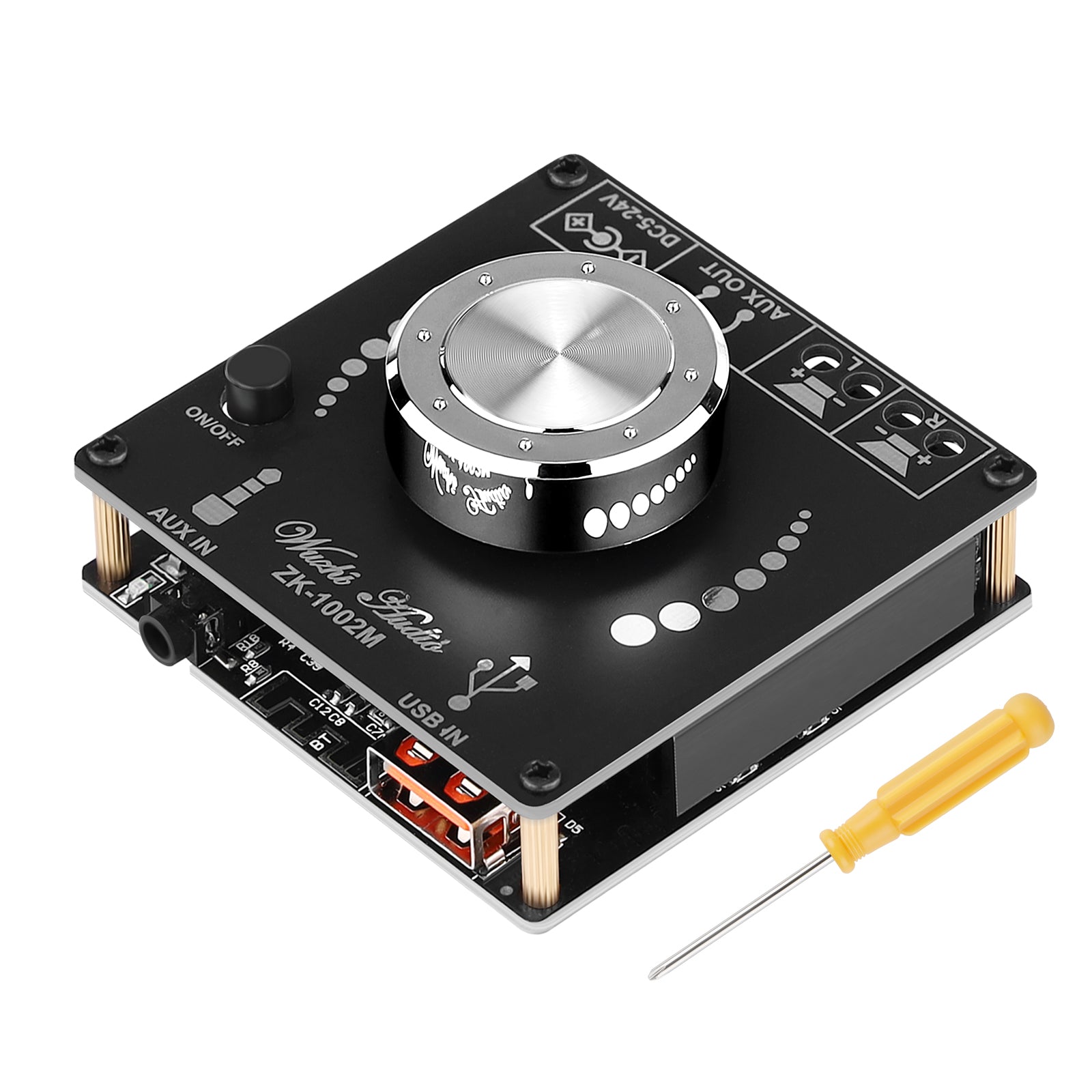

Bluetooth Amplifier Board Hifi Stereo 2.0 Channel 2X100W Audio Amplifier Digital Power Amplifier

  • $14.99
    Unit price per
  • Save $2
Shipping calculated at checkout.


Bluetooth Amplifier Board Hifi Stereo 2.0 Channel 2X100W Audio Amplifier Digital Power Amplifier with AUX/USB/Bluetooth/Flash Drive/PC USB Input

Parameter
Bluetooth Name: Wuzhi Audio
Bluetooth Version: 5.0 (Without occlusion 15m)
Audio Input: AUX + Bluetooth + USB flash drive + Computer USB (plug and play)
Channel: 2.0 Stereo
Adaption Supply Voltage: 5-24V
Speaker: 20-200W, 4-8Ohm
Output Power:
12V - 8ohm/20W*2; 4ohm/40W*2
15V - 8ohm/35W*2; 4ohm/60W*2
19V - 8ohm/35W*2; 4ohm/80W*2
24V - 8ohm/70W*2; 4ohm/100W*2
Protection Mechanism: overheat, overcurrent, short circuit protection

Tip: To have enough output power if the audio input is sufficient and the supply voltage/current is sufficient. The power supply voltage is higher and the relative power will be larger. The speakers with different impedances will have different output power. In the case of sufficient voltage and current, the larger the ohms of the horn, the smaller the relative sound power. Please ensure that the power of the adaptor is greater than the actual working power of the amplifier.
