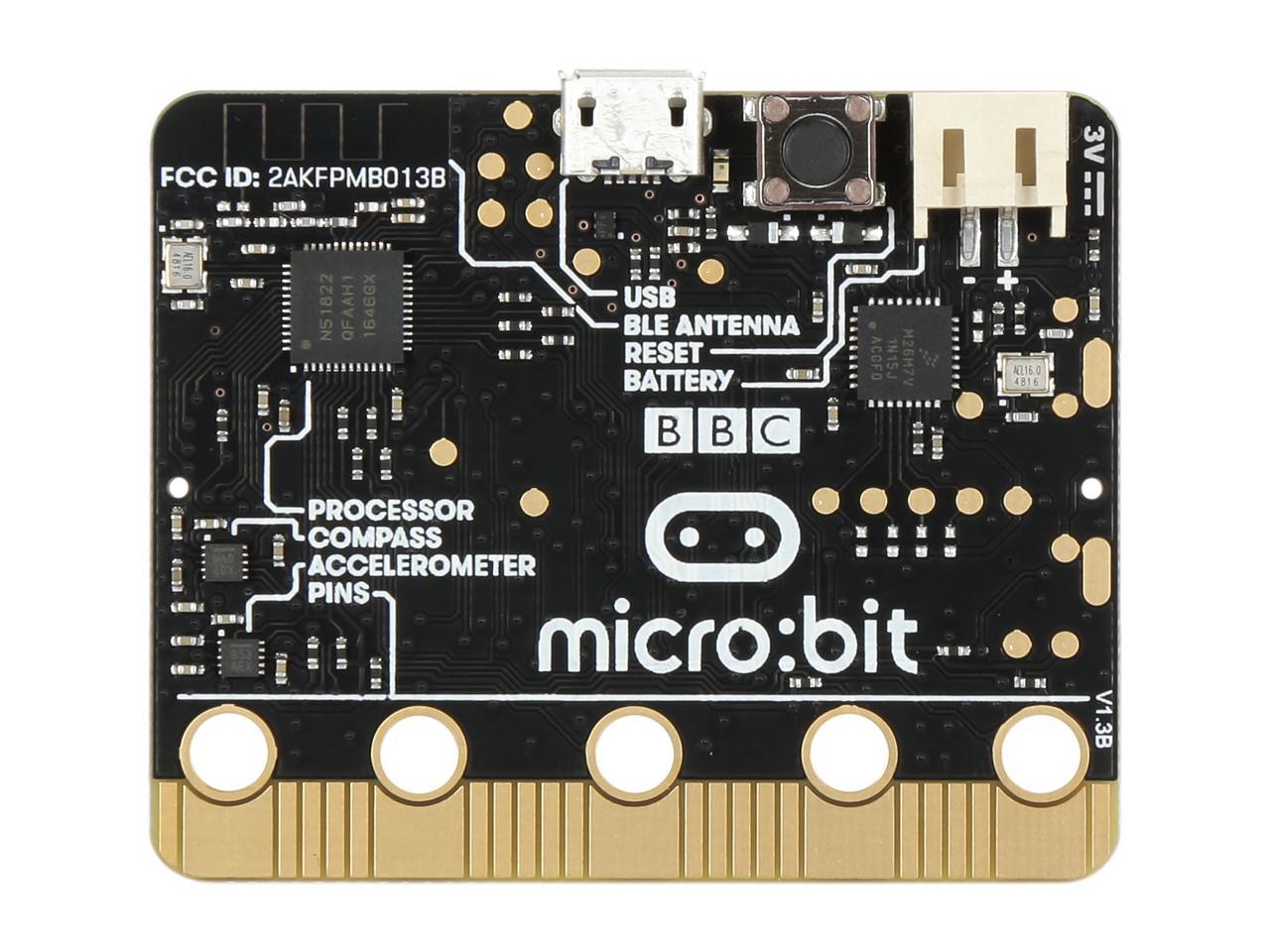

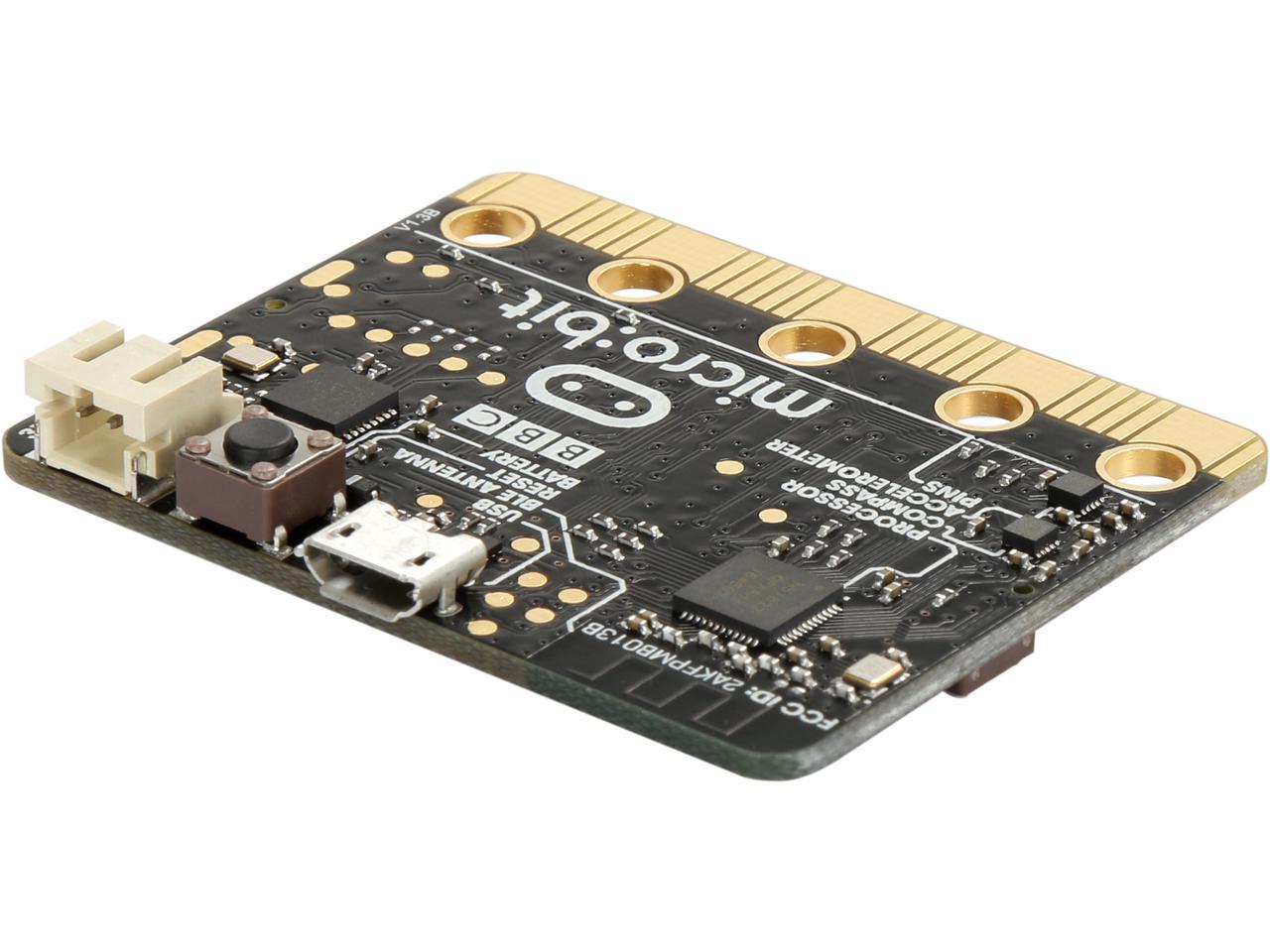

BBC Micro: Bit Development Board

  • $23.49
    Unit price per


Microprocessor: 32-bit ARM Cortex M0 CPU

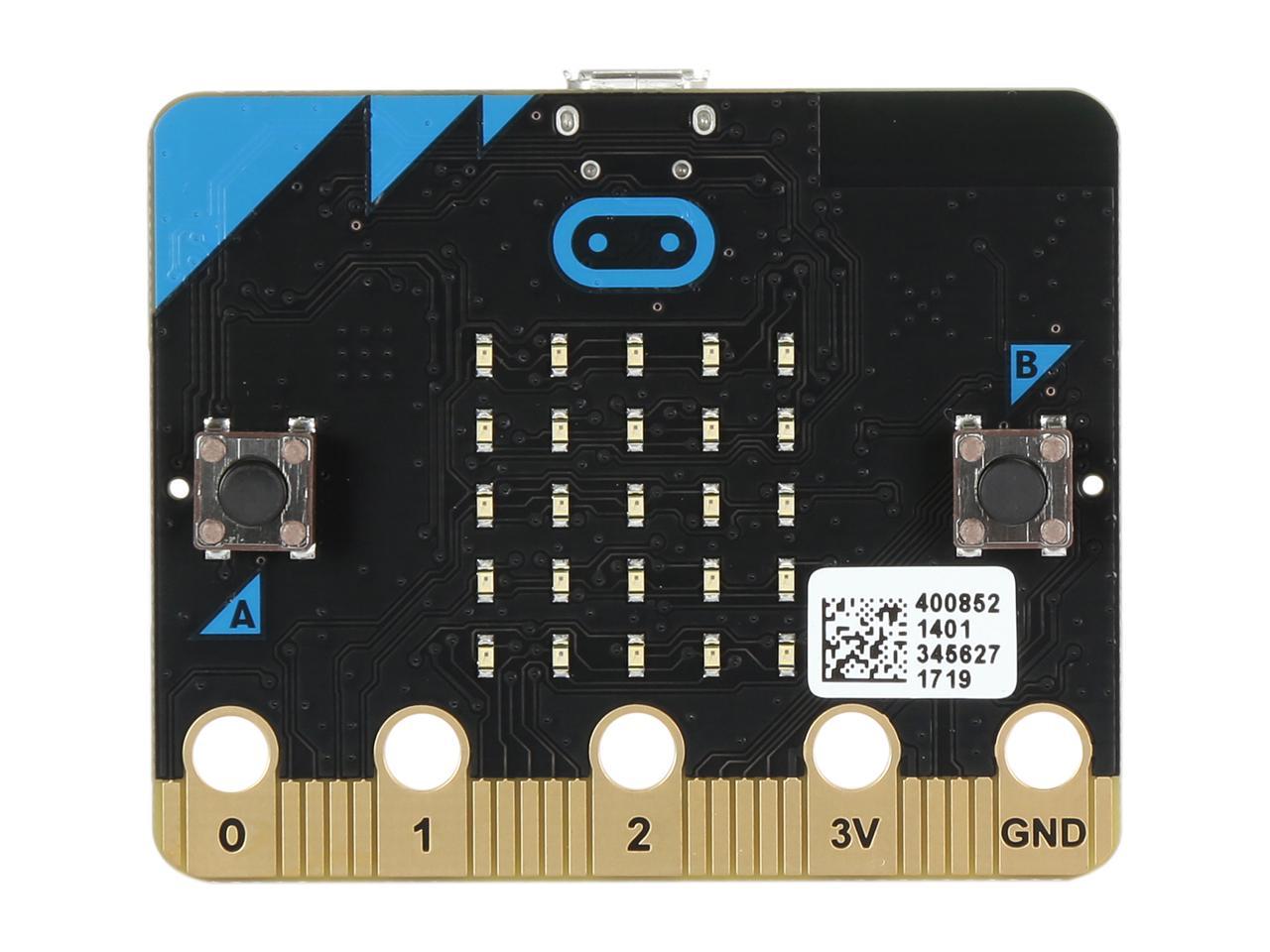

A 5x5 LED matrix with 25 red LEDs to light up and can display animiated patterns, scrolling text and alphanumeric characters

Two programmable buttons. Use them as a games controller, or control music on a smart phone

On-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall

A built-in compass, 3D magnetometer to sense direction and your movement in degrees also the presence of certain metals and magnets

Bluetooth Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everday objects

Five Ring Input and Output (I/O) including power (PWR), ground (GRD) and 3 x I/O. To read values from sensors and control things like motors or robots

20-pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector

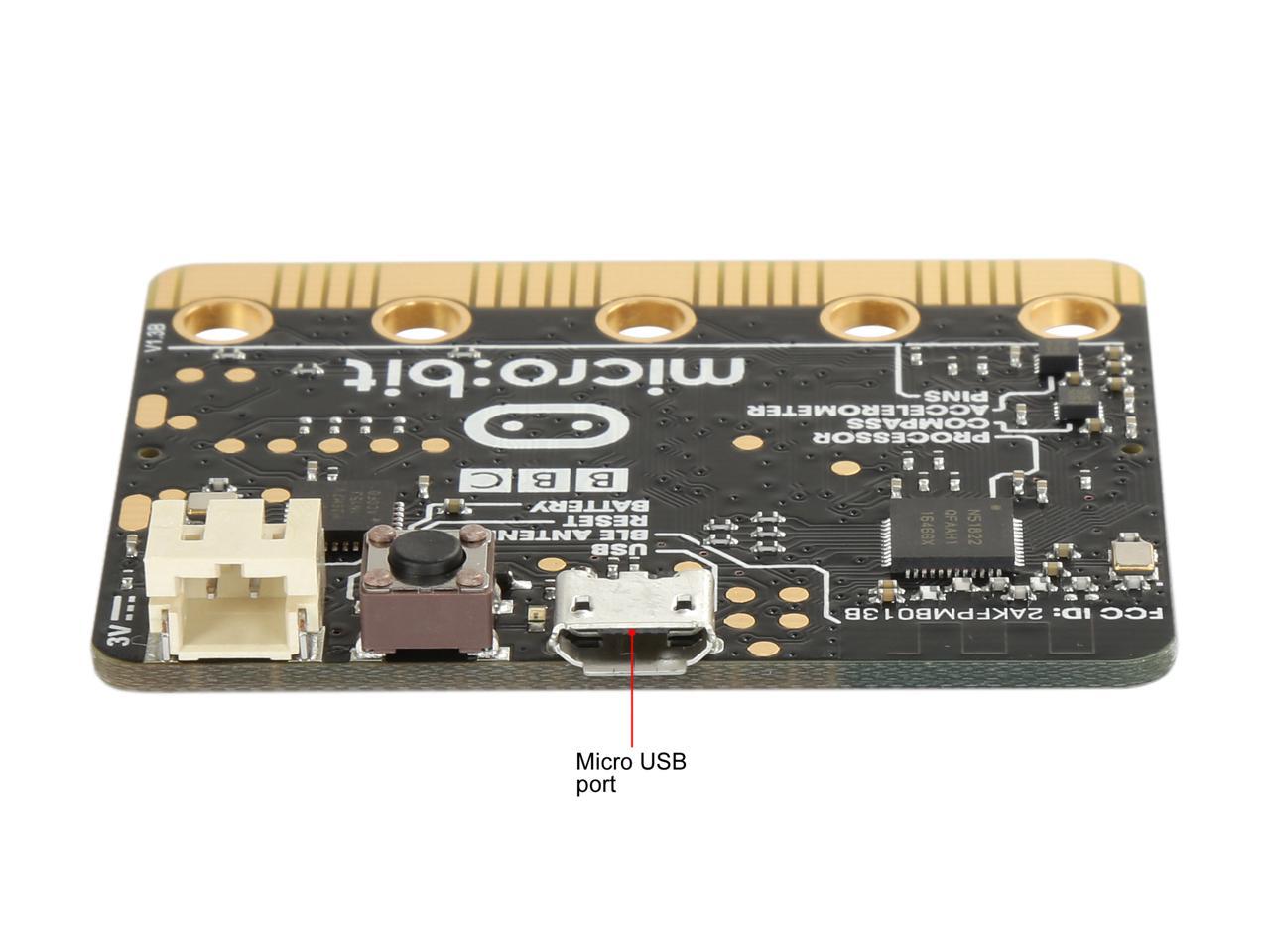

Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick

System LED x 1 yellow

System push button switch x 1

System push button switch x 1

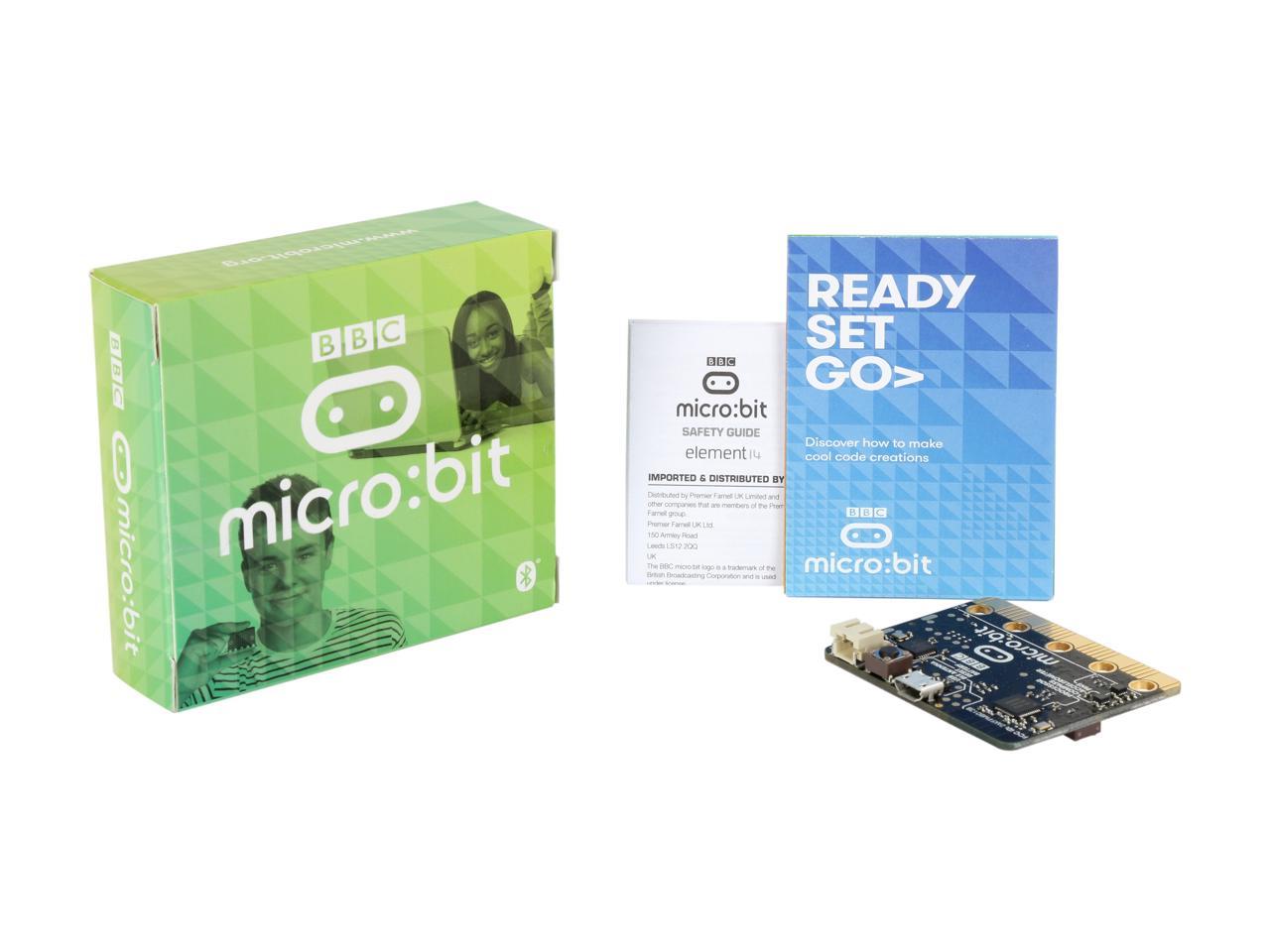

Packing List:

1* BBC micro:bit development board

1*Quick Start Guide
