Barcode Scanner Kit Bluetooth QR Code USB 2D 1D Scanner Module Support ESP32 WiFi for Arduino
Barcode Scanner Kit Bluetooth QR Code USB 2D 1D Scanner Module Built-in LED UART / TTL Communication Support ESP32 WiFi for Arduino, Micropython, UIFlow, Cash Register Scanning and Warehouse Inventory
[ User Manual ] - QR Code Command: https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/docs/datasheet/atombase/AtomicQR/USER_MANUAL_QR-CODE_EN.docx; Example: For UIFlow: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/AtomBase/AtomicQR/UIFlow; For Arduino: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/AtomBase/AtomicQR/AtomicQR.

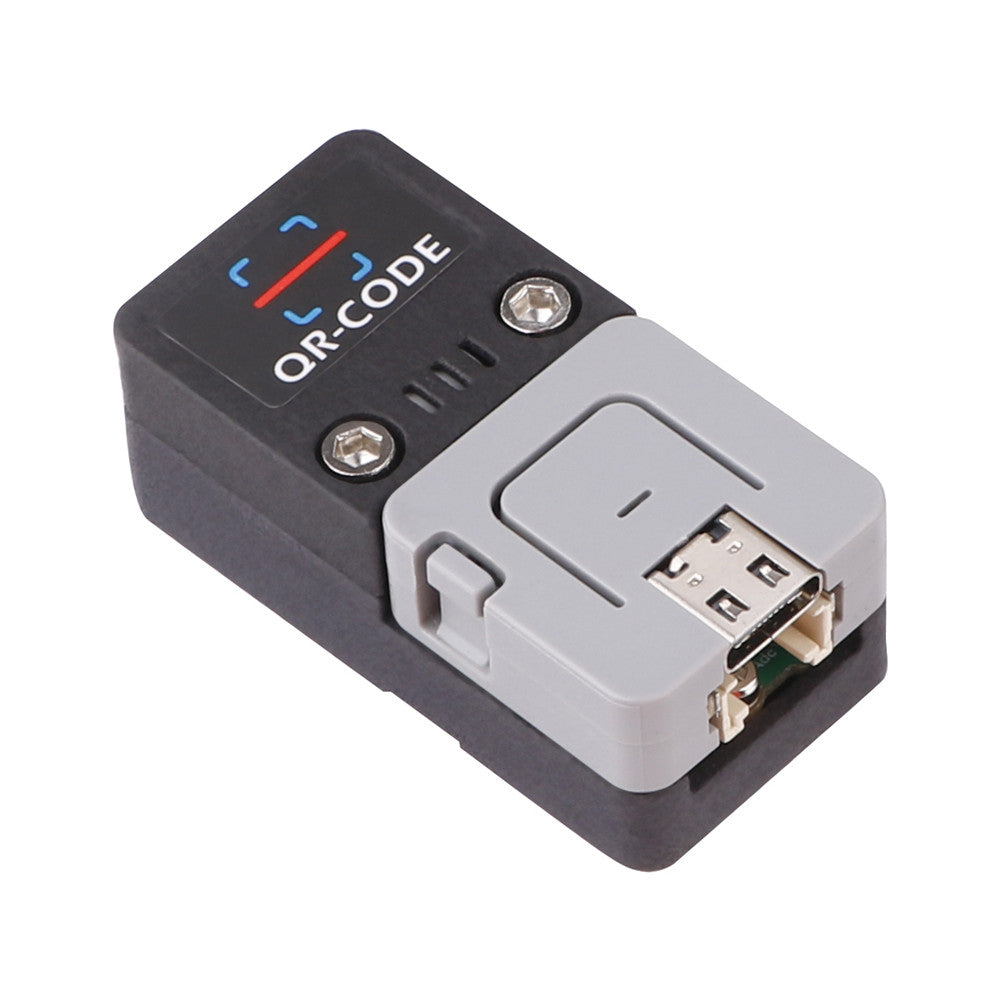

[ Barcode Scanner Kit ]: ATOM QR-CODE is an M5Atom compatible module for reading Barcode/QR-codes. It includes two parts: an M5Atom Lite unit and code scanning module.
[ Scanning even in the Dark ] - Our barcode scanners has built-in lighting LED, which can easily identify codes even in a dark environment. The green LED is convenient for focusing and aiming.
[ Features ] - It supports Bluetooth and WiFi Based on esp32, UART/TTL communication, multiple output formats, supports 6 kinds of 2D codes and 19 kinds of 1D codes.
[ Application ] - It is compatible with Atom Matrix/Atom Lite, support for Arduino、Micropython、UIFlow, can be used for Cash register scanning, Barcode/QR-code input device and warehouse inventory.
Compatible with Atom Matrix/Atom Lite
Built in lighting and focus LED
Support Bluetooth and WiFi Based on esp32
Support for Arduinoã€Micropythonã€UIFlow
Manual and automatic scanning mode
Light and sound reminders
Multiple output formats
Data can be pre-edited and hidden
Rich custom instructions
Support RAW / GBK / Unicode

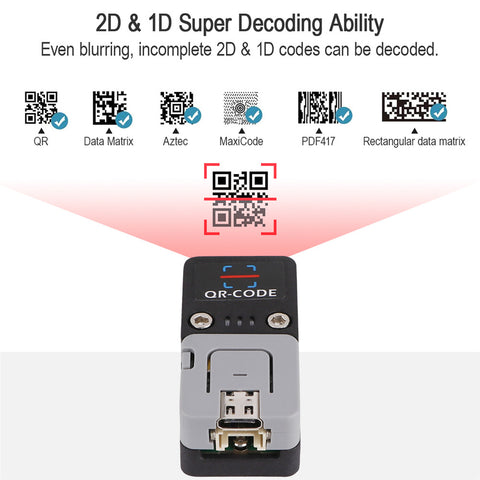

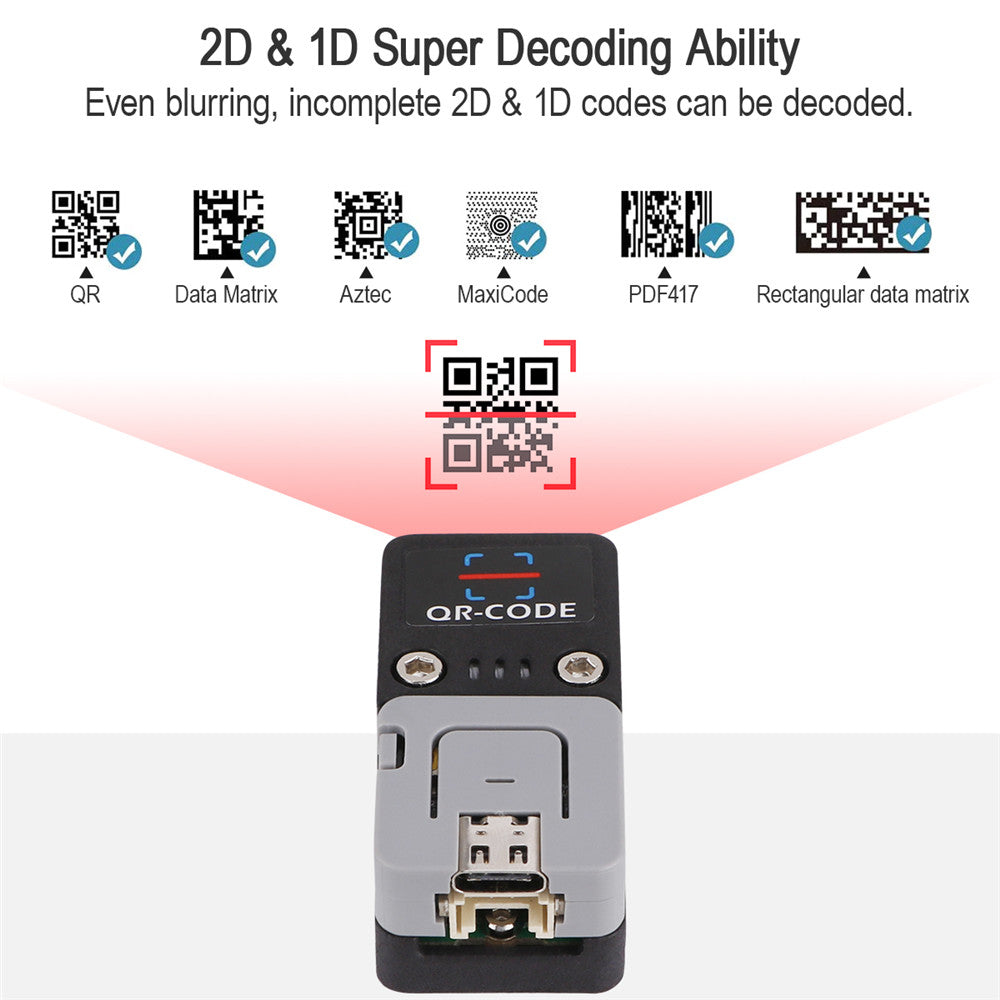

2D: QR Code,Mrico QR, Data Matrix, PDF417,Mrico PDF417ï¼ŒAztec

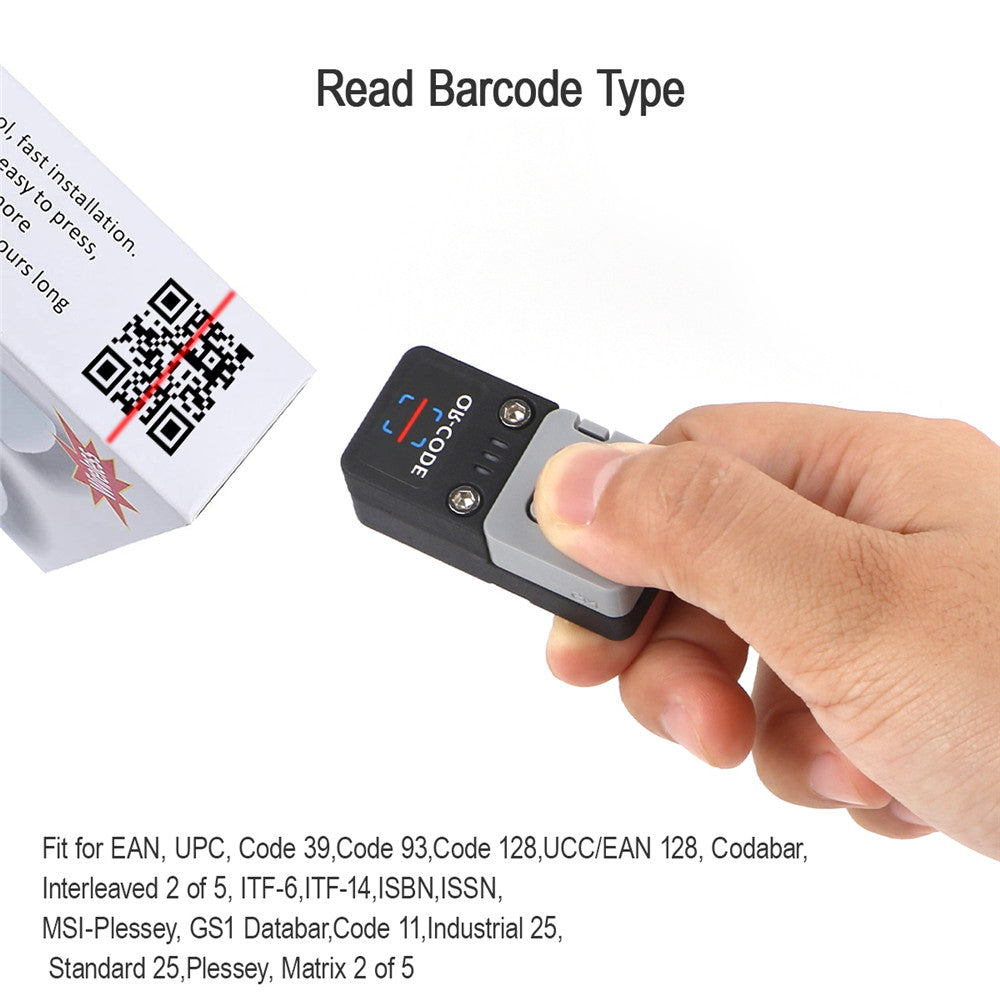

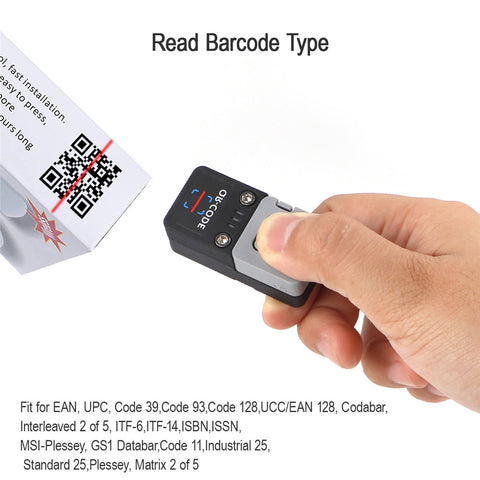

1D: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabarï¼ŒInterleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,Code 11,Industrial 25ï¼ŒStandard 25,Plessey, Matrix 2 of 5
Cash register scanning
Barcode/QR-code input device
The scan module has been configured at the factory. M5Atom Lite has no pre-burn preset program.You need to burn the following example program for use. If you need to change the configuration, please refer to the user manual to scan the QR code for configuration. If you restore the factory settings, please scan to confirm that you are in TTL communication mode,and the baud rate setting is correct.The reading of some 1D code or 2D code needs to be enabled by scanning qr-code of user manual to configure.

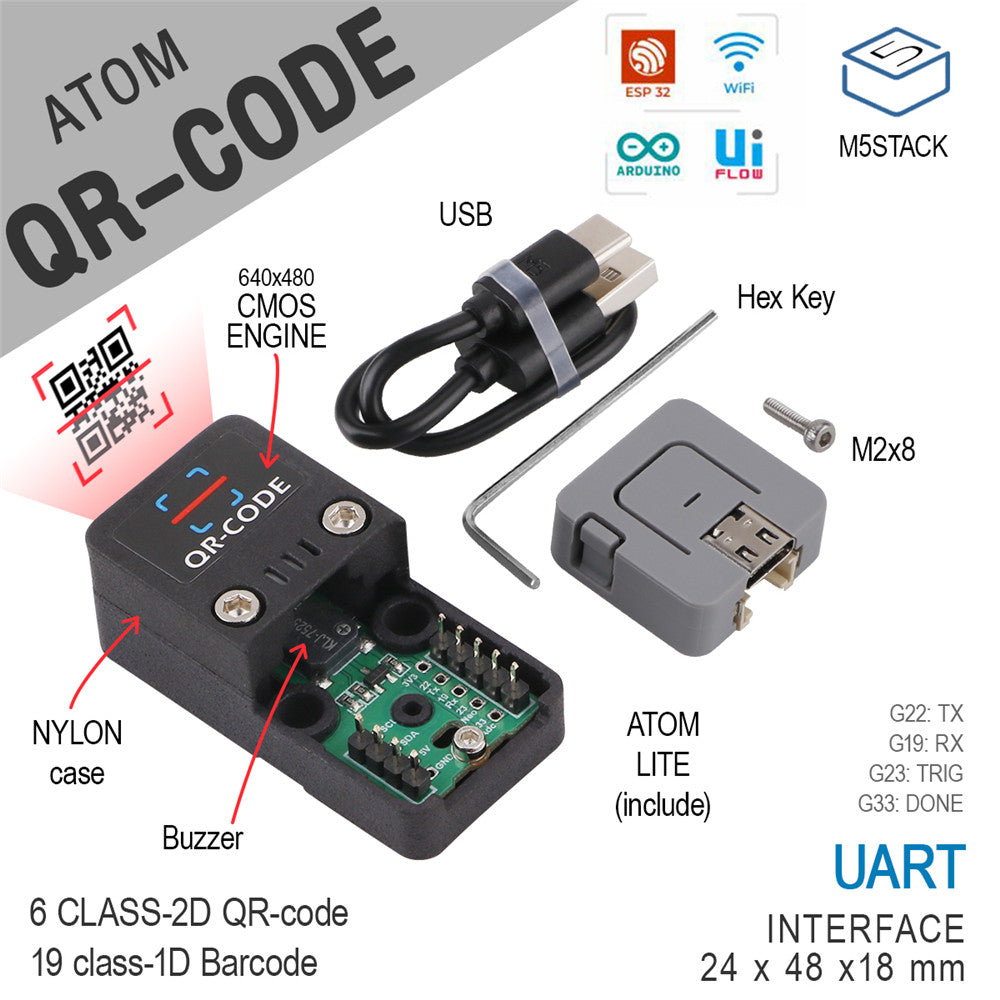

1 * M5Stack ATOM QR-CODE
1 * M5Atom Lite
1 * Hex Key
1 * M2*8 Hexagon socket cup head machine screw
1 * TYPE-C USB Cable
