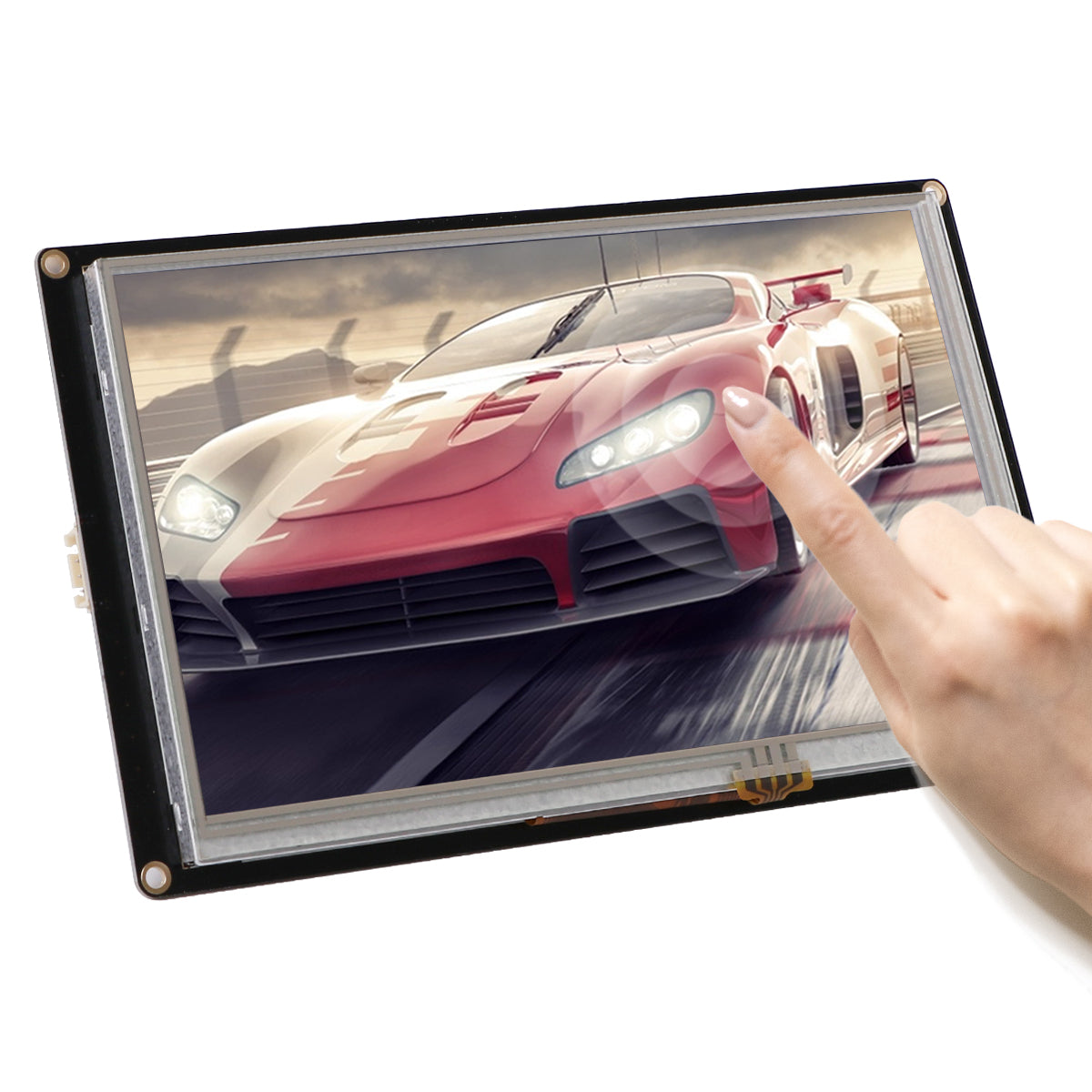

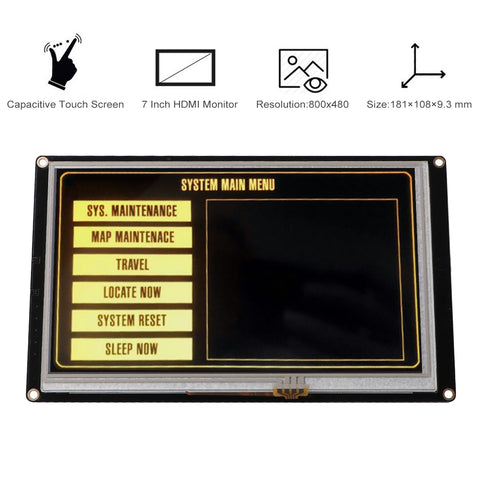

Arduino Touch Screen Display Human Machine Interface HMI 7.0 Display


  • $95.99
    Unit price per
  • Save $4
Shipping calculated at checkout.

Product description
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

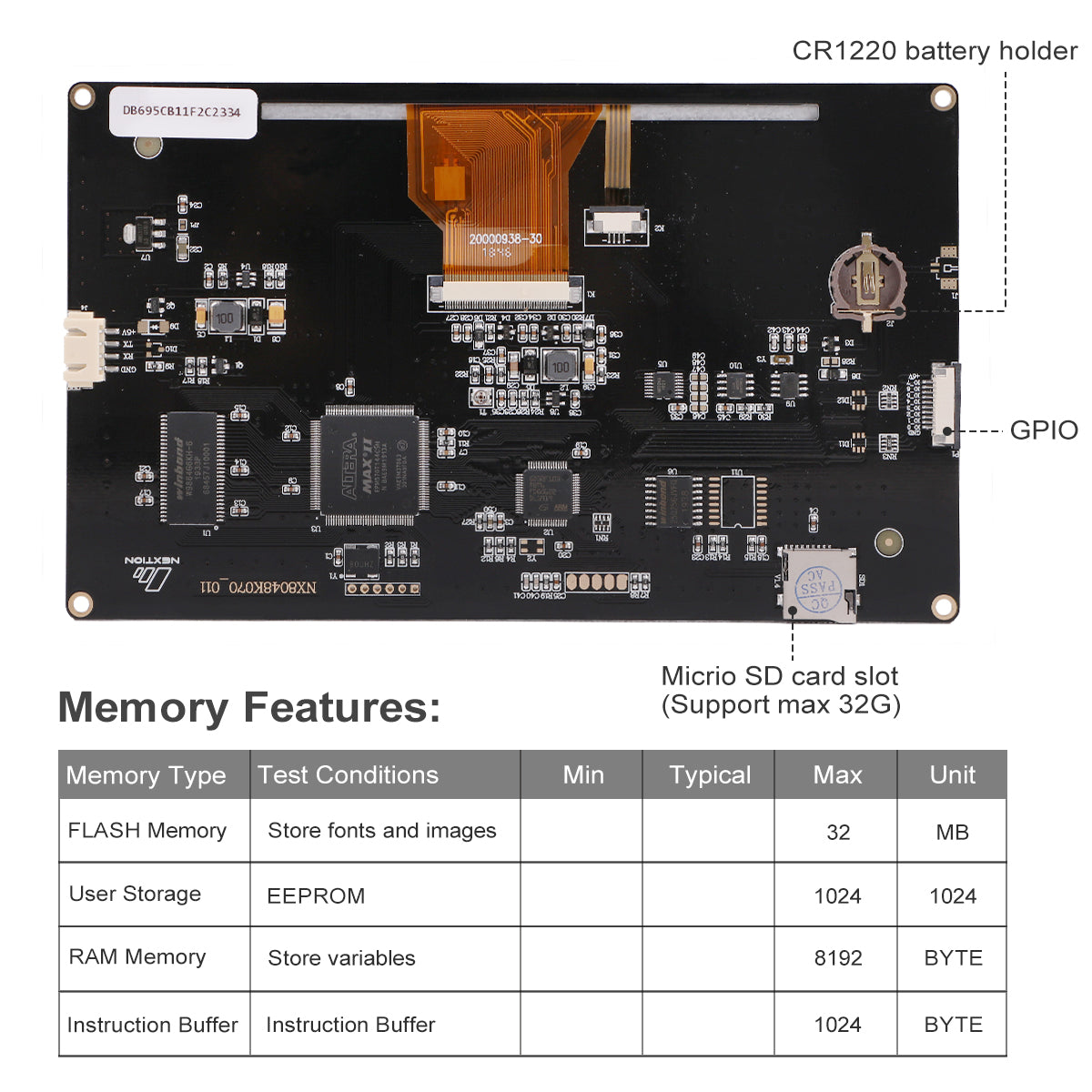

Supports built-in RTC
Supports GPIO
SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
Flash data storage space: 32MB
EEPROM: 1024 bytes
RAM: 8192 bytes
Instruction buffer: 1024 bytes

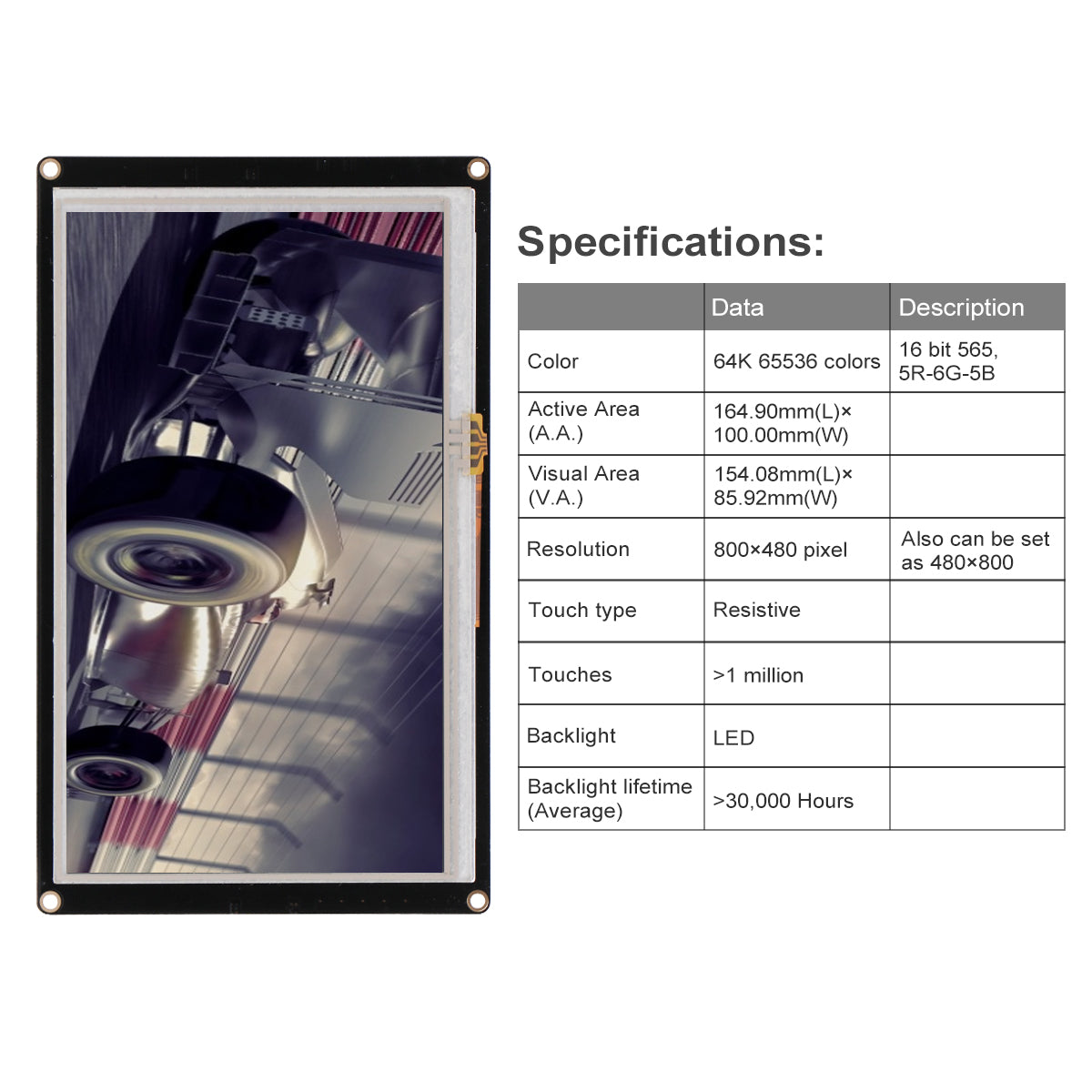

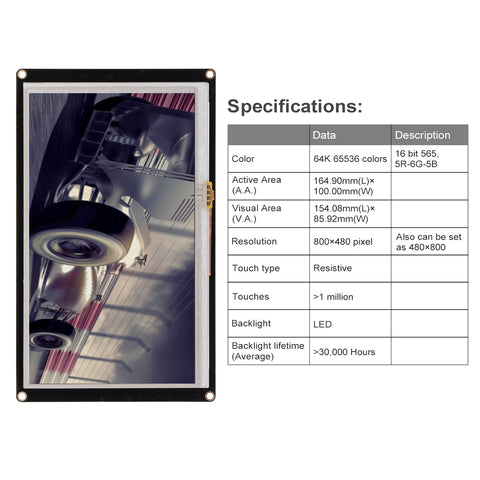

Color: 65K (65536) colors

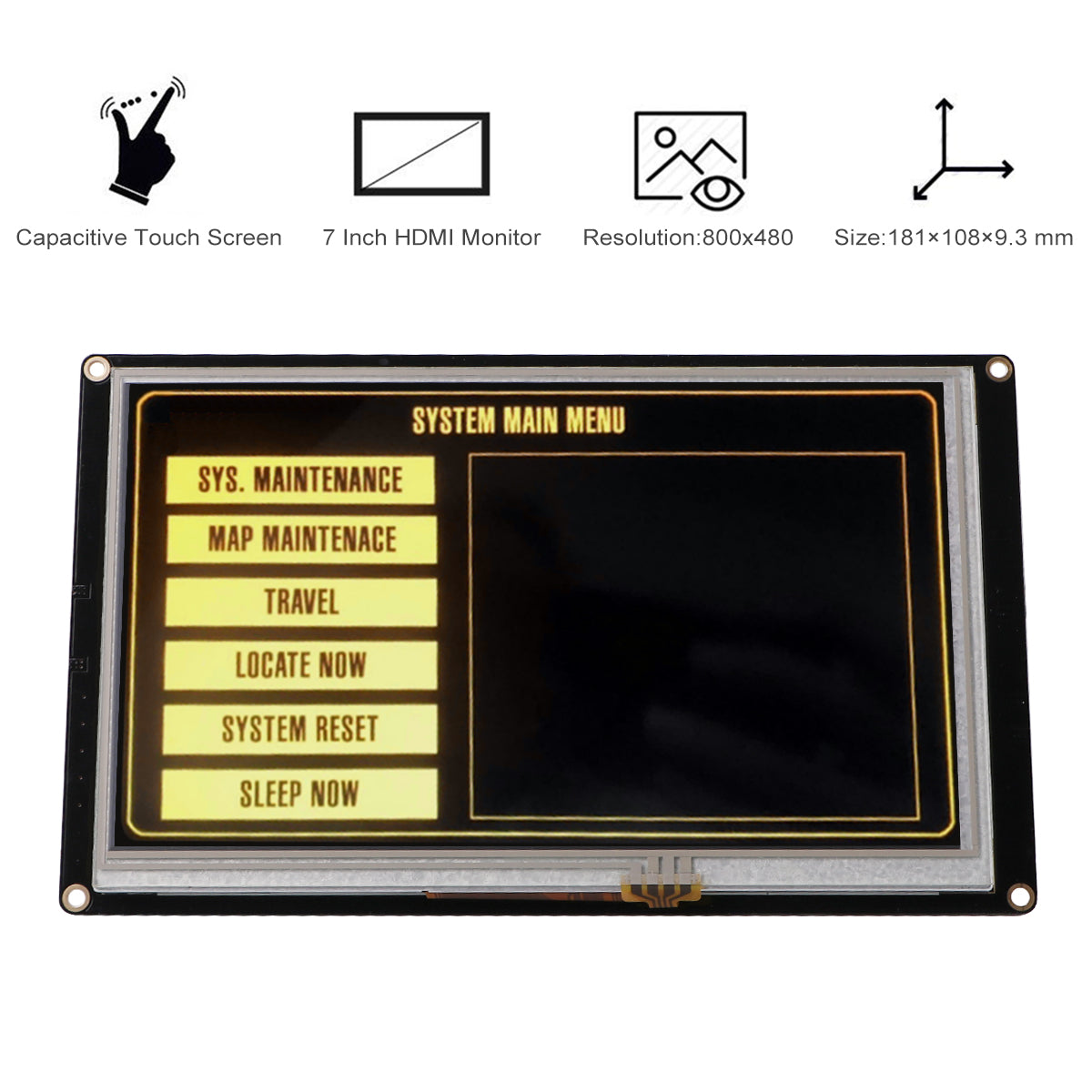

Resolution: 800×480 pixel
Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%

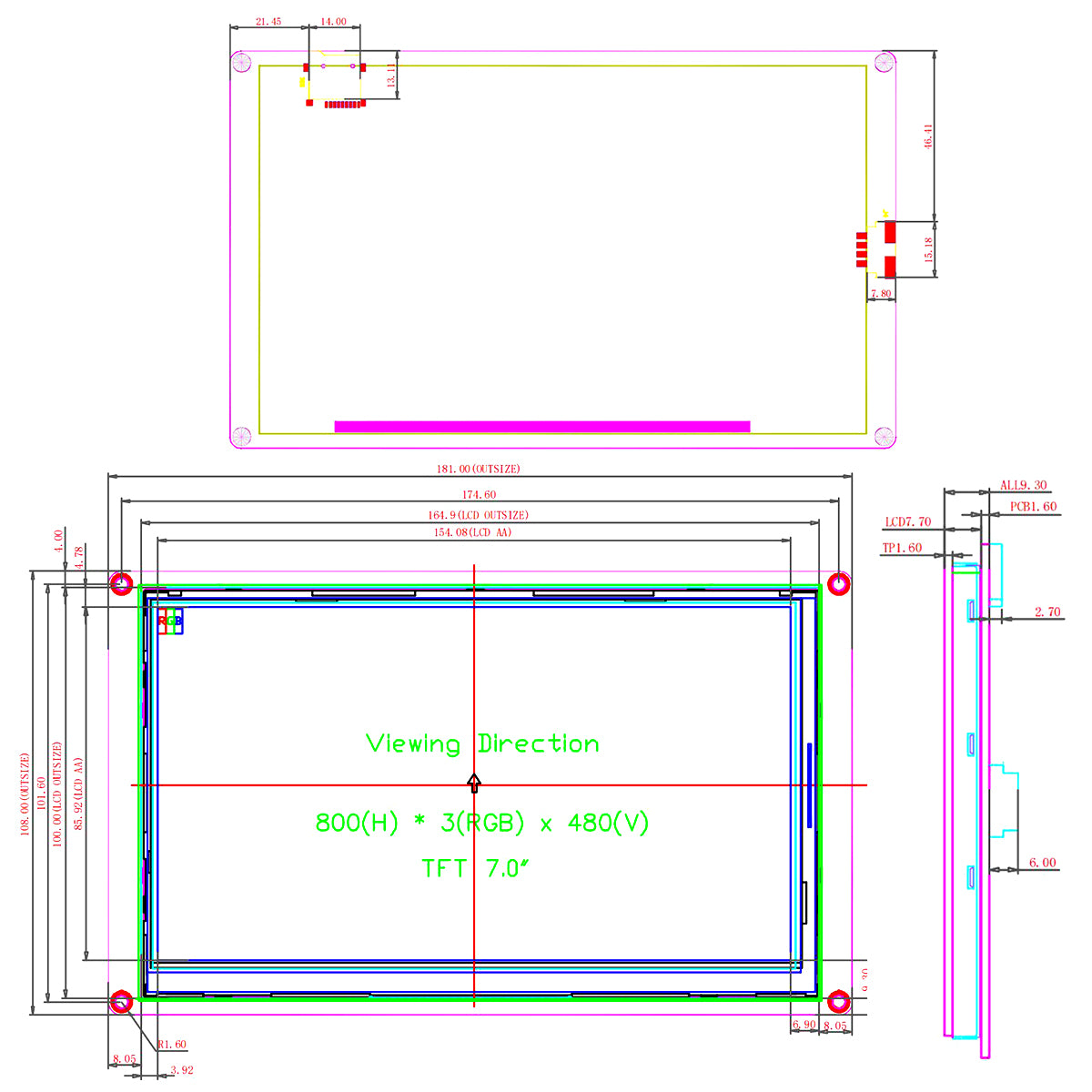

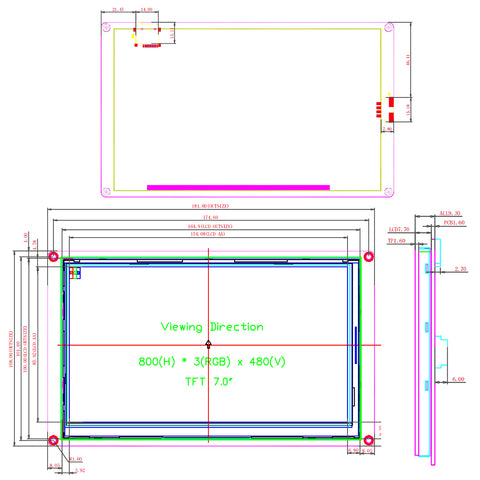

Visual Area: 154.08mm(L)×85.92mm(W)
Layout size: 181(L)×108(W)×9.3(H)
Touch type: Resistive
Backlight: LED
Backlight lifetime (Average): >30,000 Hours
Net Weight: 268 g

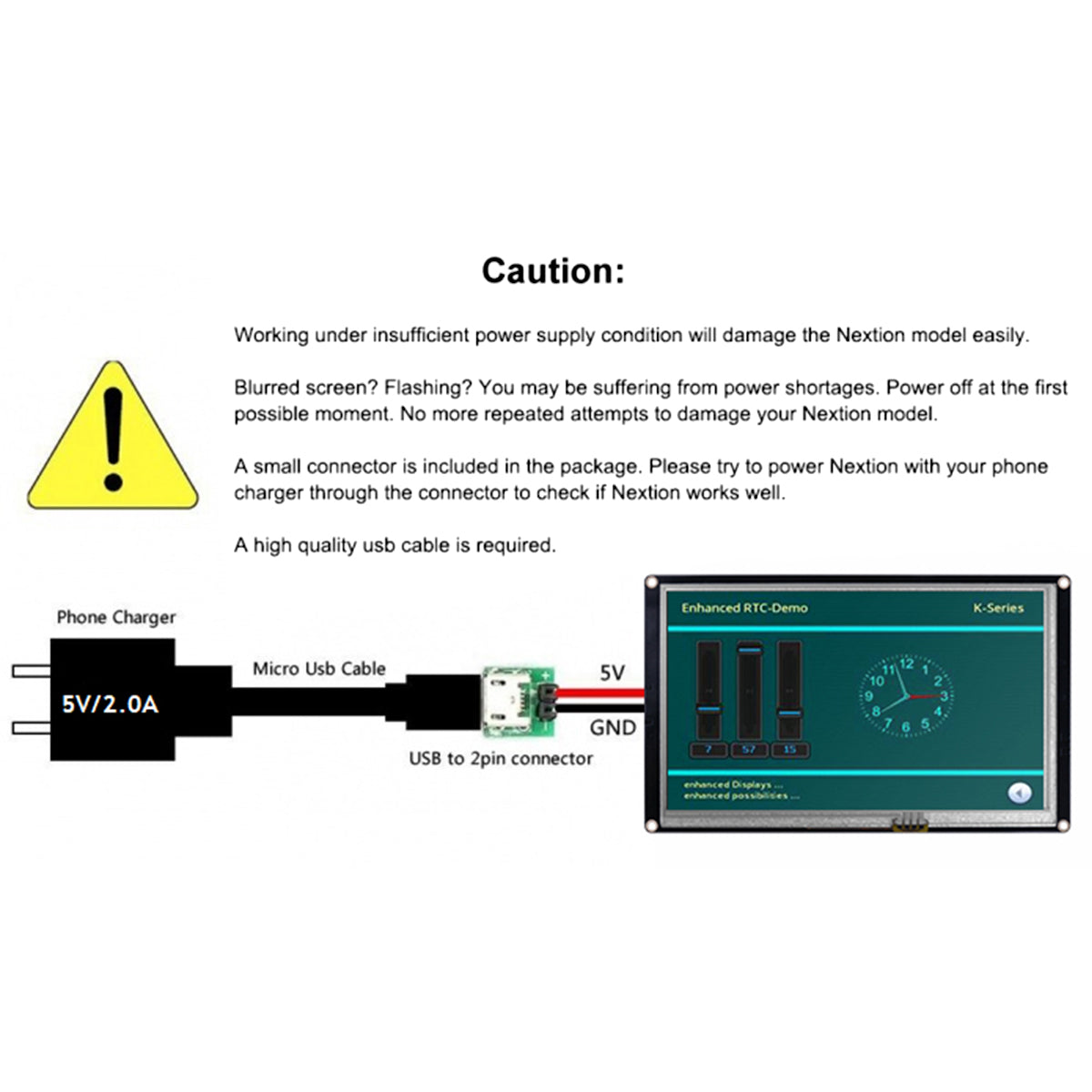

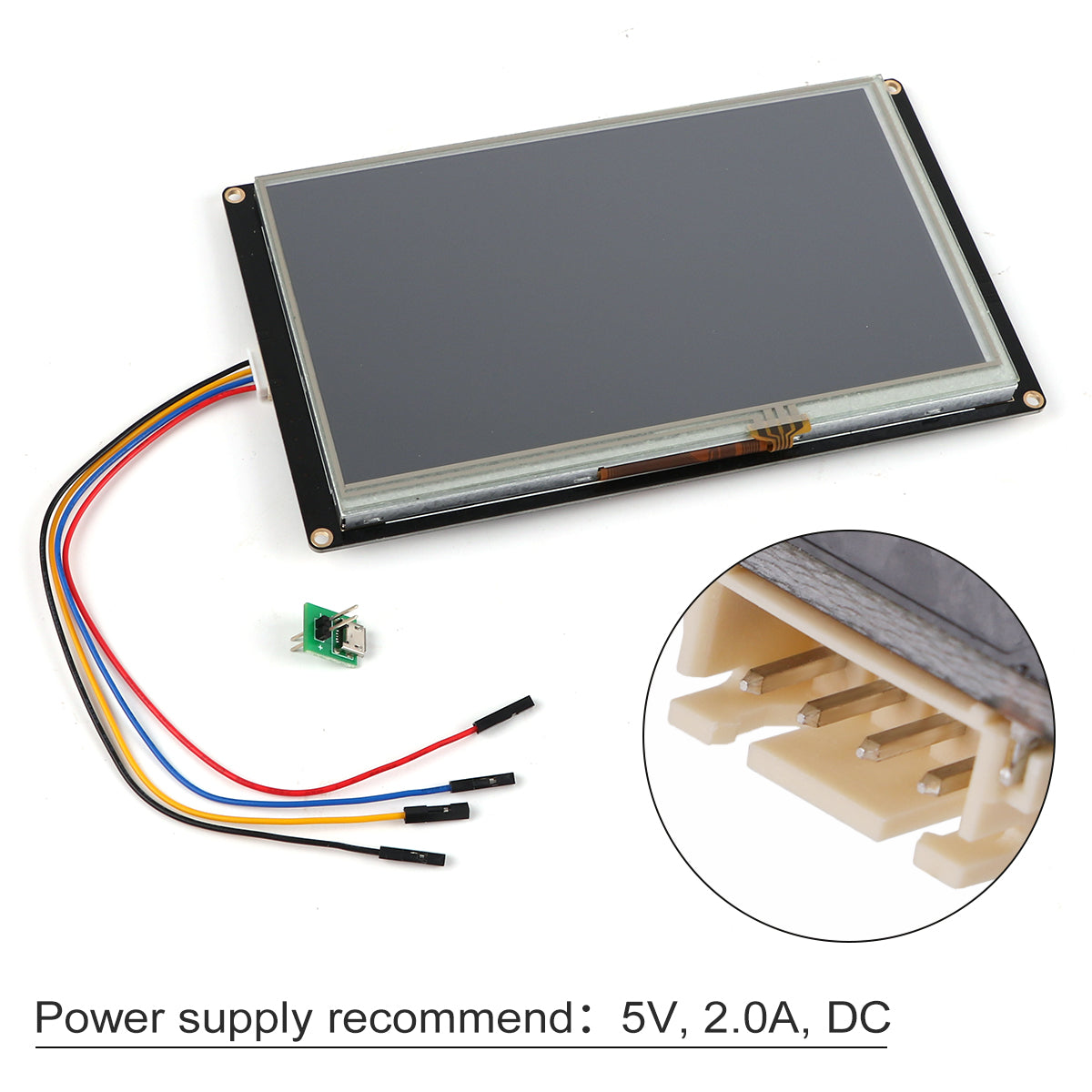

Recommended power supply: 5V 2A
Certificates: CE/EMC, RoHS (certificates)

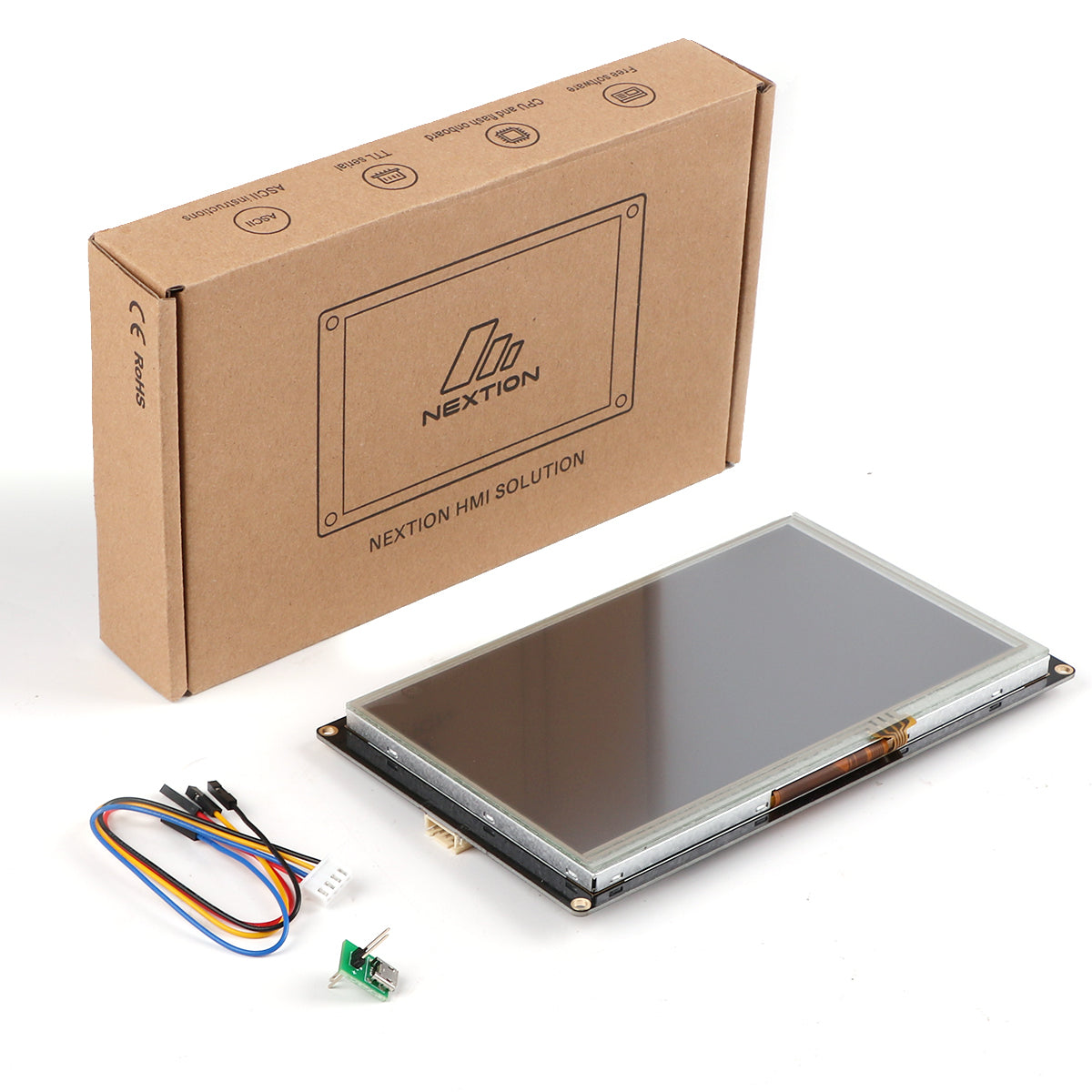

Package Including:
1 * 7.0" Nextion Enhanced HMI Display

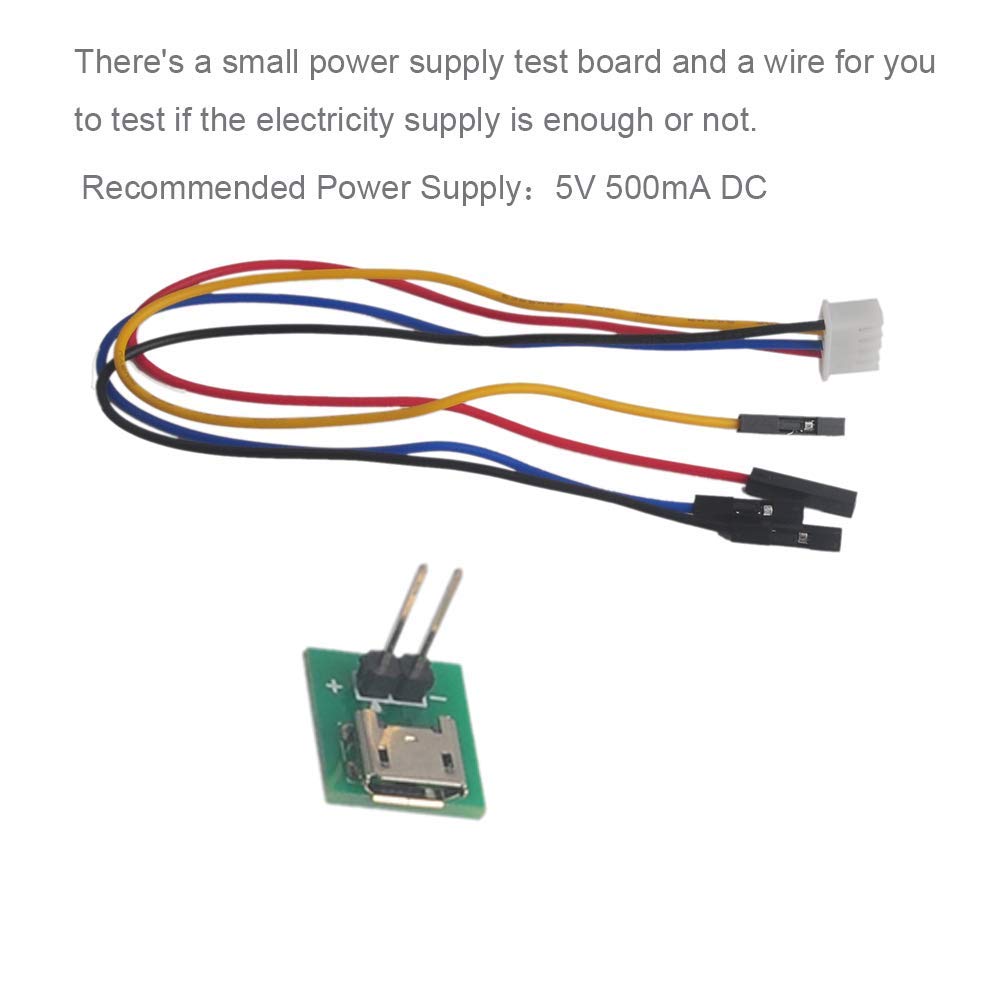

1 * power supply test board
1 * 4-pin grove cable
