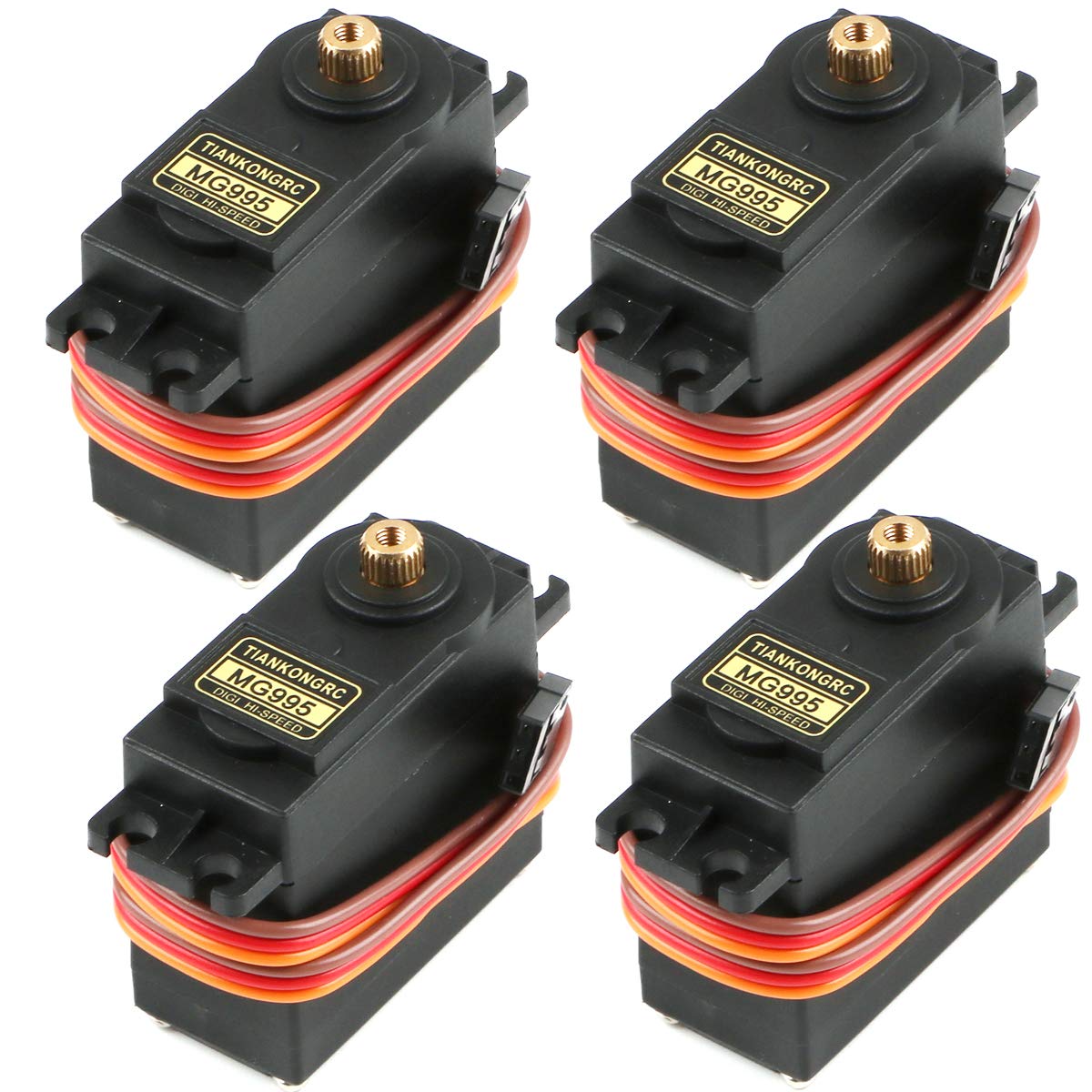

MakerFocus 4Pcs MG995 Servo High Speed 20KG Control Angle 180 Metal Gear Servo

  • $18.89
    Unit price per
  • Save $2.10


Specification:

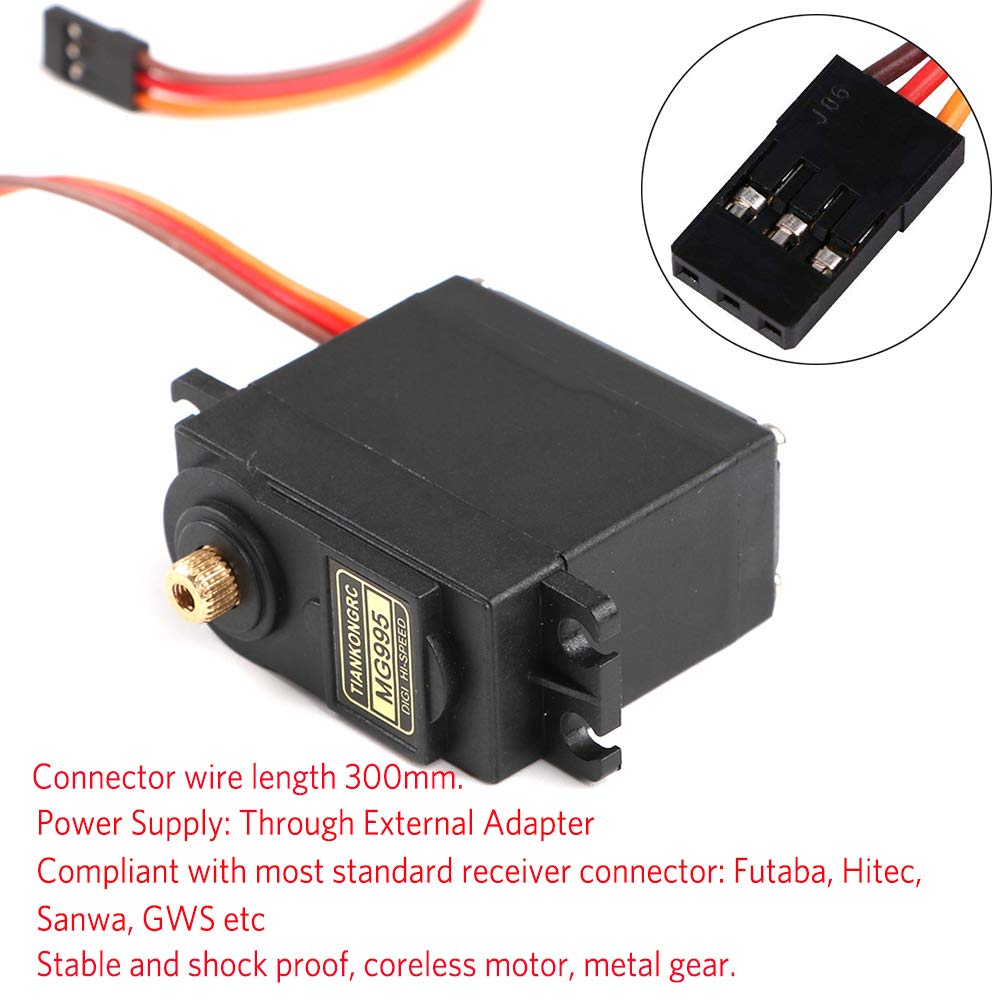

Connector Wire Length 300mm/11.8 inch

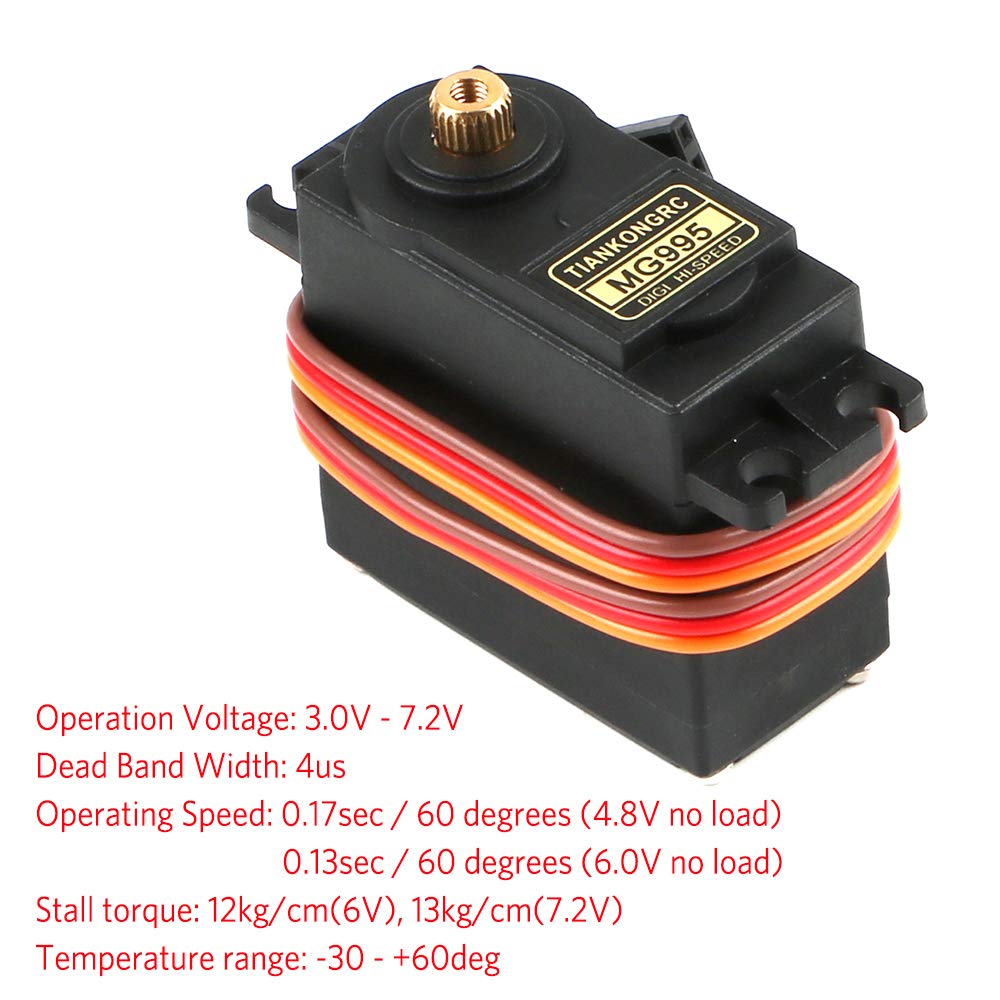

Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Stall torque: 12kg/cm(6V), 13kg/cm(7.2V)
Operation Voltage: 3.0V - 7.2V

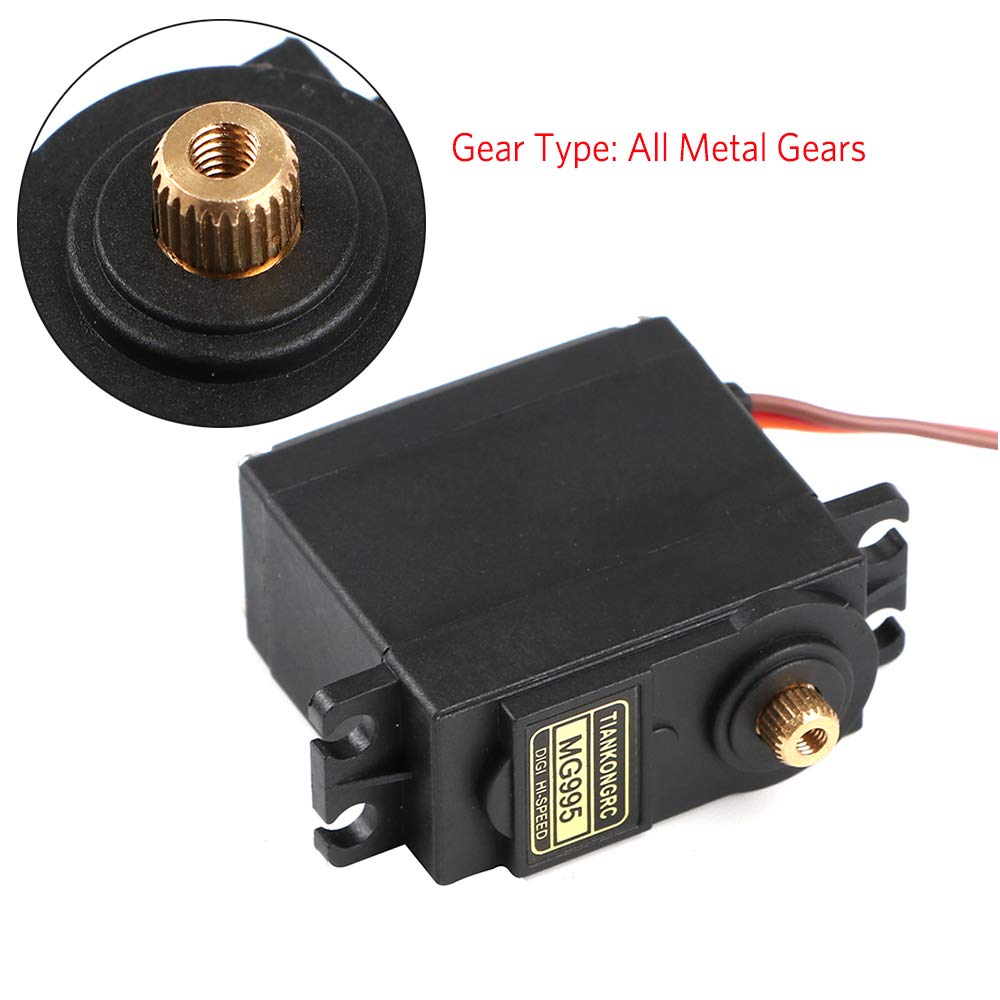

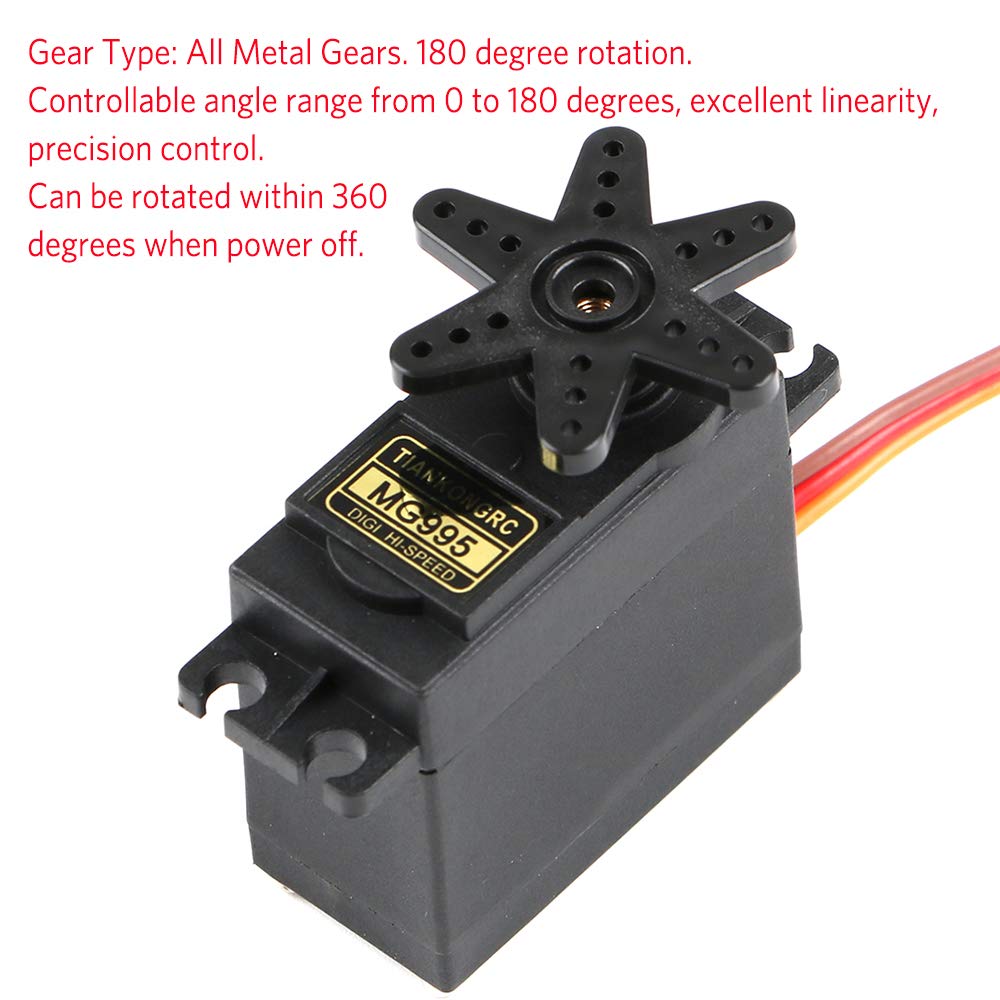

Gear Type: All Metal Gears
Dead Band Width: 4us
Plug Specification: JR FUTABA and so on
Temperature range: -30 - +60deg
Item Size: 40.7*19.7*42.9mm(1.6*0.78*1.69inch)
Servo Weight: 55g

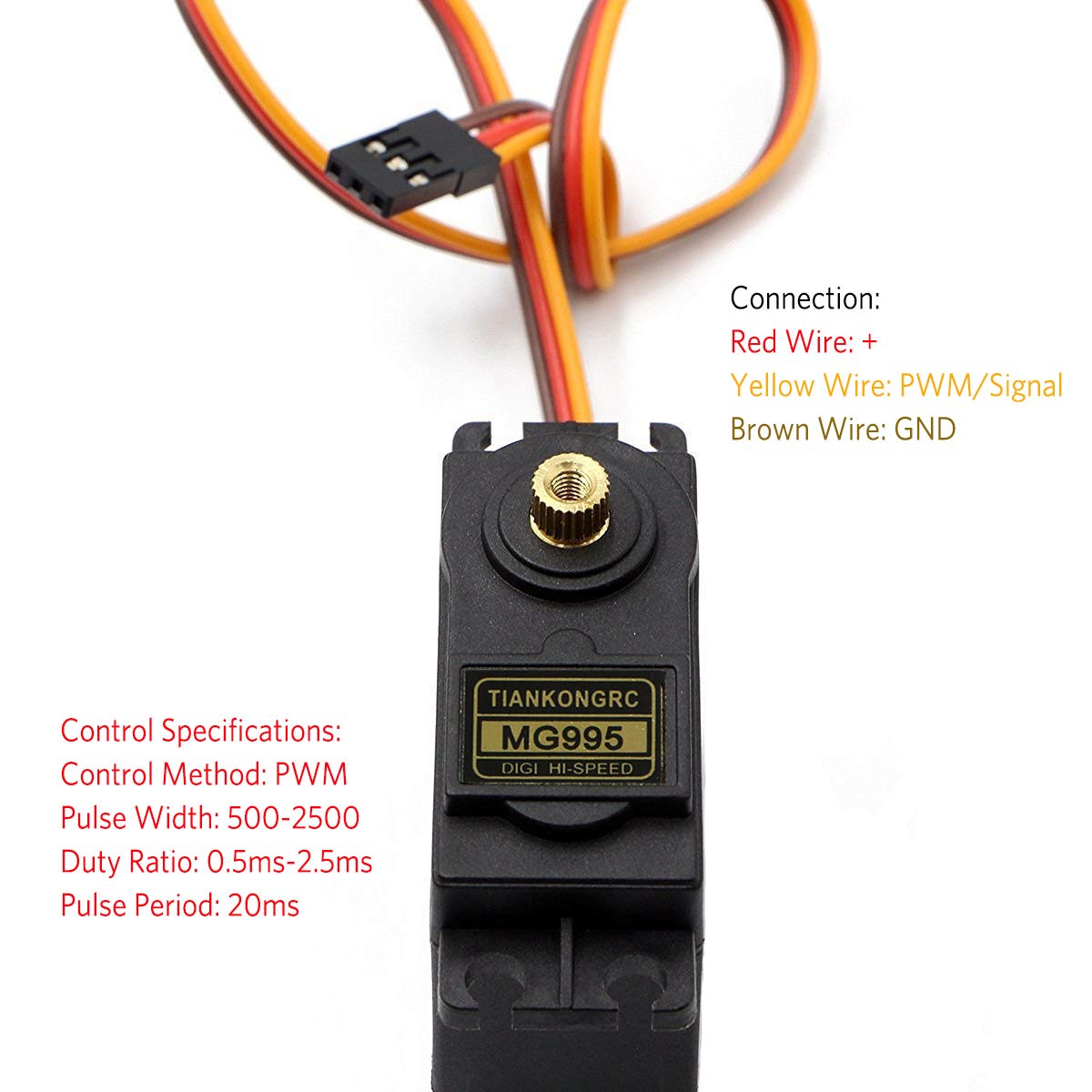

Control Specifications:
Control Method: PWM
Pulse Width: 500-2500
Duty Ratio: 0.5ms-2.5ms
Pulse Period: 20ms

Connection:
Red Wire: +
Yellow Wire: PWM/Signal
Brown Wire: GND

Features:
Gear Type: All Metal Gears
Power Supply: Through External Adapter
Stable and Shock Proof
Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for biped robot / robot / remote control car, suitable for models of 50-90 methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft

Note:
1. Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree.
2. If you have any questions, please feel free to contact us, we will help you as soon as possible.

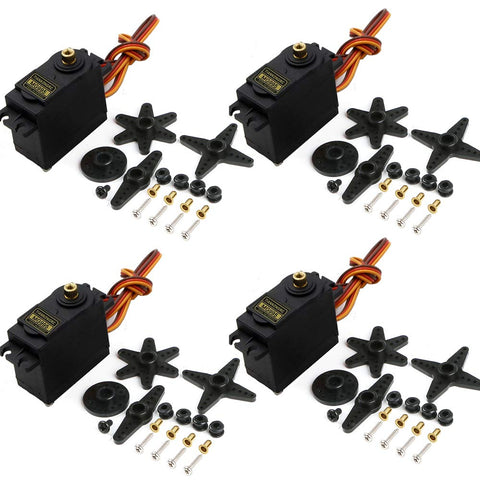

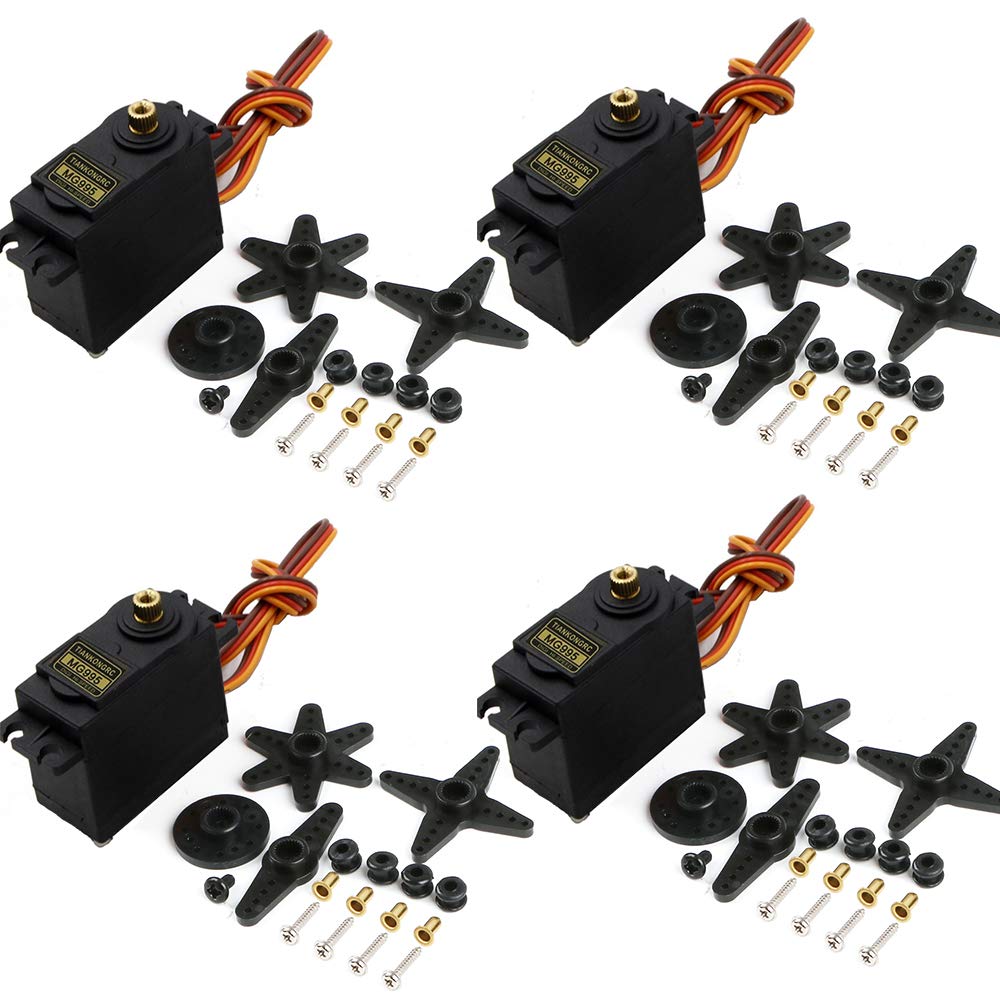

Packing List:

4 * MG995 Servo
4 * Servo Horn Kit
