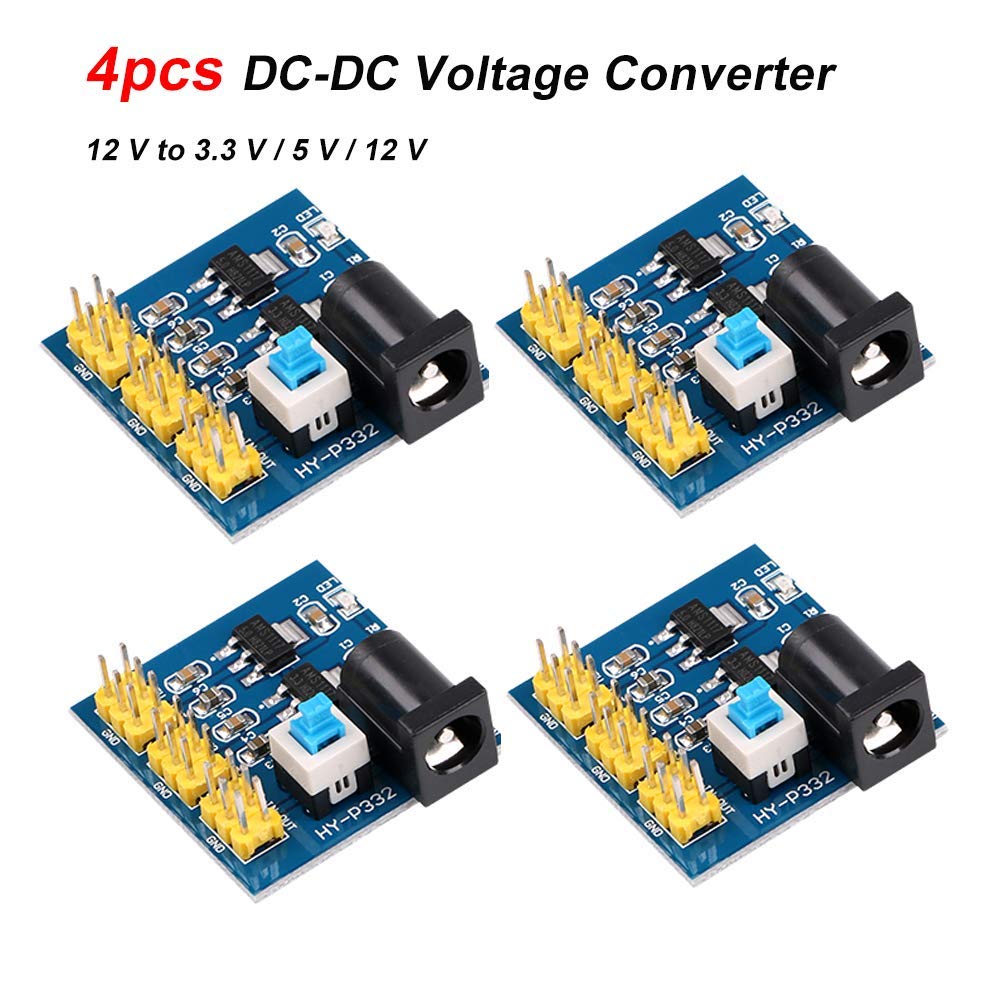

MakerFocus 4pcs DC-DC Voltage Converter Power Supply Module 12 V to 3.3 V/5 V/12 V for Arduino

  • $6.59
    Unit price per
  • Save $1.40


Features:
This DC-DC module on the module can convert 12 V to 3.3 V, and there is also a 12 V output.

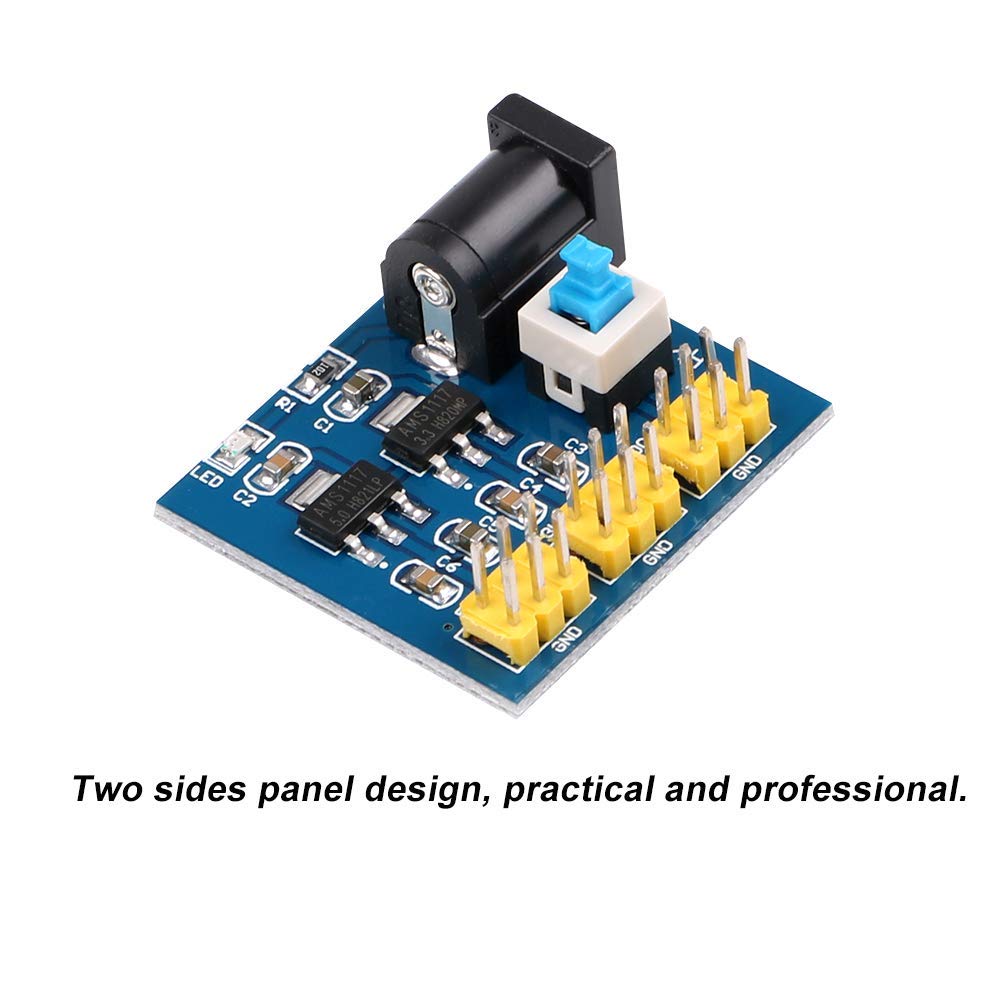

Two sides panel design, practical and professional.
Specially designed two rows of needle holes that can be directly fixed to a universal PCB to extend the experiment.
Using multiple input and output pins, easy to use and connect.
There is a red power indicator that can be checked in the power state.
The input voltage can be DC 6 V to 12 V, but the input voltage should be 1 V higher than the output voltage.

Specifications:

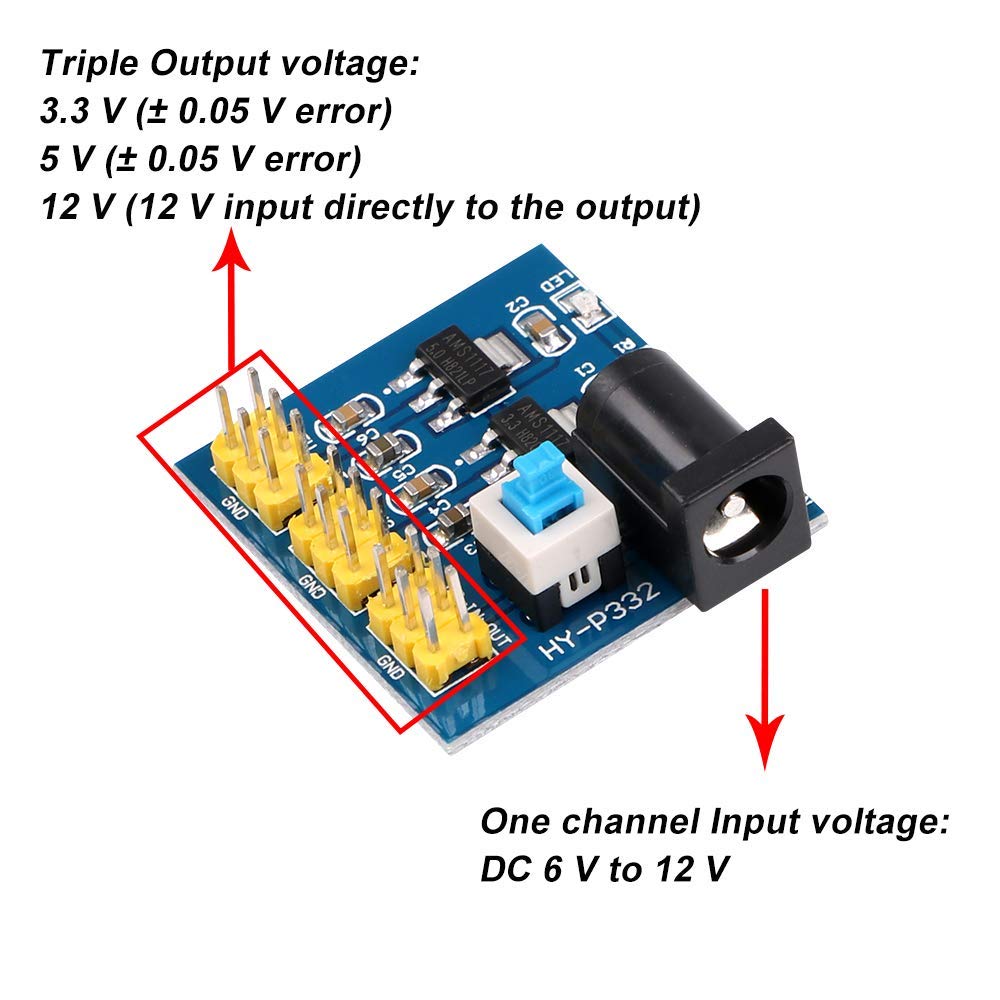

One channel Input voltage: DC 6 V to 12 V
Triple Output voltage: 3.3 V (± 0.05 V error), 5 V (± 0.05 V error), 12 V (12 V input directly to the output)

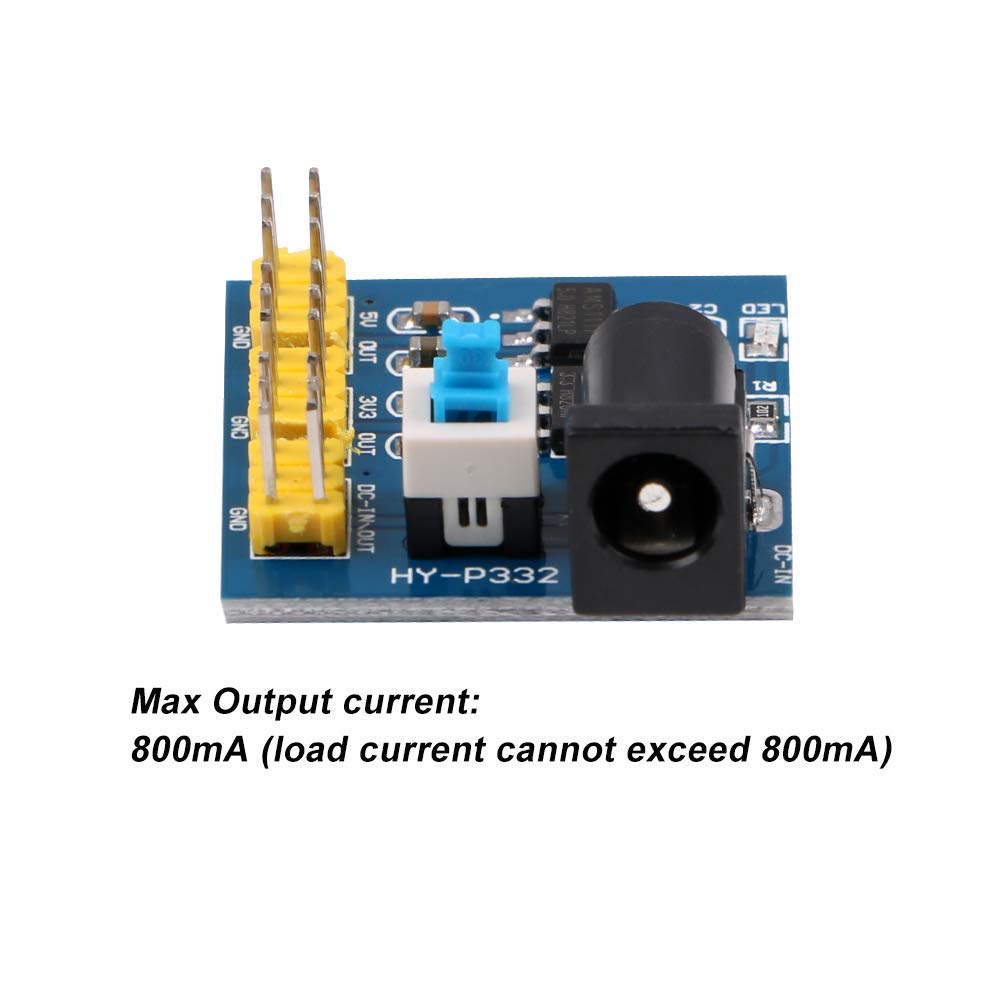

Max Output current: 800mA (load current cannot exceed 800mA)

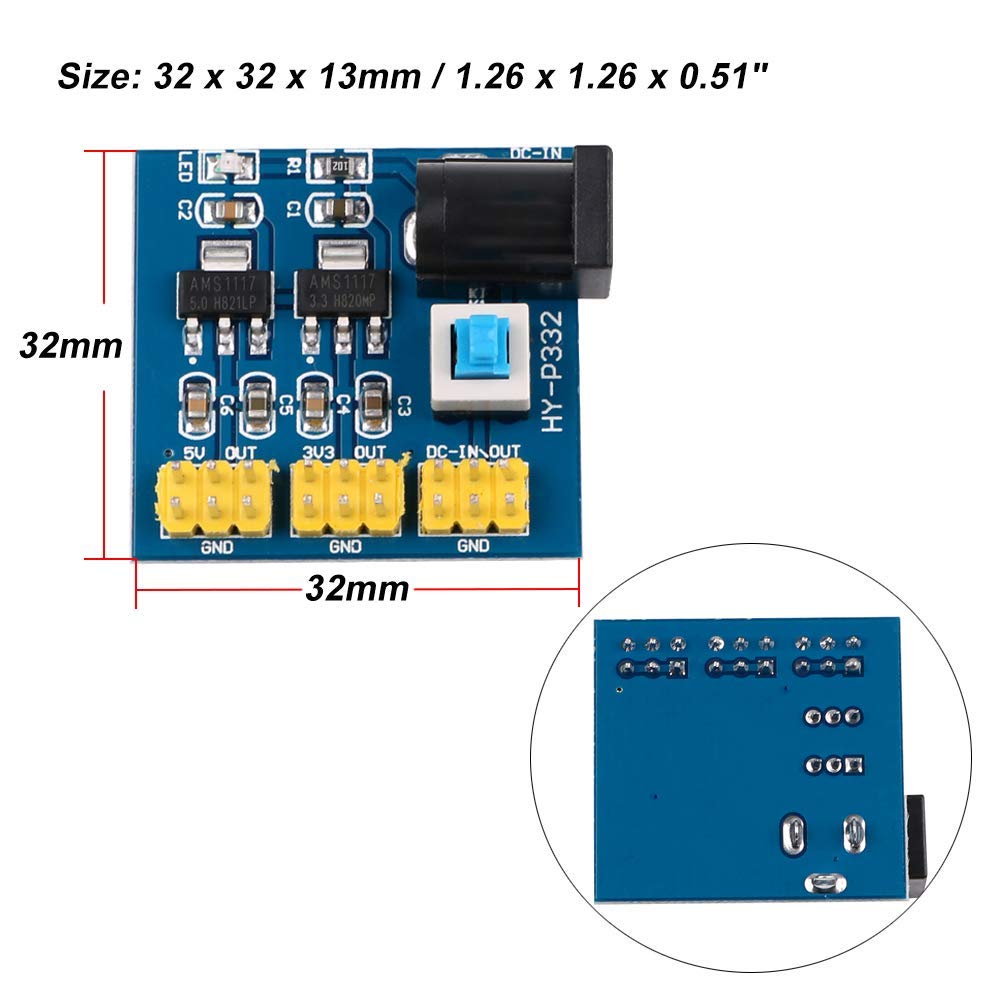

Size: 32 x 32 x 13mm / 1.26 x 1.26 x 0.51"



Packing List:

4 * DC-DC Voltage Converter Module
