Description:
802.11 b /
g / n
Built Tensilica L106 ultra-low power 32-bit micro-MCU, it supports 80 MHz clock speed and 160 MHz, support for RTOS
Built-in 10 bit precision ADC
Built-in TCP / IP protocol stack
Built TR switch, balun, LNA, power amplifier and matching network
Built under the PLL, regulator and power management components, 802.11b mode +20 dBm output power
The guard interval A-MPDU, A-MSDU polymerization and 0.4 s of
WiFi @ 2.4 GHz, supports WPA / WPA2 security mode
Support remote upgrade and AT Cloud OTA upgrade
Support STA / AP / STA + AP mode
Support Smart Config function (including Android and iOS)

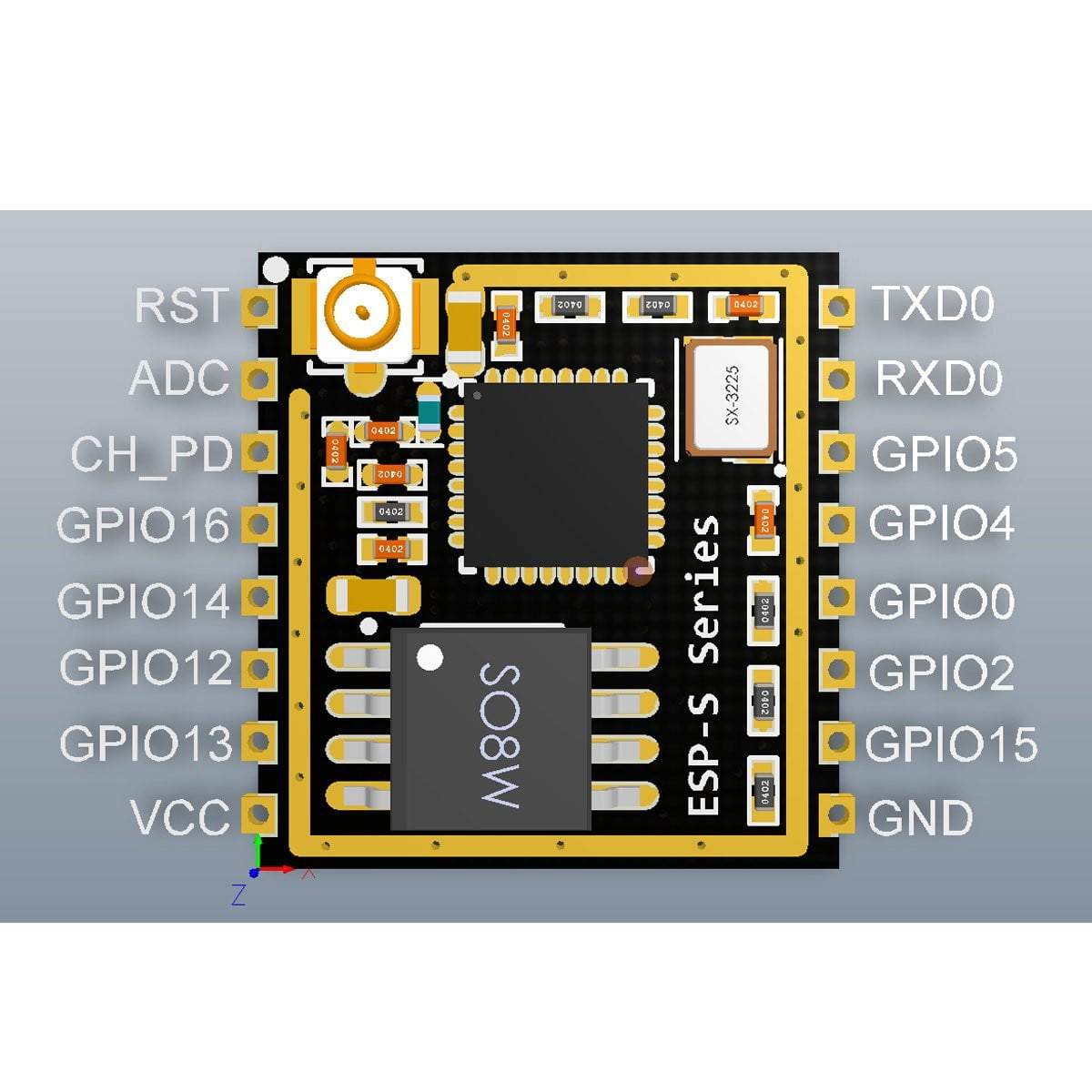

HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
Deep sleep holding current 10 uA, shutdown current is less than 5 uA
Wake within 2 ms, connect and transfer data packets
Standby power consumption is less than 1.0 mW (DTIM3)
Operating temperature range: -40 C ~ 125 C
Frequency range 2.4GHz-2.5GHz (2400M-2483.5M)
Data Connector UART / HSPI / I2C / I2S / Ir Remote Contorl
Operating Voltage GPIO / PWM
3.0 ~ 3.6V (recommendation 3.3V)
The average operating current: 80mA
Operating temperature -40 C~ 125 C
Storage temperature room temperature

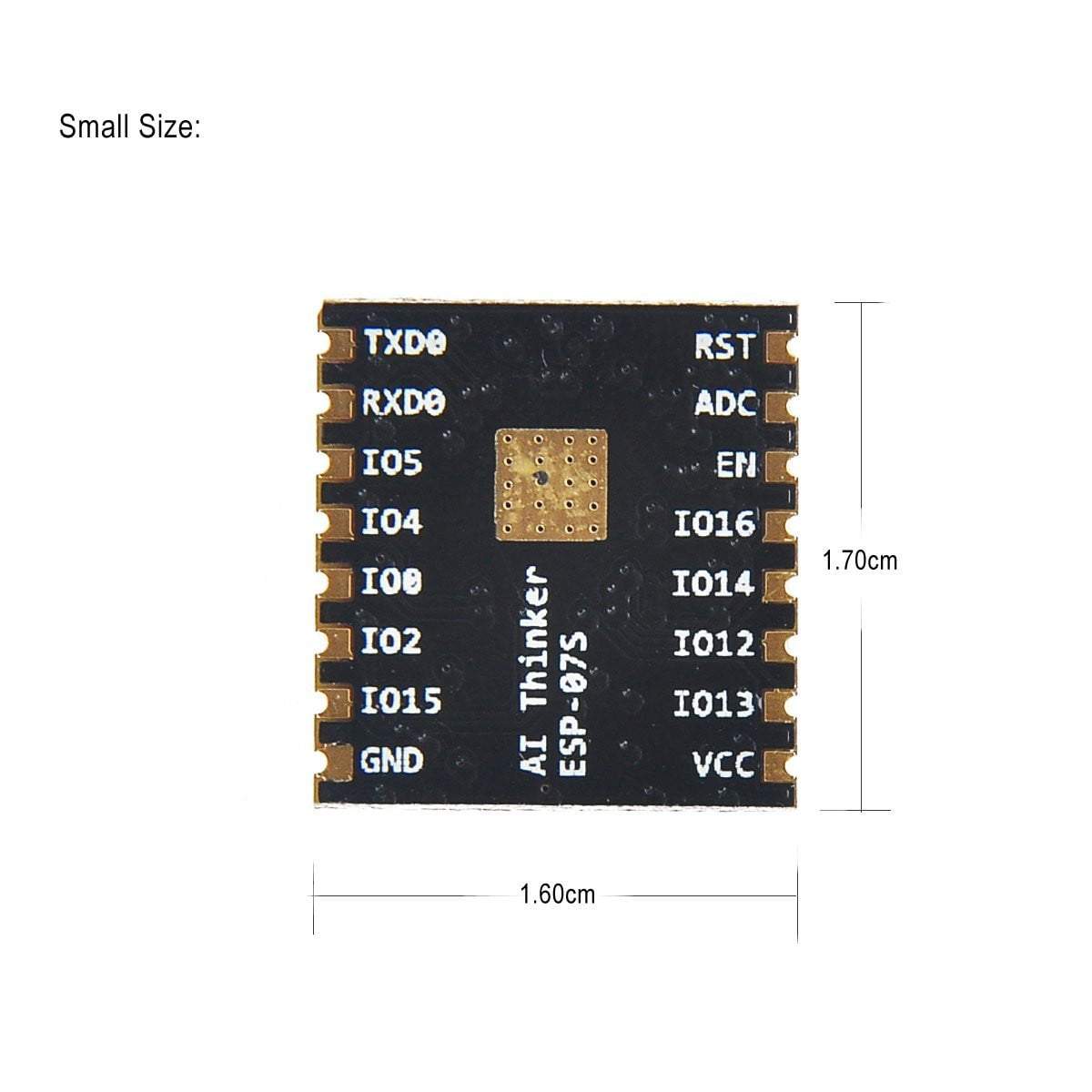

Package size of 16mm * 21.2mm * 3mm
External Connector N / A
Wi-Fi mode station / softAP / SoftAP + station
Security mechanism WPA / WPA2
Encryption type WEP / TKIP / AES
Upgrading firmware local serial programming / Drive Upgrade / host download Burn
Custom software development support client server
To provide secondary development SDK
Network protocols IPv4, TCP / UDP / HTTP / FTP
User Configuration AT + instruction set, cloud server, Android / iOS APP
Packing List:

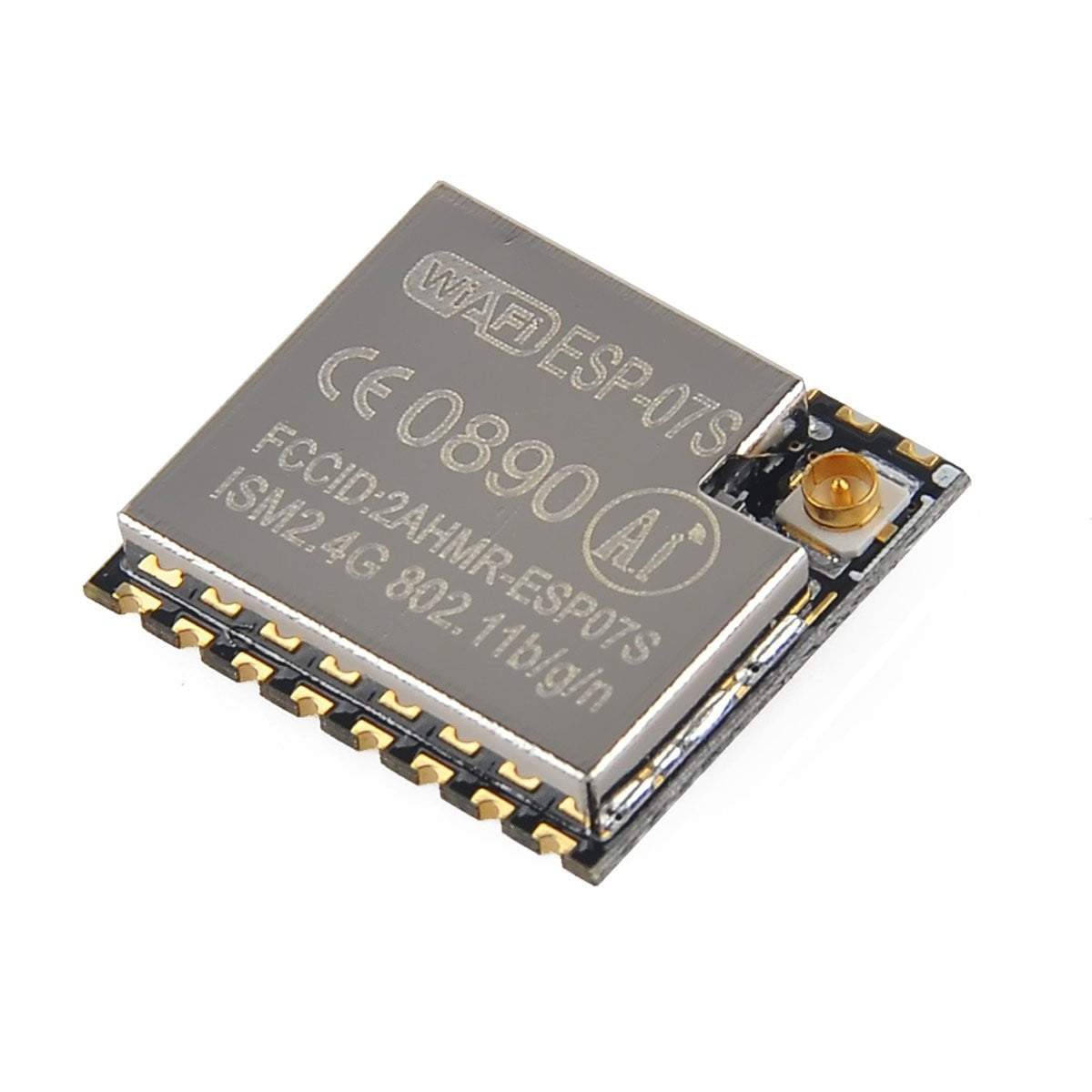

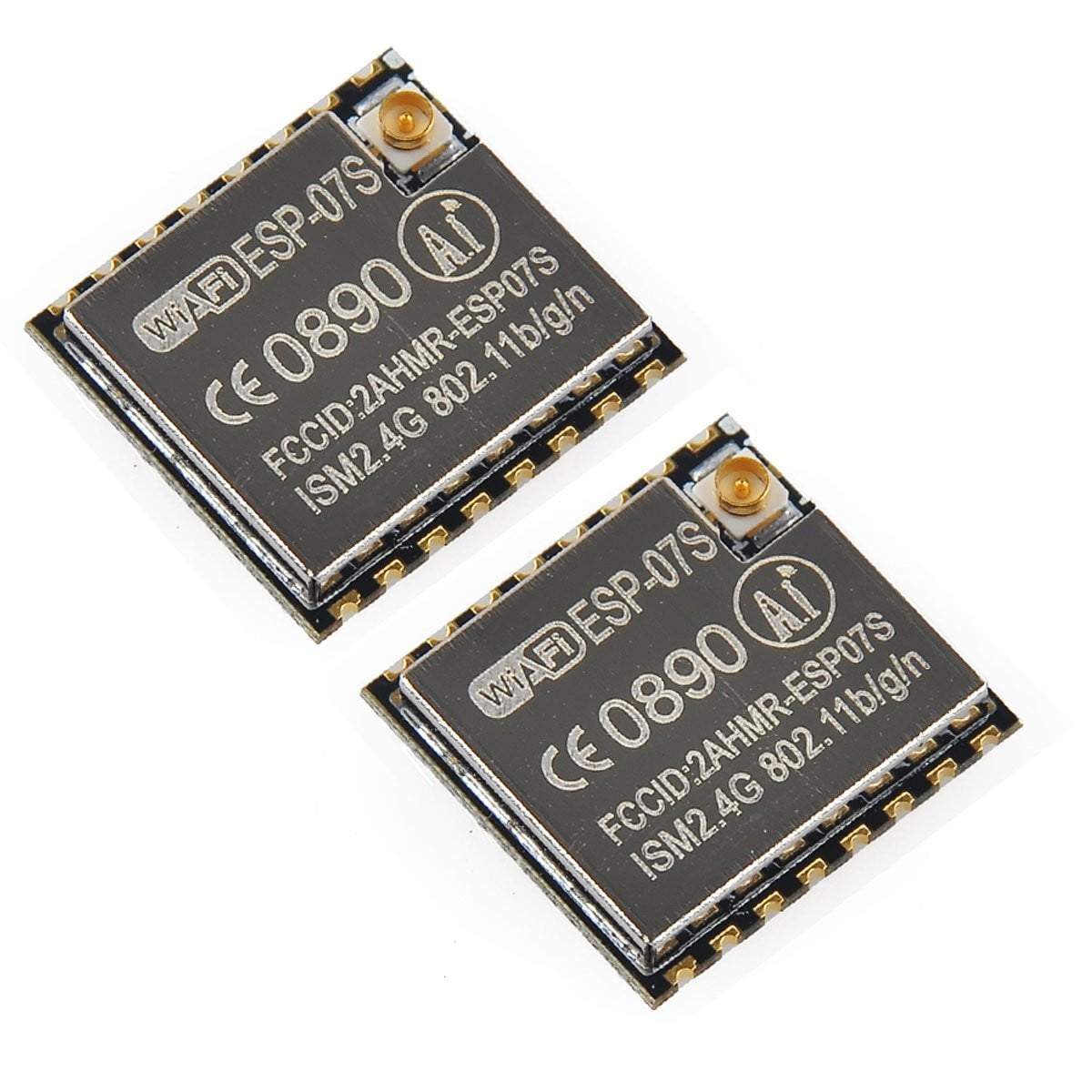

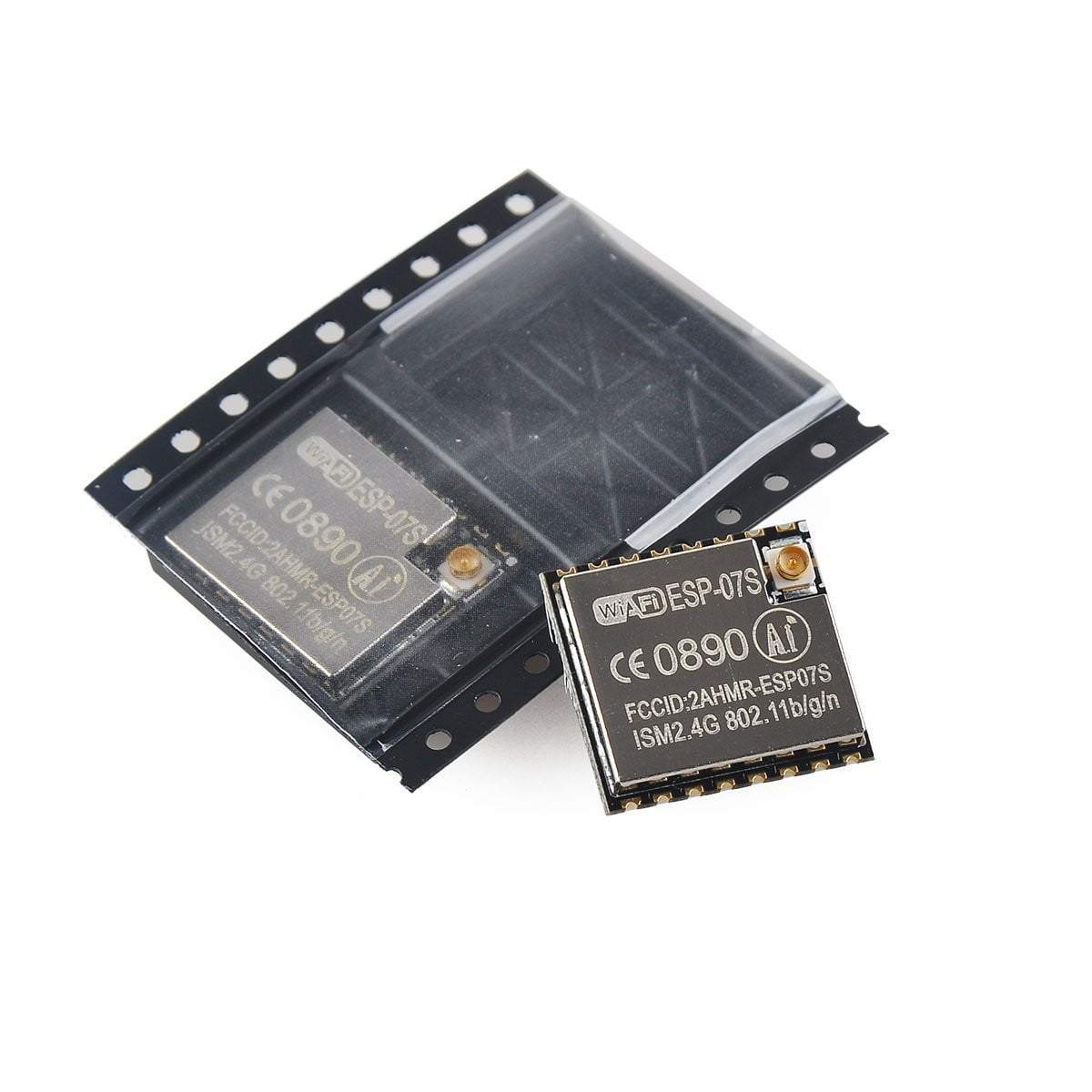

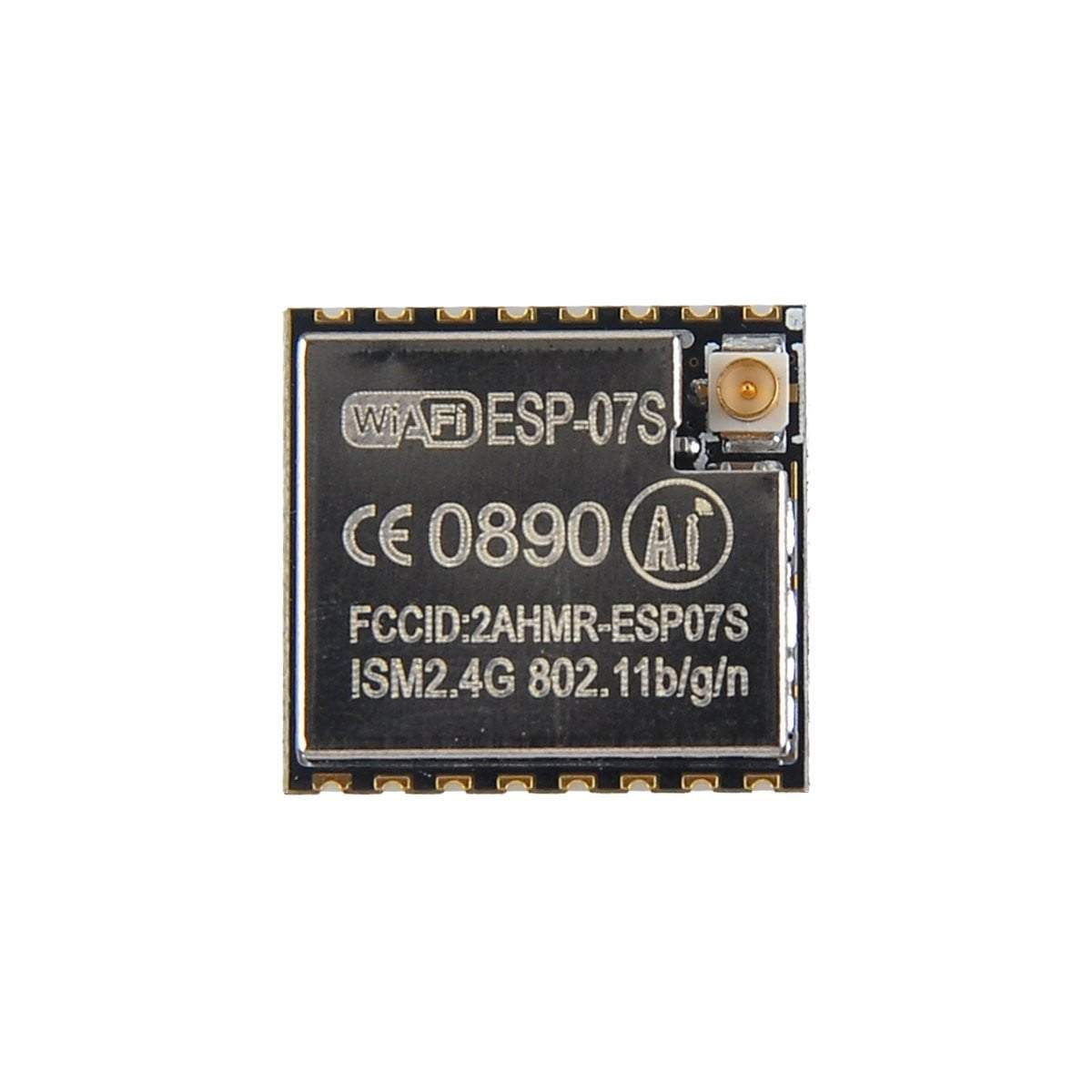

2 * ESP8266 ESP-07S Serial WiFi Wireless Transceiver Module
