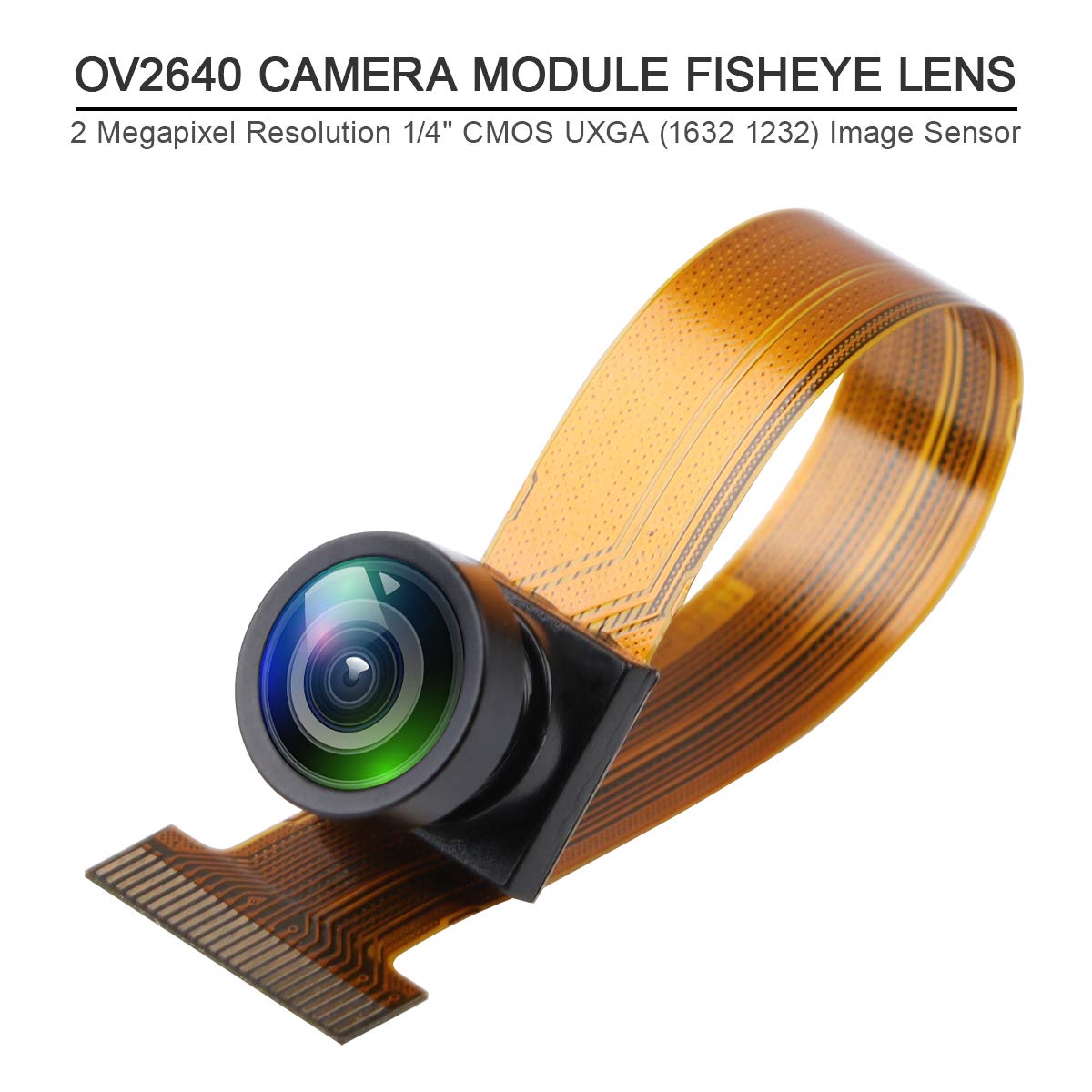

MakerFocus OV2640 Camera Fisheye Extended Version Lens for T-Camera Plus ESP32-DOWDQ6 8MB SPRAM


  • $11.99
    Unit price per
  • Save $3
Shipping calculated at checkout.

Camera Module:

Camera: OV2640
Type: Fisheye lens

Camera Resolution: 2 Megapixel
Array Size: UXGA 1600 x 1200
Power Supply: Core 1.2VDC + 5%
Analog: 2.5 ~ 3.0VDC
I/O: 1.7V to 3.3V
Power Requirements: Active/125 mW (for 15fps, UXGA YUV mode)/140mW (for 15fps, UXGA compressed mode)
Standby: 600µA
Temperature: Operation -30°C to 70°C
Range: Stable Image 0°C to 50°C
Output Formats (8-bit): • YUV(422/420)/YCbCr422;• RGB565/555;• 8-bit compressed data;• 8-/10-bit Raw RGB data
Lens Size: 1/4"
Chief Ray Angle: 25°non-linear
Maximum: UXGA/SXGA 15fps
Image: SVGA 30fps
Transfer Rate: CIF 60fps
Sensitivity: 0.6V/Lux-sec
S/N Ratio: 40dB
Dynamic Range: 50dB
Scan Mode: Progressive
Maximum Exposure Interval: 1247 x tROW
Gamma Correction: Programmable
Pixel Size: 2.2µm x 2.2µm
Dark Current: 15 mV/s at60°C
Well Capacity: 12Ke
Fixed Pattern Noise: <1% of VPEAK-TO-PEAK

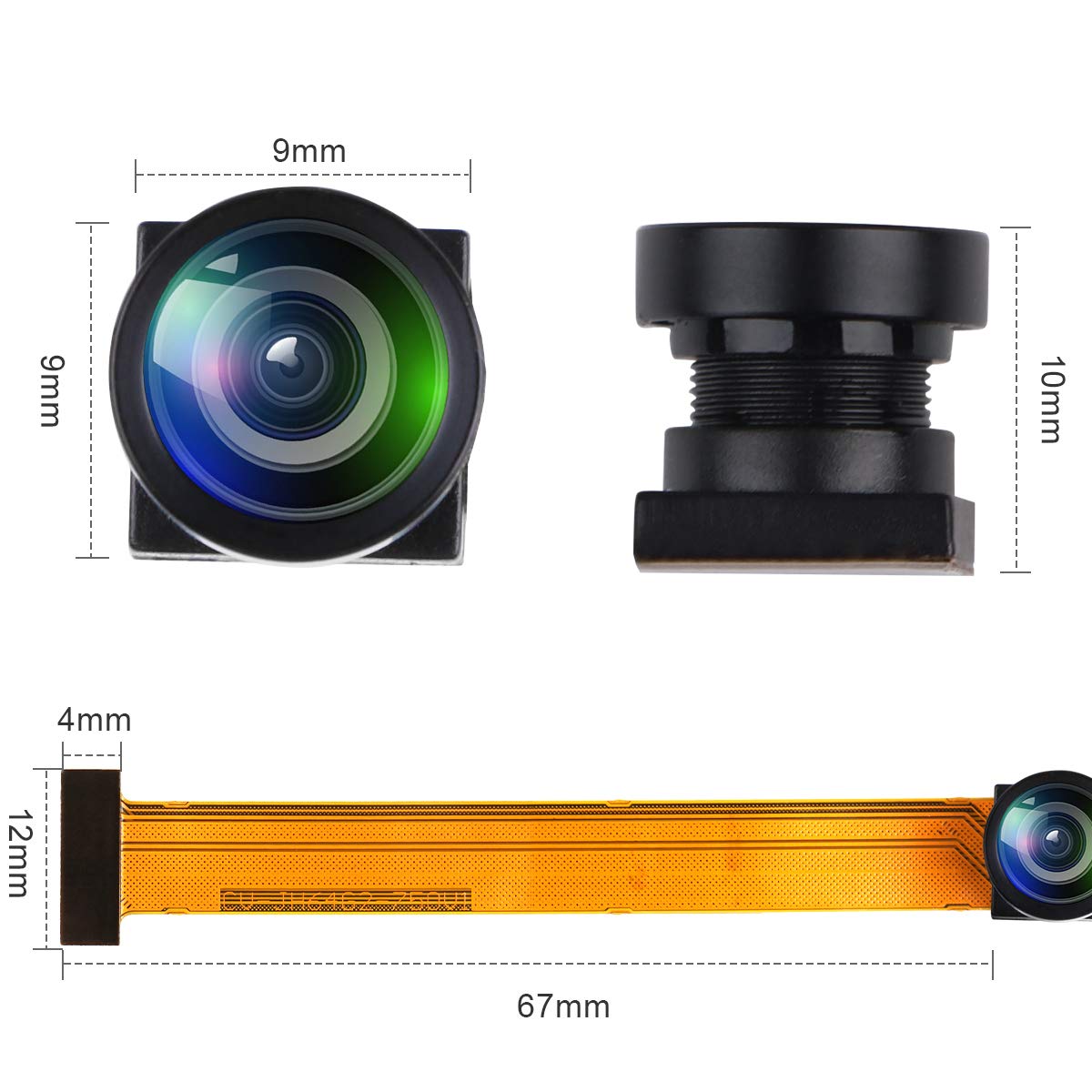

Image Area: 3590µm x 2684µm
Package Dimensions: 5725µm x 6285µm


Packing List:

1 * 2 Megapixel Fisheye Extended Version Lens OV2640 Camera Module for T-Camera Plus ESP32-DOWDQ6
