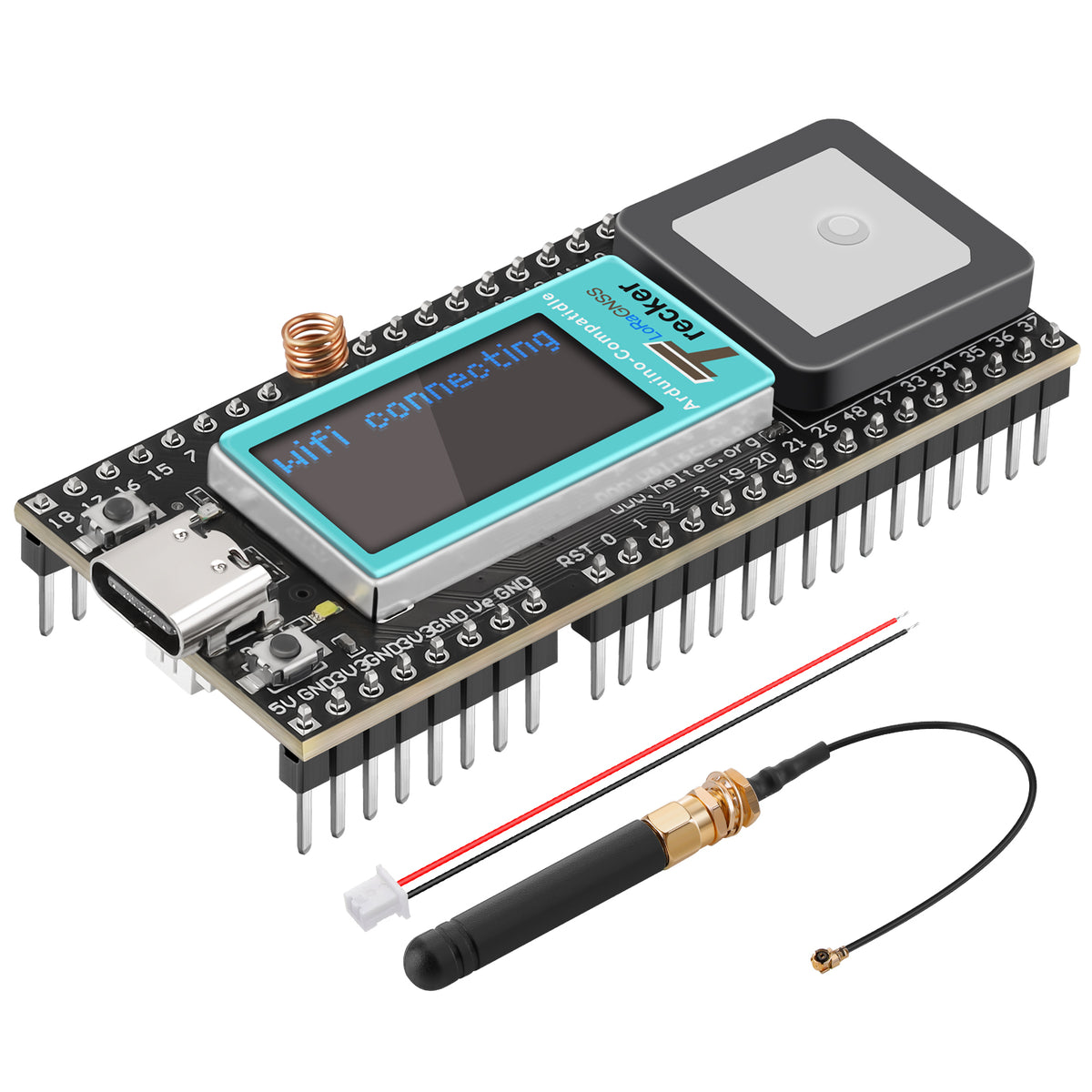

MakerFocus Wireless Tracker Integrate UC6580 SX1262 863 923MHz LoRa WiFi Bluetooth ESP32 Development Board with Display for Arduino Intelligent Scene
WirelessTracker is a development kit based on ESP32-S3FN8. It combines the SX1262 and LC6580 to provide a fast GNSS solution for the Internet of Things.
It can track any object and then upload data wirelessly via WI-FI, Bluetooth, LORA.
The wireless tracker supports L1+L5/L2, and supports multi-system joint positioning of GPS, GLONASS, BDS, GALILEO, NAVIC, and QZSS.
Features:
1.ESP32-S3FN8+SX1262+UC6580 chip, supports WI-FI, LORA, BLUETOOTH, GNSS
2. Dual-band multi-system low-power design based on 22nm technology
3. Support L1+L5/L2, support GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning
4.Type-CUSB interface comes with complete voltage regulator, ESD protection, circuit protection, radio frequency shielding and other protection measures
5. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power
detection, USB/battery powered automatic switching)
6 Onboard Wi-Fi, Bluetooth-specific 2.4GHZ metal spring antenna, reserved IPEX (u./D) interface for LoRa and GNSS use
7. Onboard 0.96-inch80(H)*160(V) dot matrix TFT-LCD display, which can be used to display debugging information, battery power, etc.
8.Support Arduino development environment.
Specification:
LoRa chip: ESP32-S3FN8
GNSS chip: SX1262
Maximum output power: 21+1dBm
Receive sensitivity: -139dBm
Battery: 3.7v lithium battery power supply interface
Operating temperature:-20 - 70°C
Size: 85.48x28.06x13.52mm
Wi-Fi: 802.11b/g/n,upto150Mbps
Bluetooth: BluetoothLE:Bluetooth5,Bluetoothmesh
Package Included:
1X Wireless Tracker
