Description:

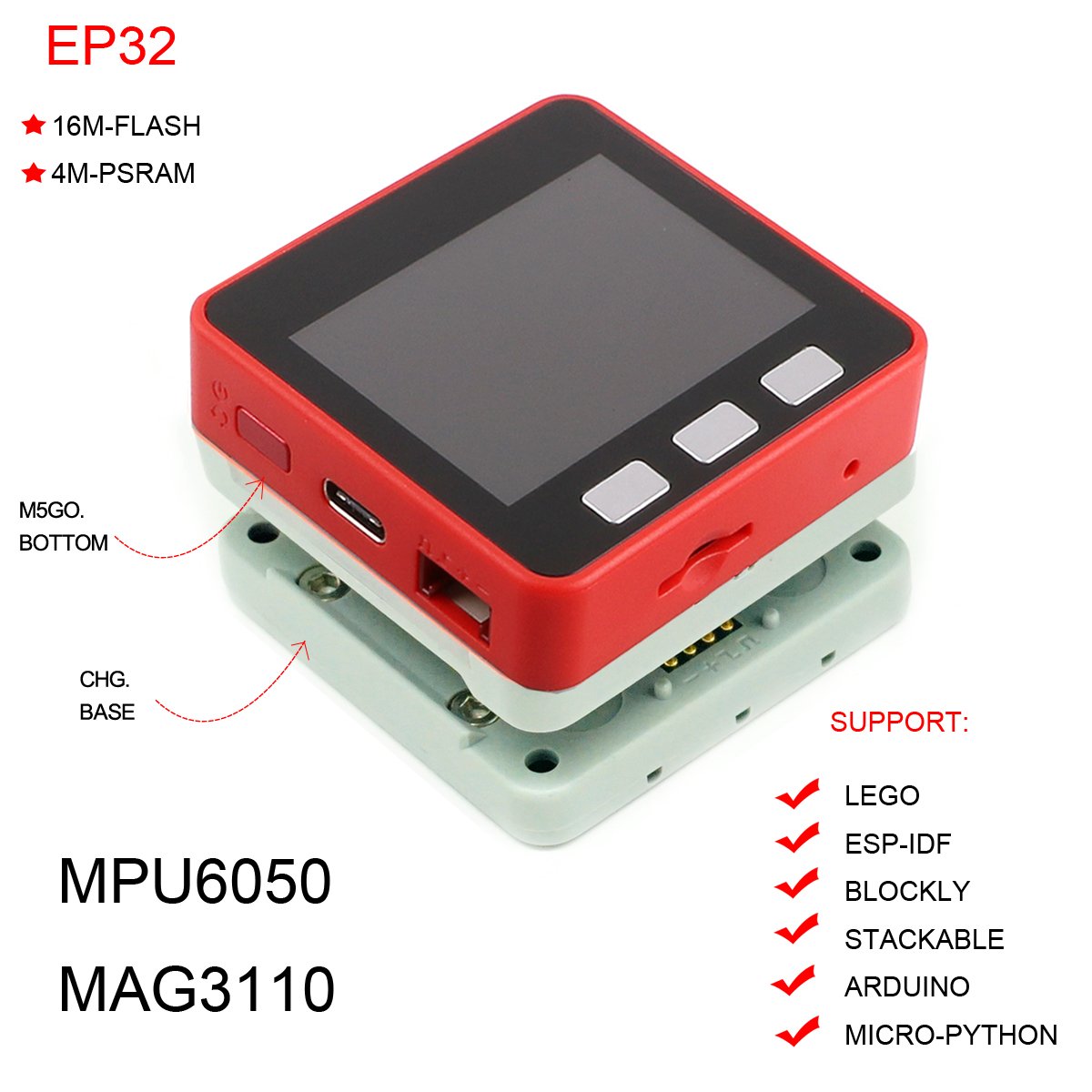

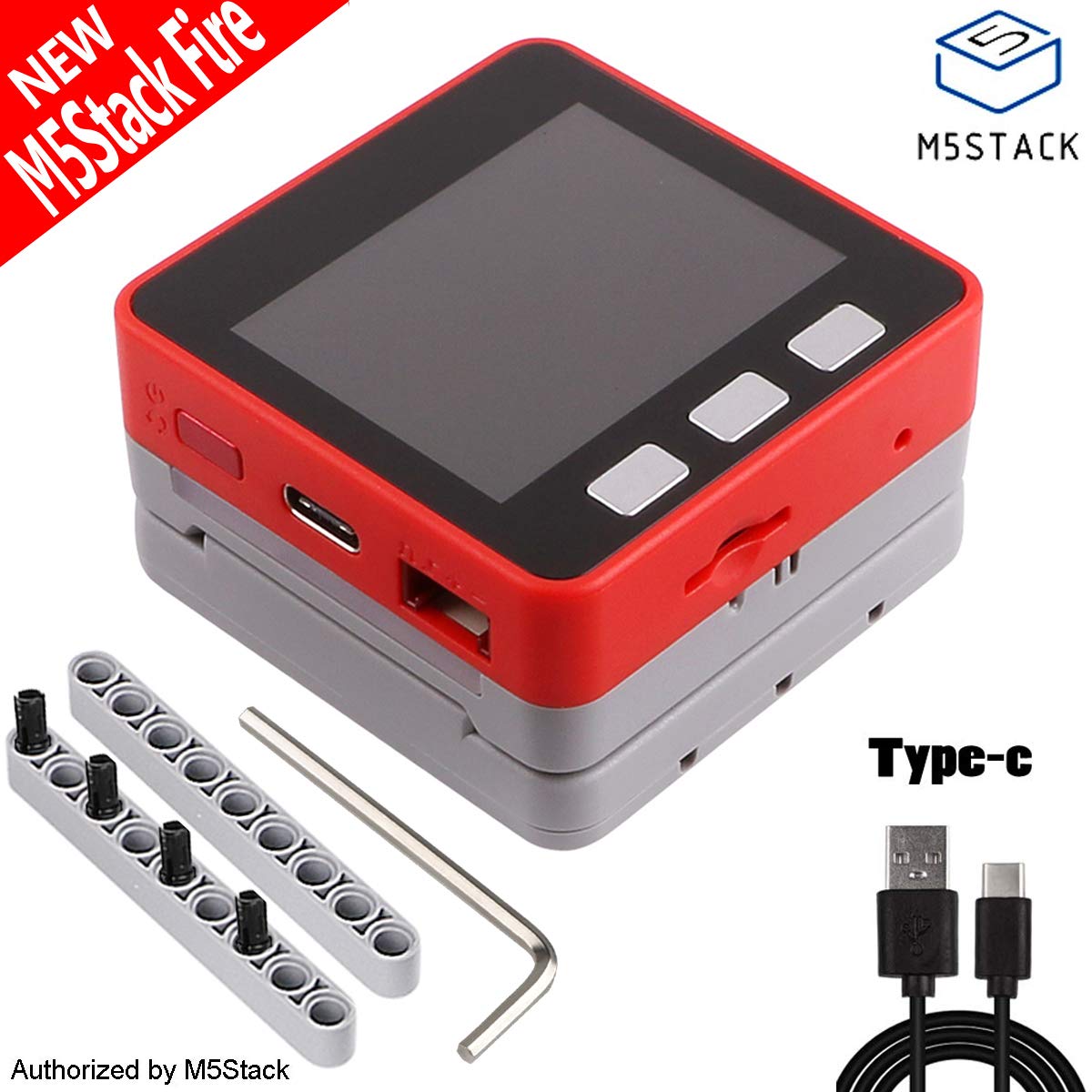

The M5Stack IoT Starter kit is the latest version M5Stack 4M PSRAM Version Development Kit. It's a blockly and stackable kit based on ESP32 chip, you can even pragram this M5Stack kit through Arduino or MicroPython.

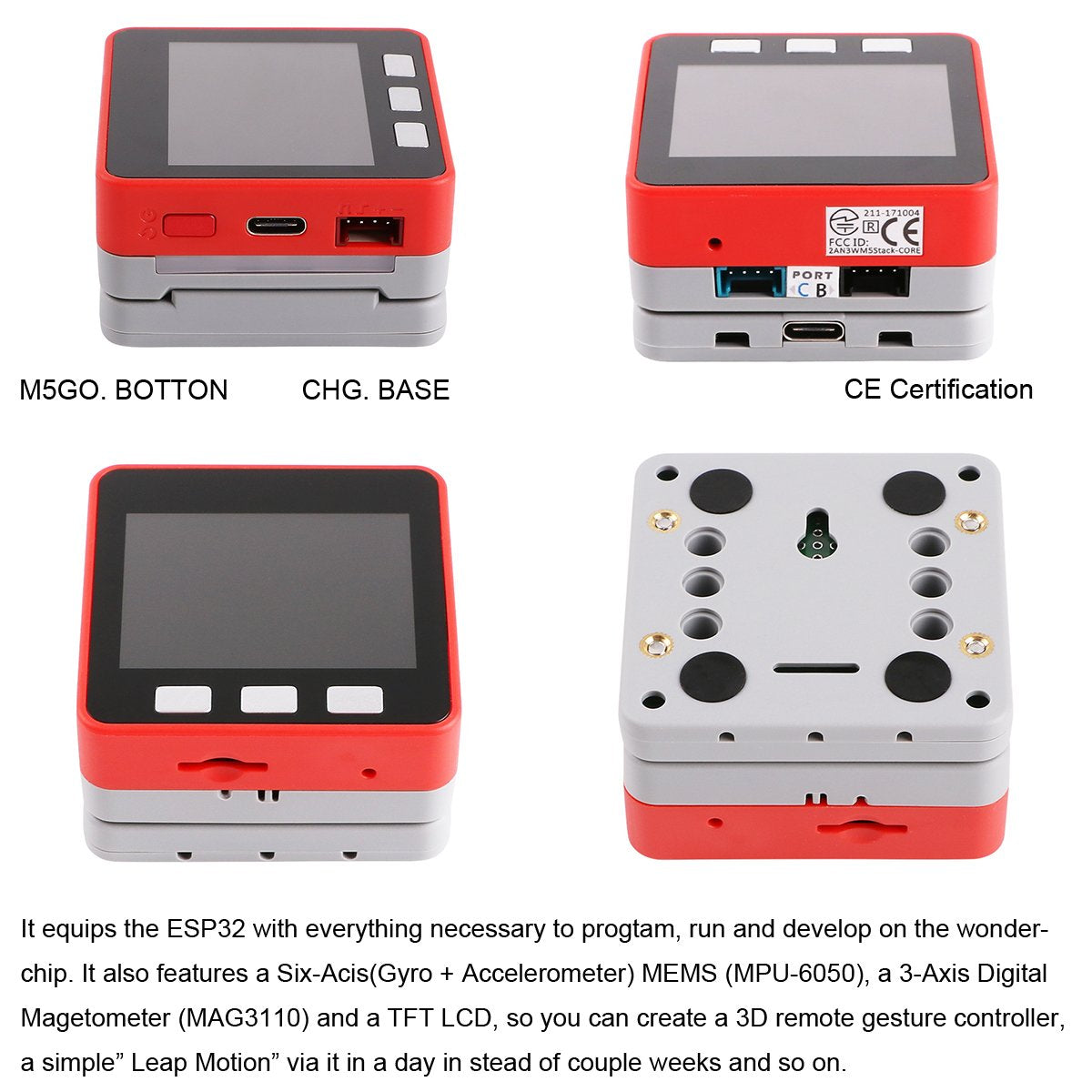

It equips the ESP32 with everything necessary to progtam, run and develop on the wonderchip. It also features a Six-Acis(Gyro + Accelerometer) MEMS (MPU-6050), a 3-Axis Digital Magetometer (MAG3110) and a TFT LCD, so you can create a 3D remote gesture controller, a simple” Leap Motion” via it in a day in stead of couple weeks and so on.

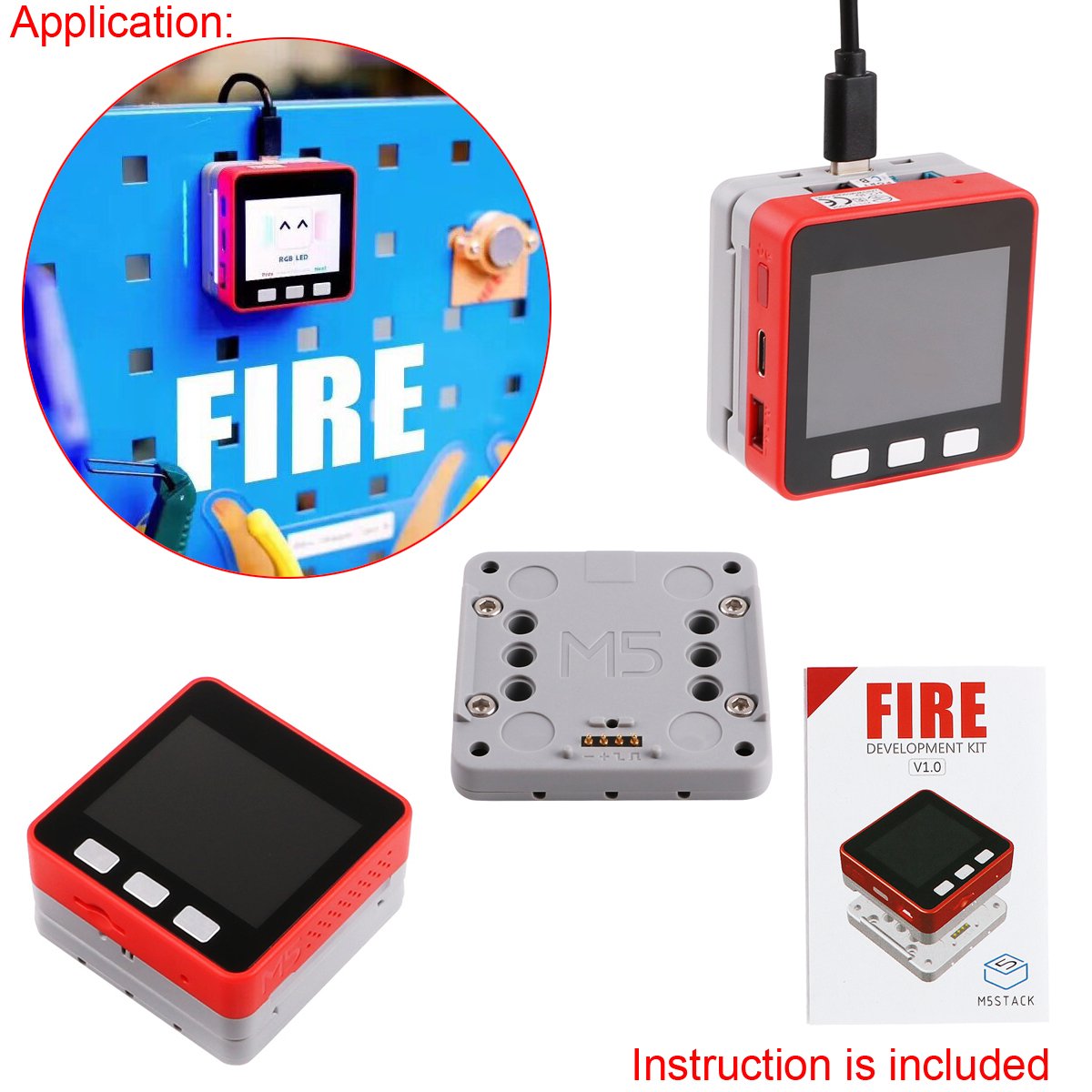

Note: The instruction is equipped with the product!
Features:
Pragramming Support
Blockly
Arduino
MicroPython
Compatable with LEGO
TF Card Support
Specification:
Main Component:

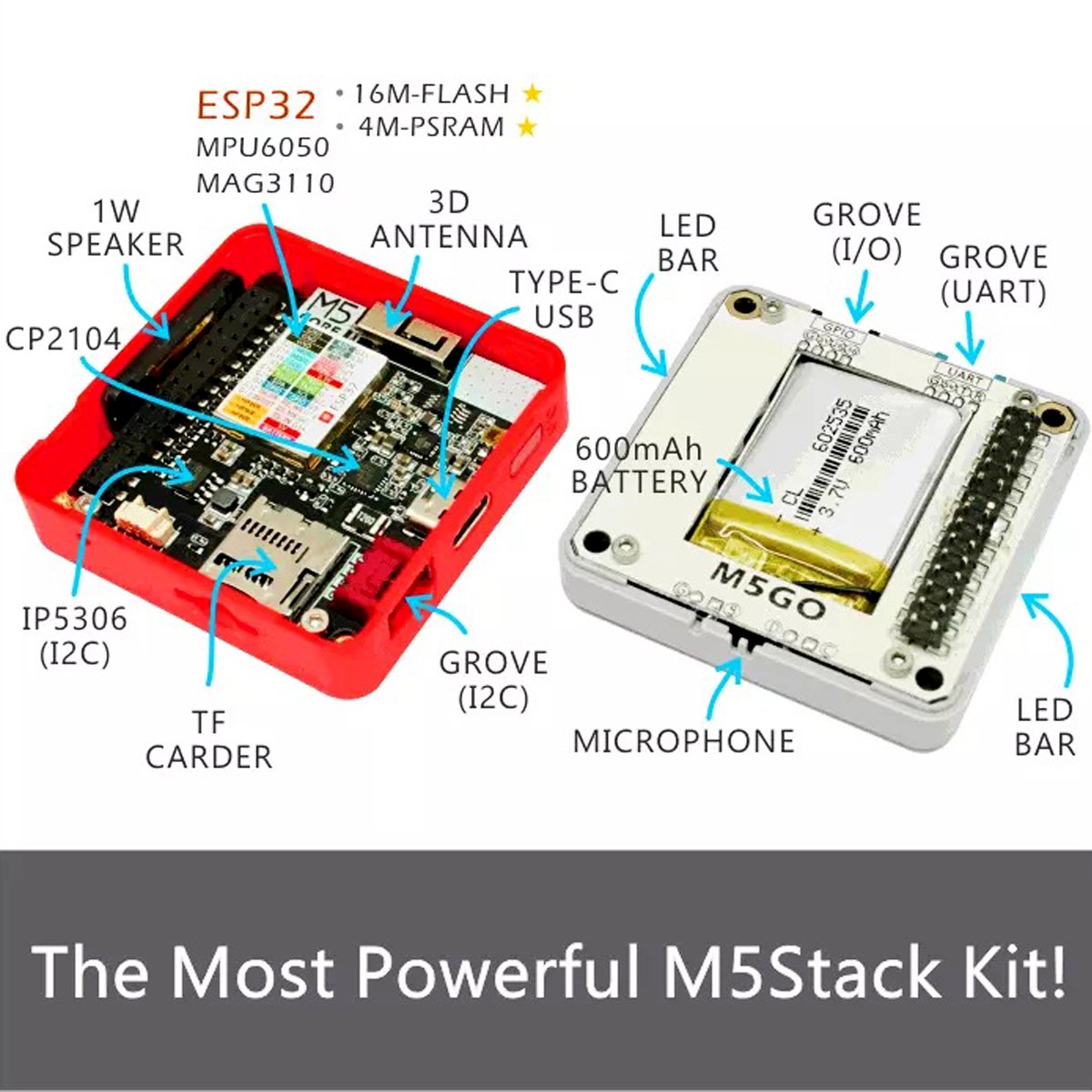

Esp32 : 4MB SRAM, 240MHz dual core, 600 DMIPS, Wi-Fi, dual mode bluetooth
MPU6050 MAG3110
Chips : CP2104, ISP5306 (I2C)
Flash: 16M-Bytes

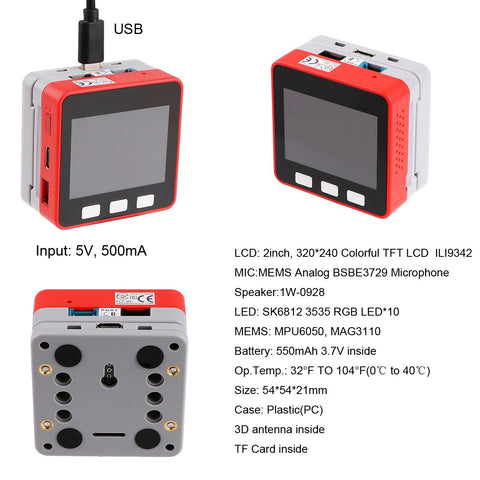

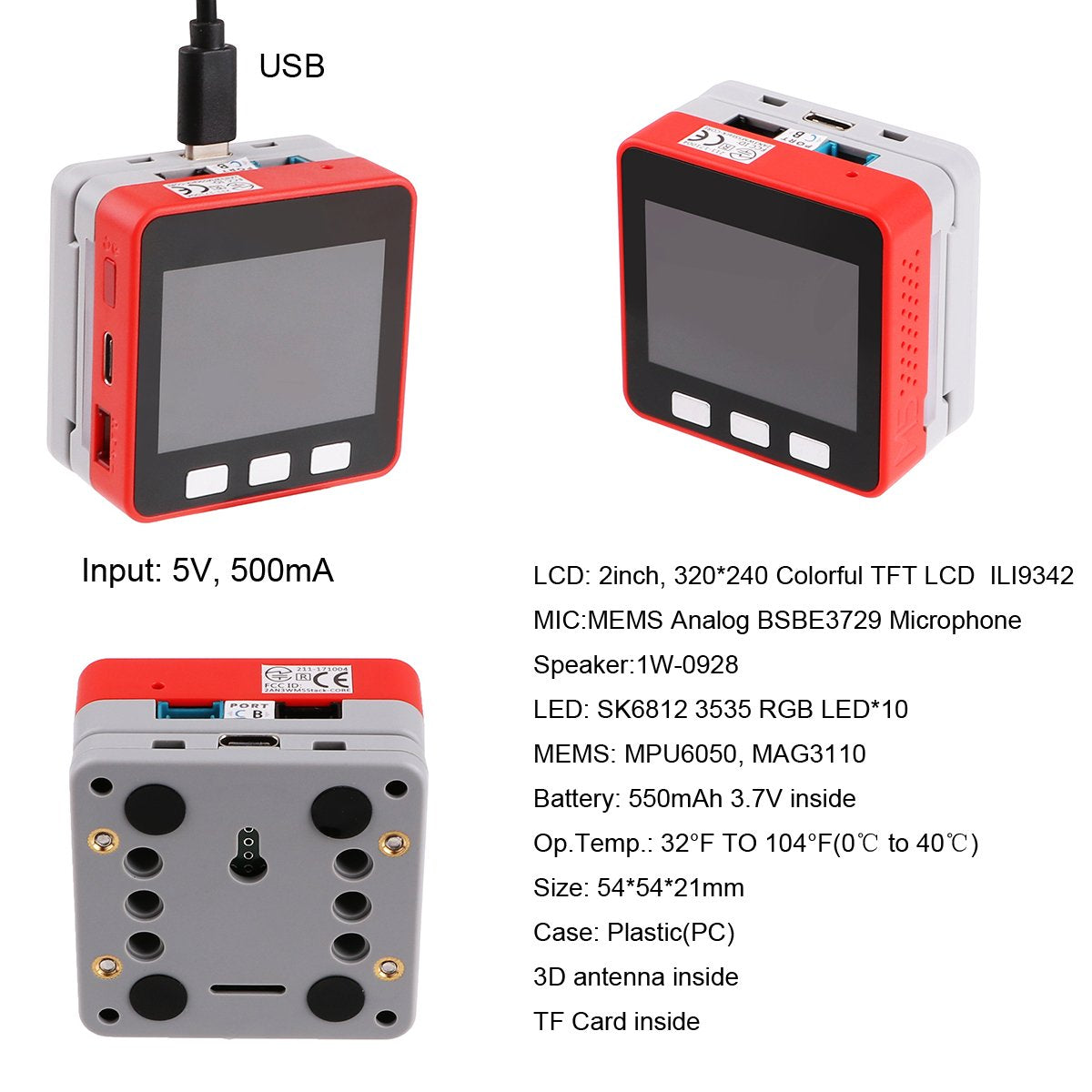

Input: 5V, 500mA

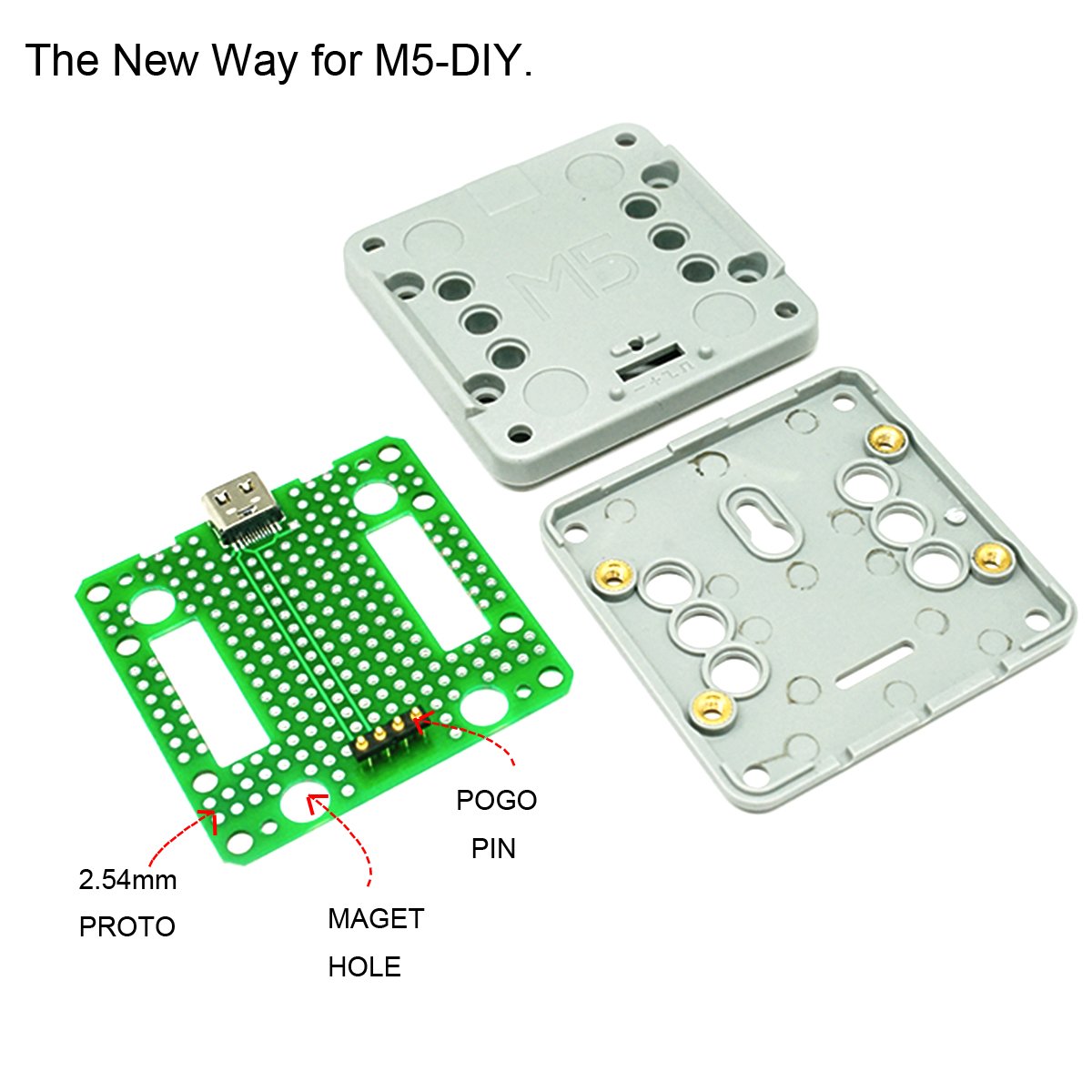

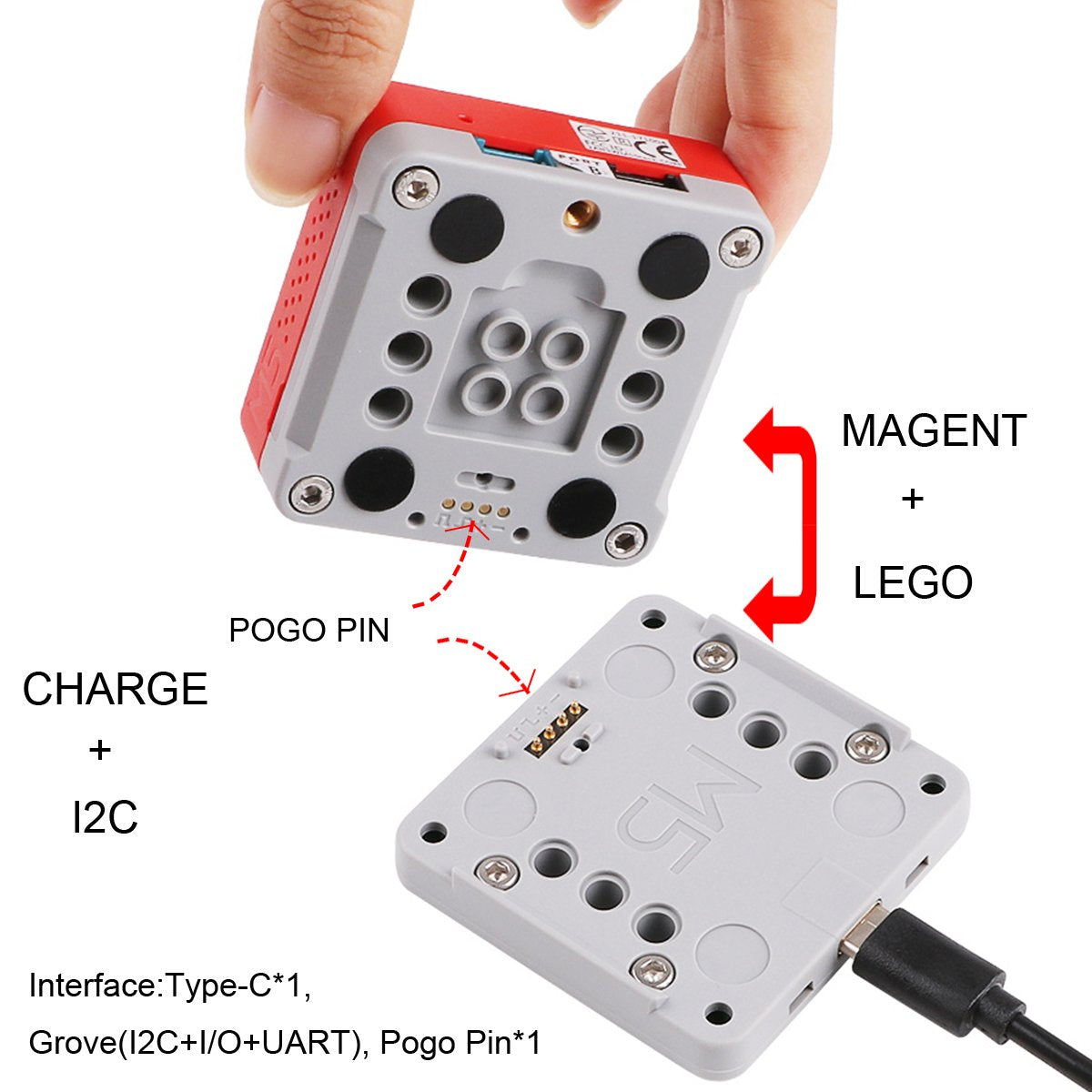

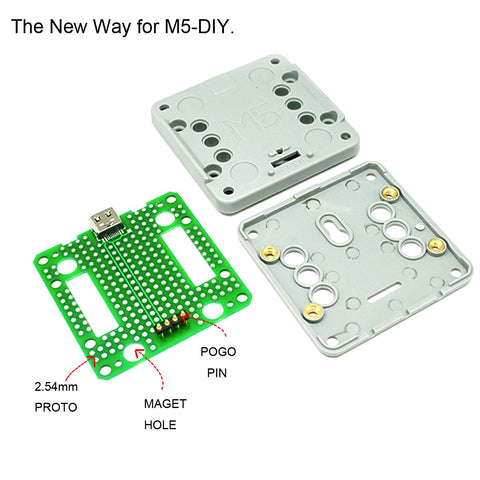

Interface:Type-C*1, Grove(I2C+I/O+UART), Pogo Pin*1
LCD: 2inch, 320*240 Colorful TFT LCD ILI9342
MIC:MEMS Analog BSBE3729 Microphone
Speaker:1W-0928
LED: SK6812 3535 RGB LED*10
MEMS: MPU6050, MAG3110
Battery: 550mAh 3.7V inside
Op.Temp.: 32°F TO 104°F(0℃ to 40℃)
Size: 54*54*21mm
Case: Plastic(PC)
3D antenna inside
TF Card inside
Weight: 56g
For people:
Software / hardware product engineers, designers, project contractors, enthusiasts, start-ups, educational groups and Maker groups.
Packing List:
1 * M5Stack IoT Starter Kit
1 * M5GO Bottom
1 * M5GO CHG BASE
1 * Type-C USB Cable
1 * User Manual
