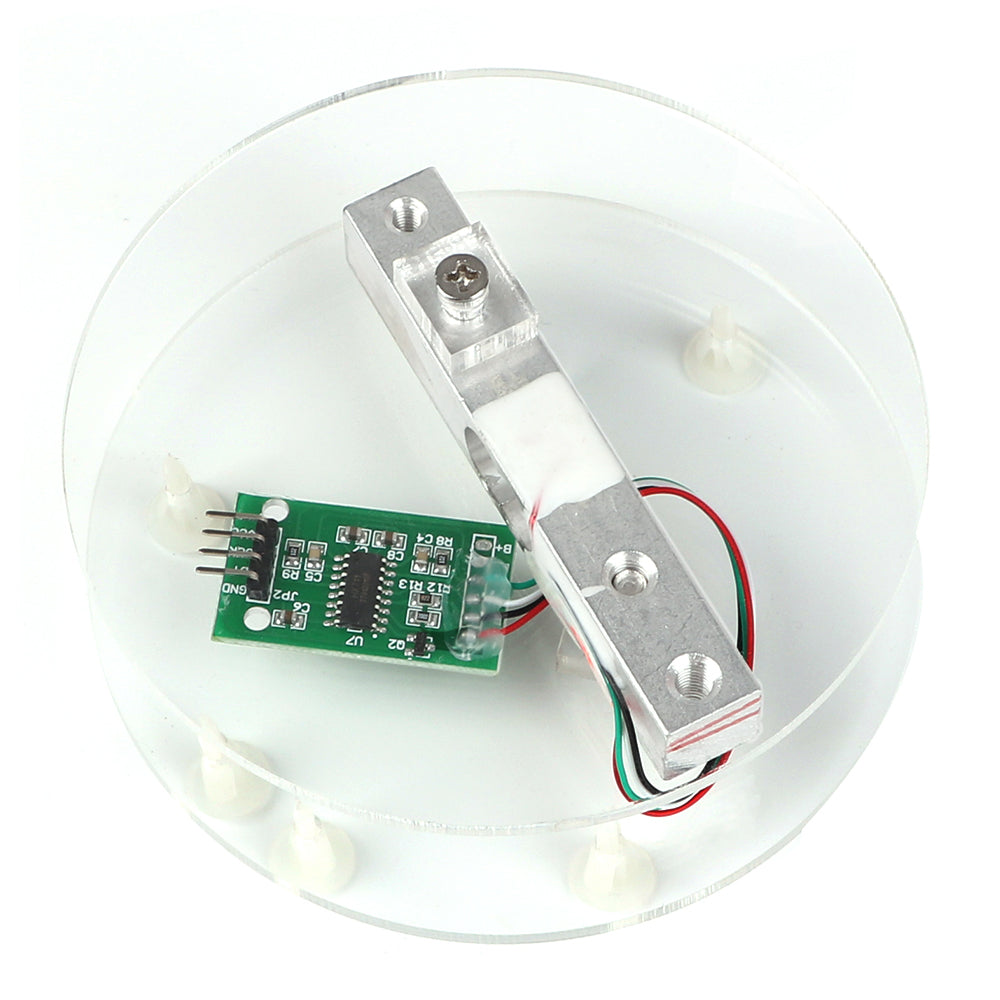

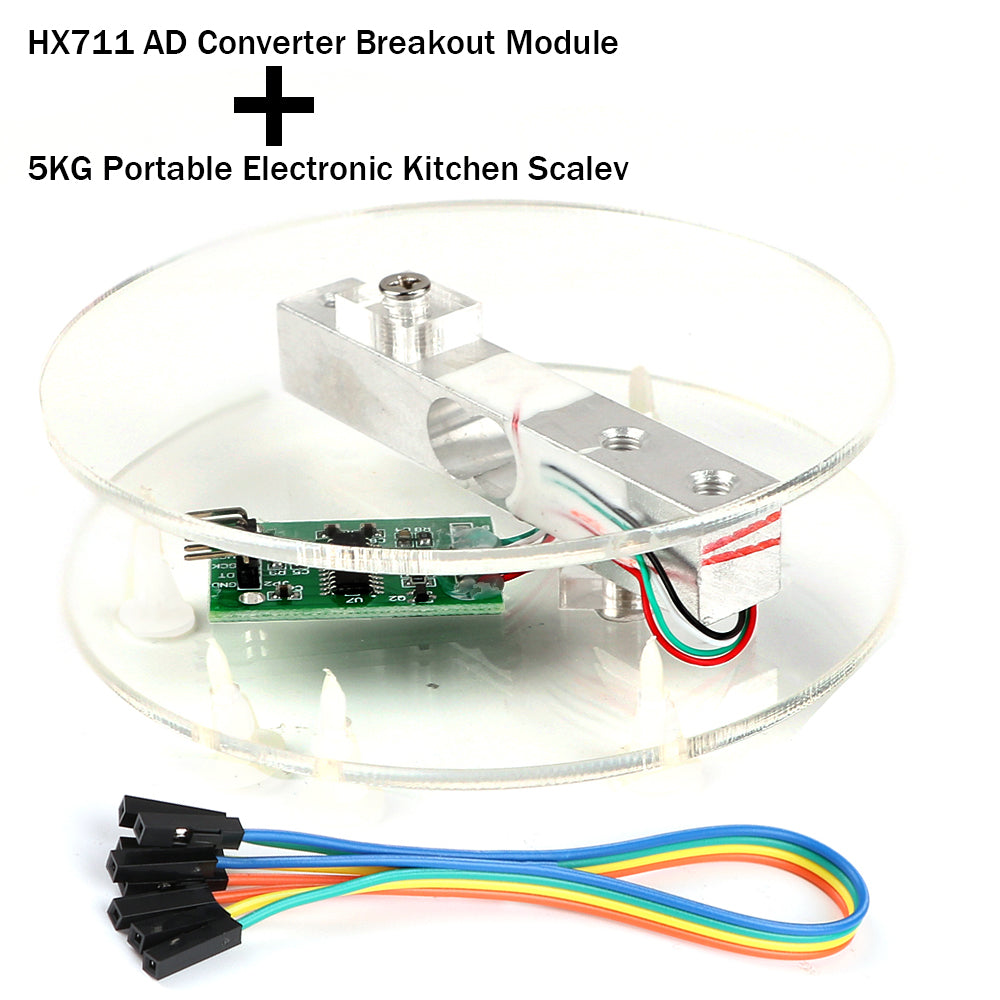

Makerfocus Digital Load Cell Weight Sensor HX711 AD Converter Breakout Module 5KG Portable
- $12.99
$17.99- $12.99
- Unit price
- per
Subtotal:
$12.99
Couldn't load pickup availability
Description
xProduct description
Features:
Two selectable differential input channels.
On-chip active low noise PGA with selectable gain of 32, 64 and 128.
On-chip power supply regulator for load-cell and ADC analog power supply.
On-chip oscillator requiring no external component with optional external crystal.
On-chip power-on-reset.
Simple digital control and serial interface: pin-driven controls, no programming needed.
Selectable 10SPS or 80SPS output data rate.
Simultaneous 50 and 60Hz supply rejection.
Current consumption including on-chip analog power supply regulator: normal operation andlt; 1.5mA power down andlt; 1uA.
Operation supply voltage range: 3.3V - 5V.
Operating Temperature Range: -20 degree - +85 degree.
HX711 is Mounted on breakout board, includes breakaway headers for connection, soldering required
Parameter:

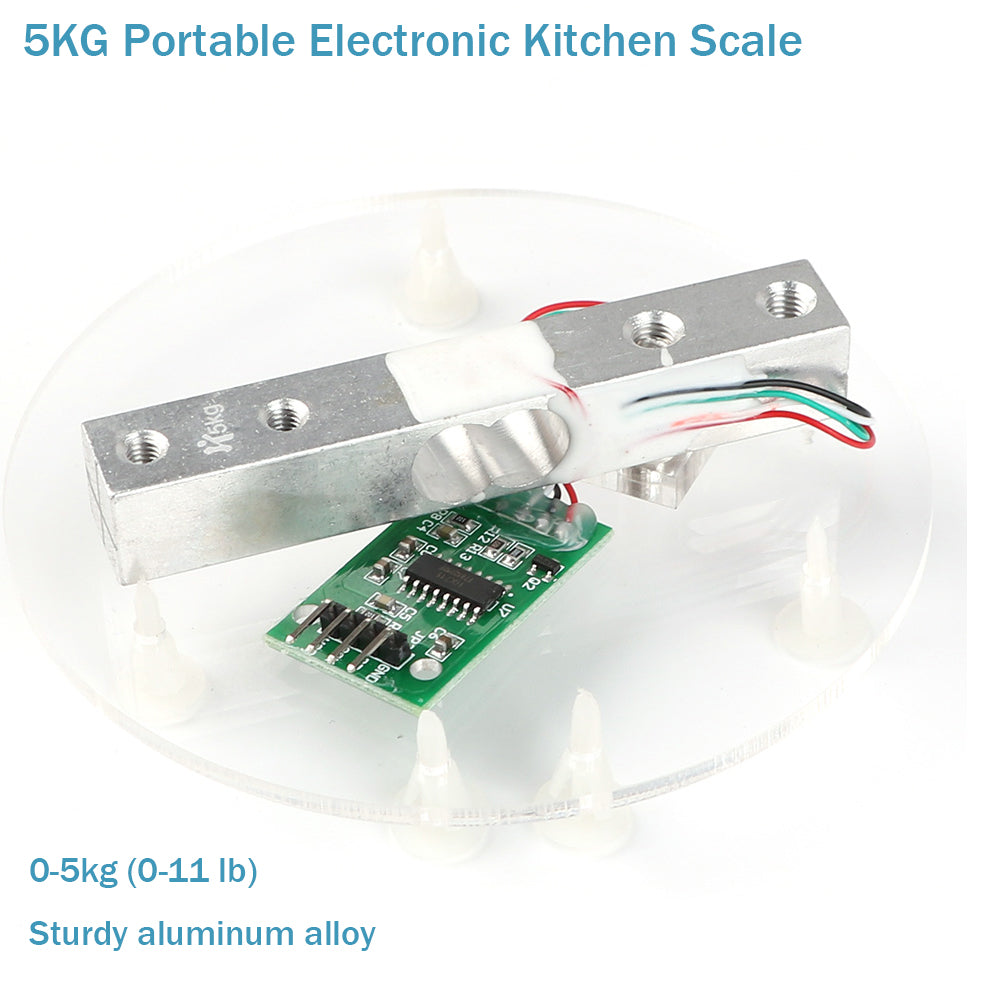

Bracket Diameter: 10cm(Tray Diameter)
Operation Voltage: 3.3V–5V(recommended 5V)
Maximum Measures Force: 5kg
Appearance Height: 3.5cm(include Pillar)

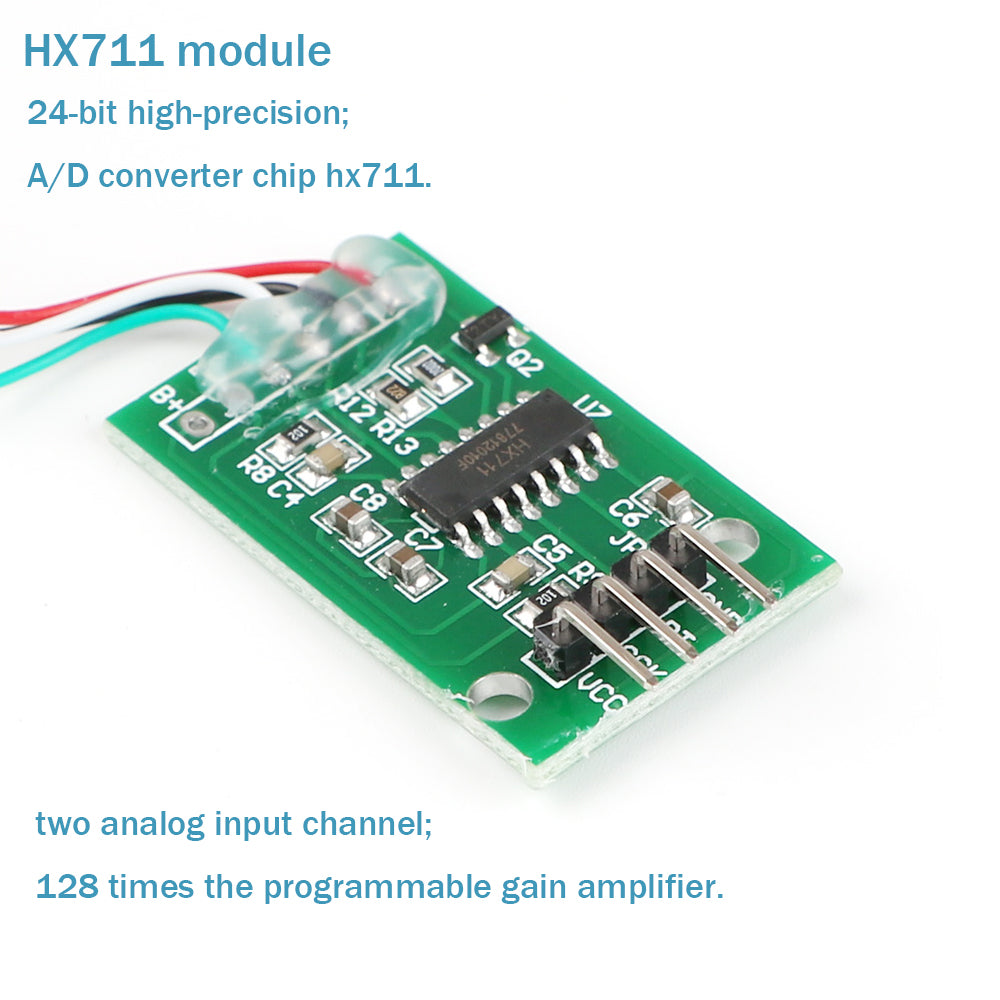

AD Module: HX711(24 bit high precision A/D converter chip hx711)
Post-calibration Accuracy: Within 1g
Operation Current: andlt; 1.5mA

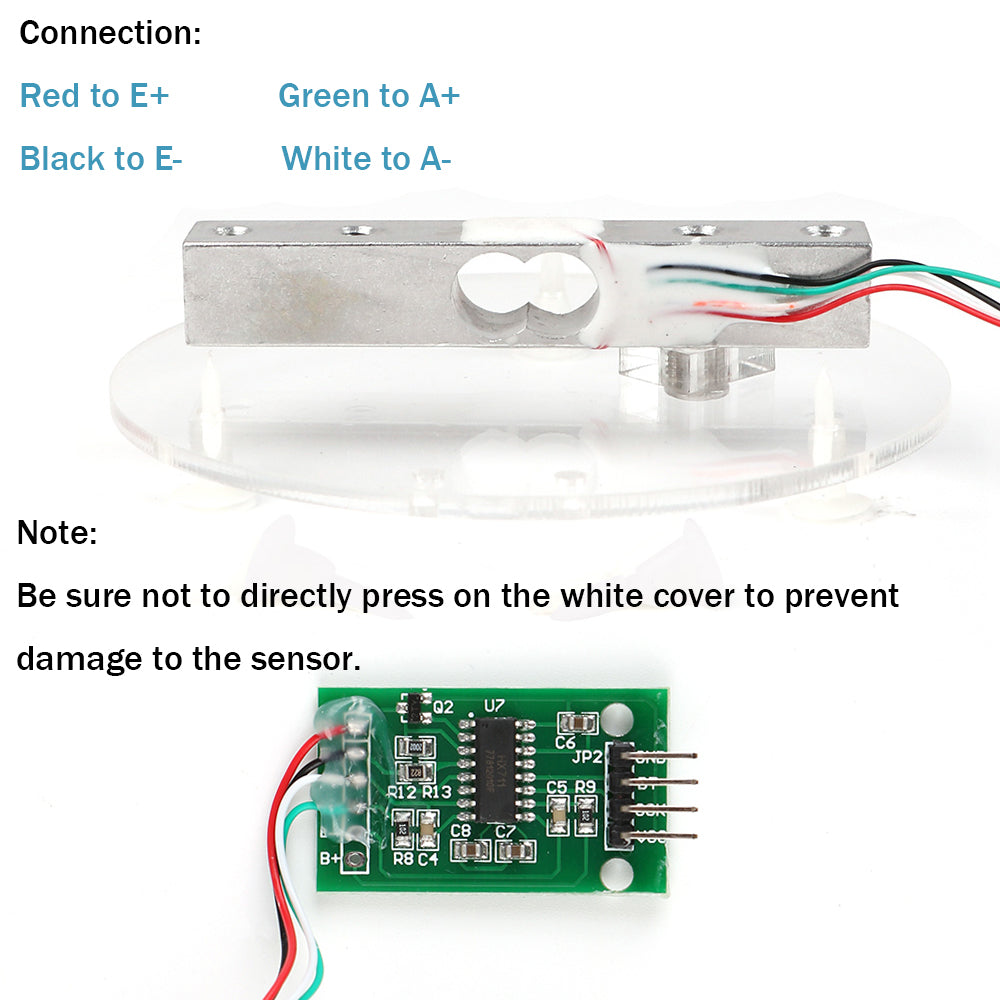

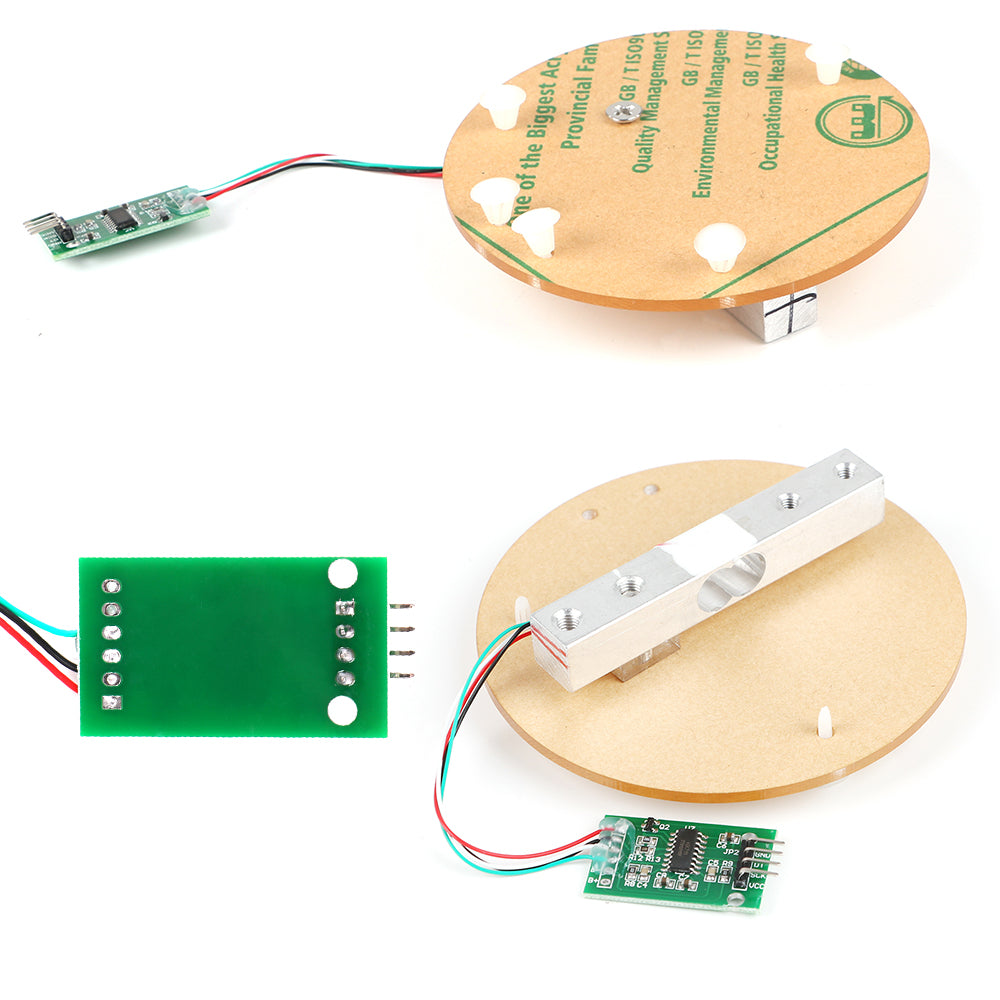

Connection:
Red to E+
Black to E-
Green to A+
White to A-
Note:
Be sure not to directly press on the white cover to prevent damage to the sensor.

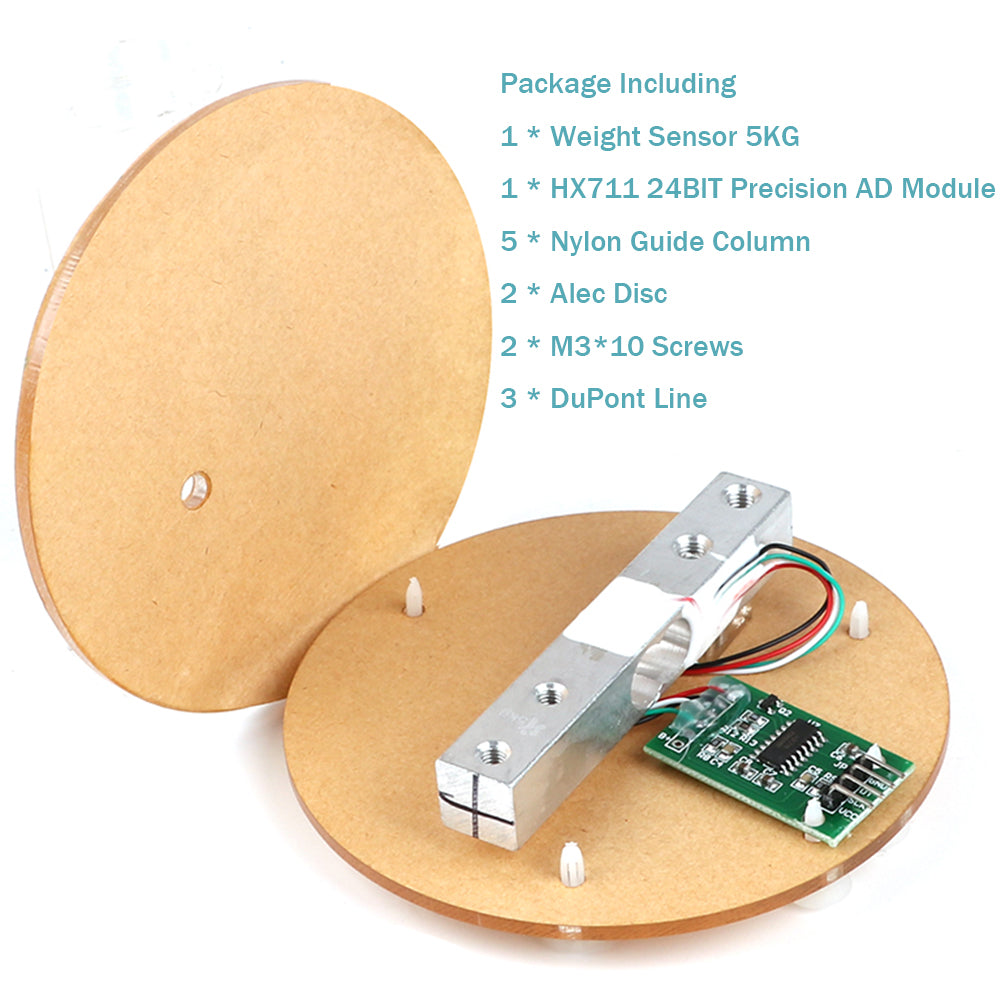

Package Including
1 * Weight Sensor 5KG
1 * HX711 24BIT Precision AD Module
5 * Nylon Guide Column
2 * Alec Disc
2 * M3*10 Screws

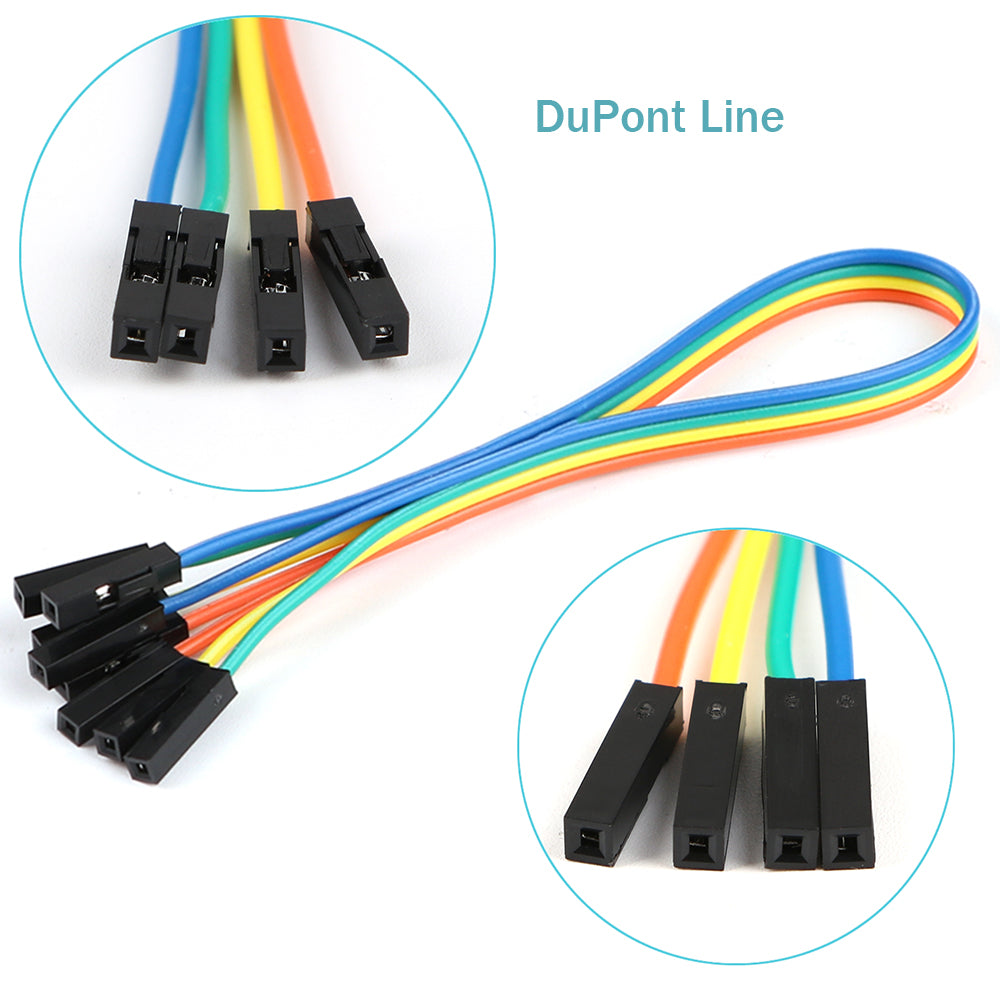

3 * DuPont Line
Features:
Two selectable differential input channels.
On-chip active low noise PGA with selectable gain of 32, 64 and 128.
On-chip power supply regulator for load-cell and ADC analog power supply.
On-chip oscillator requiring no external component with optional external crystal.
On-chip power-on-reset.
Simple digital control and serial interface: pin-driven controls, no programming needed.
Selectable 10SPS or 80SPS output data rate.
Simultaneous 50 and 60Hz supply rejection.
Current consumption including on-chip analog power supply regulator: normal operation andlt; 1.5mA power down andlt; 1uA.
Operation supply voltage range: 3.3V - 5V.
Operating Temperature Range: -20 degree - +85 degree.
HX711 is Mounted on breakout board, includes breakaway headers for connection, soldering required
Parameter:
Bracket Diameter: 10cm(Tray Diameter)
Operation Voltage: 3.3V–5V(recommended 5V)
Maximum Measures Force: 5kg
Appearance Height: 3.5cm(include Pillar)
AD Module: HX711(24 bit high precision A/D converter chip hx711)
Post-calibration Accuracy: Within 1g
Operation Current: andlt; 1.5mA
Connection:
Red to E+
Black to E-
Green to A+
White to A-
Note:
Be sure not to directly press on the white cover to prevent damage to the sensor.
Package Including
1 * Weight Sensor 5KG
1 * HX711 24BIT Precision AD Module
5 * Nylon Guide Column
2 * Alec Disc
2 * M3*10 Screws
3 * DuPont Line
