2pcs ADS1115 16 Bits 4 Channel Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier

  • $8.93
    Unit price per
  • Save $3


Product description
Colour:blue
2pcs ADS1115 16 Bits 4 Channel Analog-to-Digital ADC PGA Converter with Programmable Gain Amplifier High Prcision I2C IIC 2.0V to 5.5V Bits ADC Converter Development Board for Arduino and Raspberry

Product Feature
The ADS1113/4/5 are designed with precision power and low current consumption, which package is QFN-10 or MSOP-10.
The ADS1113/4/5 can perform conversions at rates, INTERNAL PGA up to 860 samples per second (SPS).
An onboard PGA is available on the ADS1115, I2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low as.
The ADS1115 included the automatically powers down function, portable instrumentation automatically powers down after a conversion and greatly reduces current consumption during idle.

Product Parameter
ADC Bit rate: 16 Bit
Interface Type: I2C
Size: 2mm* 1,5mm* 0,4mm

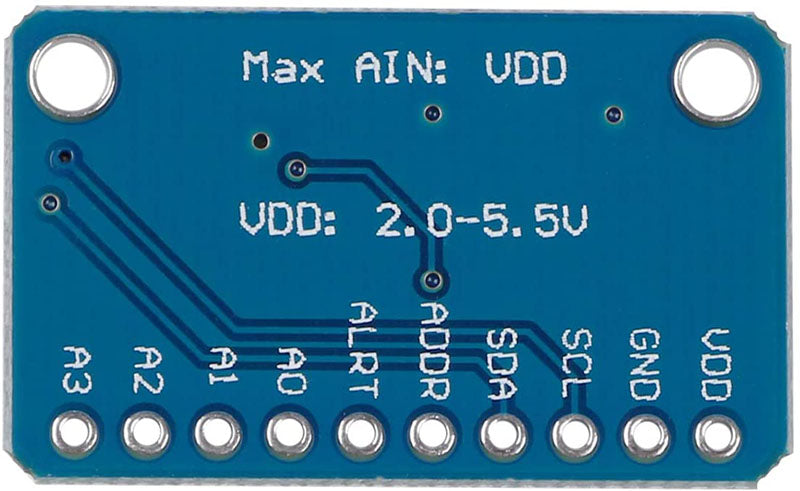

Channels: 4 Channel AN0 AN1 AN2 AN3
Input voltage: 2.0v-5.5v
Channel input voltage : 0-VDD

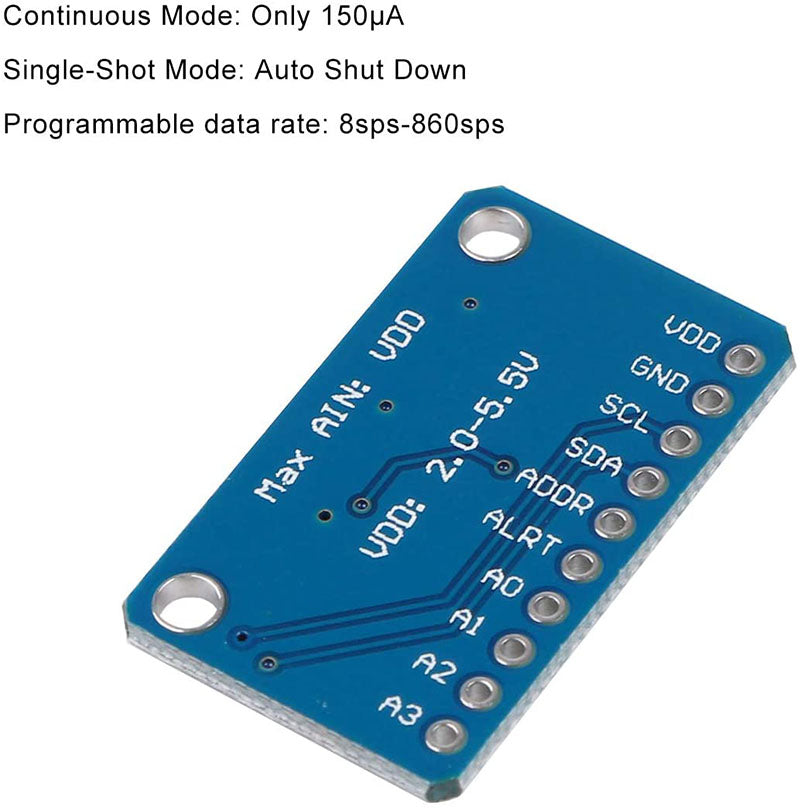

Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut Down
Programmable data rate: 8sps-860sps
Input range programmed control, 7 types input ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B

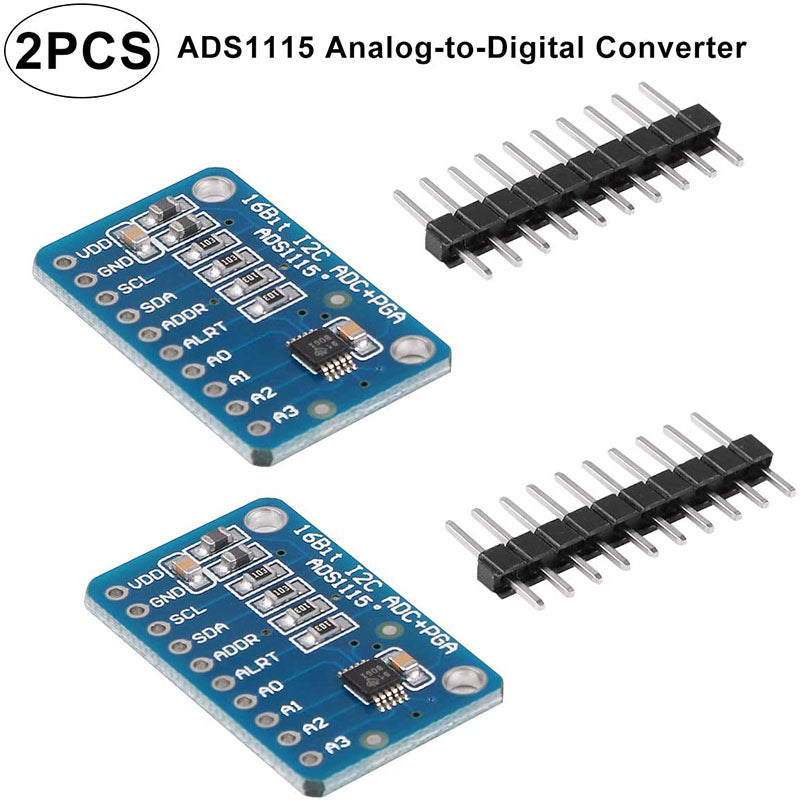

Package Including:
2 * ADS1115 Analog-to-Digital Converter
2 * Pin Header
