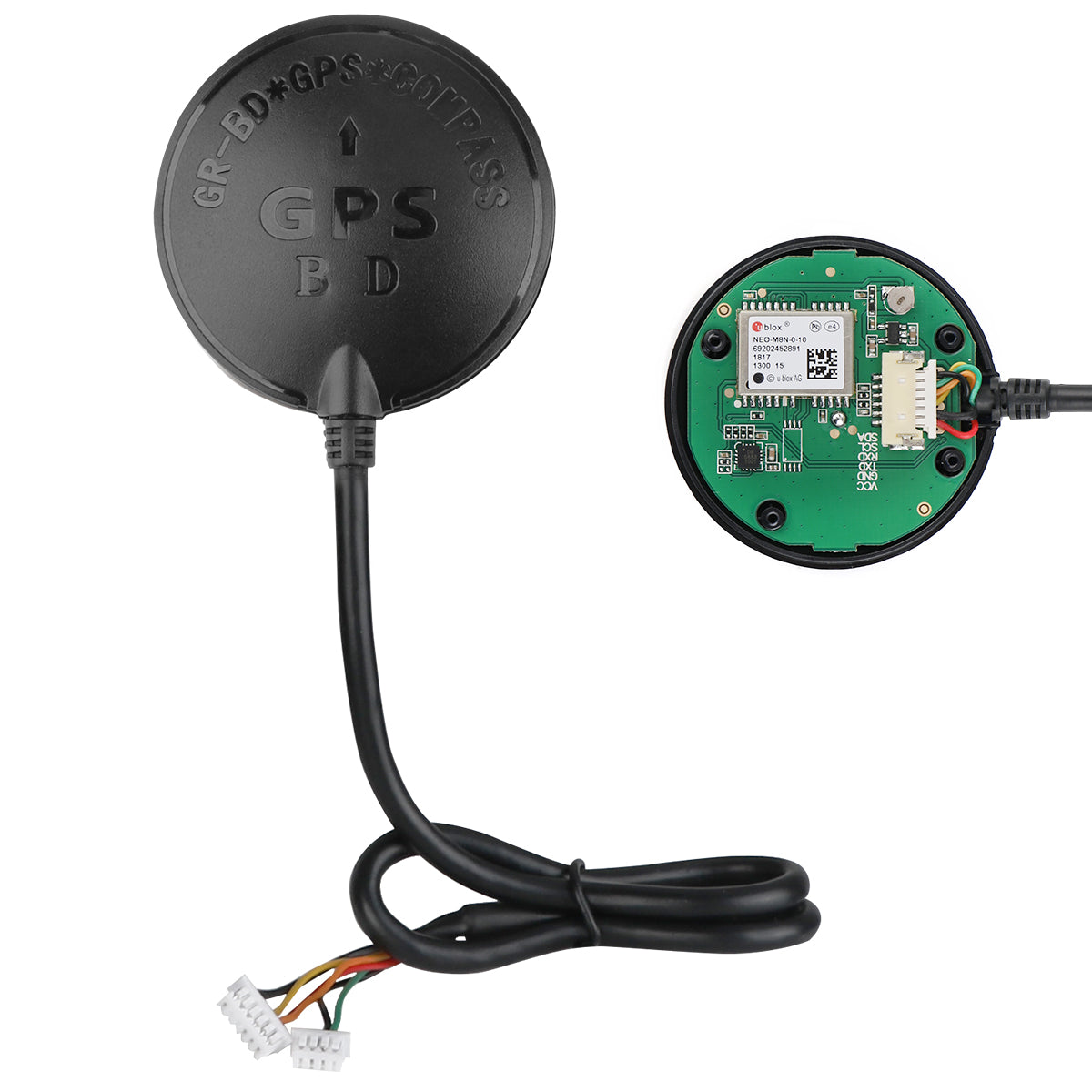

GPS Module GPS NEO-M8N BDS Compass Module(3 in 1) Drone Microcontroller GPS Receiver
Note:
The product operation guide is obtained in documentation guides and documents. This GPS module will not search for signals when the weather is bad, and it will not search for stars indoors. Make sure the GPS module is in the open position when using
Main chip: UB-LOX M8030 KT, built-in TCXO, keeping good consistency in temperature from -40.0 ° F ~ + 185.0 ° F; Tracking channels: 72
Three-in-one function: support dual-mode positioning GPS BDS, plus compass chip. Allows you to realize the desire for a module that can be used in many ways
Wide range of uses: for APM flight control, PIX flight control, PX4 flight control; The output terminal is directly compatible with APM serial port and I2C port. Plug and play other flight controllers are also available, such as the MWC flight controller
Automatic positioning: 8.2 ft [on average]; Auxiliary positioning: 6.6 ft [avg], with SBAS assist; Drift: <0.1 ft / s; Time precision: 60 ns; Reference coordinate system: WGS-84; Maximum altitude: 16,404.2 ft [Please pay attention to the atmosphere; Temperature during high altitude flight, and please open the mod. and]; Maximum age velocity: 1,640.4 ft / s; acceleration: <0.14 oz
Features:
Main chip: Built-in U-BLOX M8030 KT
TCXO, which keep good consistency in temperature from -40.0 ° F ~ +185.0 ° F.
Reception frequency:
GPS L1 C / A: The built-in antenna of high quality ESD protection [TVS tube] to ensure that ESD maintains 8KV above [air discharge].
SBAS L1C / A: It is easy to set the baud rate, the default is 9600bps, and it supports command setting and internal setting.
QZSS L1C / A: Supports an enhanced wide-area differential GPS system by default. [S129, S137…. Enhanced satellite wide area].
GLONASS L1OF: INTEGRATED PATCH ANTENNA.
GALILEO E1B / C1: Built-in resistive magnetic sensor, I2C port output.
BeiDou BD2 [Option]: GPS and Beidou dual-mode positioning are supported
by default.
Tracking channels: 72
Positioning:
Automatic positioning: 8.2 ft [average]
Auxiliary positioning: 6.6 ft [average], with SBAS assist.
Drift: <0.1 ft / s.
Timing accuracy: 60ns
Reference coordinate system: WGS-84
Maximum altitude: 164,042.0 ft [Please pay attention to the atmosphere
Temperature during high altitude flight, and please open the flight mode]
Maximum speed: 1,640.4 ft / s.
Acceleration: <0.14 oz
Electrical Performance:
Tracking
Sensitivity: 161dBm Capture Sensitivity: -148dBm
Cold start time: 29s [immediate]
Hot start time: 28s [immediate]
Hot start time: 1s [immediate]
Operating temperature: -40.0 ° F to +185.0 ° F
Size: 1,634 x 1,559 x 0.209 in .
Interface electrical performance:
Wide voltage range: main power supply is + 3.0 ~ 5.5V
UART port: GPS data; I2C port: magnetic compass data [HMC5883L]
GPS data transmission rate 9600bps, I2C port ADDR: 7bit 0x1E, 8bit_read 0x3D, 8bit_write 0x3E
Package Included:
1 BDS GPS compass module
1 sticker
